  • Low Noise Amplifier 0.65dB NF 50MHz to 6GHz 16.5dB Gain 22dBm P1dB SMA

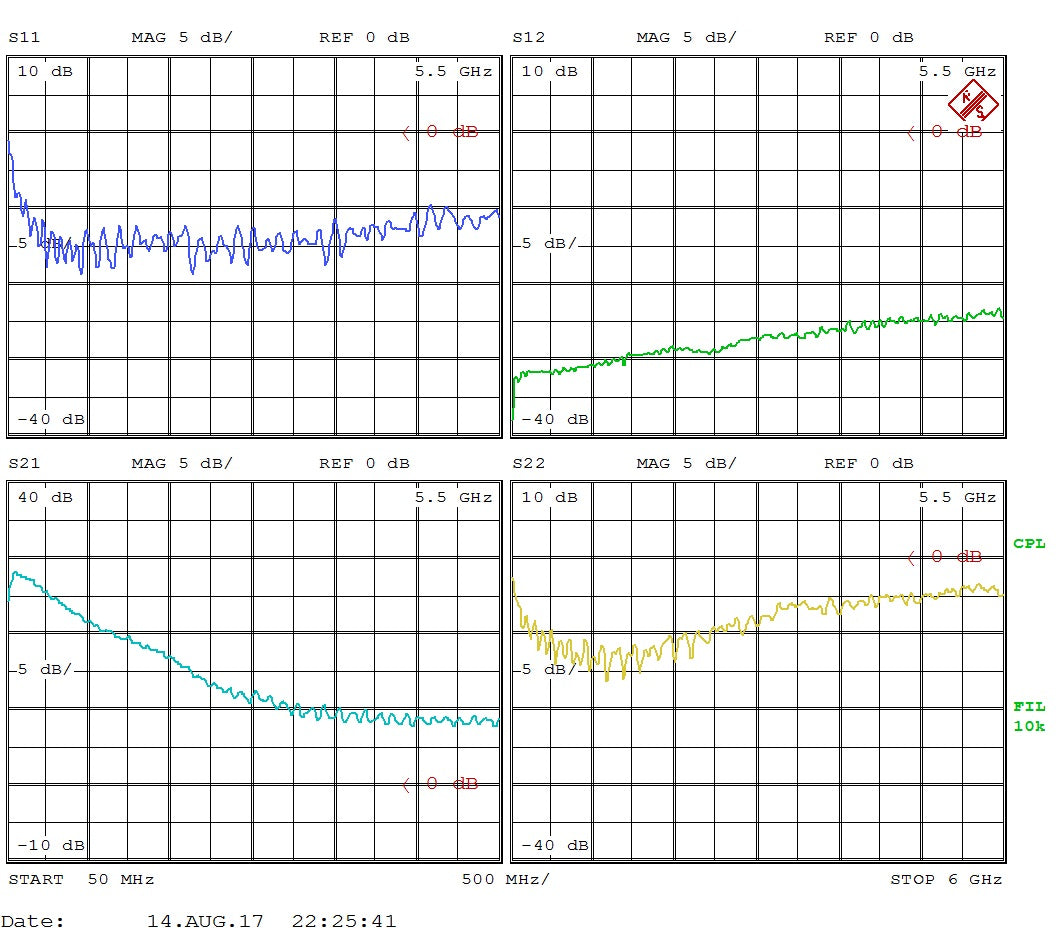

    PN#: LNA50M6G is a Ultra Low Noise Amplifier.  Listed pictures include S Parameter from 50MHz to 6GHz and Enclosure Picture.  It can be used for Software Defined Radio, Ham Radio, or other RF devices as an ultra low noise first stage amplifier.

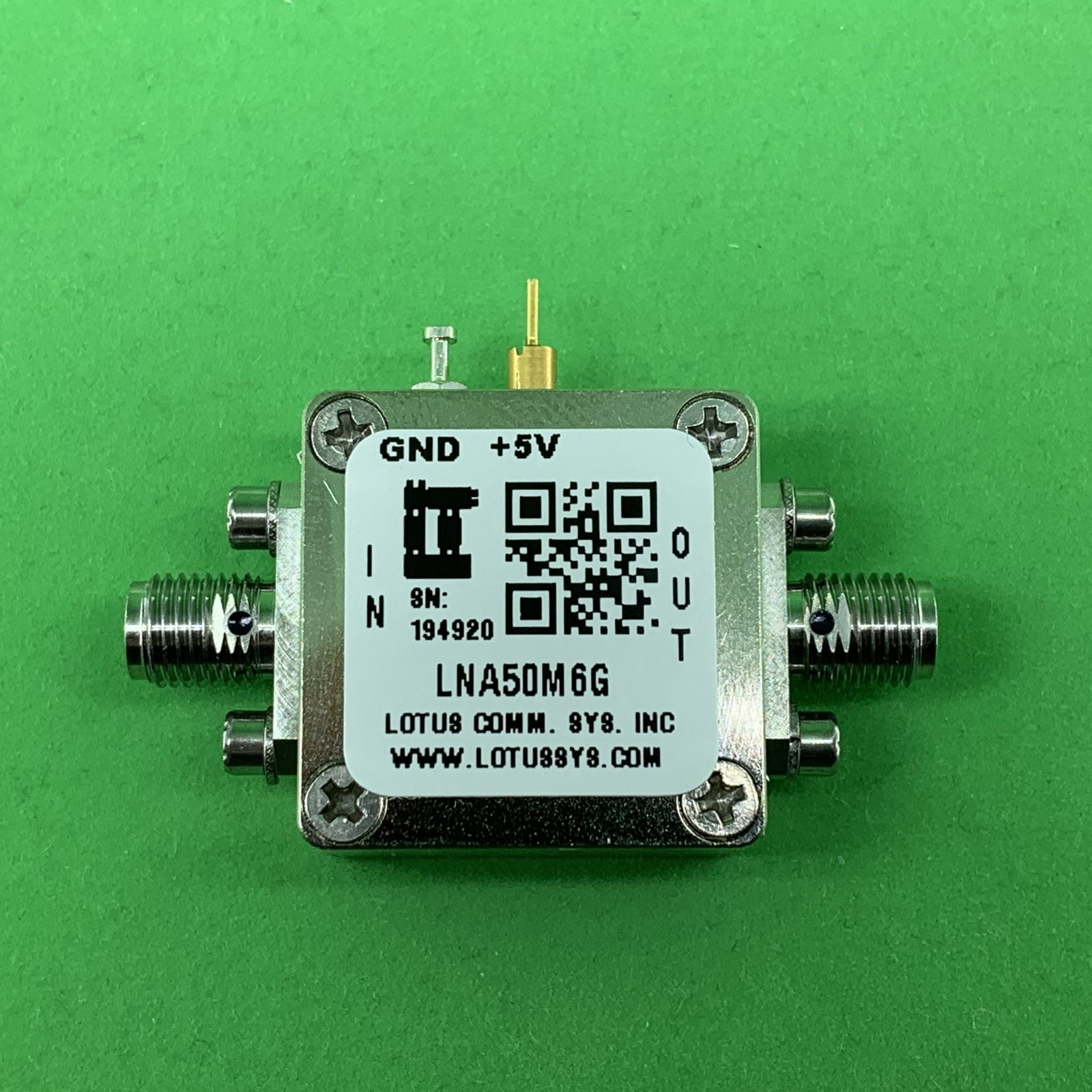

    Enclosure is using RF Design Kit 6UDD2W6H41SMAA2. The  dimension is  0.9375"x0.9375x0.48". PCB Size is 0.5625"x0.5625"x0.020" (CC).

    New 50MHz to 6.0GHz Ultra Wide Band Low Noise Amplifier. Model Number: LNA50M6G with SMA Female Connector.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-002I.

    10 items left

    Features

    • Frequency Range: 50MHz to 6.0GHz
    • Noise Figure: 0.65dB at 1.9GHz, Maximum 1.0 dB
    • Gain: 16.5 dB Gain at 1.9GHz
    • P1dB: +22.5 dBm
    • IP3: +37 dBm
    • DC Voltage: +5V
    • Operating Current: 115 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA50M6G Datasheet
