Low Noise Amplifier 0.9dB NF 50MHz to 500MHz 27dB Gain 22dBm P1dB SMA LNA50M500MH

Low Noise Amplifier 0.9dB NF 50MHz to 500MHz 27dB Gain 22dBm P1dB SMA LNA50M500MH

Low Noise Amplifier 0.9dB NF 50MHz to 500MHz 27dB Gain 22dBm P1dB SMA LNA50M500MH

Low Noise Amplifier 0.9dB NF 50MHz to 500MHz 27dB Gain 22dBm P1dB SMA LNA50M500MH

$ 118.80 USD

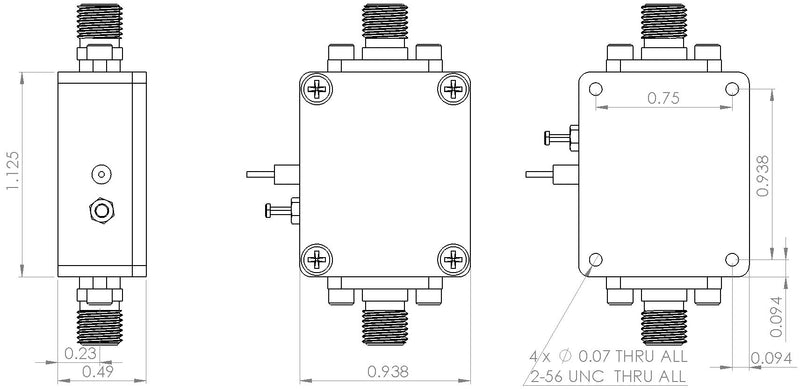

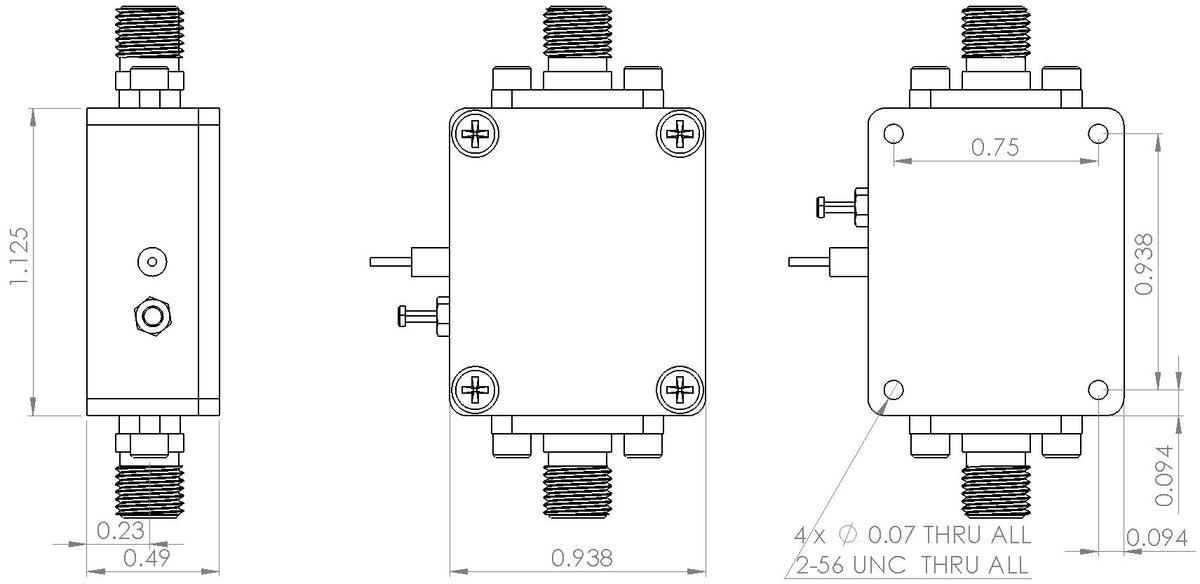

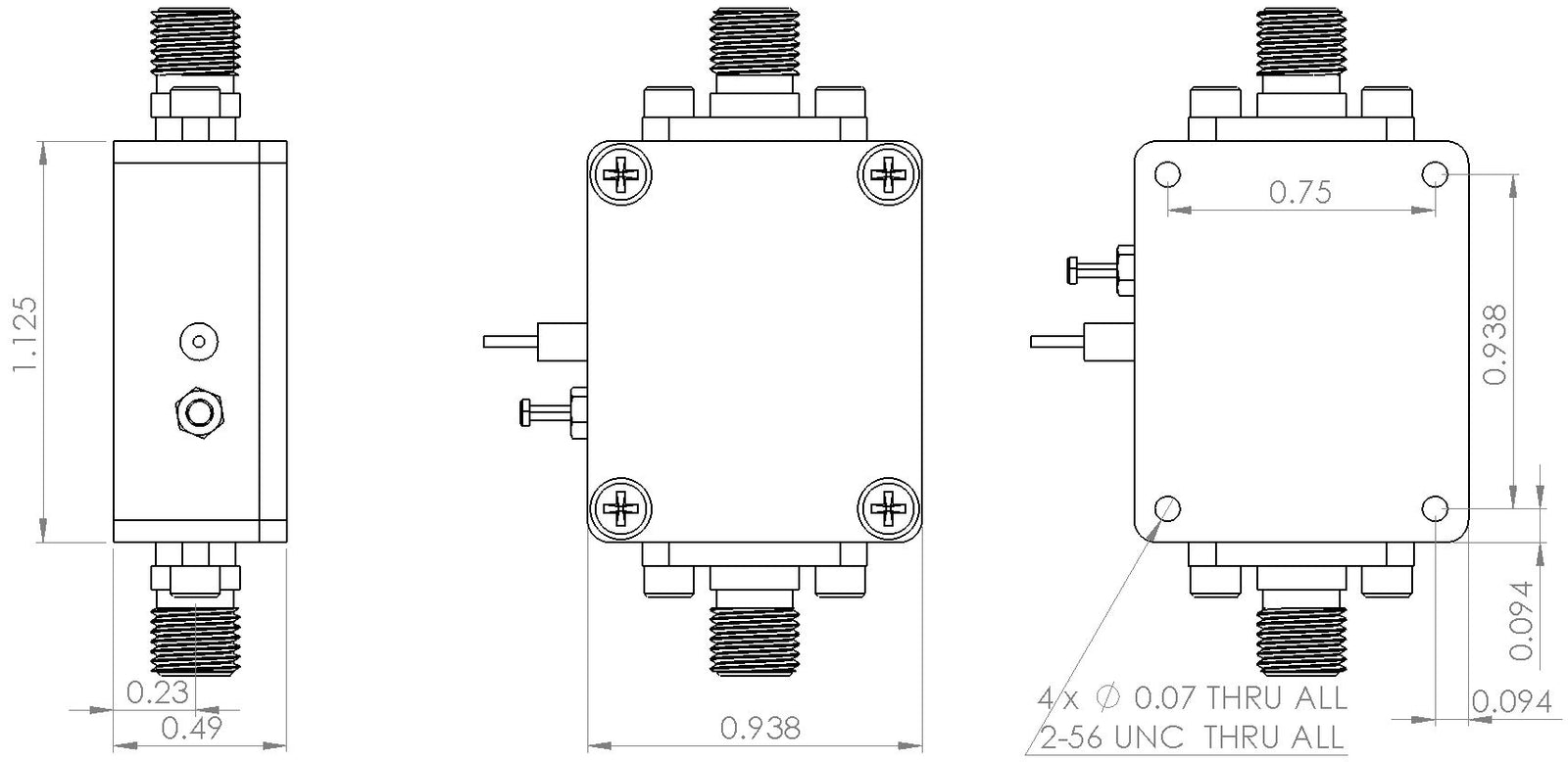

Part Number: LNA50M500MH is a cascadable, high-linearity, low noise amplifier in a small 1-1/8”x15/16”x0.48” shielded RF enclosure. At 250 MHz, the amplifier typically provides 26 dB gain, +39.5 dBm OIP3 at a 125 mA bias setting, and 0.9 dB noise figure. The LNA can be biased from a single supply +5V.

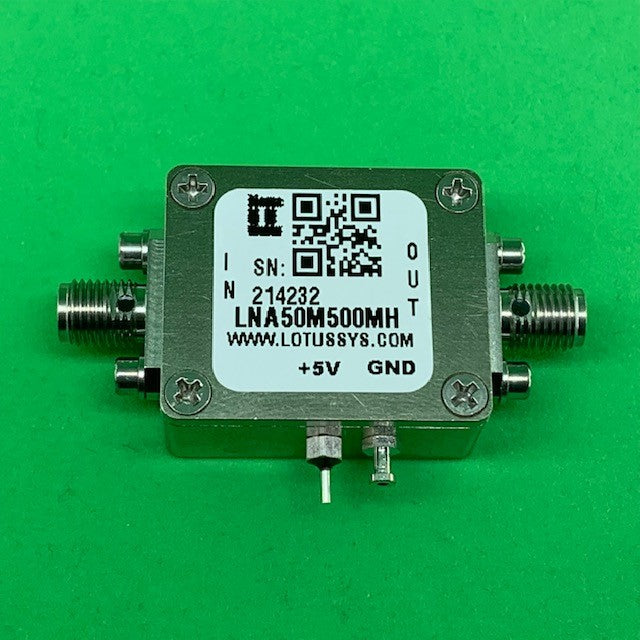

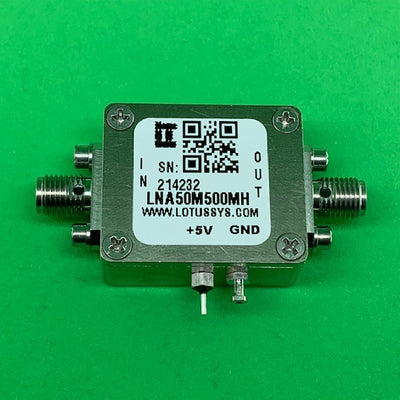

Listed pictures include Product Picture and S Parameter from 50M to 500MHz. SKU#: QT16-001F.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Low Noise Amplifier

Features

Frequency Range: 50 MHz to 500 MHz
Noise Figure: typical 0.9 dB @ 250MHz
Gain: 26 dB Gain at 250MHz
Output P1dB: +22 dBm CW
Output IP3: +39.5 dBm
DC Voltage: +5V
Operating Current: 125 mA
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Repeaters/DAS
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LNA50M500MH Datasheet

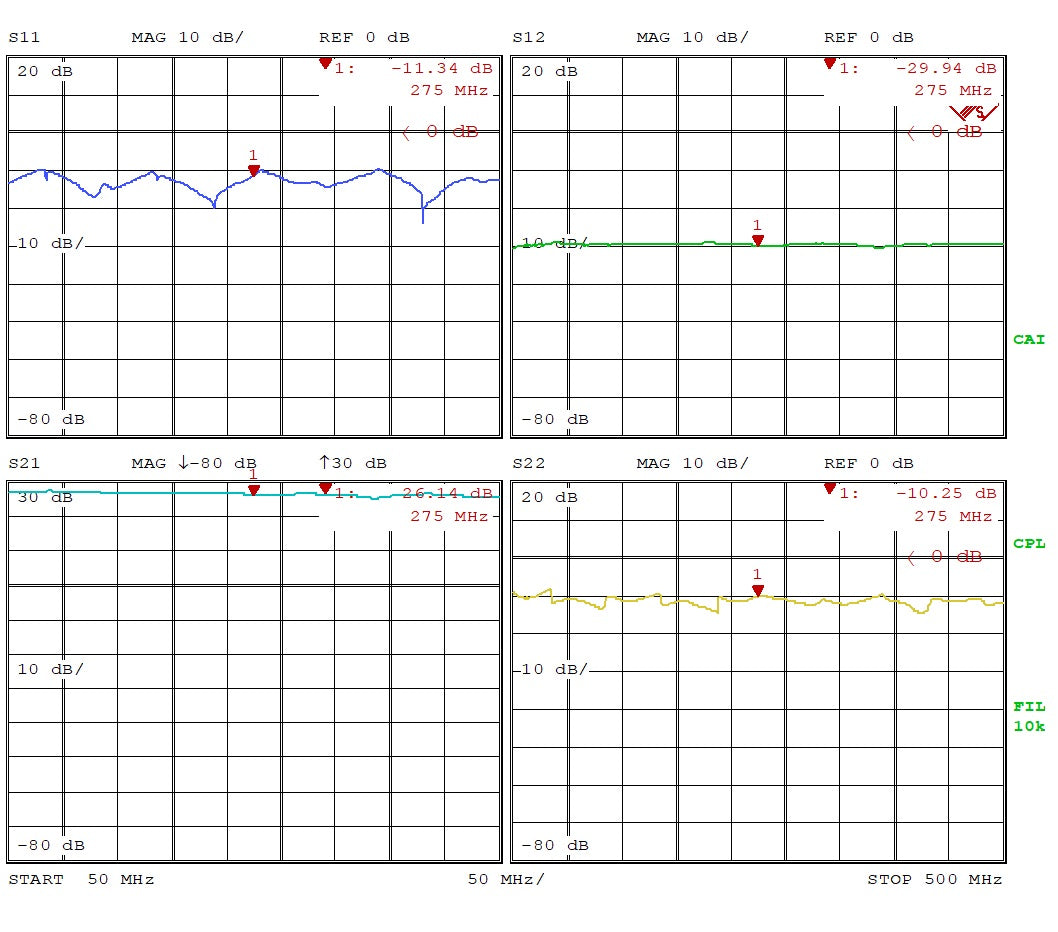

S PARAMETERS
