AK20_002D

Broadband Low Noise Amplifier 0.8dB NF 50MHz to 4GHz 18dB Gain with LDO

2 items left

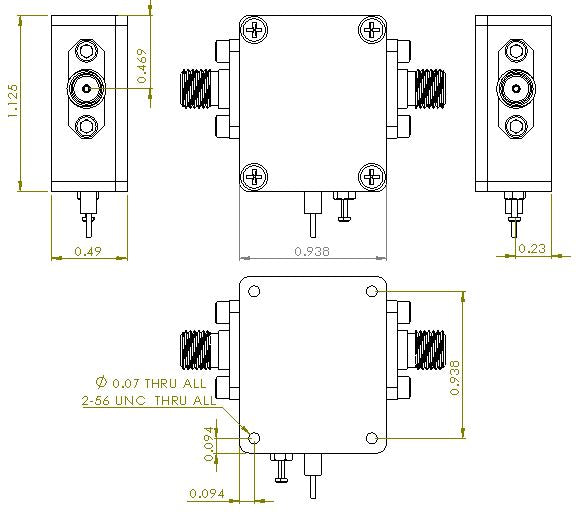

LNA50M4GR is a high-linearity, low noise amplifier designed for operation from 50MHz to 4GHz in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It itegrates Low Dropout Regulator (LDO) for wide voltage operation range (+6~15V). At 900 MHz, the amplifier typically provides 18 dB gain, +33 dBm OIP3 at a 45 mA bias setting, and 0.8 dB noise figure.

Features:
    * Frequency Range: 50 MHz to 4 GHz;
    * Noise Figure: 0.8 dB @ 900 MHz, typical <1dB
    * Gain: 18 dB Gain at 900MGHz
    * Output P1dB: +22 dBm CW
    * Output IP3: +33 dBm
    * DC Voltage: +6 to +15V
    * Operating Current: 45 mA
    * Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Repeaters/DAS
    * Mobile Infrastructure
    * LTE/WCDMA/CDMA/GSM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

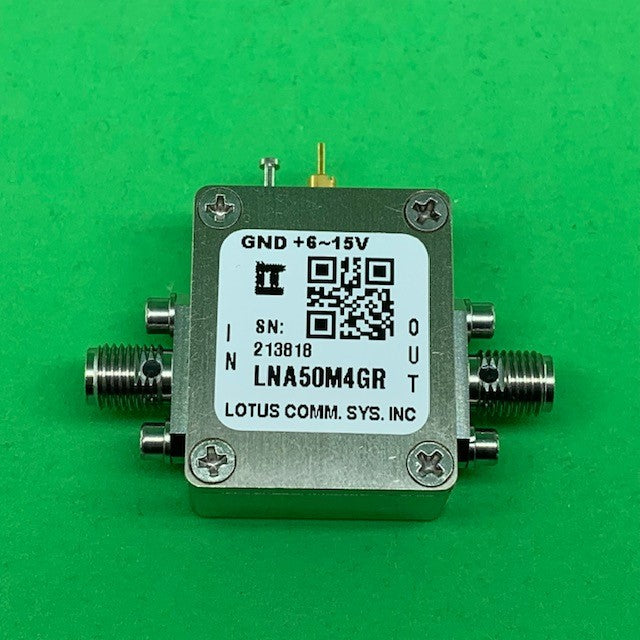

This LNA includes the RF Enclosure as shown in picture.  The last two pictures show detailed PDF specification for this LNA from Lotus.

This LNA includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA50M4GR.pdf to see detailed specification.

Proudly MADE IN USA.
