Amplifier LNA 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

Amplifier LNA 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

Amplifier LNA 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

Amplifier LNA 0.8dB NF 50M~4GHz 36dB Gain 22dBm P1dB SMA - 2 Stage High Gain

$ 197.95 USD

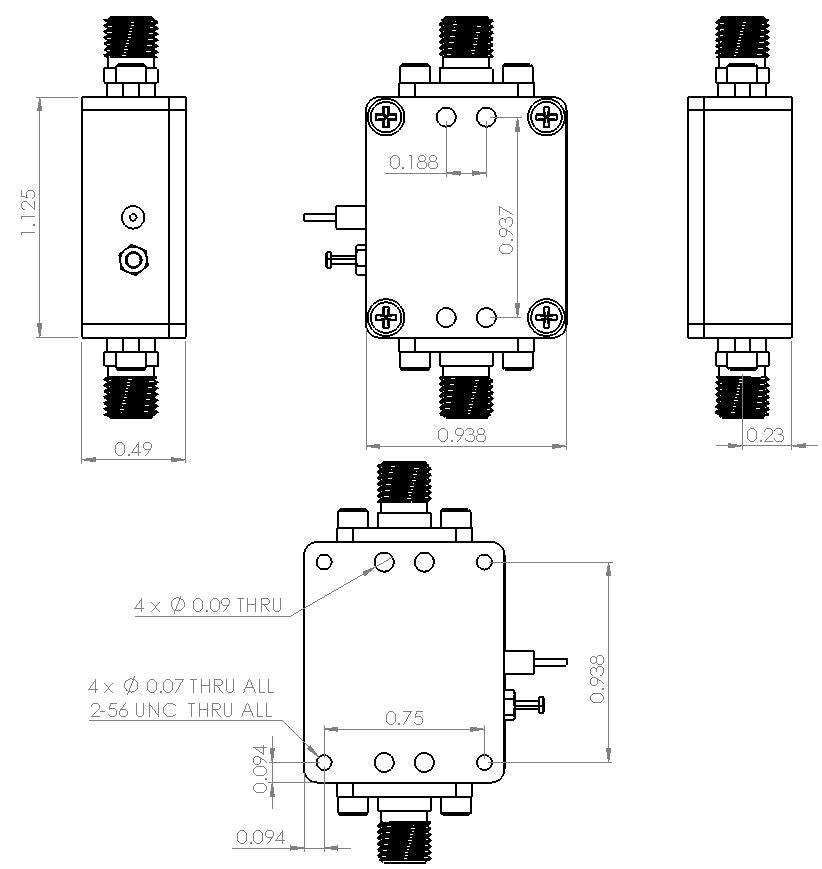

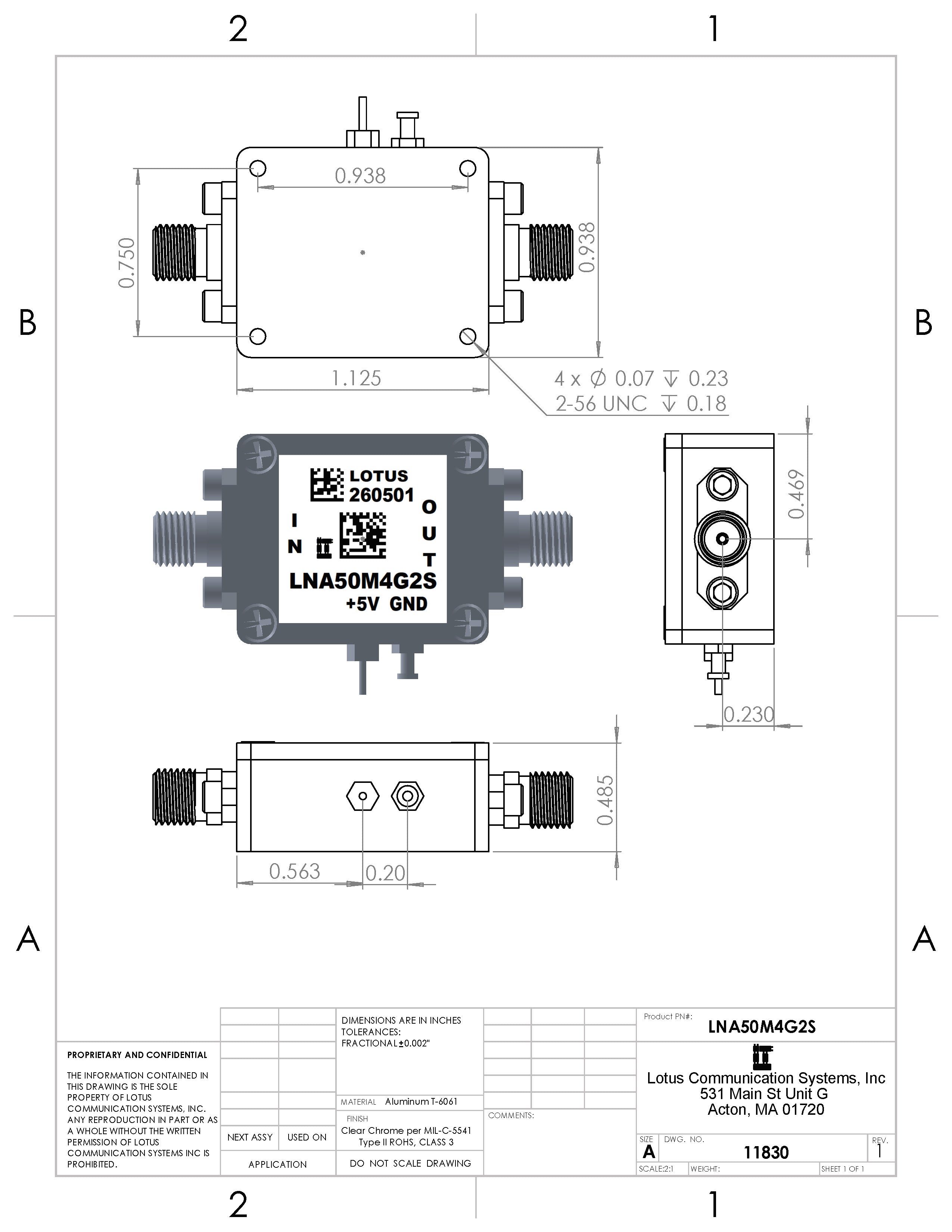

LNA50M4G2S is a high-linearity, two stage low noise amplifier designed for operation from 50MHz to 4GHz in a small 1-1/8”x15/16”x0.38” shielded RF enclosure. At 900 MHz, the amplifier typically provides 36 dB gain, +33 dBm OIP3 at a 92 mA bias setting, and 0.8 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

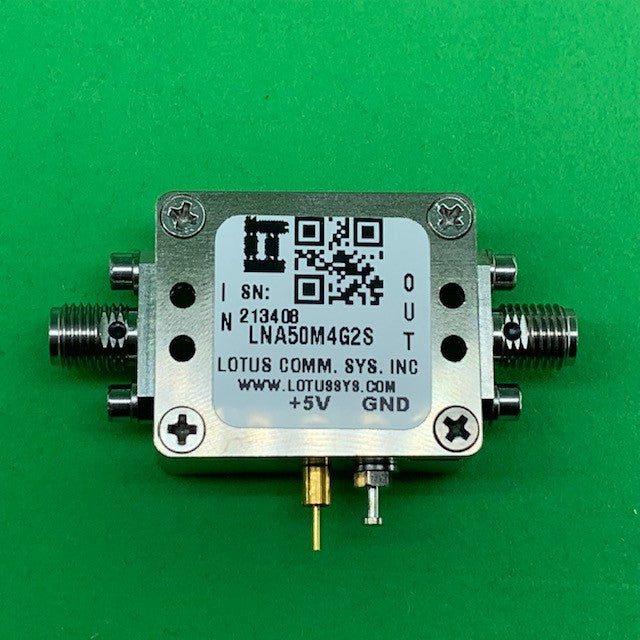

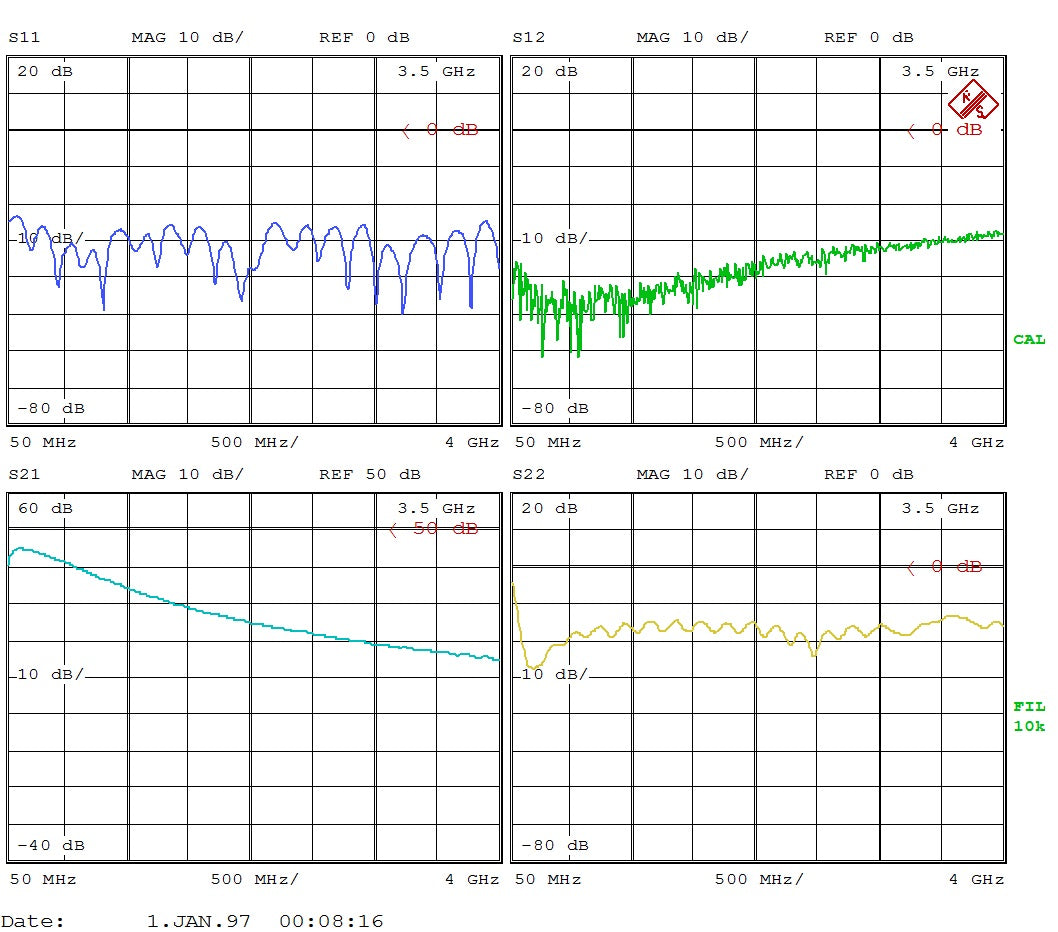

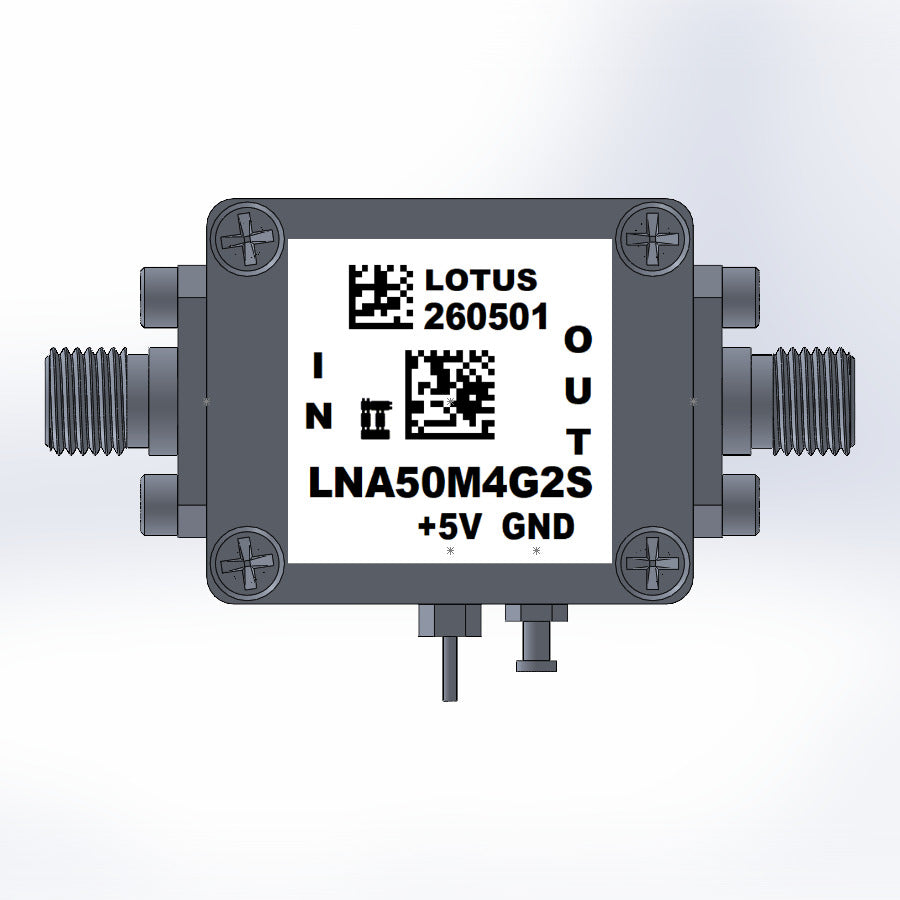

Listed pictures include Product Picture and S Parameter from 50MHz to 4GHz. This LNA includes the RF Enclosure as shown in picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-001S.

Collections: Low Noise Amplifier

Features

Frequency Range: 50 MHz to 4 GHz
Noise Figure: 0.8 dB @ 900 MHz, typical <1dB
Gain: 36 dB Gain at 900MGHz
Output P1dB: +22 dBm CW
Output IP3: +33 dBm
DC Voltage: +3 to +5V
Operating Current: 92 mA
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Repeaters/DAS
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources (PDF Datasheet)

LNA50M4G2S Datasheet
