  • GPS/GNSS Low Noise Amplifier 0.6dB NF 1.1G-1.7GHz 29dB Gain 20dBm P1dB SMA

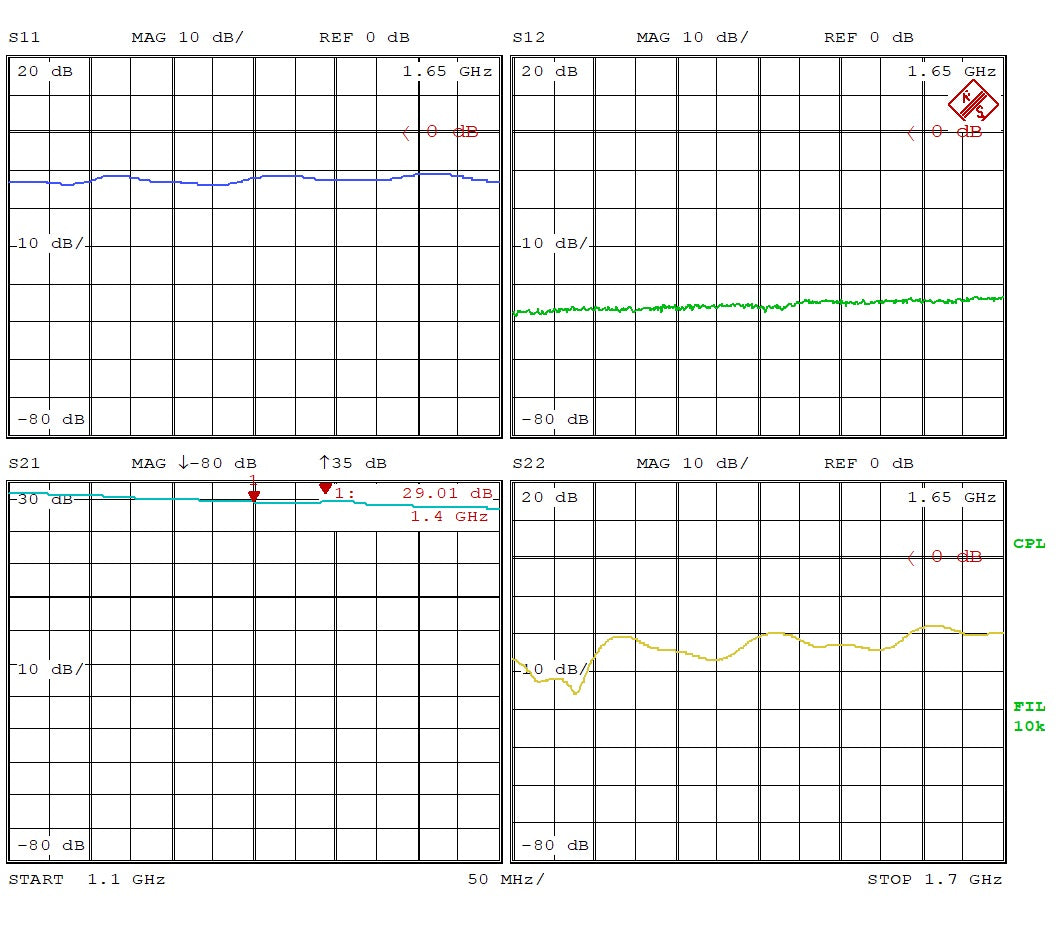

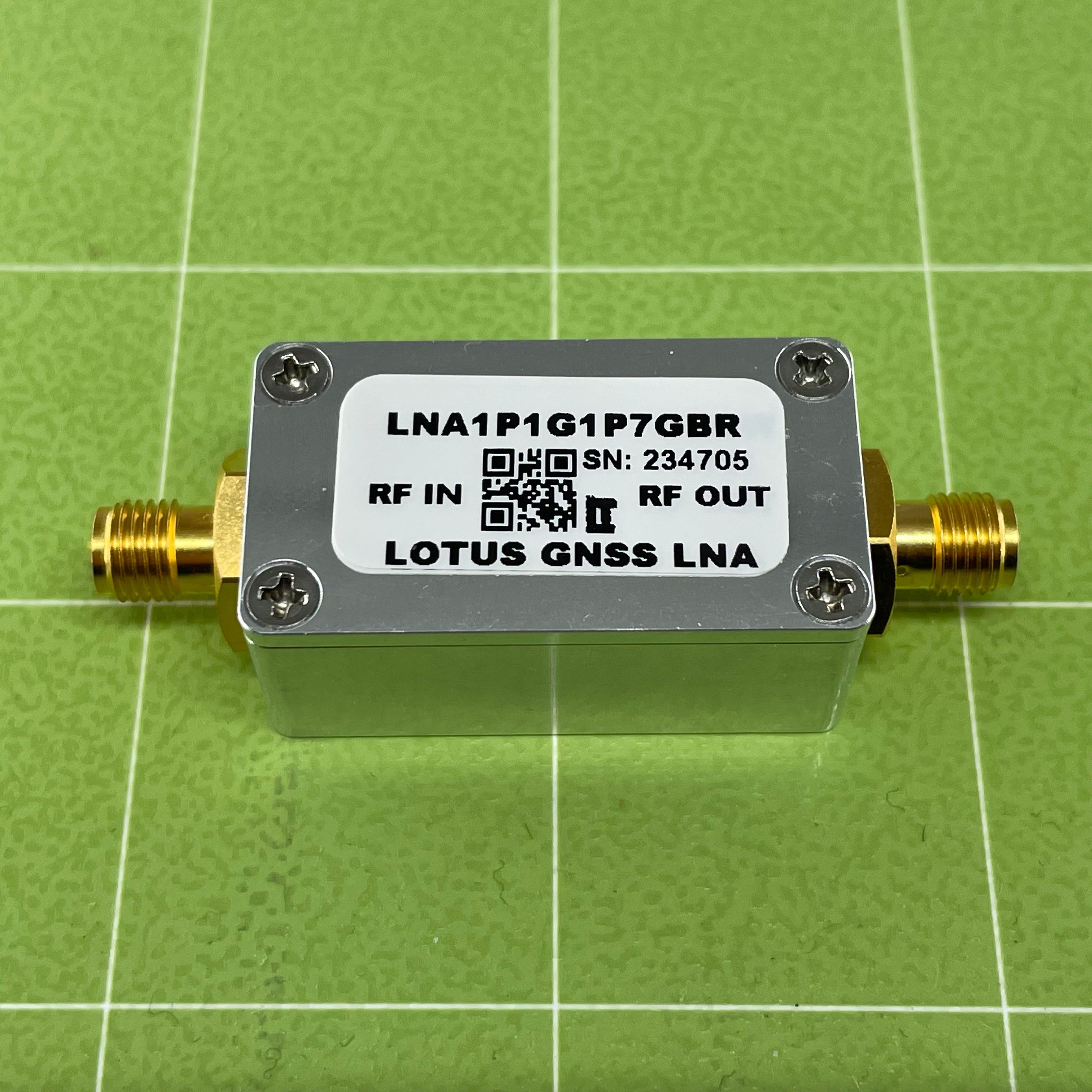

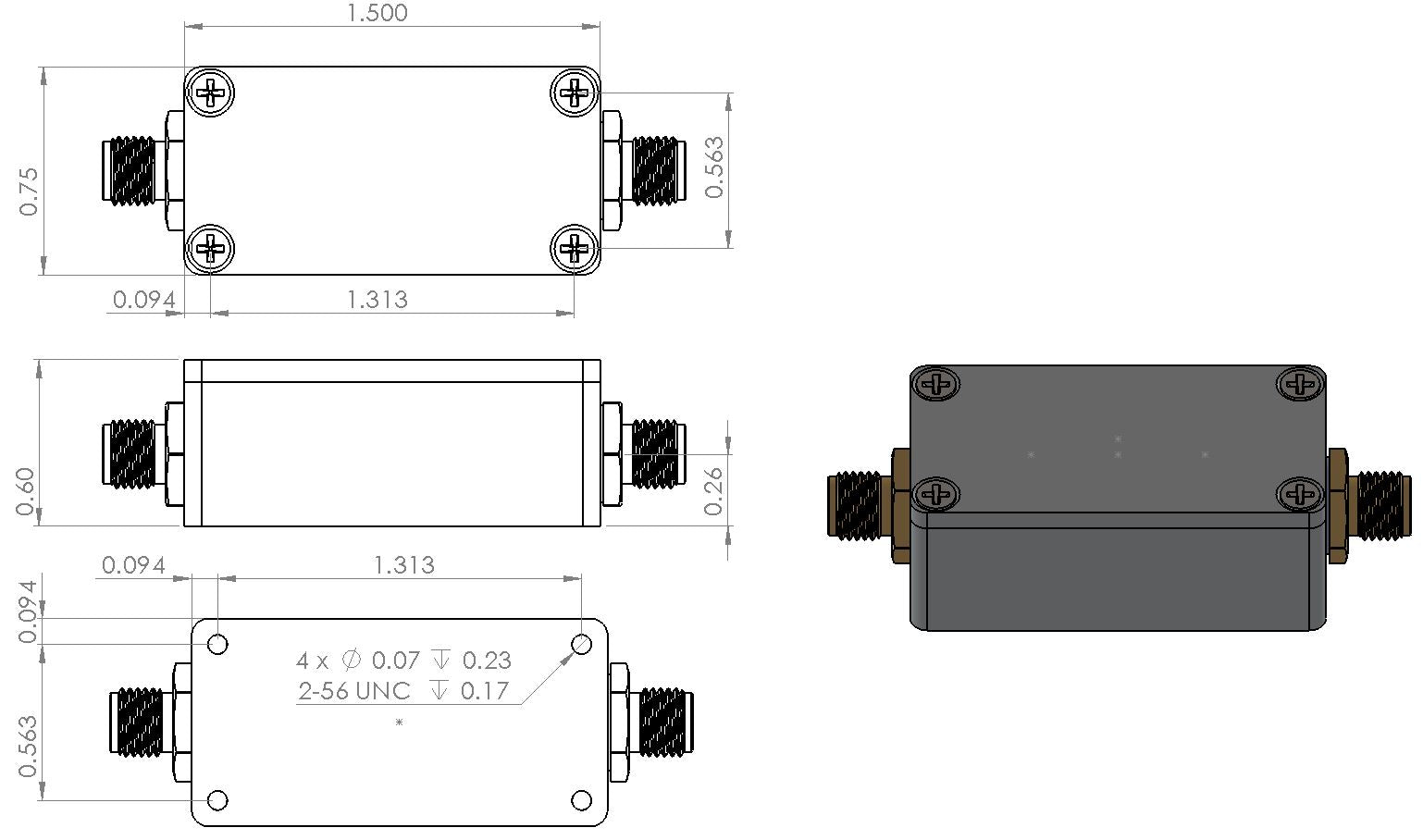

    Part Number: LNA1P1G1P7GBR is a high-linearity, high gain, ultra low current (34mA) and ultra low noise (0.6dB NF) amplifier in a ultra small 1.5"x0.75"x0.595" shielded RF enclosure. The LNA provides a +/-1.5 dB flat gain from 1.2 to 1.6 GHz (GNSS L-Band). At 1.4 GHz, the amplifier typically provides 29 dB gain, +23.4 dBm OIP3, and 0.6 dB noise figure. The LNA can be biased from a single supply +5~+12V from output port. Listed pictures include Product Picture and S Parameter from 1.1G to 1.7GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-005J.

    Features

    • Frequency Range: 1.1 to 1.7 GHz
    • Noise Figure: 0.6 dB @ 1.4 GHz
    • High Gain: 29 dB Gain at 1.4 GHz
    • Output P1dB: +19.8 dBm CW
    • Ultra Low Current: 34mA
    • +23.4 dBm OIP3
    • +5~+12 VDC, Biasing through output connector
    • High Quality Rogers RO4003 RF PCB(very low loss and high thermal performance)
    • ROHS Compliant
    • Female SMA Connectors for RF Input and RF Output

    Applications

    • GPS/GNSS
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA1P1G1P7GBR Datasheet
