Low Noise Amplifier 1.8dB NF 10GHz to 22GHz 21dB Gain 10dBm P1dB SMA

Low Noise Amplifier 1.8dB NF 10GHz to 22GHz 21dB Gain 10dBm P1dB SMA

Low Noise Amplifier 1.8dB NF 10GHz to 22GHz 21dB Gain 10dBm P1dB SMA

Low Noise Amplifier 1.8dB NF 10GHz to 22GHz 21dB Gain 10dBm P1dB SMA

$ 288.00 USD

Part Number: LNA10G22GHR is a flat gain, high-linearity, ultra low noise amplifier in a small 9/16”x9/16”x0.6” shielded RF enclosure. The LNA provides a +/-1dB flat gain (peak-to-peak) from 10 to 22 GHz. At 16 GHz, the amplifier typically provides 23 dB gain, +22 dBm OIP3 at a 70mA bias setting, and 1.8 dB noise figure. The LNA can be biased from a single supply +5V~15V.

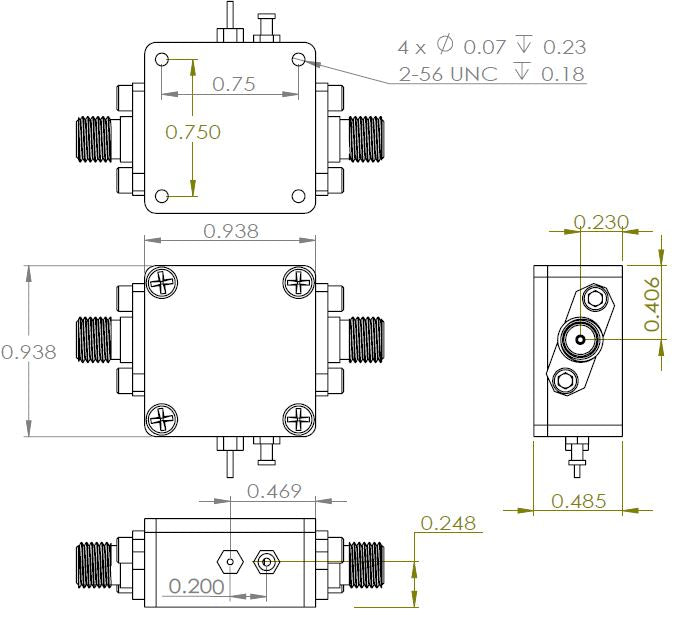

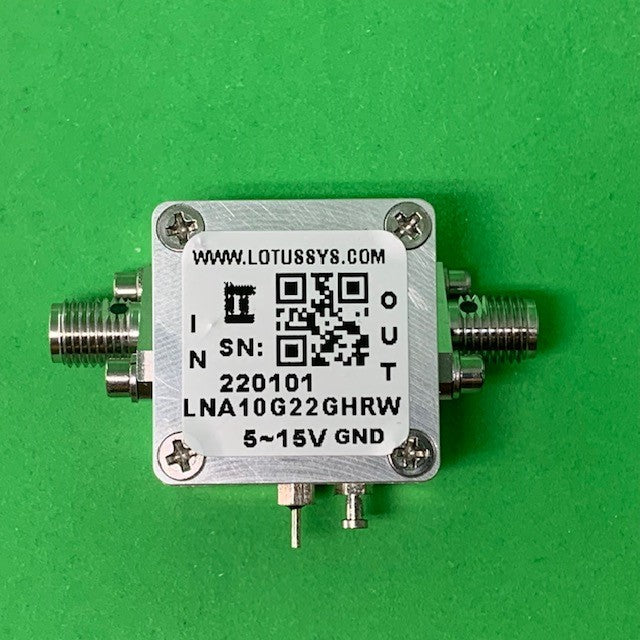

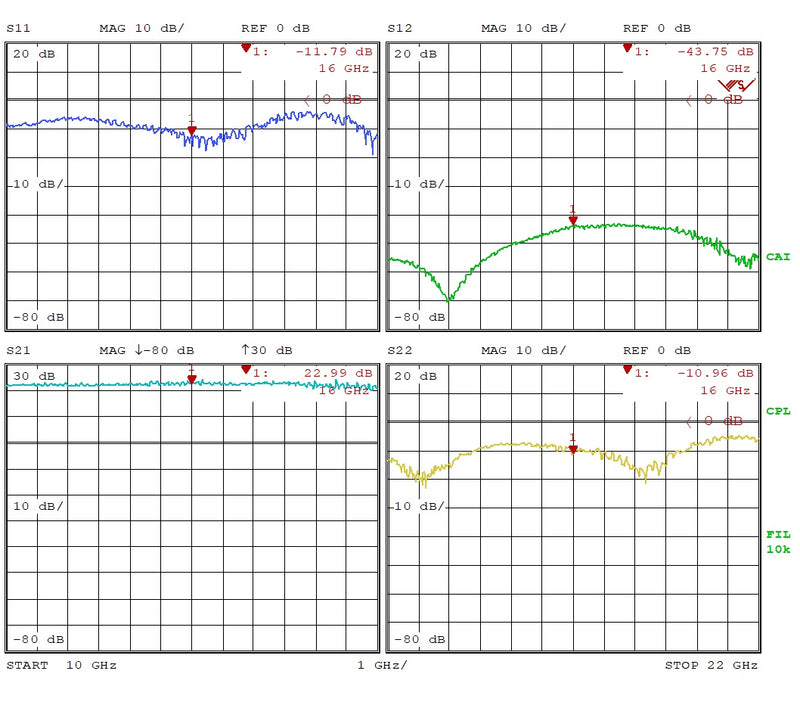

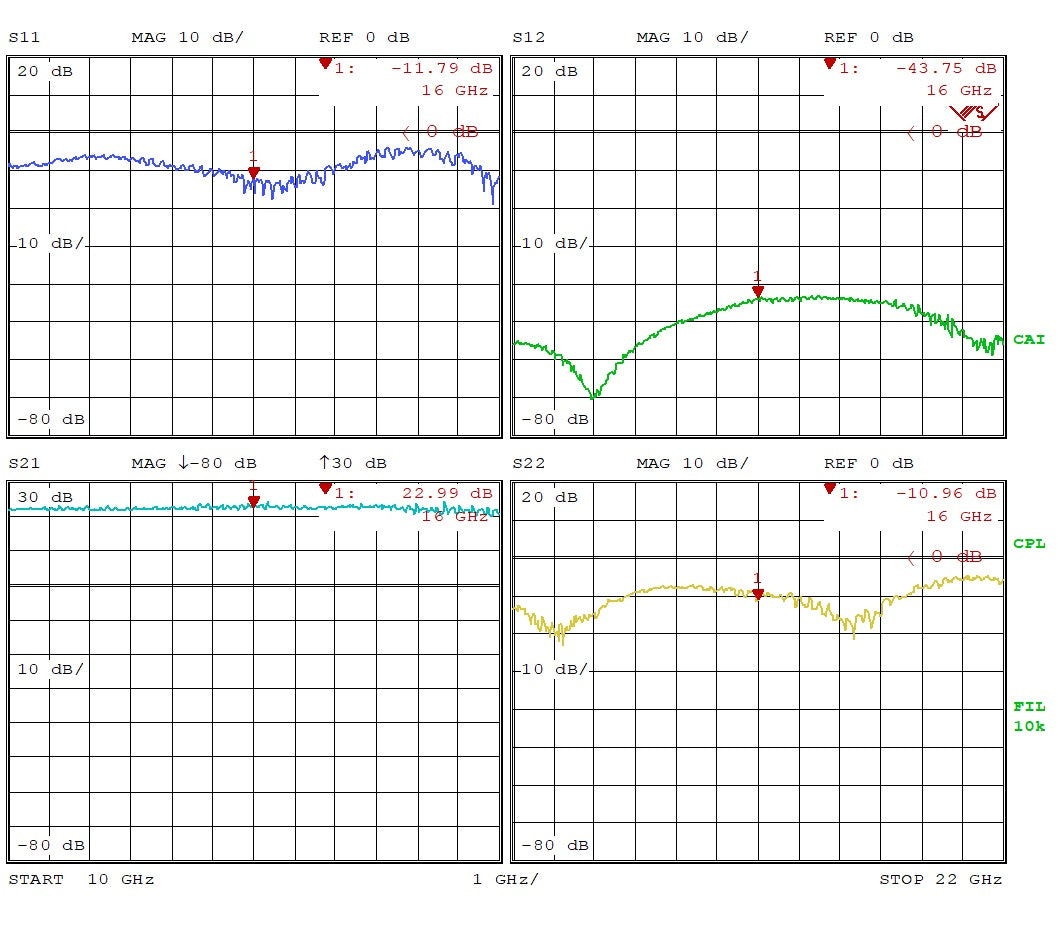

Listed pictures include Product Picture and S Parameter from 10G to 22GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-005L.

Collections: Low Noise Amplifier

Features

Frequency Range: 10 GHz to 22 GHz
Noise Figure: typical 1.8 dB @ 16 GHz
Gain: 23 dB Gain at 16 GHz
Output P1dB: +10 dBm CW
Output IP3: +22 dBm
DC Voltage: +5 to +15V
Operating Current: 70 mA
Stainless Steel SMA Female Connector
ROHS Compliant
EMI Shield & Waterproof Option Available - LNA10G22GHRW

Applications

General Purpose Wireless
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
SDR & Ham Radio
Test Instrumentation

Datasheet & S-Parameter

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LNA10G22GHR Datasheet

S-Parameter (.S2P)
