Part Number: LNA100M6GLR is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.485” shielded RF enclosure. At 1.9GHz, the LNA provides 19.5 dB gain, +39 dBm OIP3 at a 65mA bias setting, and 0.3 dB noise figure. The LNA can be biased from a single supply +6V to +15V.

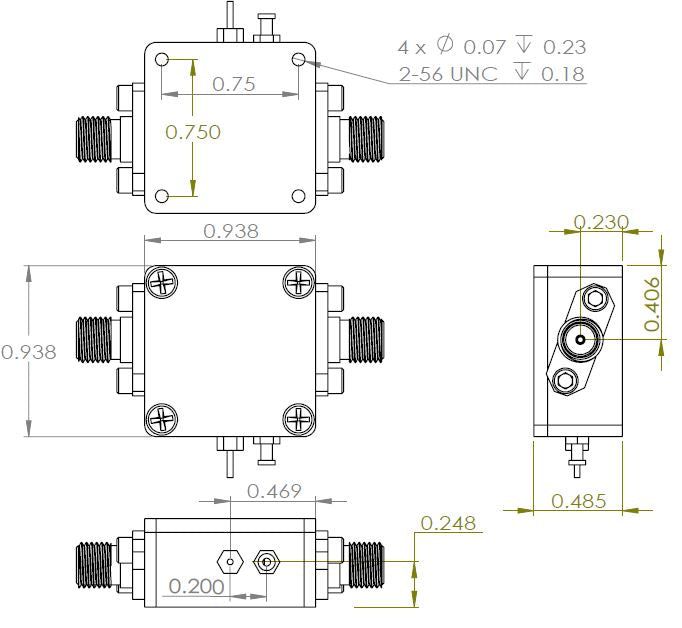

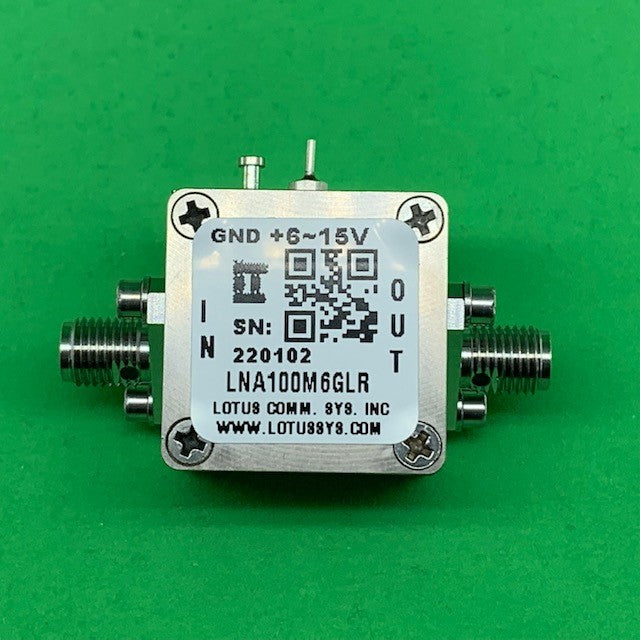

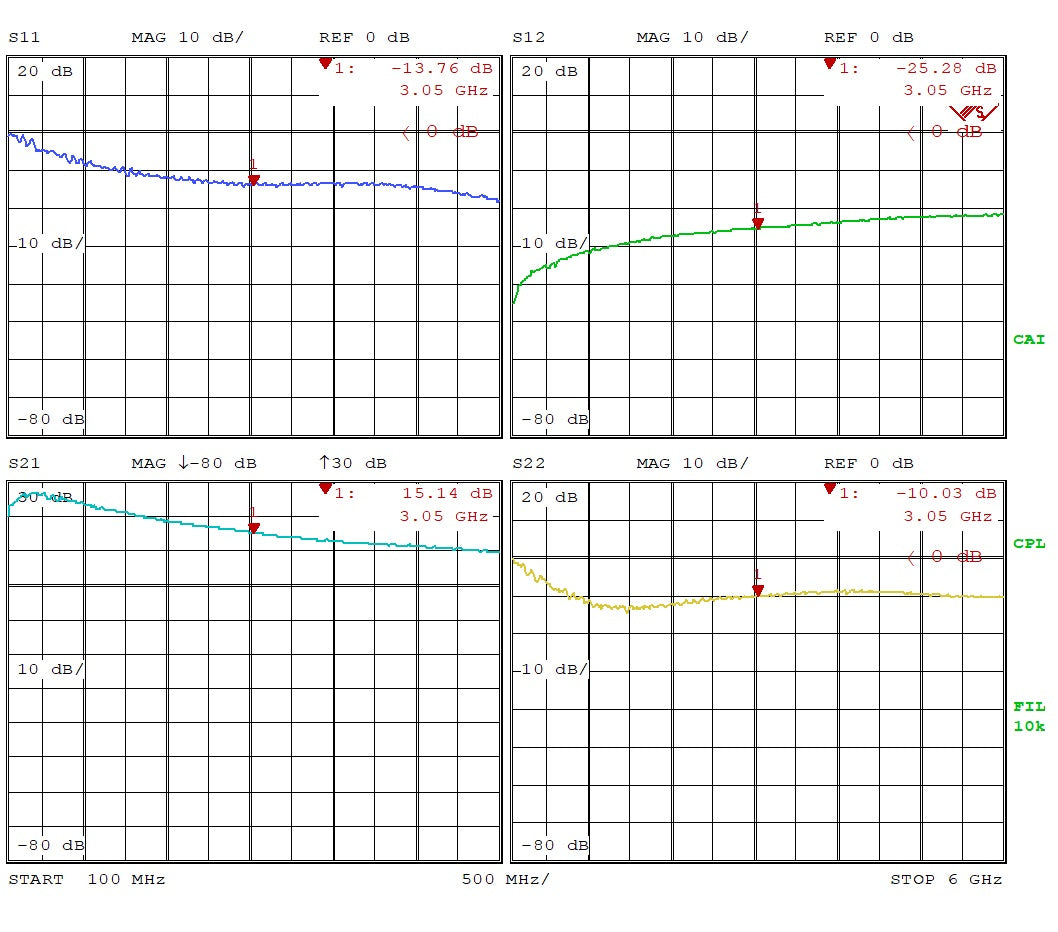

Listed pictures include Product Picture and S Parameter from 100M to 6GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-019B.

Collections: Low Noise Amplifier

Features

Frequency Range: 100 MHz to 6 GHz
Noise Figure: typical 0.3 dB @ 1.9 GHz
Gain: 19.5 dB Gain at 1.9 GHz
Output P1dB: +22 dBm CW
+39 dBm OIP3 at 65mA current
DC Voltage: +6 to +15V
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant
EMI Shield (Waterproof) Option Available (LNA100M6GLRW SKU#: AK20-019L)

Applications

General Purpose Wireless
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
SDR & Ham Radio
Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LNA100M6GLR Datasheet
