  • Broadband Ultra Low Noise Amplifier with LDO 0.45dB NF 100M~2GHz 20dB Gain SMA

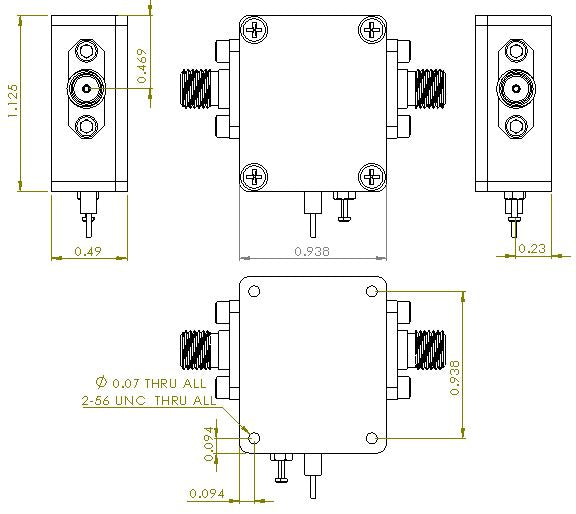

    Part Number: LNA100M2GR is a high-linearity, ultra low noise amplifier in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It has integrated LDO Linear Regulator with industrial leading low noise (11µv rms). At 900 MHz, the amplifier typically provides 20 dB gain, +36 dBm OIP3 at a 68 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +5V to +15V.  It can be powered by wide categories of power supplies (e.g., USB, Car Battery etc.).

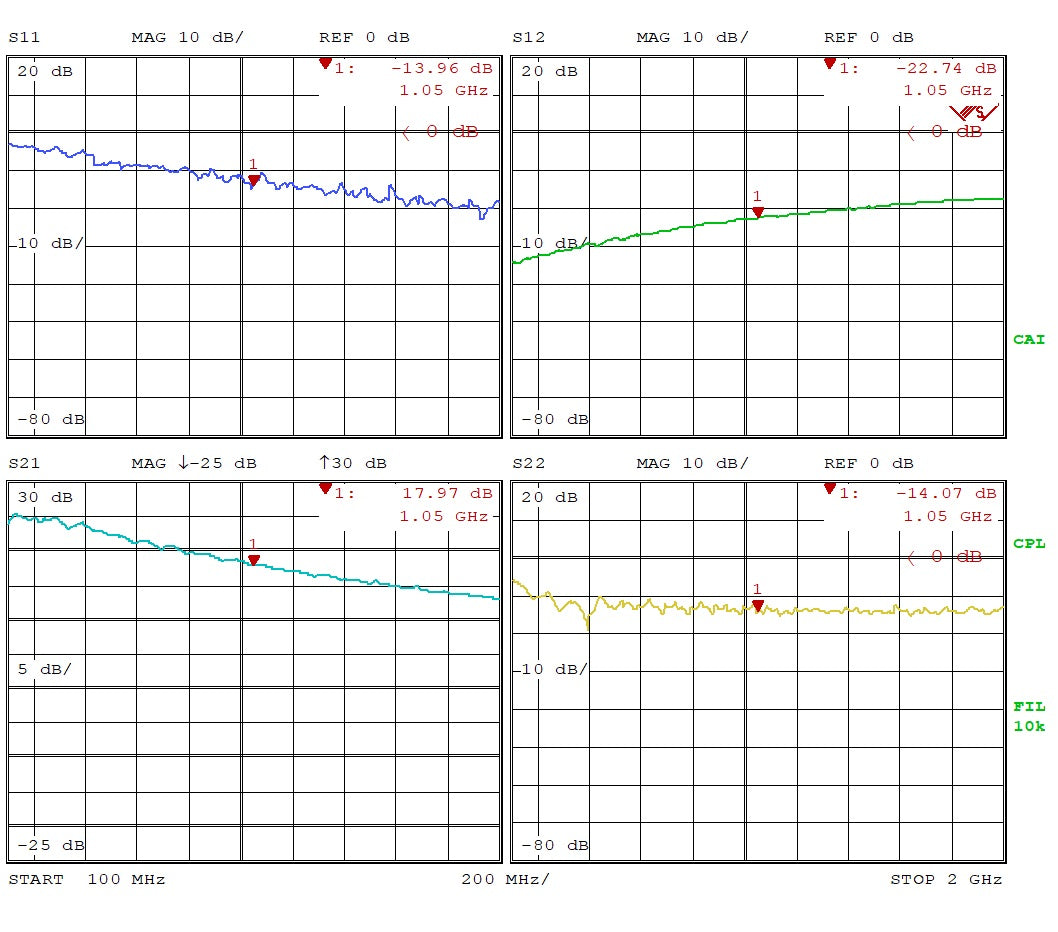

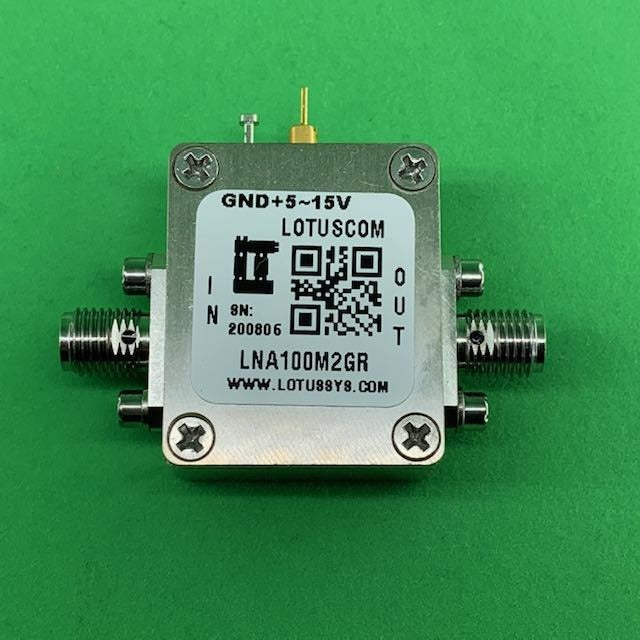

    Listed pictures include Product Picture and S Parameter from 100M to 2GHz. SKU#: AK20-002Q.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    6 items left

    Features

    • Frequency Range: 100 MHz to 2 GHz;
    • Noise Figure: typical 0.45 dB @ 900MHz
    • Gain: 20 dB Gain at 900 MHz
    • Output P1dB: +22 dBm CW
    • Output IP3: +36 dBm
    • DC Voltage: +5 to +15V
    • Operating Current: 46 mA
    • Stainless Steel SMA Female Connector
    • High Quality RO4350 RF PCB (very low loss and high thermal performance)
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA100M2GR Datasheet
