  • Low Noise Amplifier 0.45dB NF 100M~2GHz 40dB Gain 20dBm P1dB SMA - 2 Stage High Gain

    Part Number: LNA100M2G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 900 MHz, the amplifier typically provides 40 dB gain, +36 dBm OIP3 at a 135 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

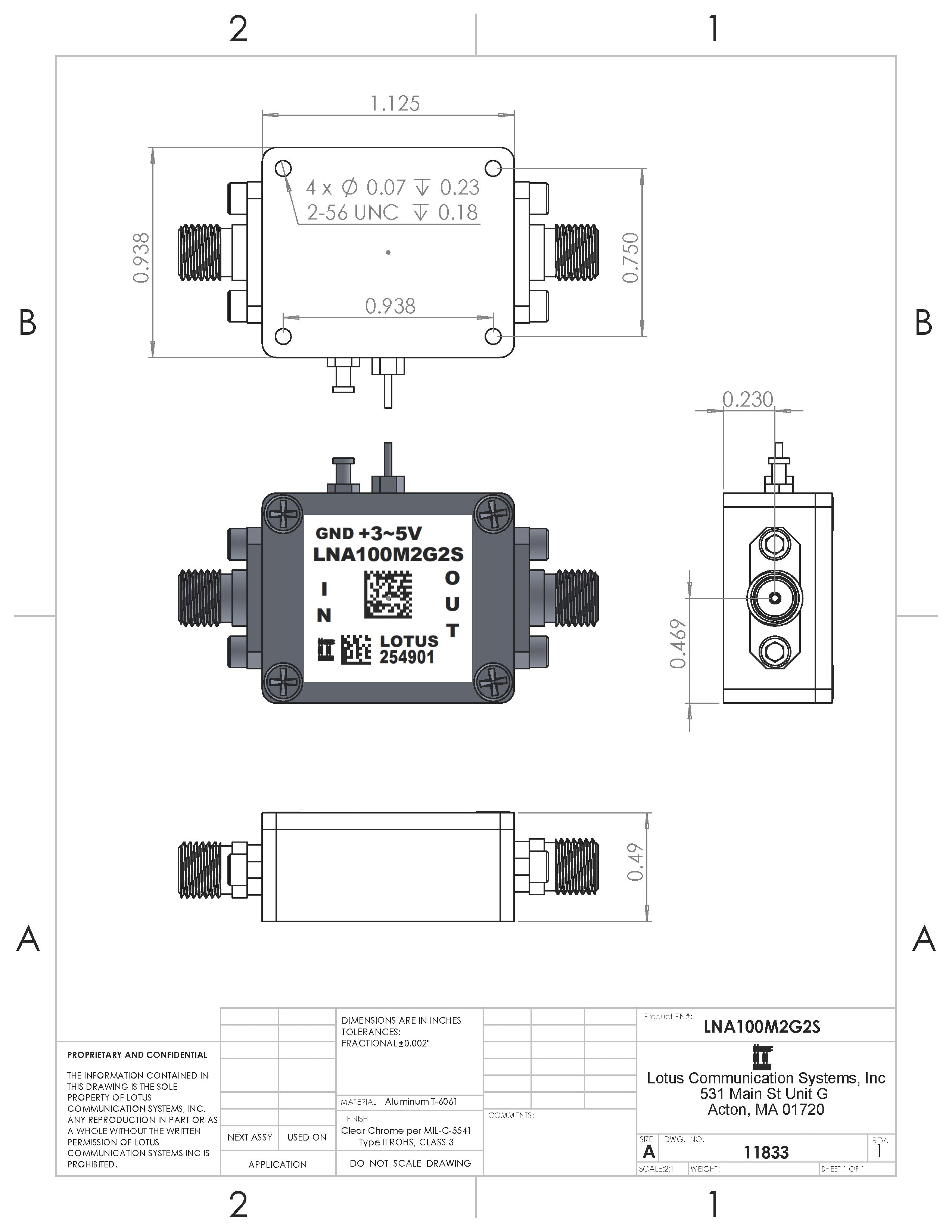

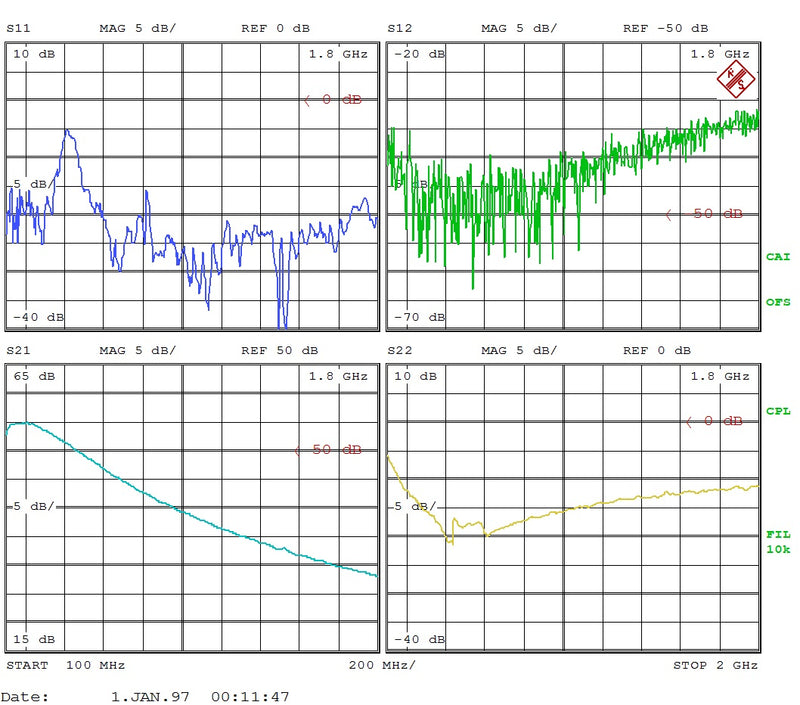

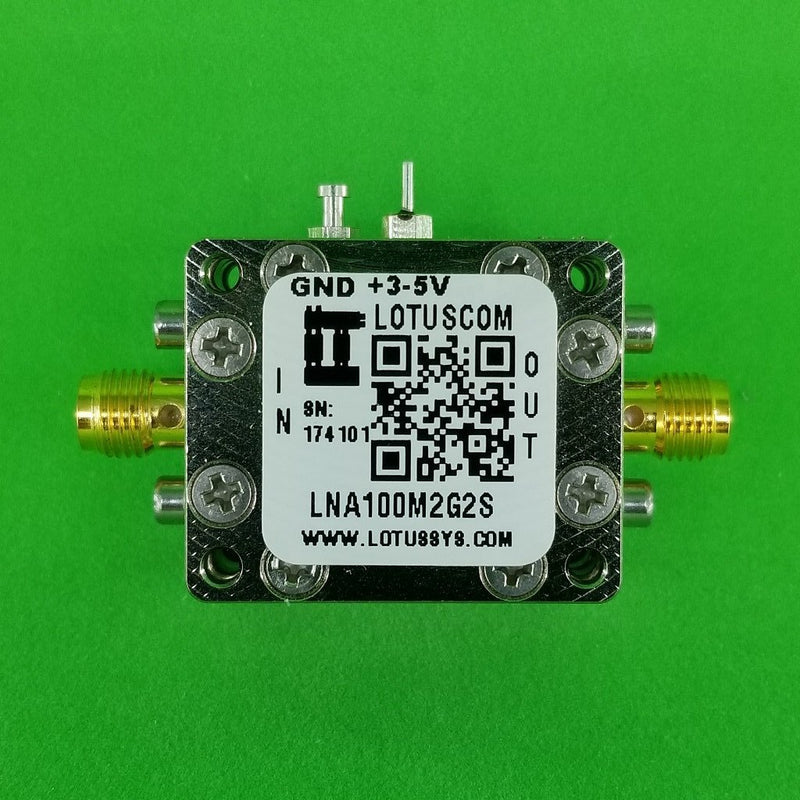

    Listed pictures include Product Picture and S Parameter from 100M to 2GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-001S.

    EMI Shield
    27 items left

    Features

    • Frequency Range: 100 MHz to 2 GHz;
    • Noise Figure: typical 0.45 dB @ 900MHz
    • Gain: 40 dB Gain at 900 MHz
    • Output P1dB: +22 dBm CW
    • Output IP3: +36 dBm
    • DC Voltage: +3 to +5V
    • Operating Current: 135 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA100M2G2S Datasheet
