  • Broadband Low Noise Amplifier 0.8dB NF 50MHz to 4GHz 18dB Gain 22dBm P1dB SMA

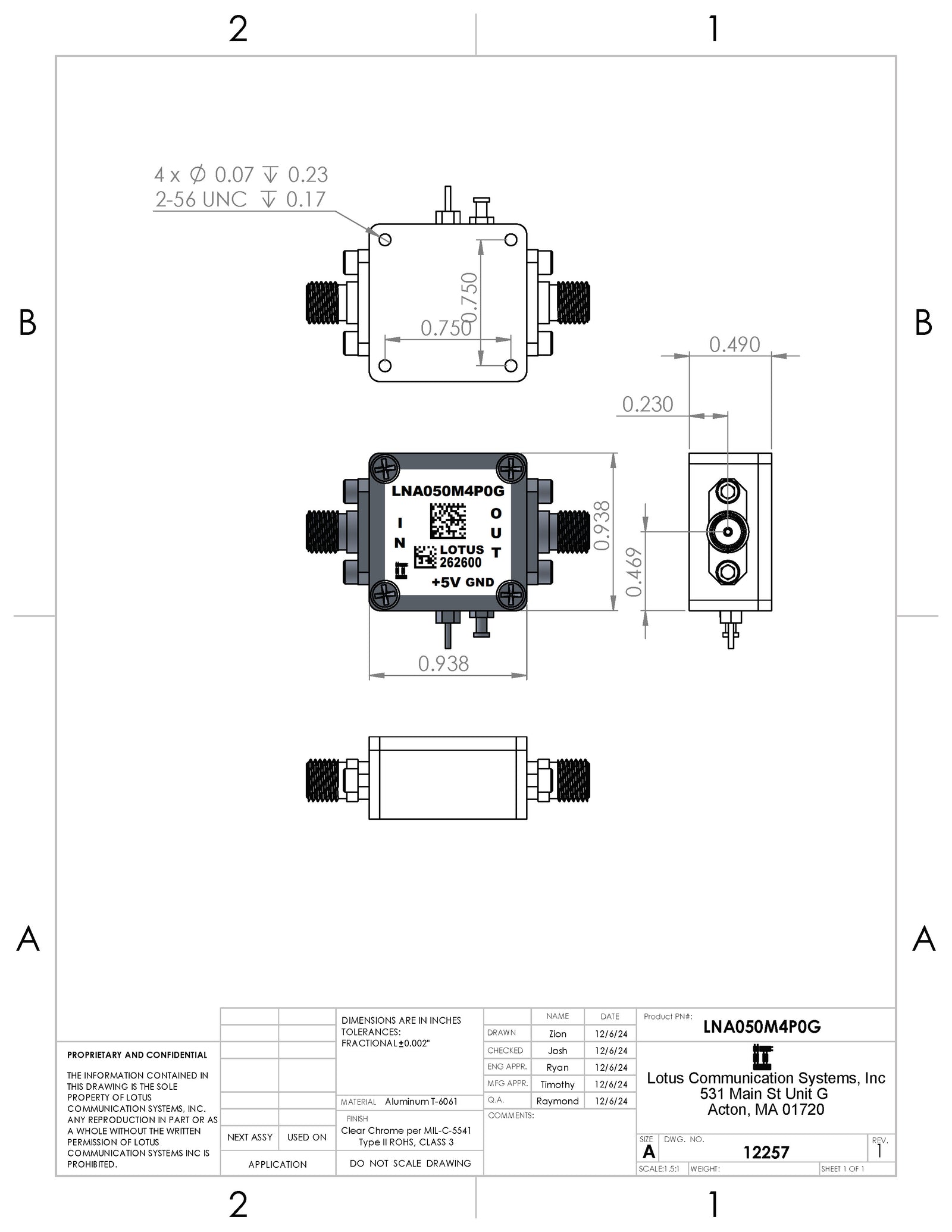

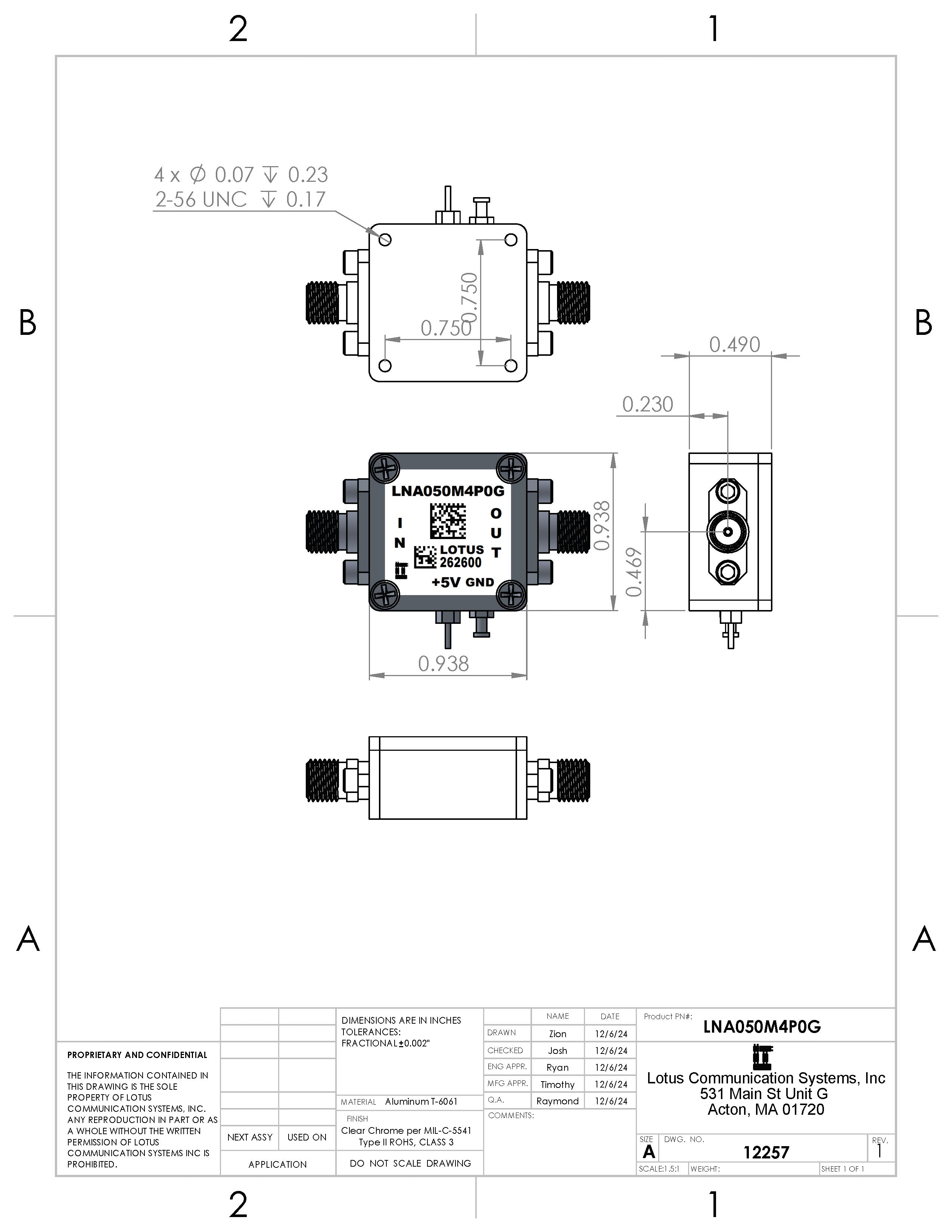

    Part Number: LNA050M4P0G is a high-linearity, low noise amplifier designed for operation from 50MHz to 4GHz in a small 15/16”x15/16”x0.48” shielded RF enclosure. At 900 MHz, the amplifier typically provides 18 dB gain, +33 dBm OIP3 at a 54 mA bias setting, and 0.8 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

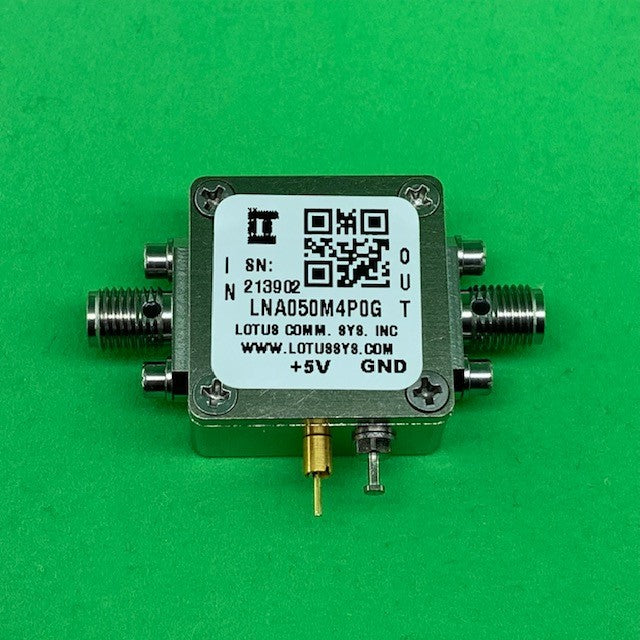

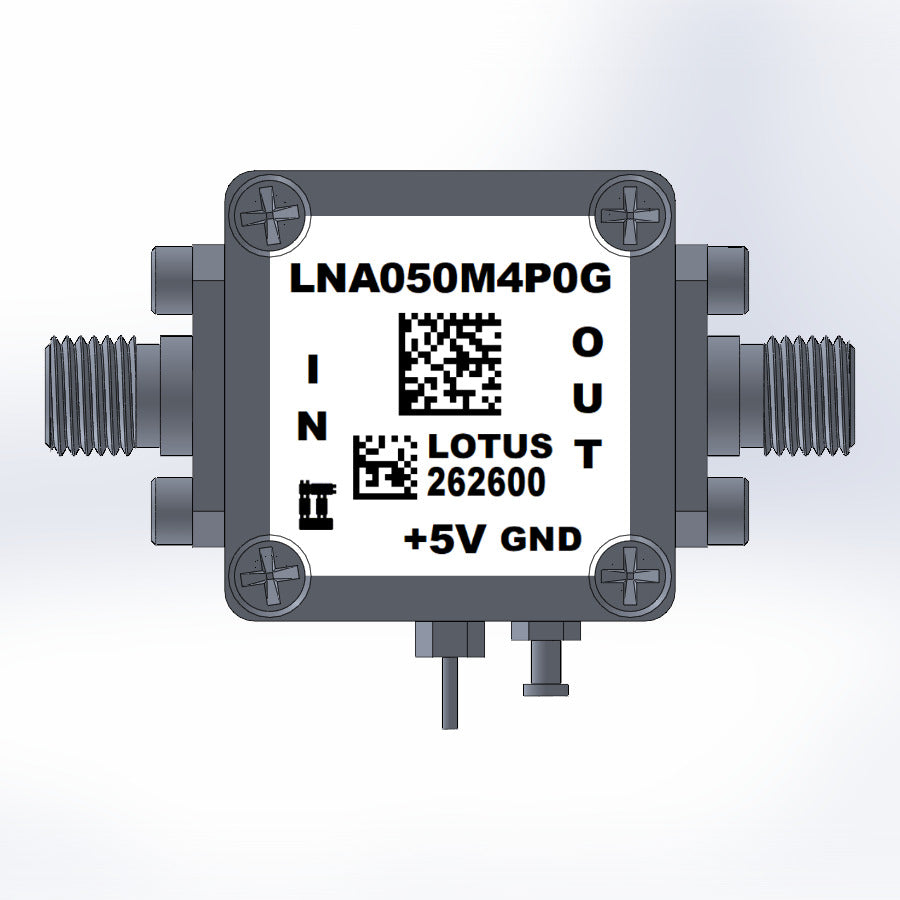

    Listed pictures include Product Picture and S Parameter from 50MHz to 4GHz. SKU#: AK20-005P.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    90 items left

    Features

    • Frequency Range: 50 MHz to 4 GHz
    • Noise Figure: 0.8 dB @ 900 MHz, typical <1dB
    • Gain: 18 dB Gain at 900MGHz
    • Output P1dB: +22 dBm CW
    • Output IP3: +33 dBm
    • DC Voltage: +3 to +5V
    • Operating Current: 54 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA050M4P0G Datasheet
