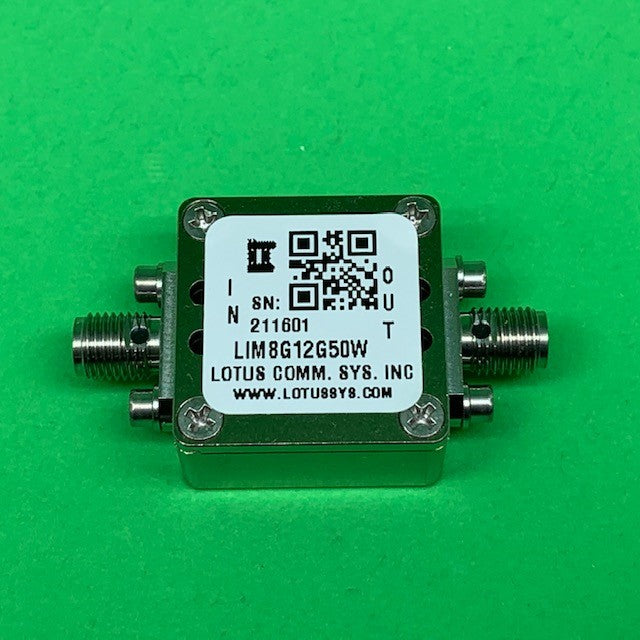

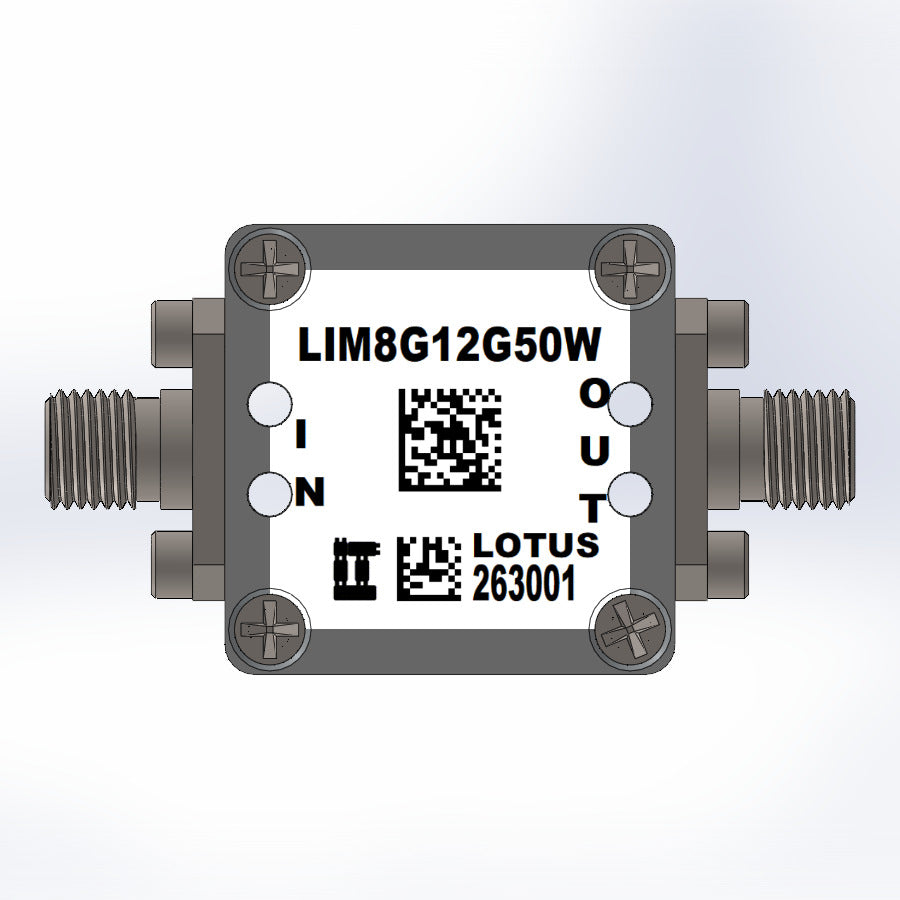

RF Limiter 8G - 12 GHz 50 Watts

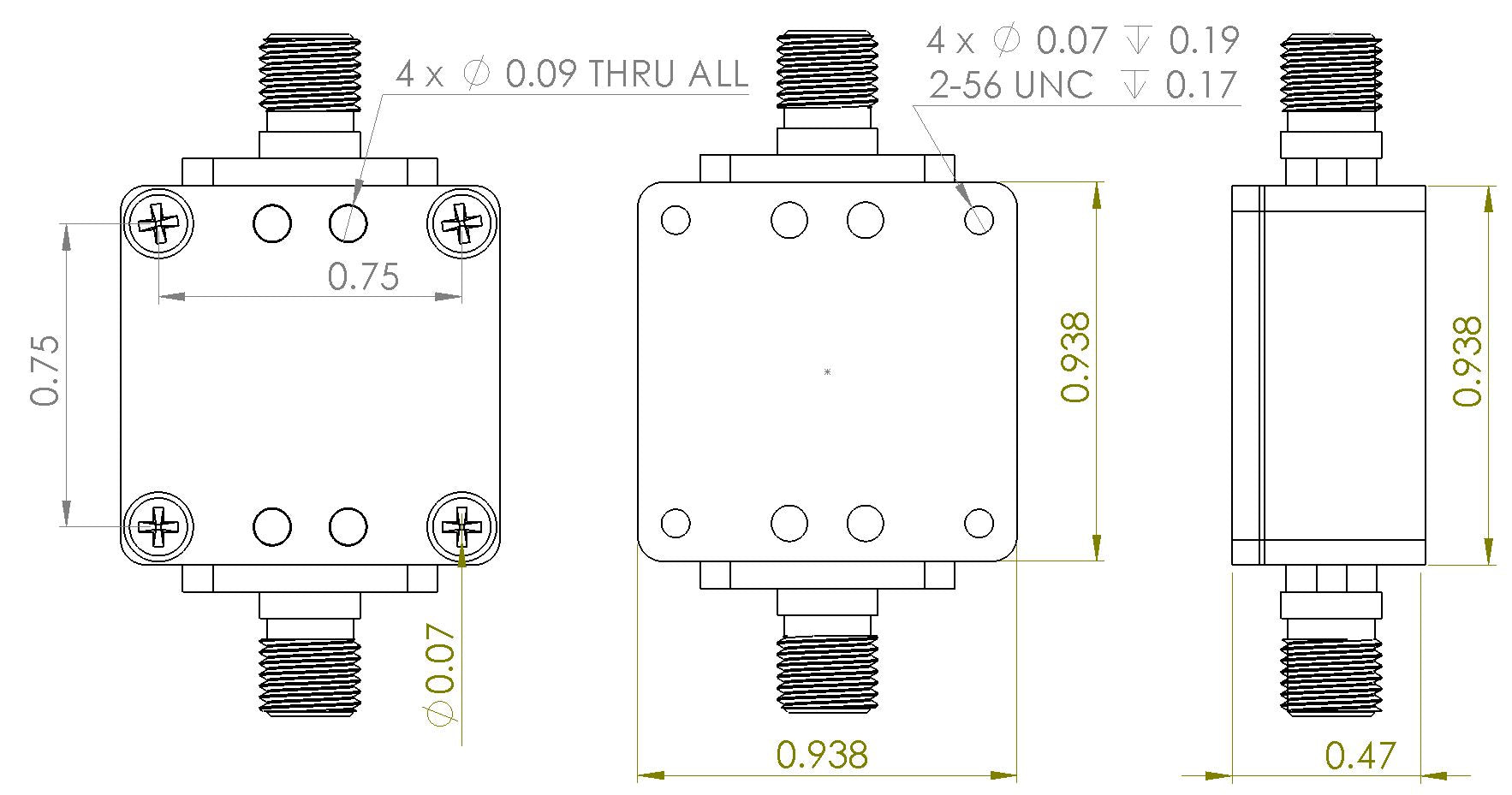

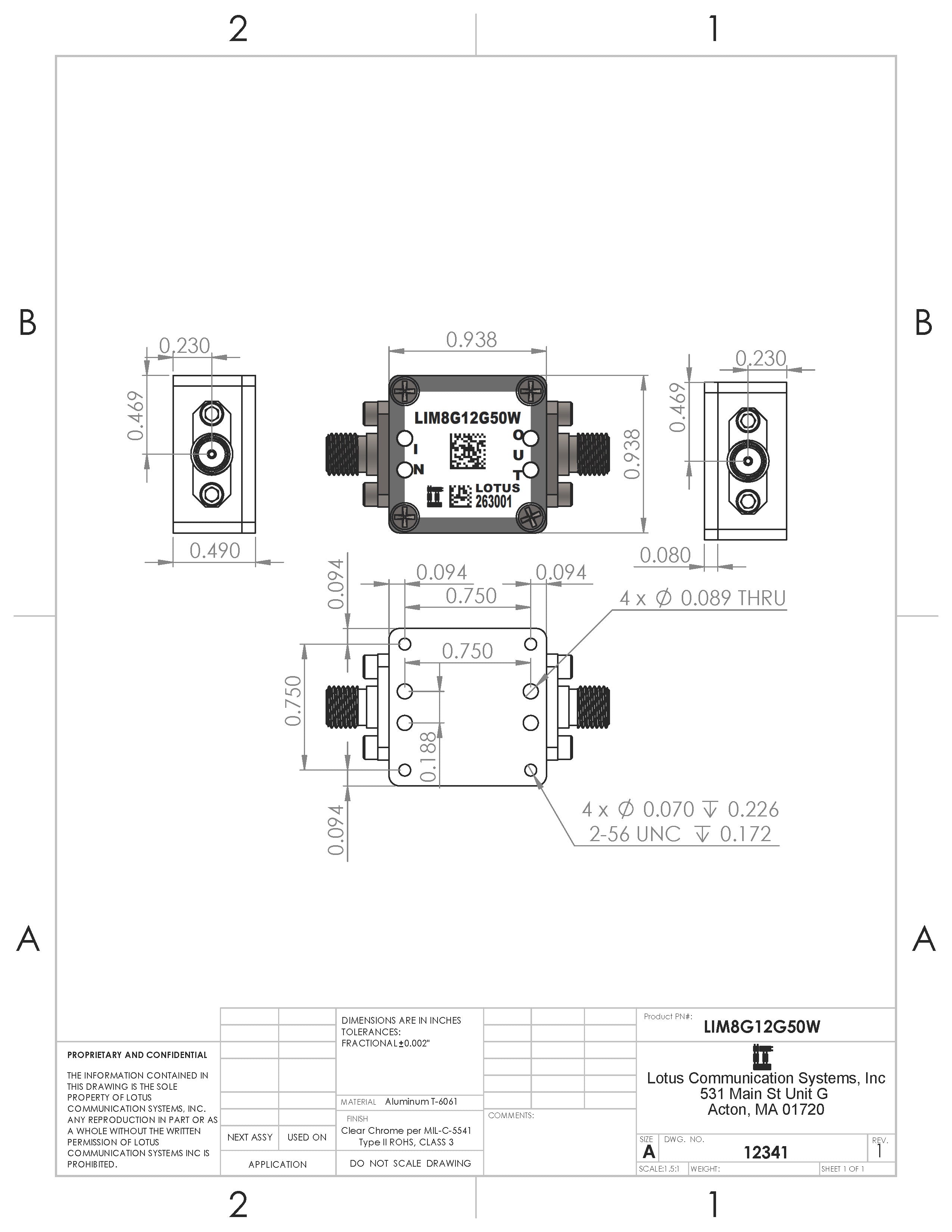

PN#: LIM8G12G50W is a RF limiter in a small 15/16”x15/16”x0.48” shielded RF enclosure.  The limiter protects against ESD and input power surges over a frequency range 8G to 12 GHz. The limiter provides protection for LNA in hostile environment. SKU#: AK20-001B.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


  • Frequency Range: 8G to 12 GHz
  • Low Insertion Loss: 0.4 dB typ.
  • Fast recovery time, 30 ns
  • Flat Leakage: < 18.5 dBm
  • Peak Power Handling: 50 Watts
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
  • ROHS Compliant


  • Stabilize RF outputs
  • Reduce amplitude variations
  • Protect LNA from ESD/power damage
  • General Purpose Wireless

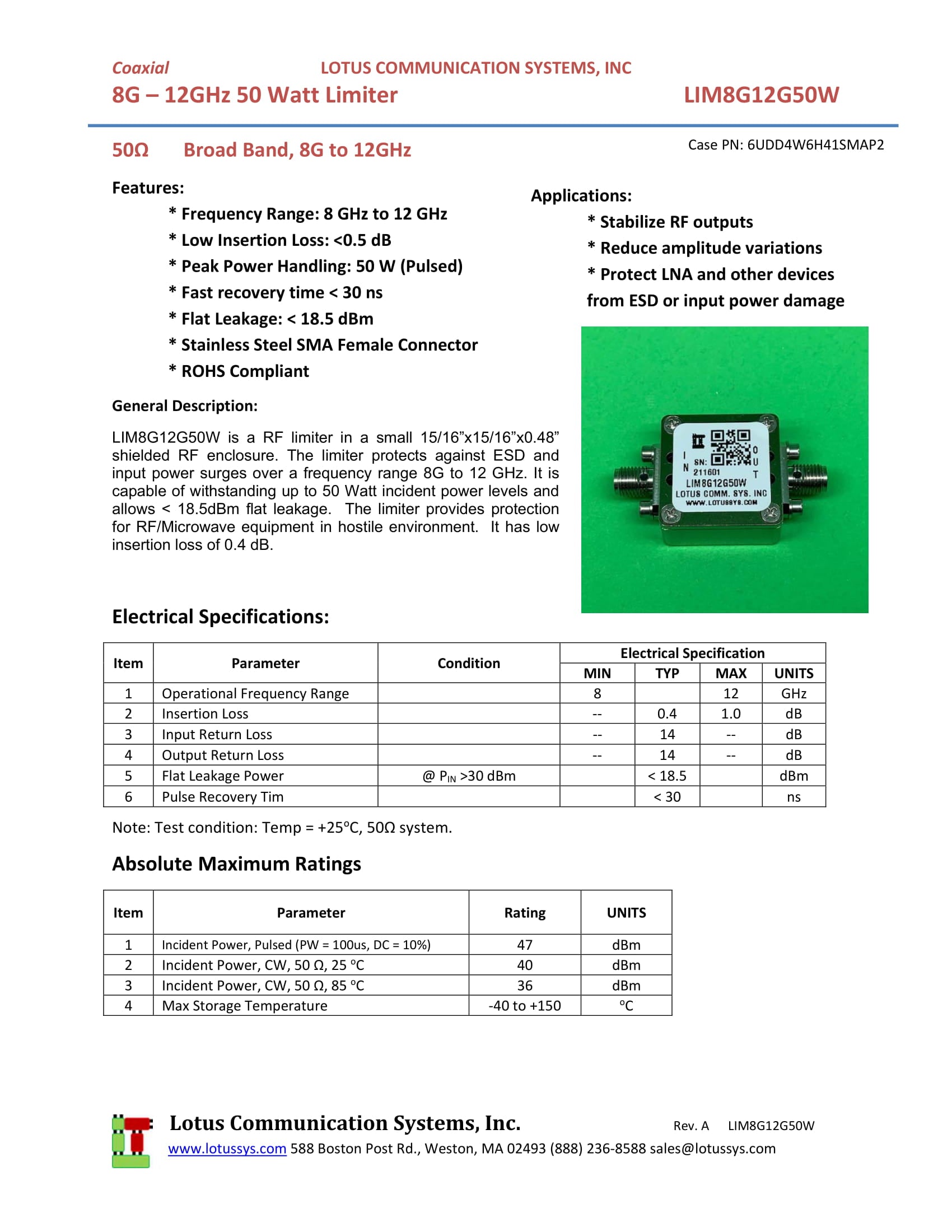

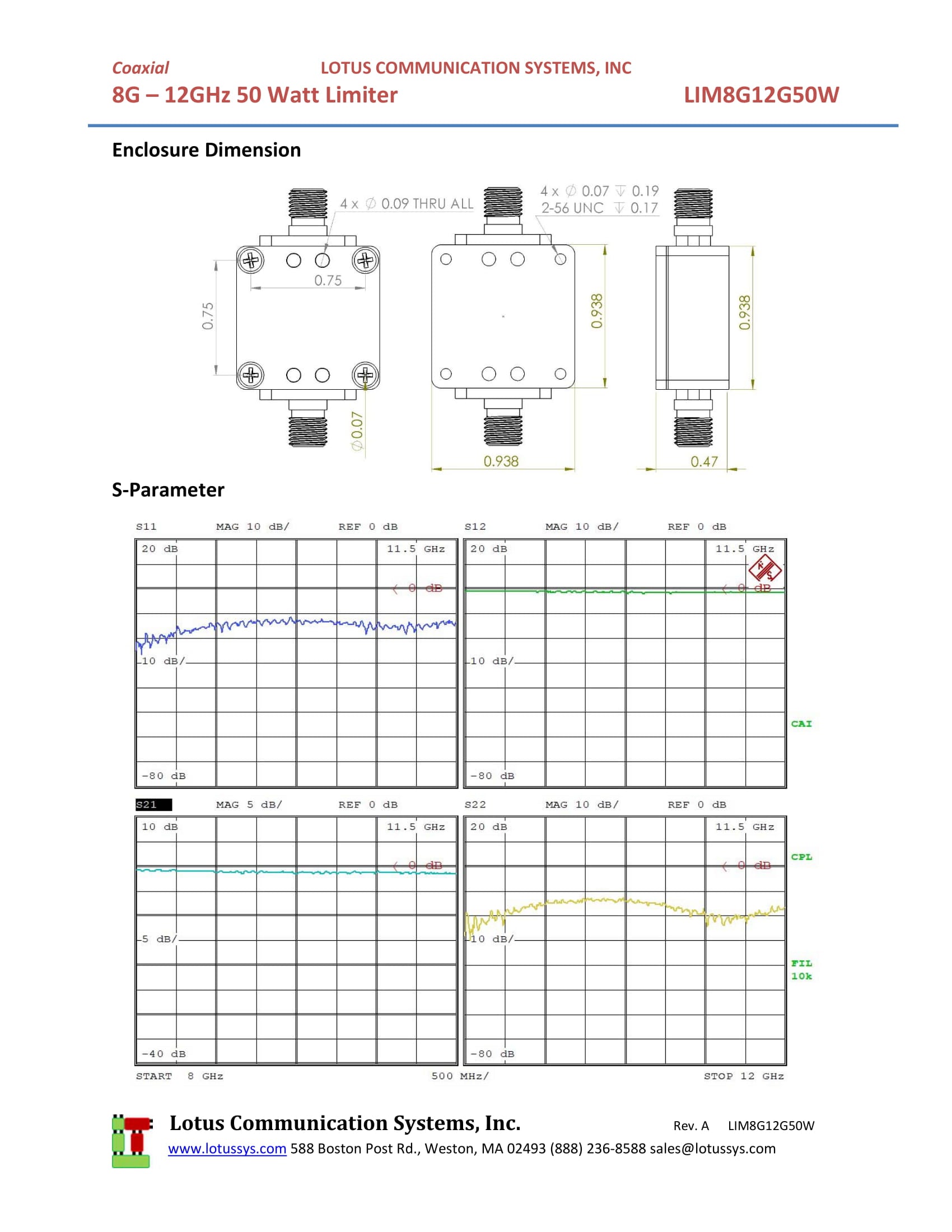

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM8G12G50W Datasheet
