Limiter 50 - 6000 MHz 100 Watts

5 items left

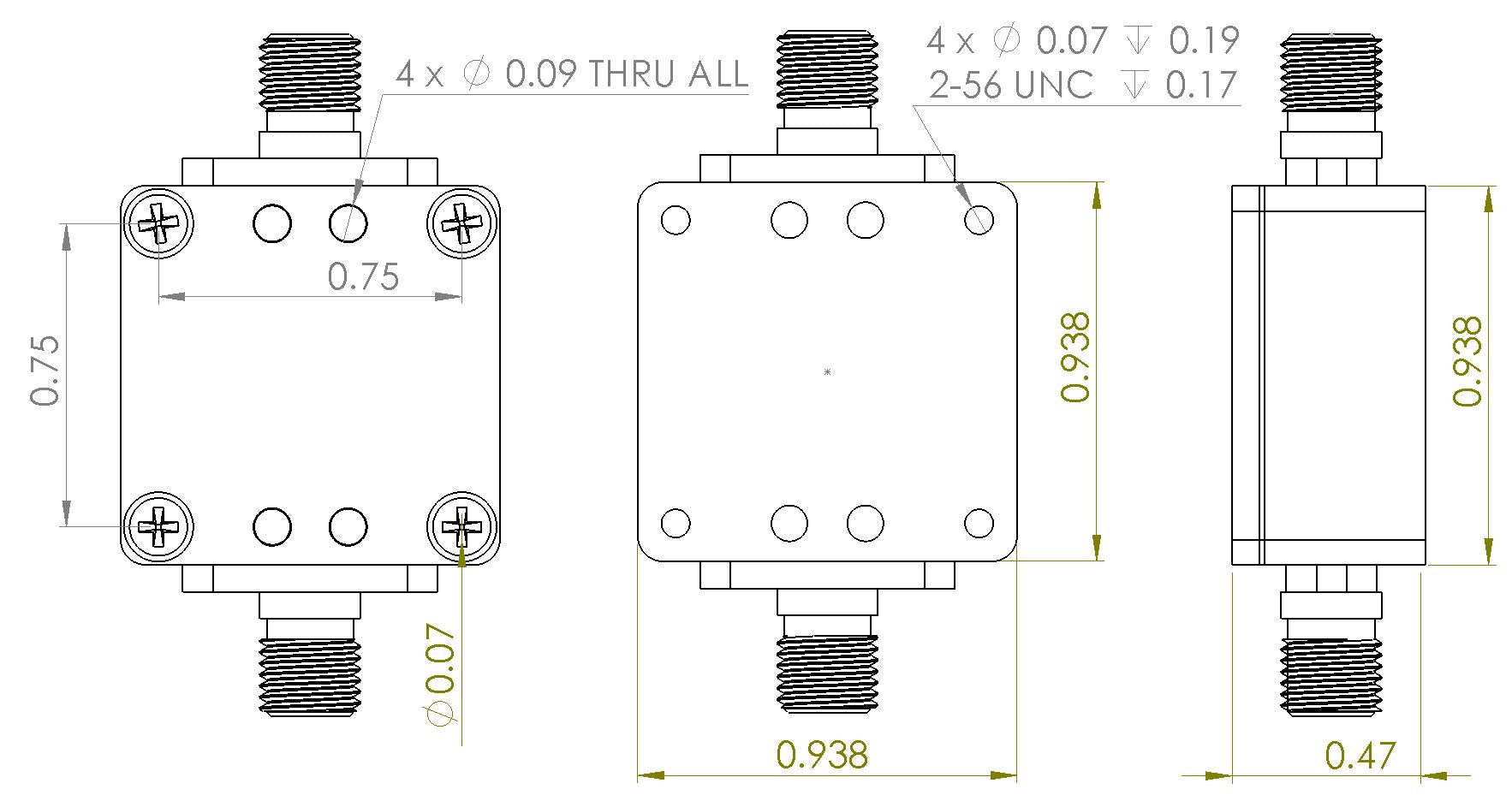

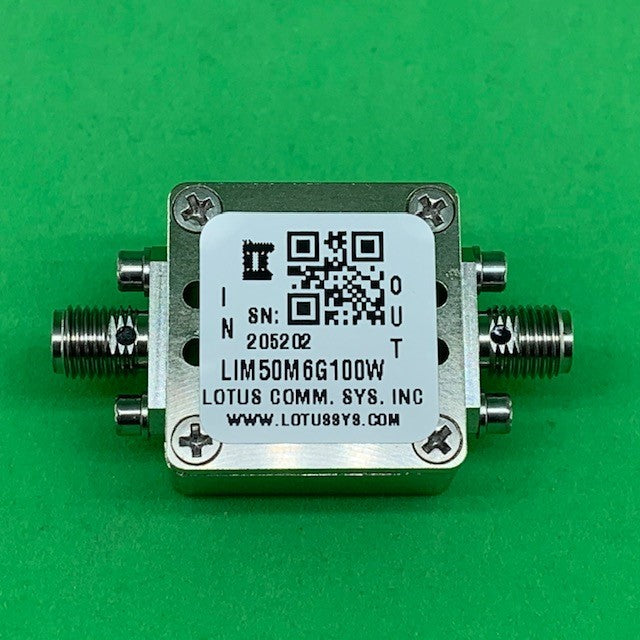

PN#: LIM50M6G100W is a RF limiter in a small 15/16”x15/16”x0.48” shielded RF enclosure.  The limiter protects against ESD and input power surges over a frequency range 50 to 6000 MHz. The limiter provides protection for LNA in hostile environment. SKU#: AK20-005A.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Frequency Range: 50 MHz to 6000 MHz

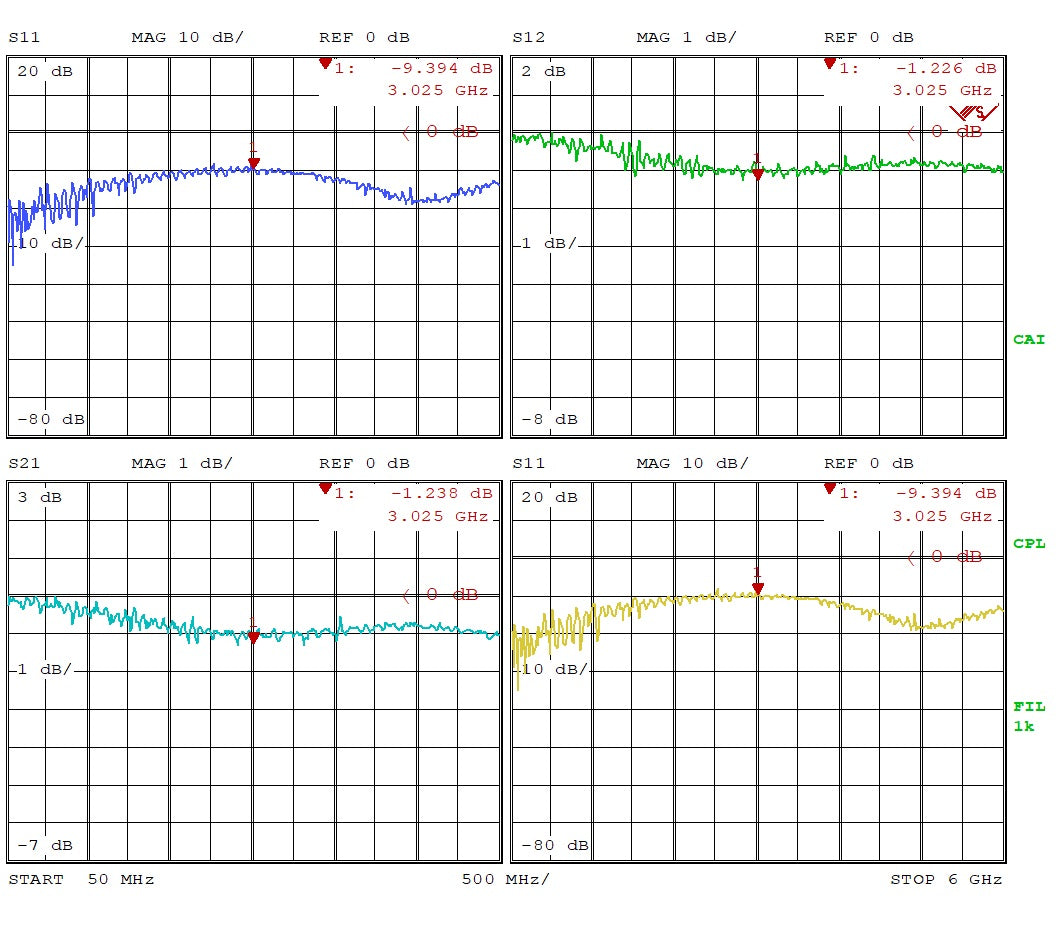

  • Low Insertion Loss: 0.7 dB typ.
  • Fast recovery time, 40 ns
  • Flat Leakage: < 17 dBm
  • Peak Power Handling: 100 Watts
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
  • ROHS Compliant

Applications

  • Stabilize RF outputs
  • Reduce amplitude variations
  • Protect LNA from ESD/power damage
  • General Purpose Wireless

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM50M6G100W Datasheet
