Limiter 3 MHz - 750 MHz (+5 to 33 dBm) 2 Watts
$ 166.00 USD - $ 256.00 USD
PN#: LIM3M750M2W is a RF limiter in a small 1.125”x0.9375”x0.48” shielded RF enclosure (PN: 6ED2W6H41SP2W). The limiter protects against ESD and input power surges over a frequency range 3 to 750 MHz. The limiter provides protection for LNA's in tough environments.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 3 MHz to 750 MHz
- Low Insertion Loss: 0.2 dB typ.
- Fast recovery time, 4 nsec typ.
- Excellent VSWR 1.13:1 typ.
- Low output power: 8 dBm typ.
- Maximum RF Input: 2 Watts
- Stainless Steel SMA Female Connector
- ROHS Compliant

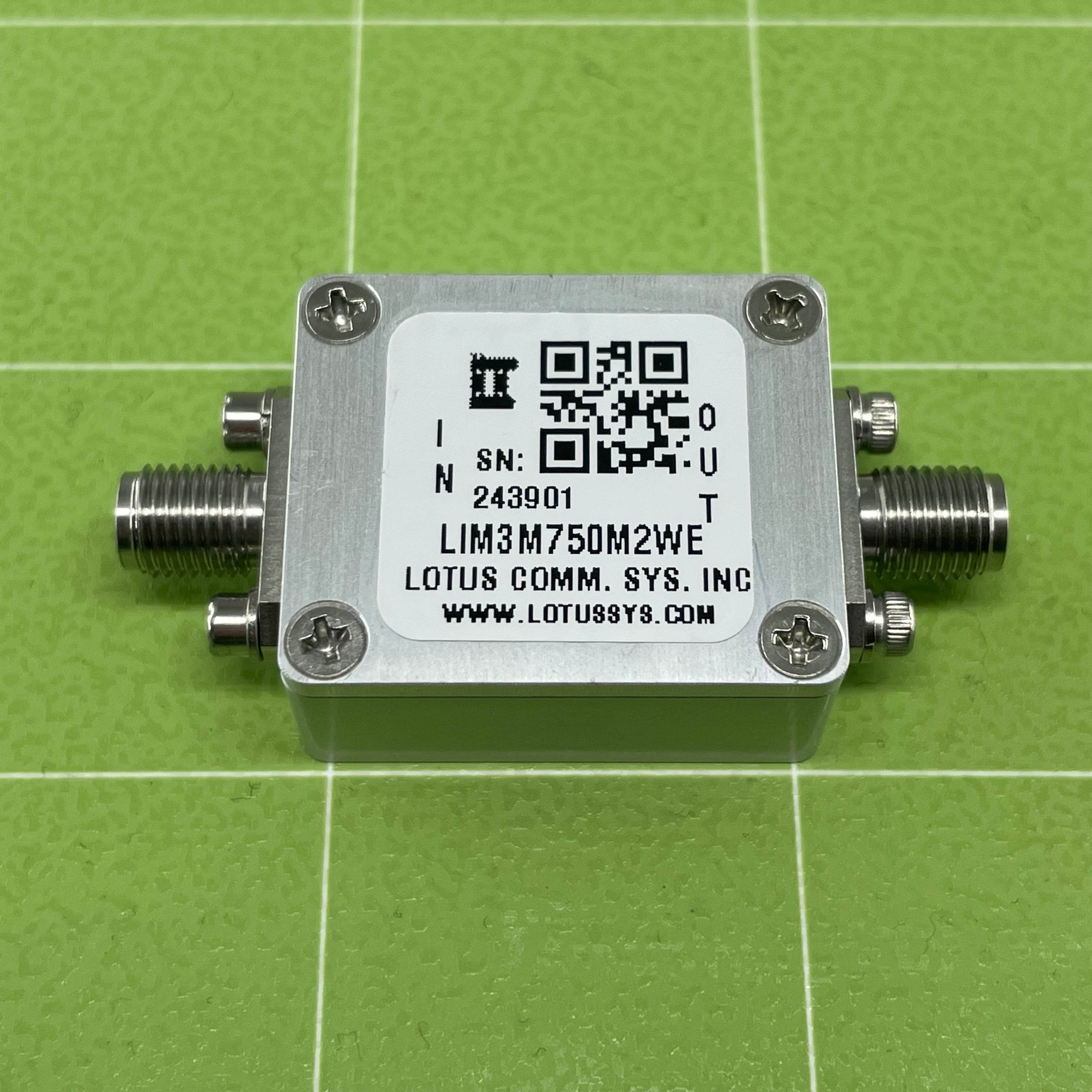

- EMI Shield & Weatherproof Option Available
(PN#: LIM3M750M2WE)
Applications
- Stabilize RF outputs
- Reduce amplitude variations
- Protect LNA from ESD/power damage
Resources (PDF Datasheet)
LIM3M750M2W Datasheet
