  • Limiter 20 MHz - 4000 MHz (+10 to 37 dBm) 5 Watts

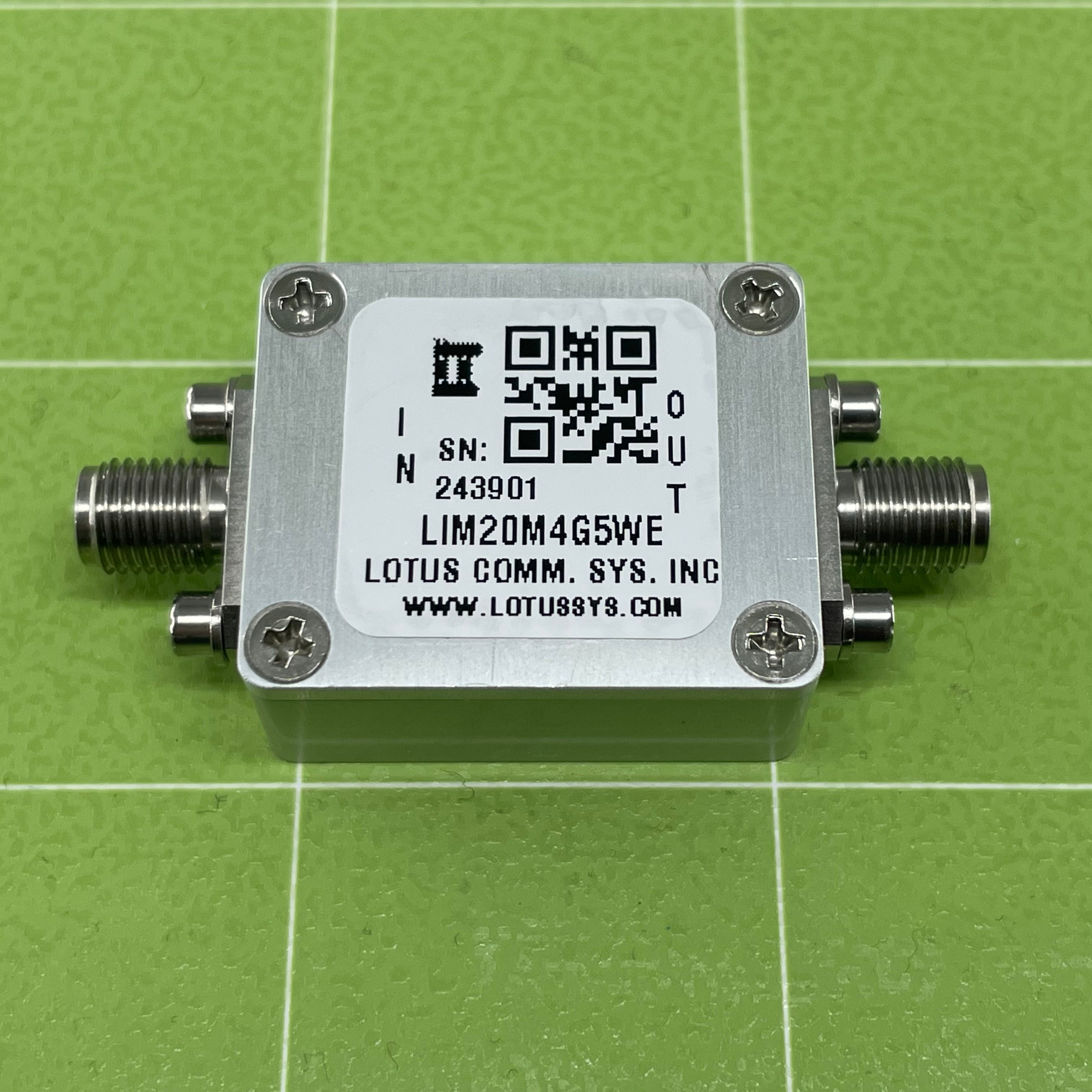

    PN#: LIM20M4G5W is a RF limiter in a small 1.125”x0.9375”x0.48” shielded RF enclosure (PN: 6ED2W6H41SP2W). The limiter protects against ESD and input power surges over a frequency range 20 to 4000 MHz. The limiter provides protection for LNA's in tough environments. SKU#: AK20-022Q.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    EMI Shielding (includes Weatherproofing)

    Features

    • Frequency Range: 20 MHz to 4000 MHz
    • Low Insertion Loss: 0.36 dB typ.
    • Fast recovery time, 33 nsec typ.
    • Excellent VSWR 1.2:1 typ.
    • Low output power: 12 dBm typ.
    • Maximum RF Input: 5 Watts
    • Stainless Steel SMA Female Connector
    • ROHS Compliant
    • EMI Shield & Weatherproof Option Available
      (PN#: LIM20M4G5WE)

    Applications

    • Stabilize RF outputs
    • Reduce amplitude variations
    • Protect LNA from ESD/power damage

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM20M4G5W Datasheet
