Limiter 200 KHz - 3000 MHz (+12 to 32 dBm) 2 Watts
$ 156.00 USD

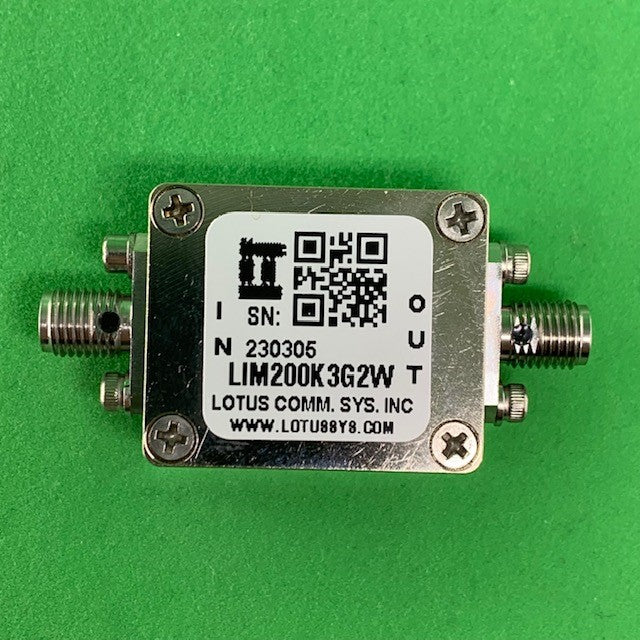

PN#: LIM200K3G2W is a RF limiter in a small 1-1/8”x15/16”x0.48” shielded RF enclosure (PN: 6UED2W6H41SMAP2). The limiter protects against ESD and input power surges over a frequency range 200 KHz to 3000 MHz. The limiter provides protection for LNA in hostile environment. SKU#: AK20-005O.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 200 KHz to 3000 MHz
- Low Insertion Loss: 0.25 dB typ.
- Good recovery time, 22.5nsec typ.
- Excellent VSWR 1.33:1 typ.
- Low output power: 13 dBm typ.
- Maximum RF Input: 2 Watts
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
- ROHS Compliant
Applications
- Stabilize RF outputs
- Reduce amplitude variations
- Protect LNA from ESD/power damage
- General Purpose Wireless
Resources (PDF Datasheet)
LIM200K3G2W Datasheet
