  • Limiter 10MHz-8GHz 50 Watts

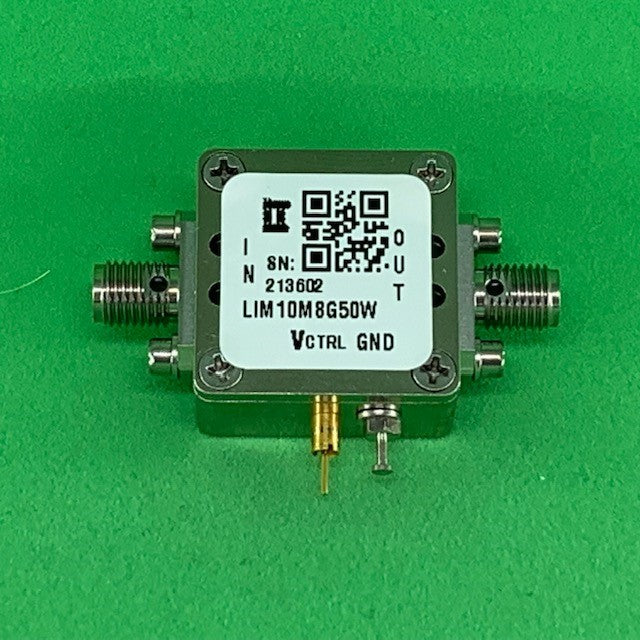

    Part Number: LIM10M8G50W is RF limiter. It is ideal for applications like Cellular,  PCS, W-CDMA, ISM, LTE, SDR and Ham Radio.

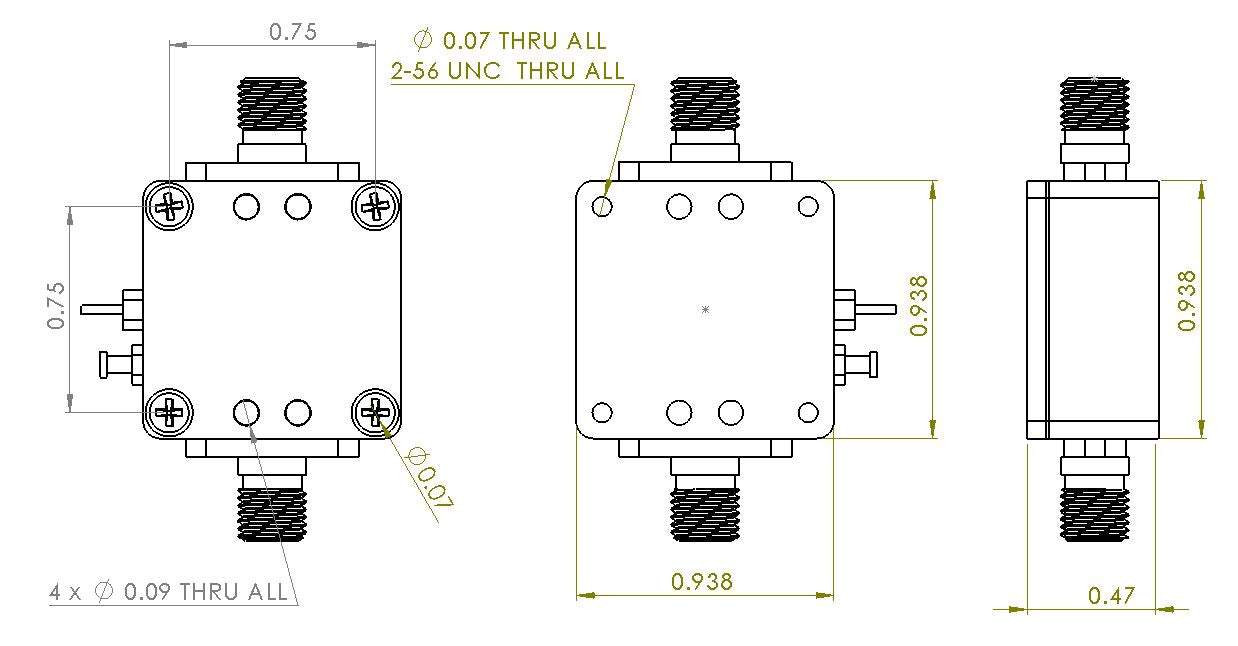

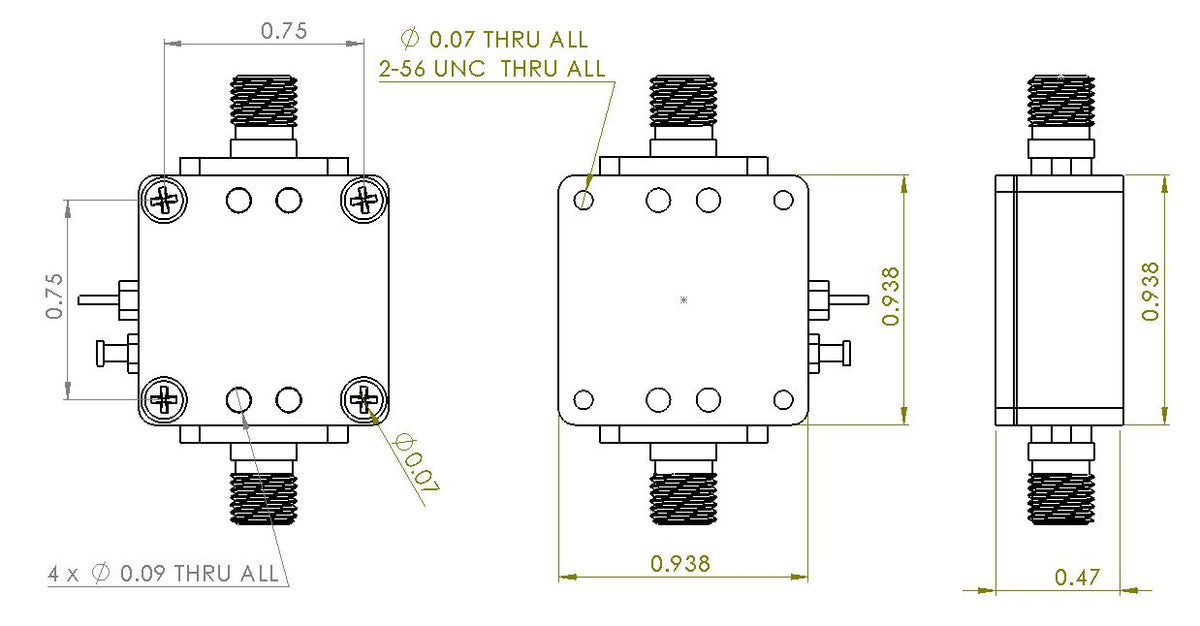

    Enclosure is using RF Design Kit 6UDD4W6H41SMAA2 with dimension 15/16"x15/16x0.48". SKU#: AK20-005E.

    The limiter protects against ESD and input power surges over a frequency range 10 to 8000 MHz. It is capable of withstanding up to 50 Watts incident power levels and allows < 17dBm flat leakage.  The limiter provides protection for RF/Microwave equipment in hostile environment.

    It uses pSemi PE45361 Chip.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    8 items left


    • Frequency Range: 10 MHz to 8GHz
    • Low Power Insertion Loss <1.7 dB @8GHz
    • Peak Power Handling: 50W (Pulsed)
    • Fast Response/Recovery Time: 1ns
    • Flat Leakage: < 17 dBm
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant


    • Stabilize RF outputs
    • Reduce amplitude variations
    • Protect LNA from ESD/power damage
    • General Purpose Wireless

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM10M8G50W Datasheet
