Limiter 9 kHz - 6 GHz (Adjustable threshold from +25 dBm to +35 dBm)

Limiter 9 kHz - 6 GHz (Adjustable threshold from +25 dBm to +35 dBm)

Limiter 9 kHz - 6 GHz (Adjustable threshold from +25 dBm to +35 dBm)

Limiter 9 kHz - 6 GHz (Adjustable threshold from +25 dBm to +35 dBm)

$ 76.00 USD

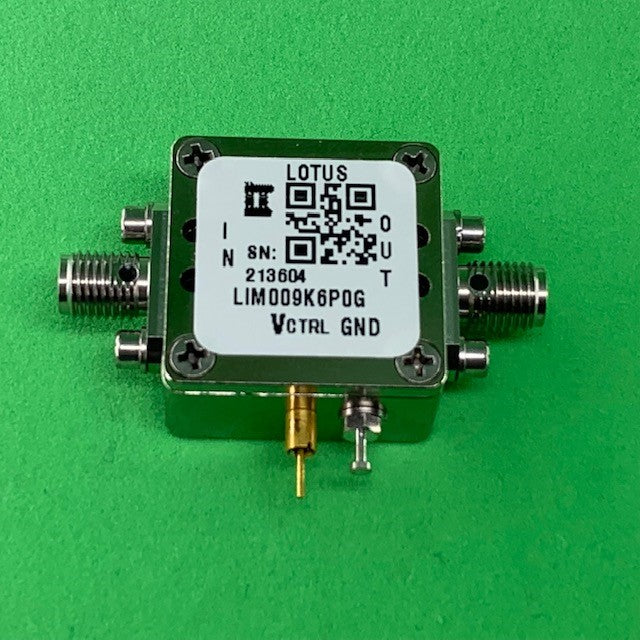

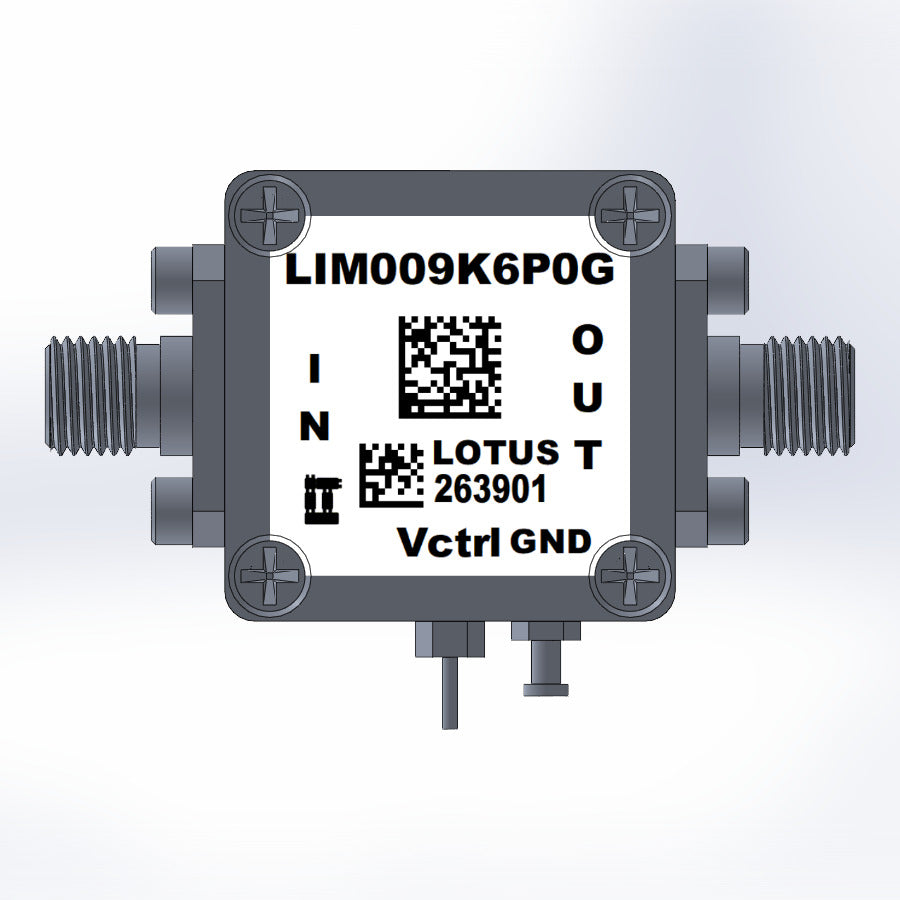

LIM009K0P6G RF power limiter. It is ideal for applications like Cellular, PCS, W-CDMA, ISM, LTE, SDR and Ham Radio.

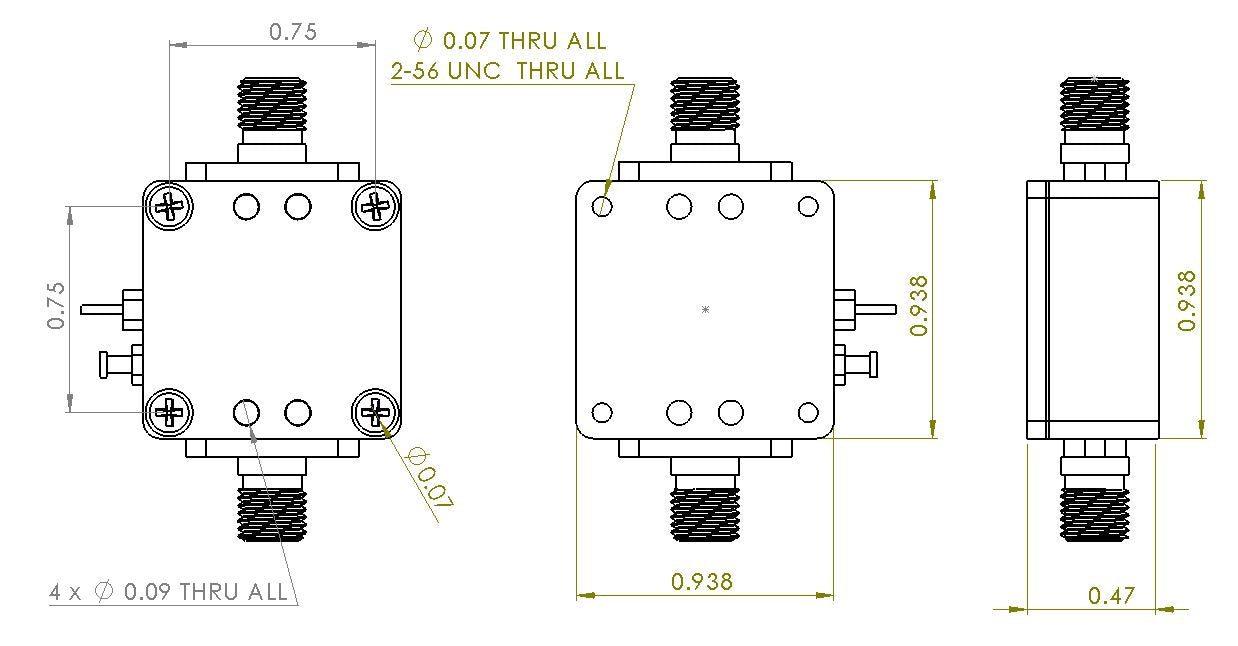

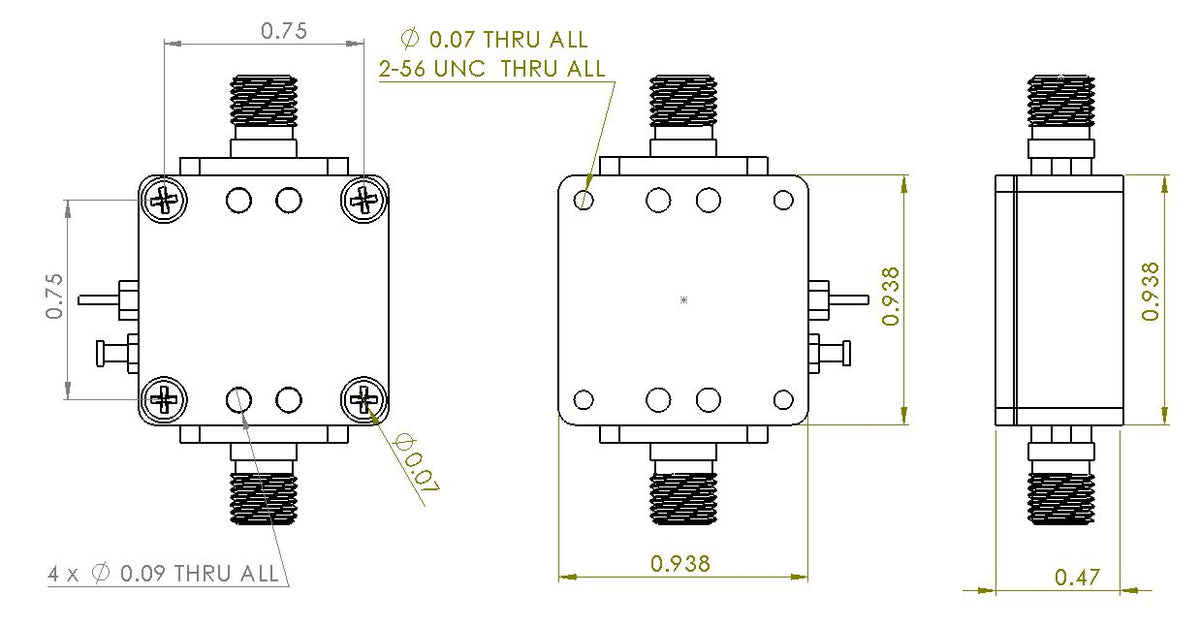

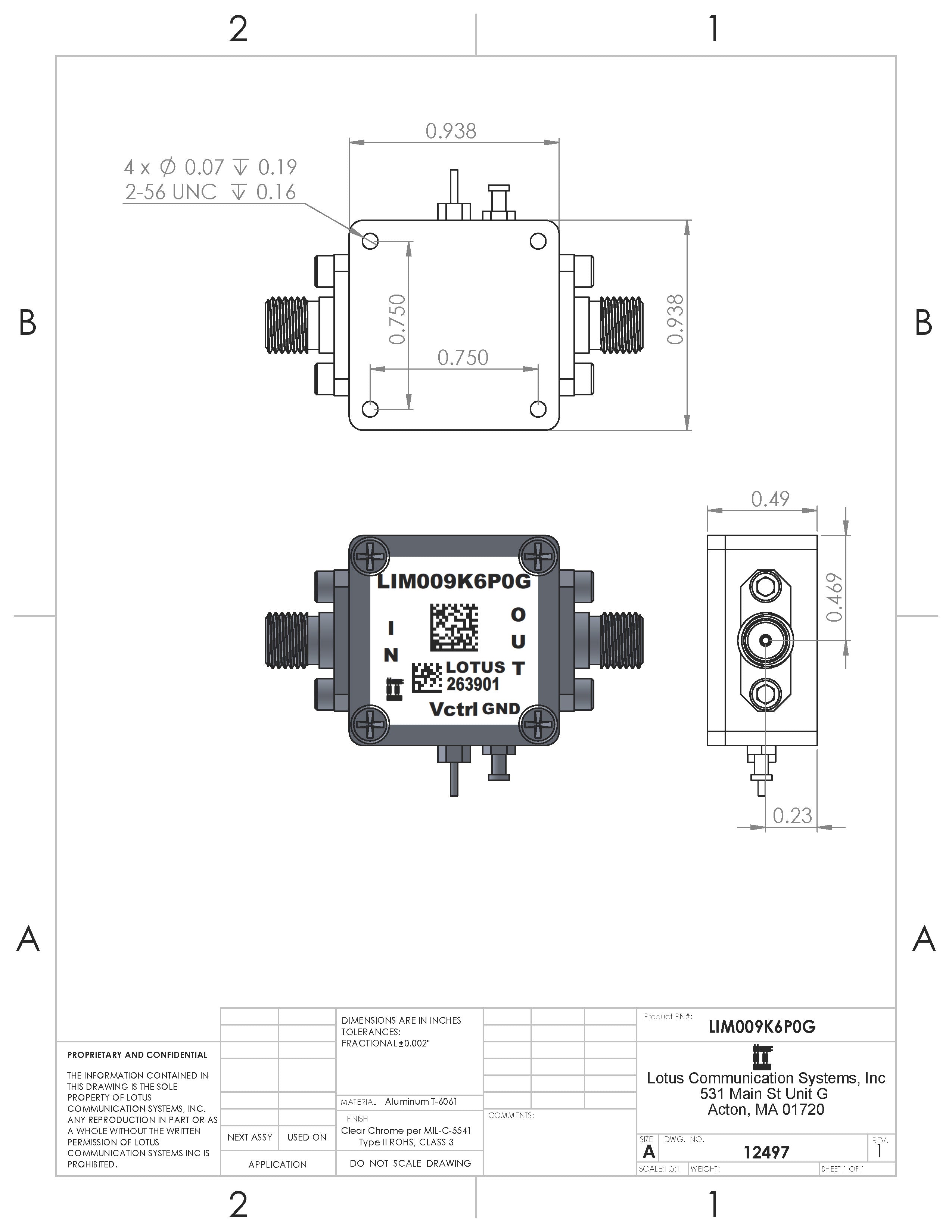

Enclosure is using RF Design Kit 6UDD6W6S1A2 with dimension 0.9375"x0.9375x0.59".

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

SKU#: AK20_004K.

Collections: Limiter

Features

Frequency Range: 9 kHz to 6000MHz
Low Power Insertion Loss <1.0 dB
Fast Response/Recovery Time: 1ns
High Quality Stainless Steel SMA Female Connector (DC-24GHz)
Use Peregrine PN: PE45450
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Stabilize RF outputs
Reduce amplitude variations
Protect LNA from ESD/power damageGeneral Purpose Wireless
General Purpose Wireless

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LIM009K0P6G Datasheet
