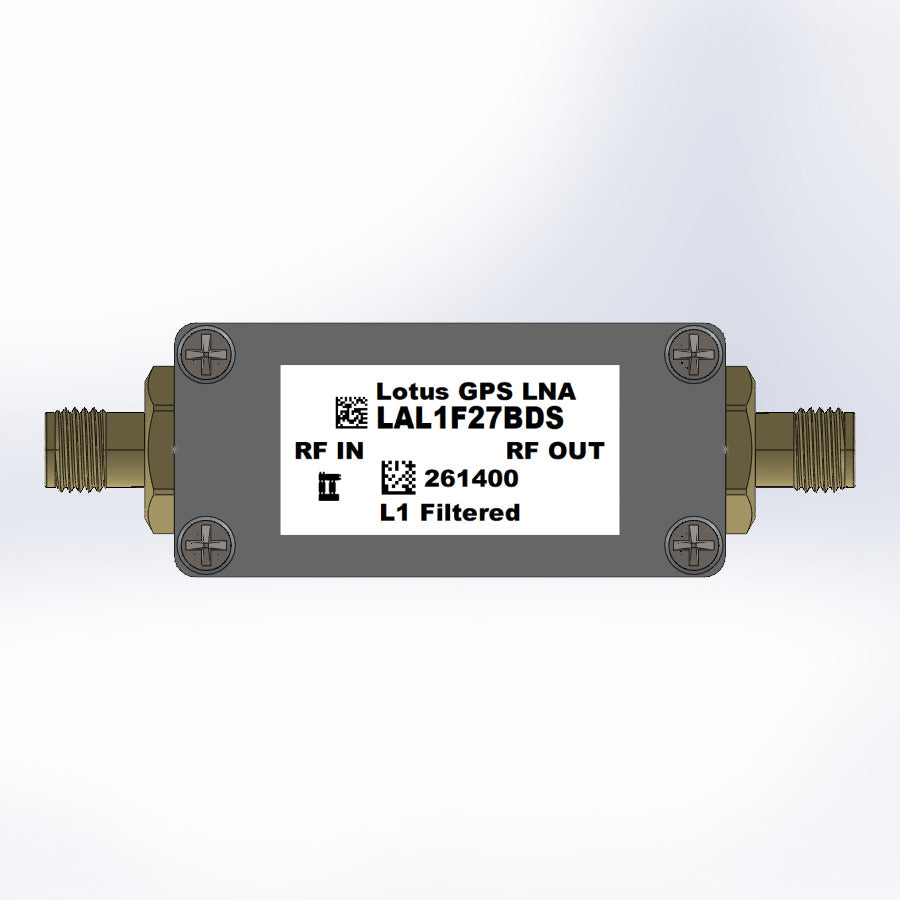

GPS/GNSS L1 & Galileo E1 Filtered Inline Low Noise Amplifier 1.7dB NF 28dB Gain SMA
$ 1,196.00 USD - $ 1,376.00 USD

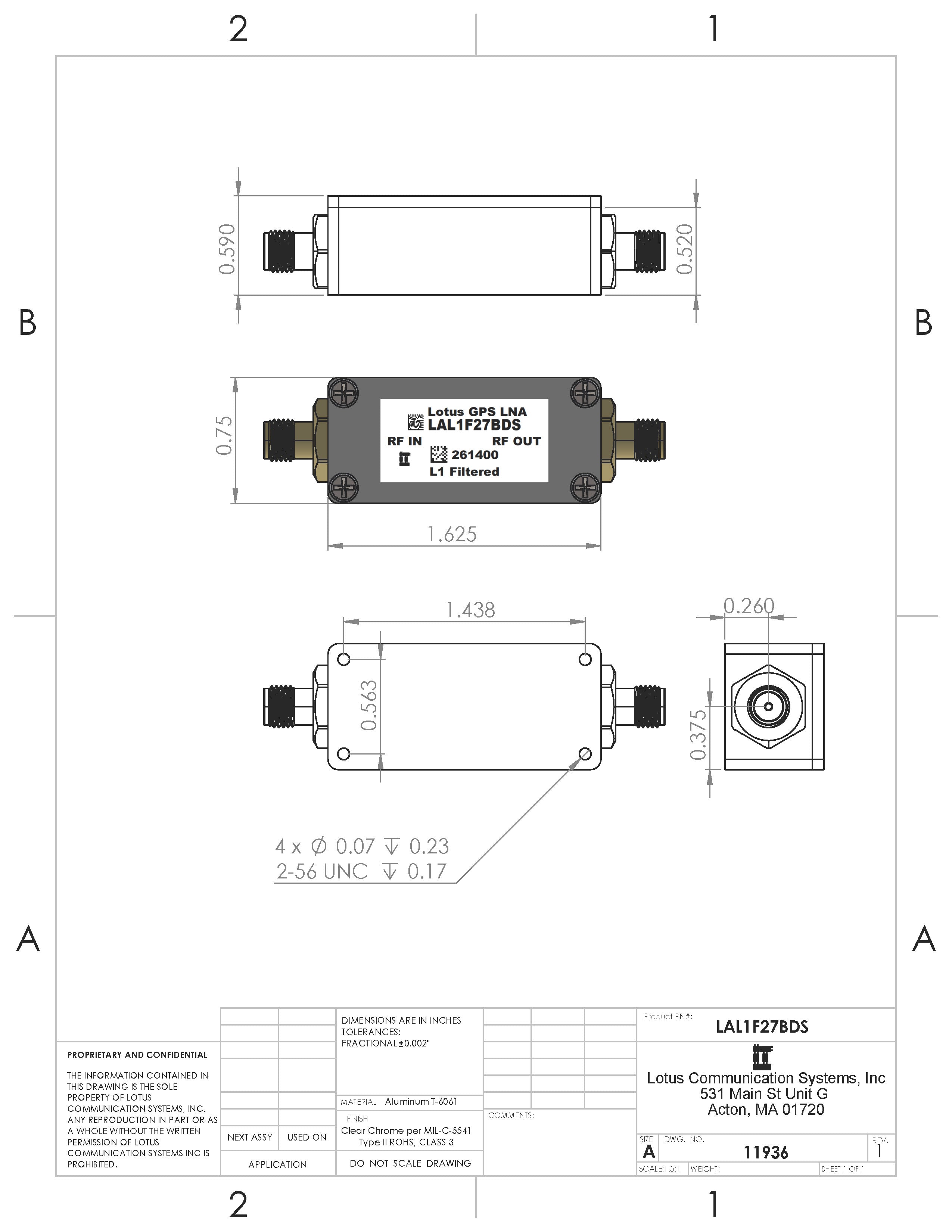

Part Number: LAL1F27BDS is a flat gain, high-linearity, ultra-low noise amplifier in a small 1.625”x0.75”x0.59” RF enclosure. The LNA provides a flat gain of 28dB at L1 & Galileo E1 Band. The amplifier is pre-filtered by an excellent narrow band filter with 24MHz BW at L1 center frequency 1575.42MHz. The amplifier typically provides 28 dB Gain, and 1.7 dB noise figure. The LNA can be biased from a single supply +3.3~+5V from output port.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 1.1 to 1.7 GHz (L1 & L2 narrow band filtered)
- Input Filtered for Out of Band Rejection
- Noise Figure: 0.56 dB @ 1227.6 MHz
- High Gain: 27 dB Gain at 1227.6 MHz
- Output P1dB: +19.8 dBm CW
- Ultra Low Current: 34mA
- +23.4 dBm OIP3
- +5~+15 VDC, Biasing through output connector
- ROHS Compliant
- Female SMA Connectors for RF Input and RF Output
- EMI Shielded (including IP67 Waterproofing)
