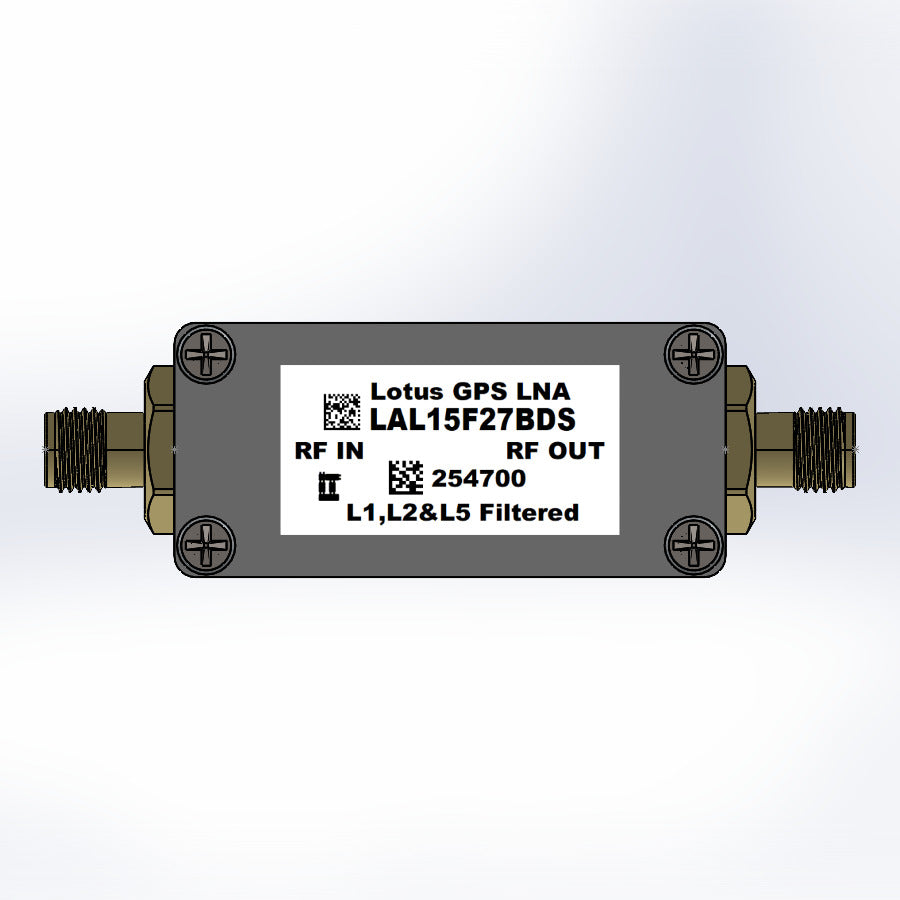

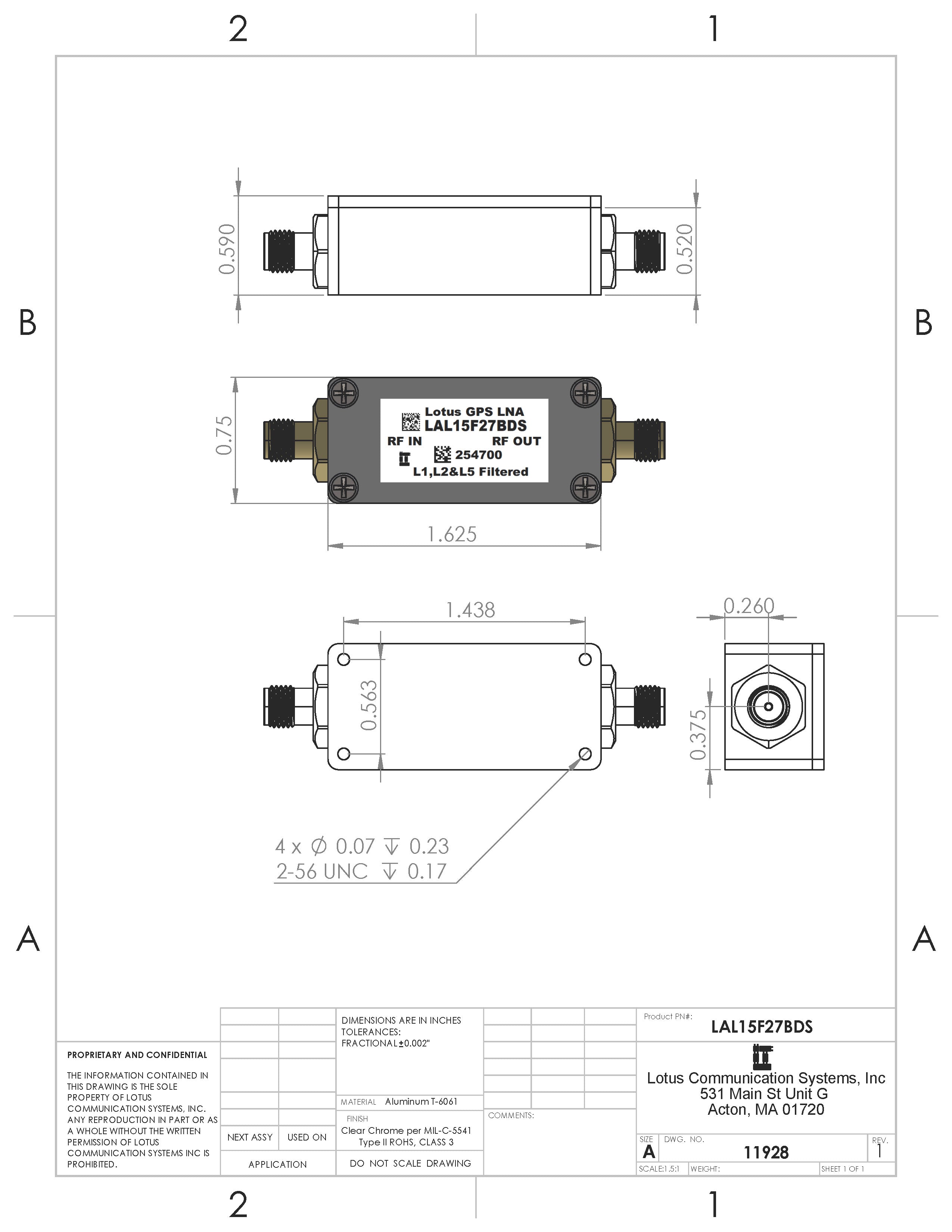

  • GPS/GNSS L1,L2&L5 Filtered Inline Low Noise Amplifier 1.6dB NF 1.1G-1.7GHz 27dB Gain SMA

    Part Number: LAL15F27BDS is a high-linearity, high gain, ultra low current (34mA) and ultra low noise (0.65dB NF) amplifier in an ultra small 1.625”x0.75"x0.595” shielded RF enclosure.  The LNA provides a +/-1.5 dB flat gain from 1.16 to 1.61 GHz (GNSS L-Band).  At 1176.45 MHz (L5), the amplifier typically provides 32 dB gain, +23.4 dBm OIP3, and 1.6 dB noise figure. At 1575.42 MHz (L1), the amplifier typically provides 28 dB Gain, and 2.5 dB noise figure. The LNA can be biased from a single supply +5~+15V from output port.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-023E.

    Features

    • Frequency Range: 1.1 to 1.7 GHz
    • Input Narrow Band Filtered at GPS L1,L2&L5
    • Band 1 (L2&L5) Frequency: 1166~1254MHz
    • Band 2 (L1) Frequency: 1545~1610MHz
    • DC-Blocked at Output Port
    • Noise Figure: 1.6 dB @ L2&L5, 2.5 dB @ L1
    • High Gain: 27 dB Gain at 1227.6 MHz
    • Output P1dB: +19.8 dBm CW
    • Ultra Low Current: 34mA
    • +23.4 dBm OIP3
    • +5~+15 VDC, Biasing through output connector
    • ROHS Compliant
    • Female SMA Connectors for RF Input and RF Output
    • Weight: 2 oz
    • EMI Shielding (including IP67 Waterproofing) option available (PN: LAL15F27BDSE)

    Applications

    • GPS/GNSS
    • Test Instrumentation

    Resources (PDF Datasheet)
