  • Low Noise Amplifier 2.3dB NF DC~7GHz 16dB Gain Wide Voltage

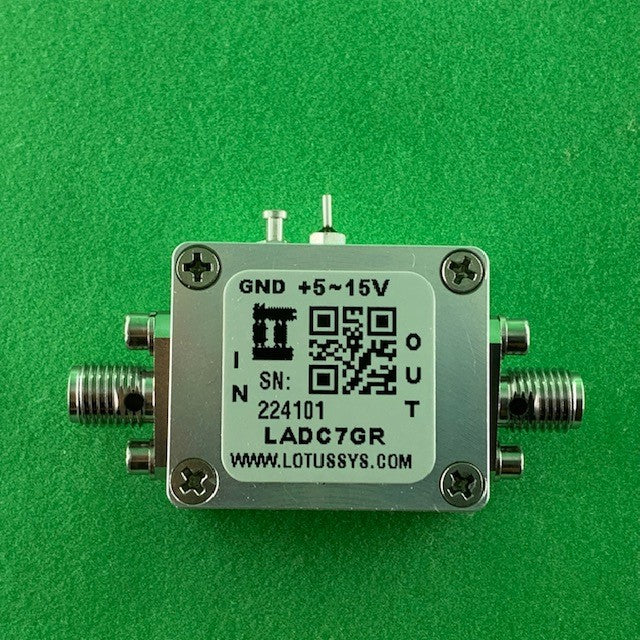

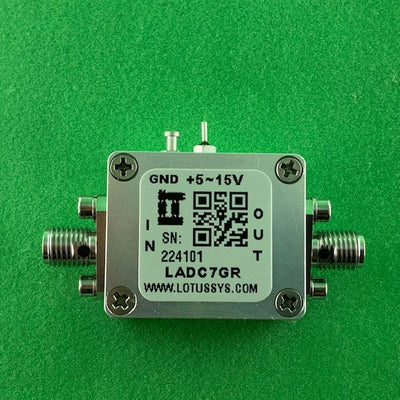

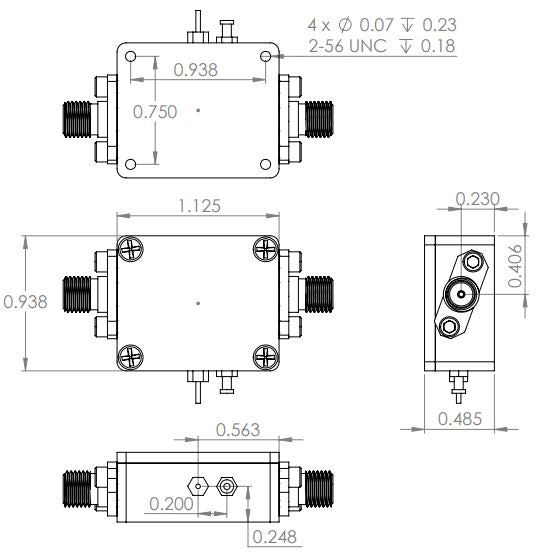

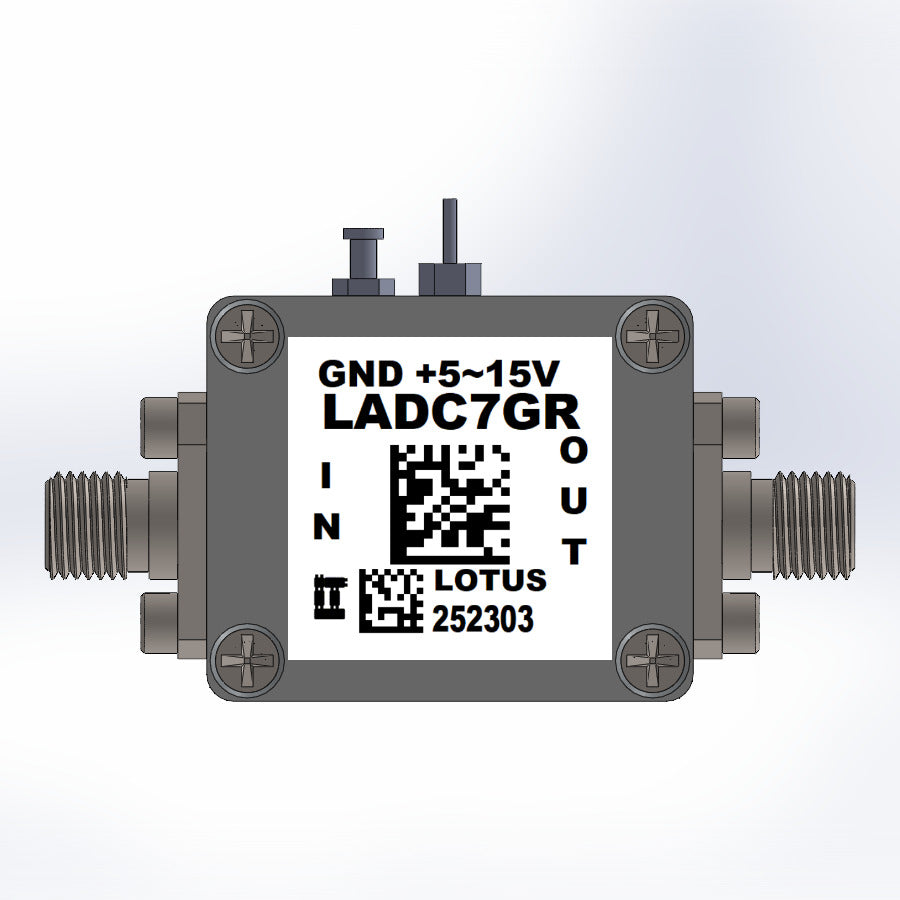

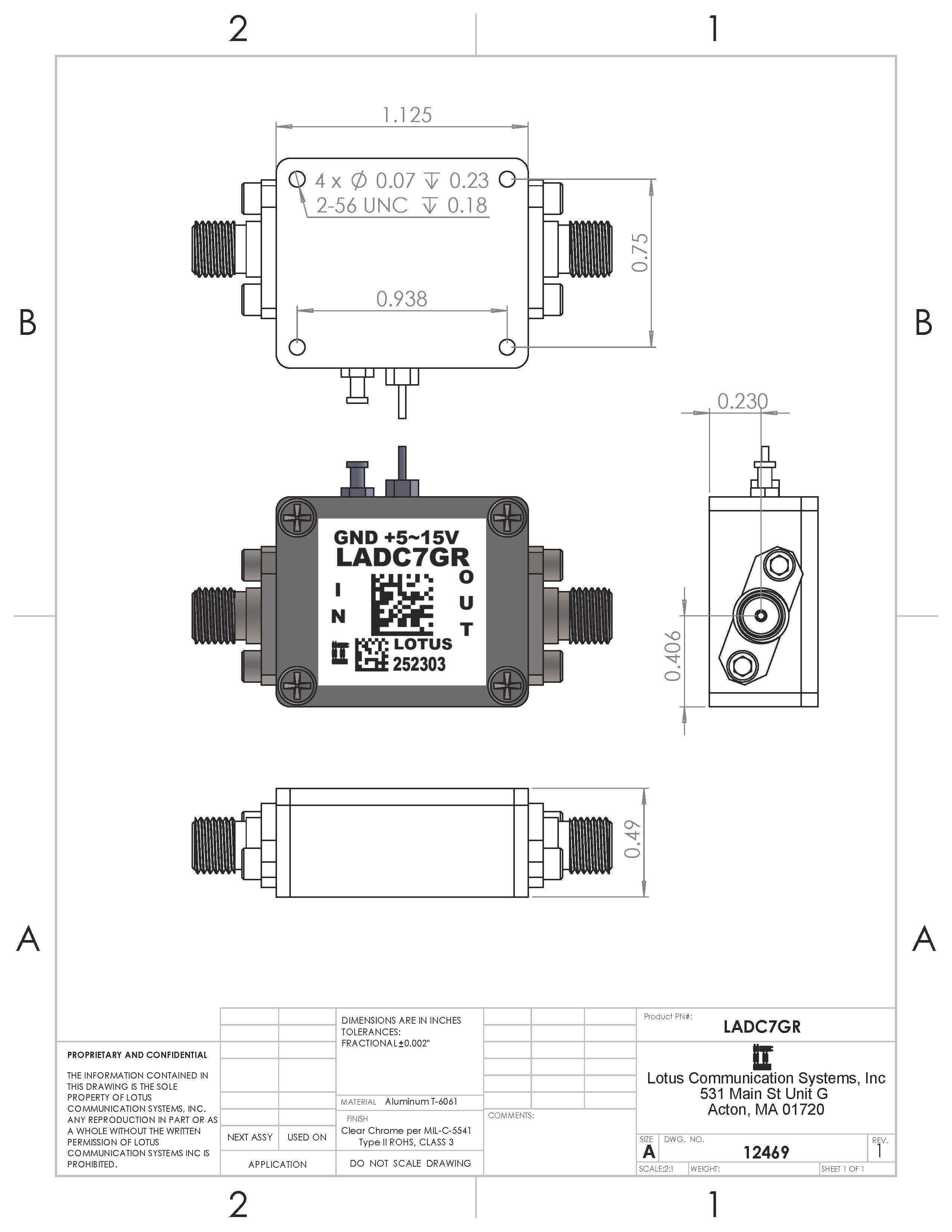

    Part Number: LADC7GR is a  is a wideband, high-linearity, low noise amplifier in a small 1-1/8”x15/16”x0.48” shielded RF enclosure. At 3.5 GHz, the amplifier typically provides 16 dB gain, +17.5 dBm OIP3 at a 16mA bias setting, and 2.3 dB noise figure. The LNA can be biased from a single supply +5V~+15V.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-016D.

    EMI Shielding (Includes Weatherproofing)
    1 item left

    Features

    • Frequency Range: DC to 7GHz
    • Noise Figure: typical 2.3 dB @ 2 GHz
    • Gain: 16 dB Gain at 3.5 GHz
    • Output P1dB: +3dBm CW
    • +17.5 dBm OIP3 at 16mA current
    • DC Voltage: +5V~+15V
    • Stainless Steel SMA Female Connector
    • ROHS Compliant

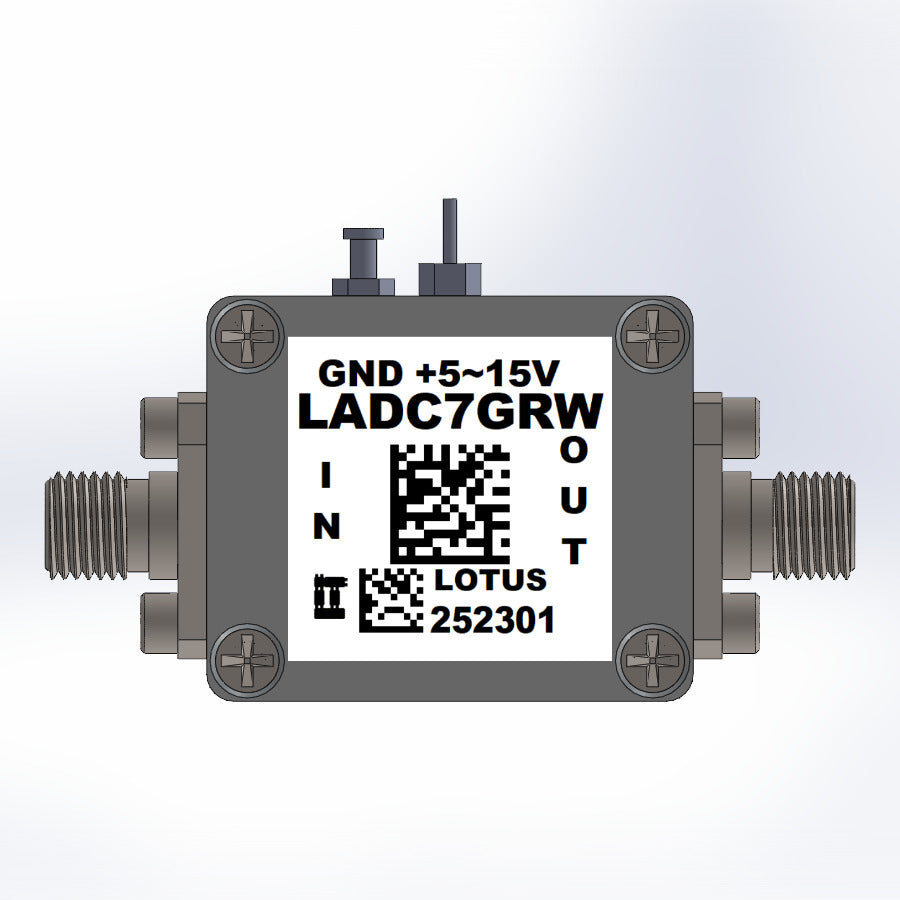

    • EMI Shield (Waterproof) Options Available (PN#: LADC7GRW)

    Applications

    • 4.5G, 5G Massive MIMO
    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

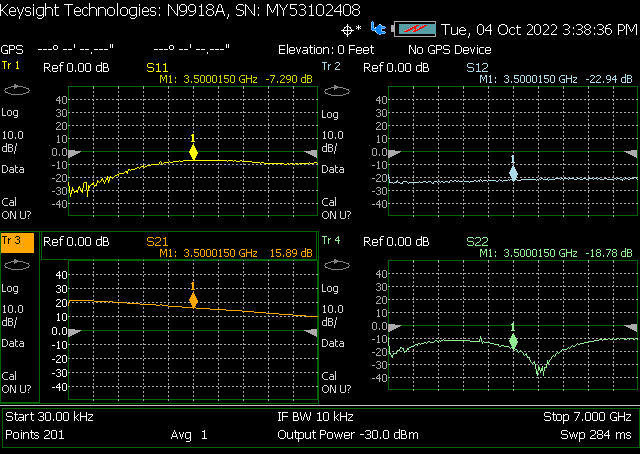

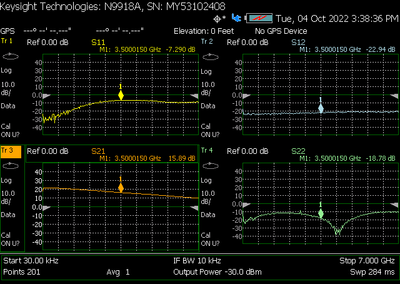

    Datasheet & S-Parameter

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LADC7GR Datasheet

      S-Parameter (.S2P)
