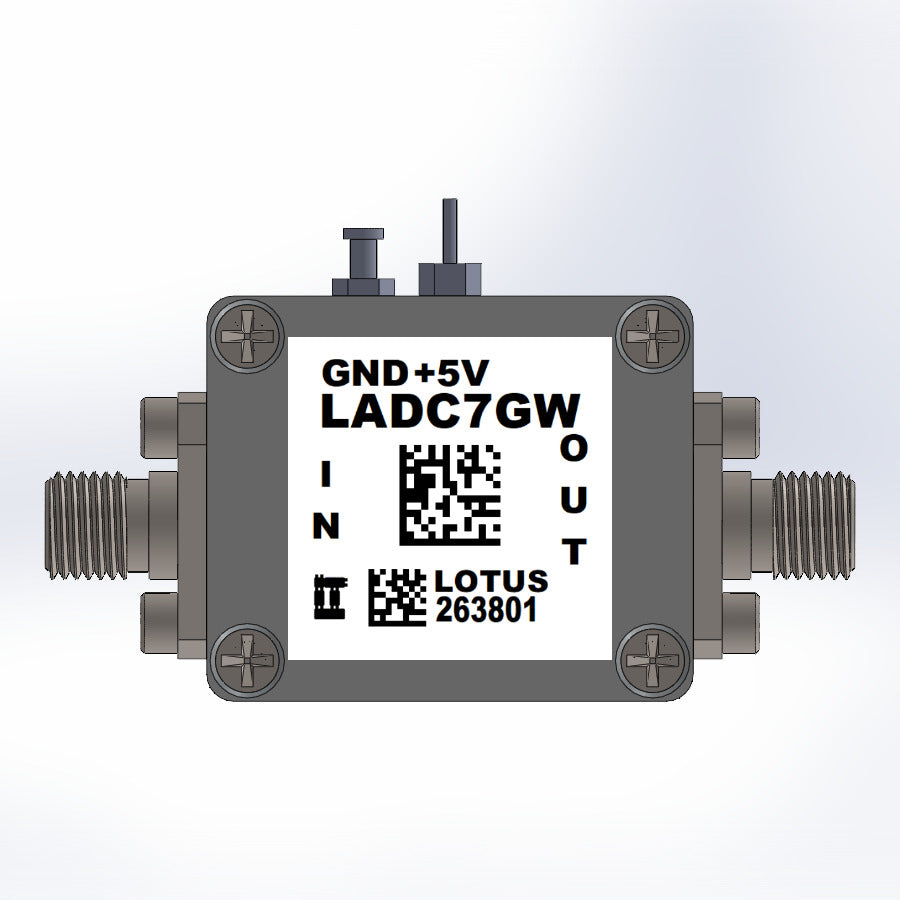

Amplifier LNA 2.3dB NF DC~7GHz 16dB Gain 3dBm P1dB SMA

EMI Shielding (Includes Weatherproofing)
Wide Voltage Range (+6~15V)
10 items left

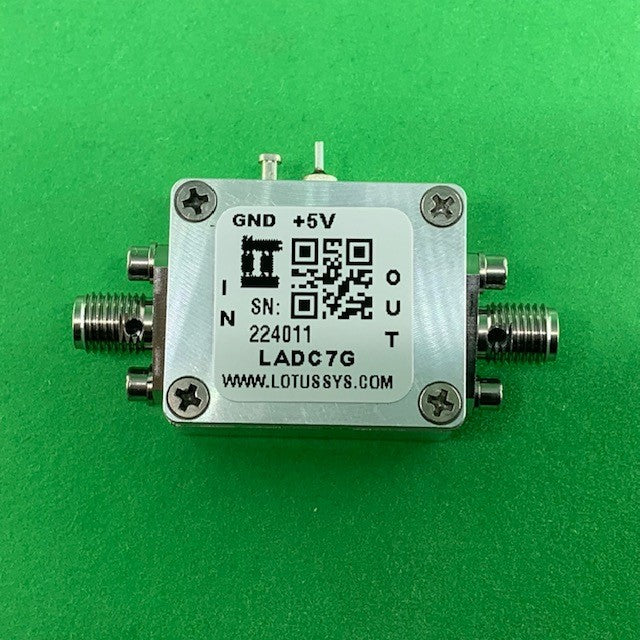

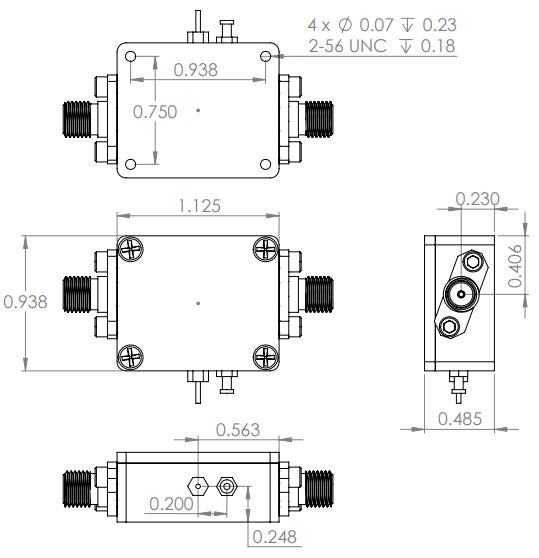

Part Number: LADC7G is a  is a wideband, high-linearity, low noise amplifier in a small 1-1/8”x15/16”x0.48” shielded RF enclosure. At 3.5 GHz, the amplifier typically provides 16 dB gain, +17.5 dBm OIP3 at a 16mA bias setting, and 2.3 dB noise figure. The LNA can be biased from a single supply +5V.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-016C.


Features

  • Frequency Range: DC to 7GHz
  • Noise Figure: typical 2.3 dB @ 2 GHz
  • Gain: 16 dB Gain at 3.5 GHz
  • Output P1dB: +3dBm CW
  • +17.5 dBm OIP3 at 16mA current
  • DC Voltage: +5V
  • Stainless Steel SMA Female Connector
  • ROHS Compliant

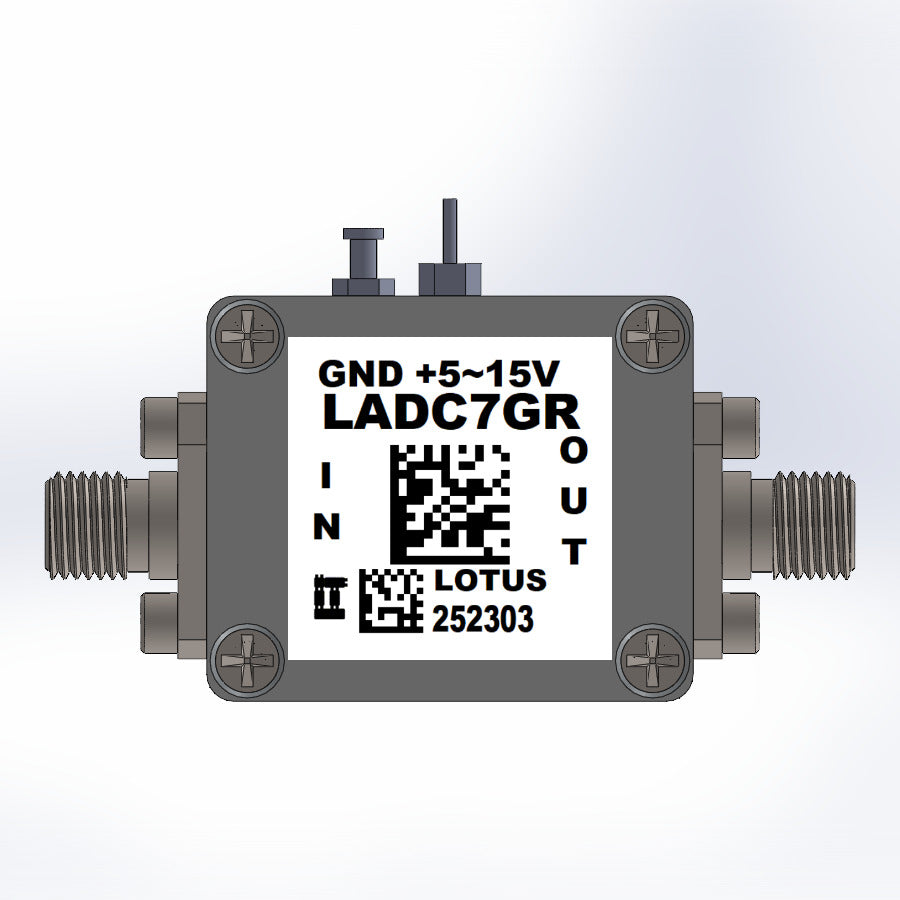

  • Wide Voltage (+5~15V) Option Available (PN#: LADC7GR)

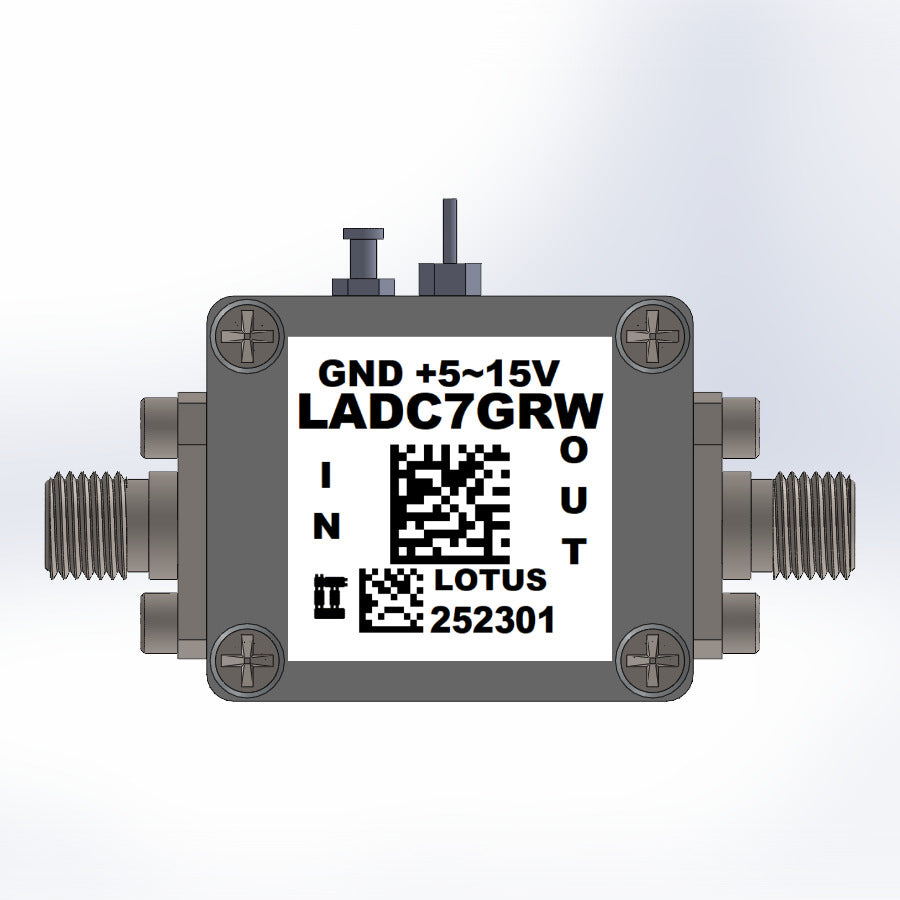

  • EMI Shield (Waterproof) Options Available (PN#: LADC7GRW)

Applications

  • 4.5G, 5G Massive MIMO
  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

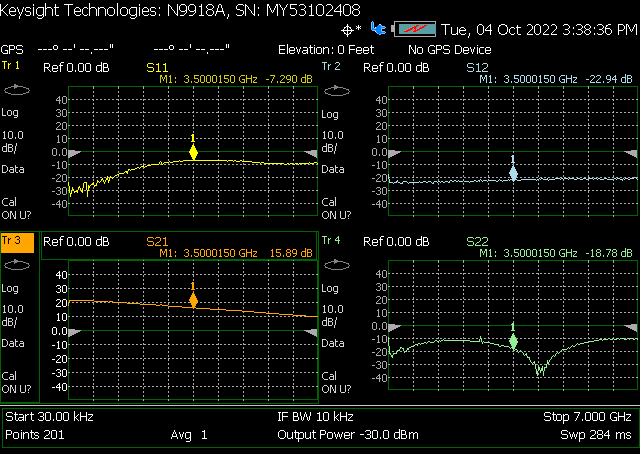

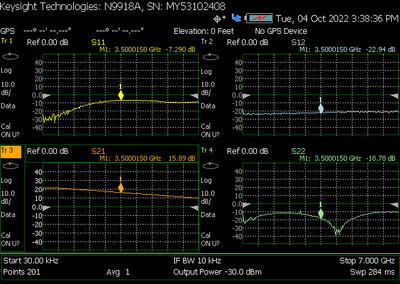

Datasheet & S-Parameter

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngLADC7G Datasheet

  S-Parameter (.S2P)
