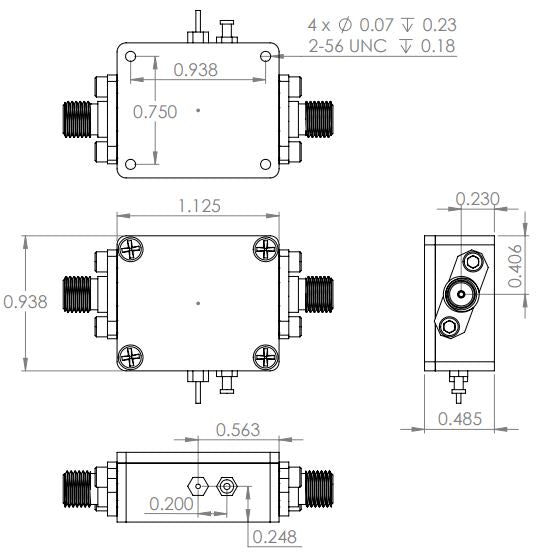

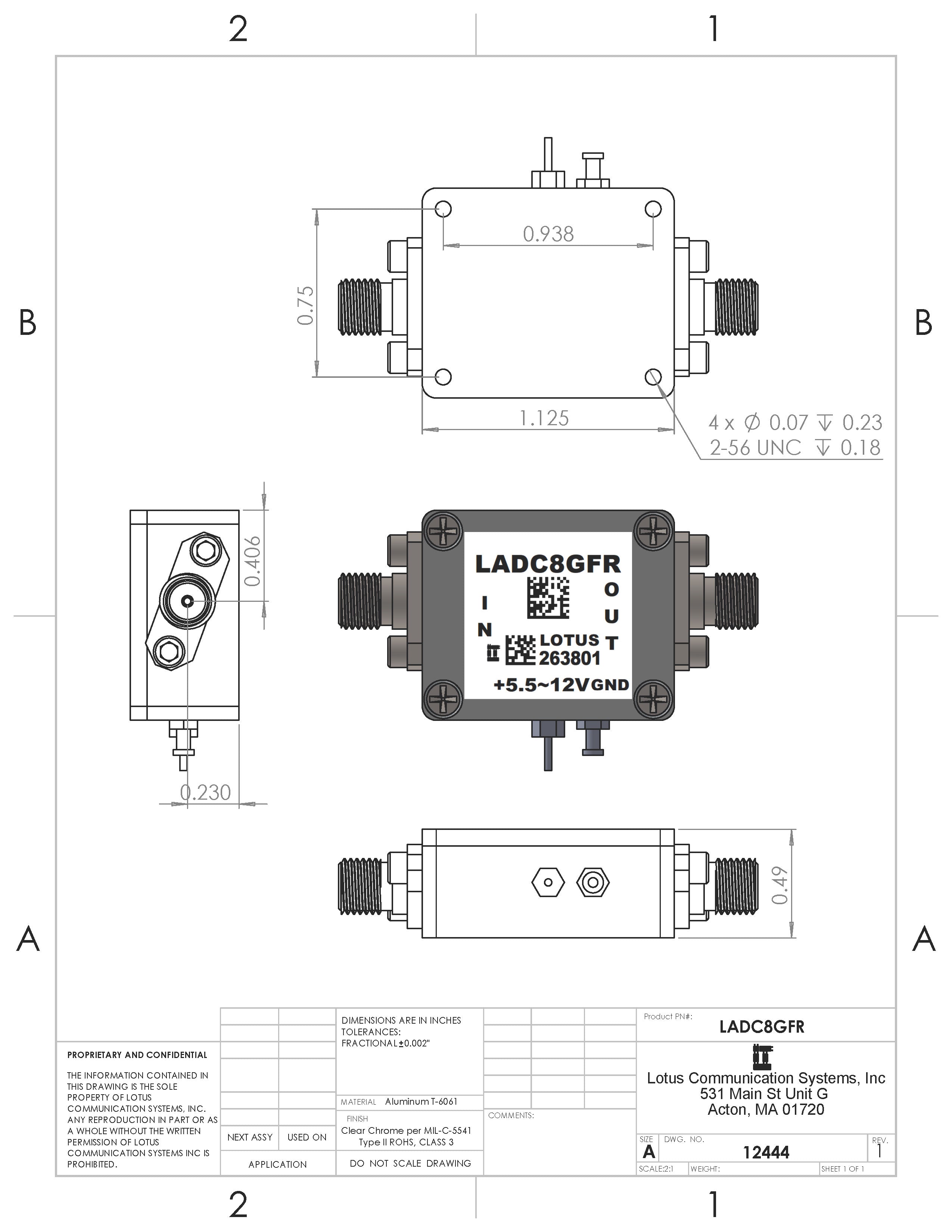

Part Number: LADC8GFR is a flat gain, high-linearity, ultra low noise amplifier in a small 1-1/8"x15/16”x0.49” shielded RF enclosure. The LNA provides a +/-0.5dB flat gain (peak-to-peak) from DC to 8 GHz. At 4 GHz, the amplifier typically provides 19.5 dB gain, +31 dBm OIP3 at a 72mA bias setting, and 1.8 dB noise figure. The LNA can be biased from a single supply +5.5V~15V.

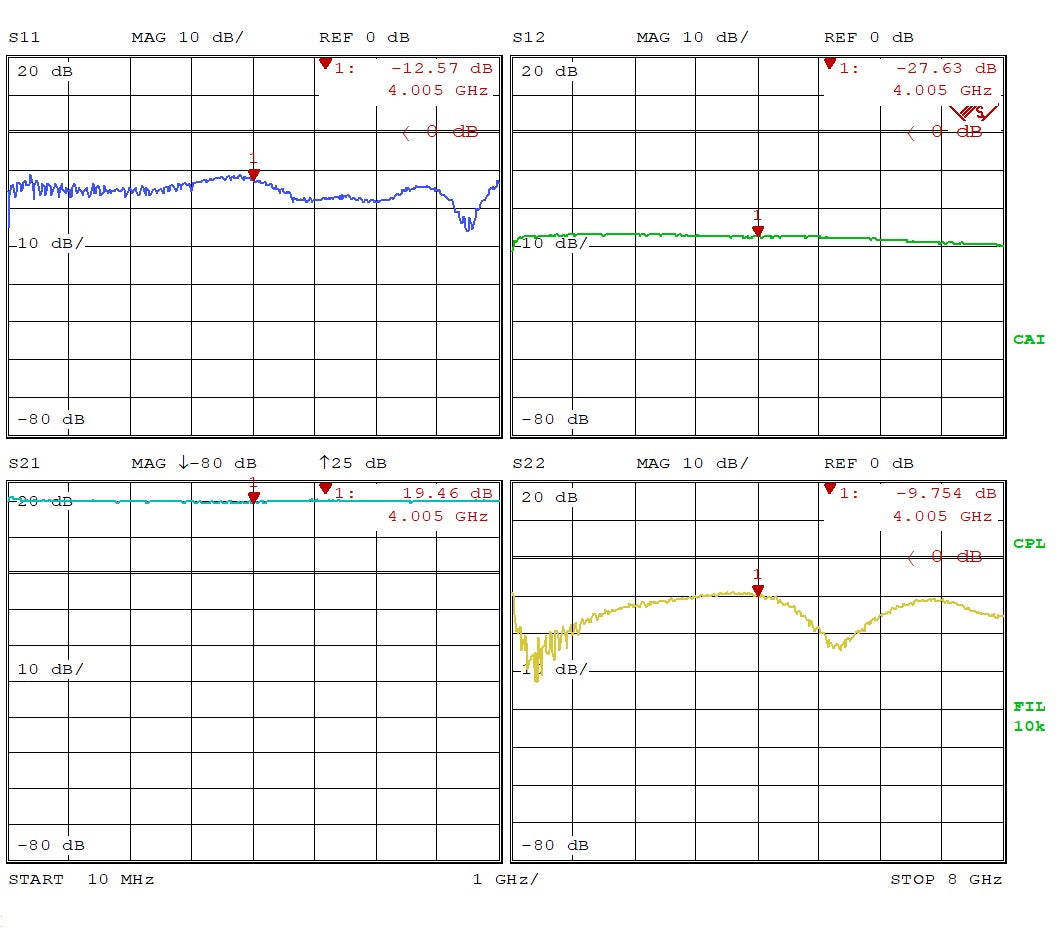

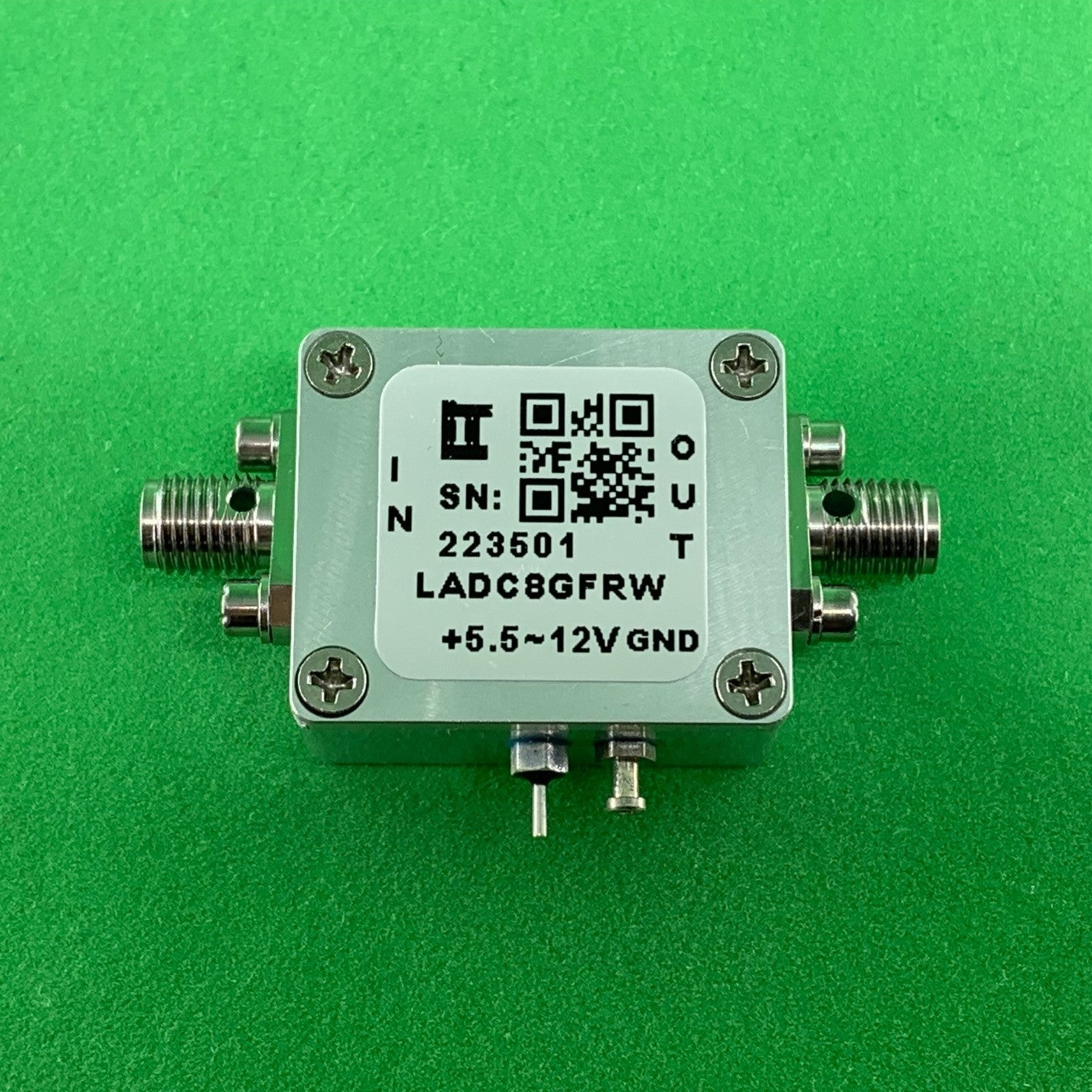

Listed pictures include Product Picture and S Parameter from DC to 8GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016A.

Collections: Low Noise Amplifier

Features

Frequency Range: DC to 8 GHz
Noise Figure: typical 1.8 dB @ 4 GHz
Gain: 19.5 dB at 4 GHz
Flat Gain: +/-0.5dB from DC to 8GHz
Output P1dB: +18 dBm CW
Output IP3: +31 dBm
DC Voltage: +5.5 to +15V
Operating Current: 72 mA
Stainless Steel SMA Female Connector
ROHS Compliant

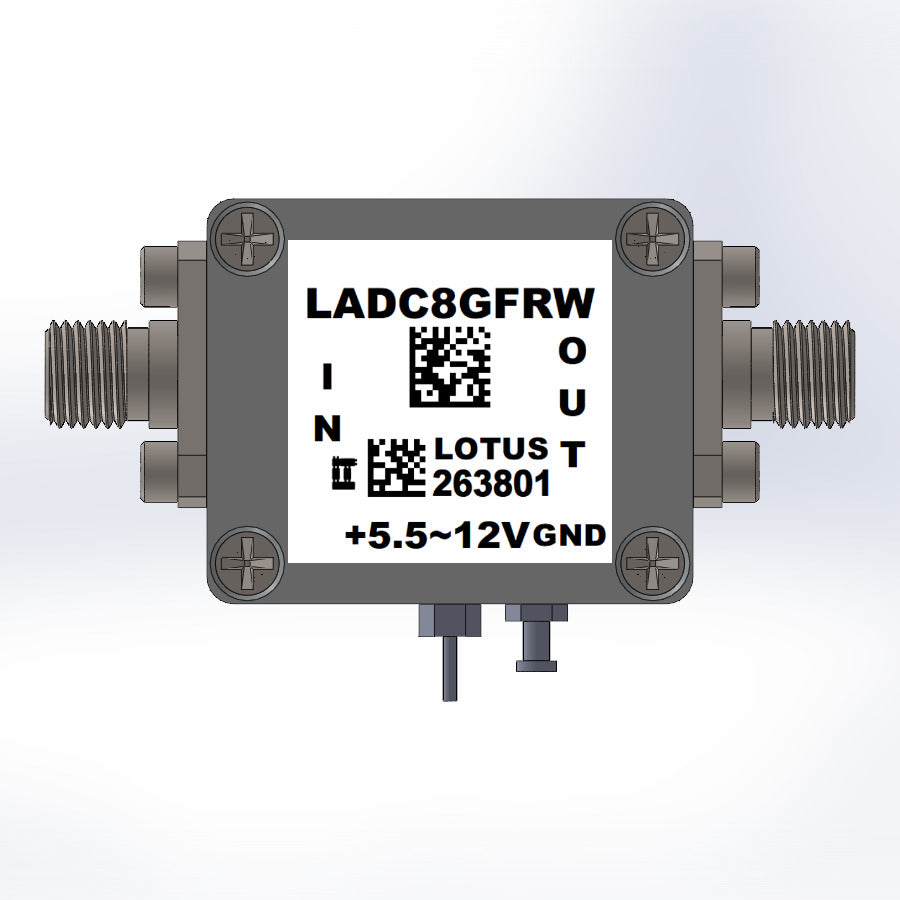

EMI Shield (Waterproof) Option Available (PN#: LADC8GFRW)

Applications

General Purpose Wireless
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
SDR & Ham Radio
Test Instrumentation

Datasheet & S-Parameter
