  • Low Noise Amplifier 1.0dB NF 1GHz to 6GHz 34dB Gain SMA

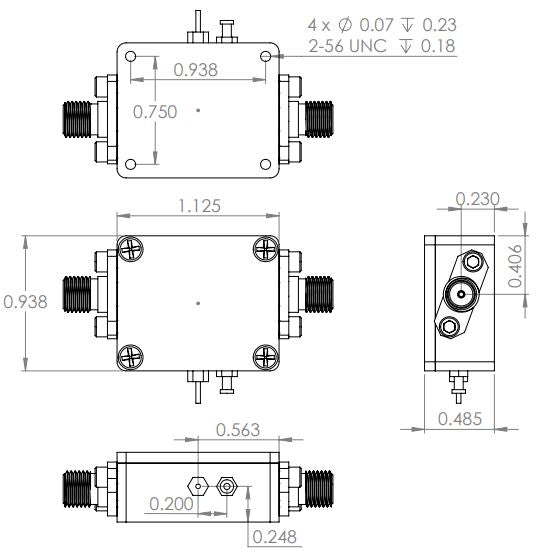

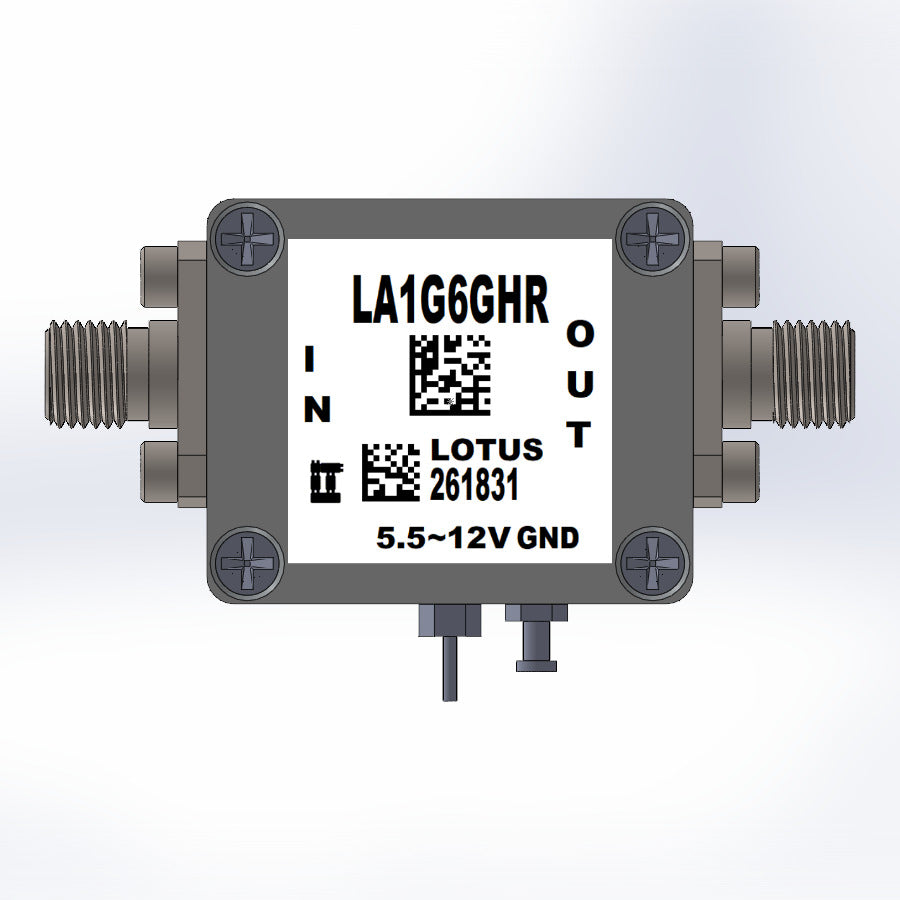

    Part Number: LA1G6GHR is a flat gain, high-linearity, ultra low noise amplifier in a small 1.125”x0.935”x0.485” RF enclosure. The LNA provides a 1 dB flat gain (peak-to-peak) from 1.5 to 5 GHz. At 4.75 GHz, the amplifier typically provides 34 dB gain and 0.9 dB noise figure. The LNA can be biased from a single supply from +5,5V to +12V from output port.

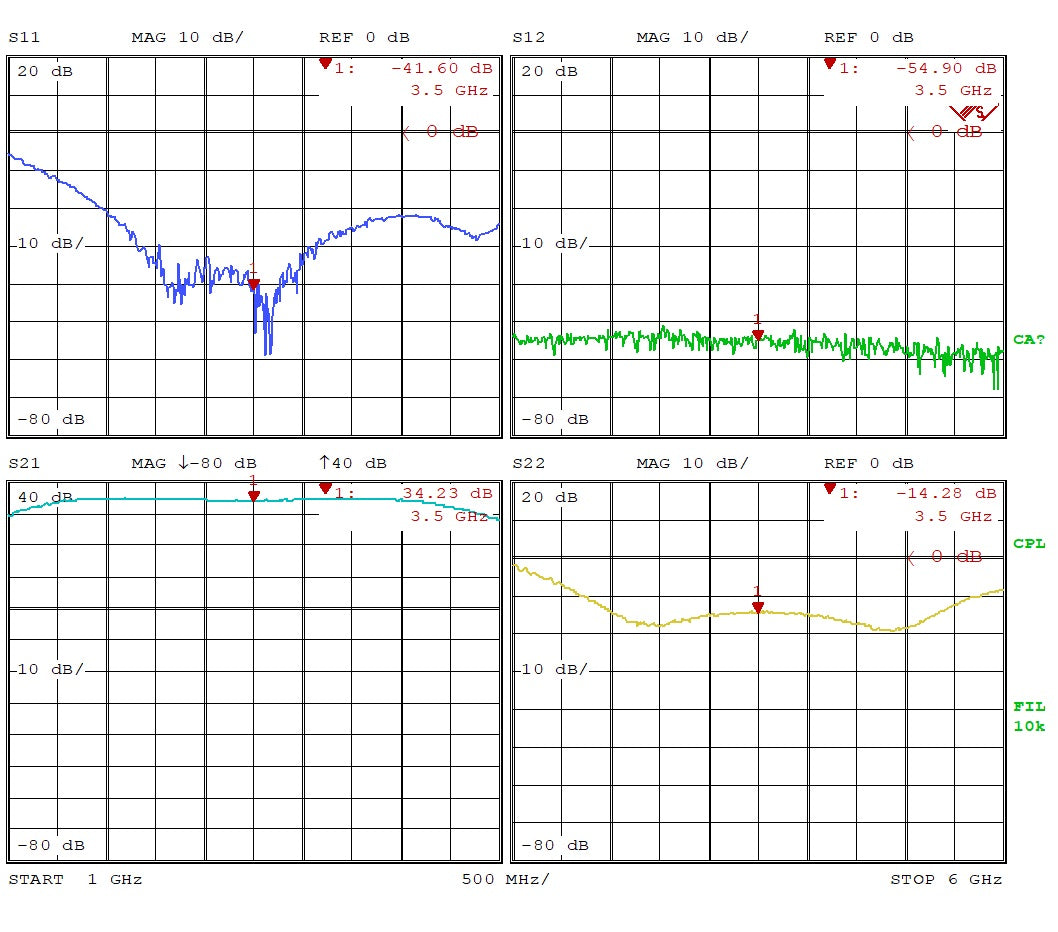

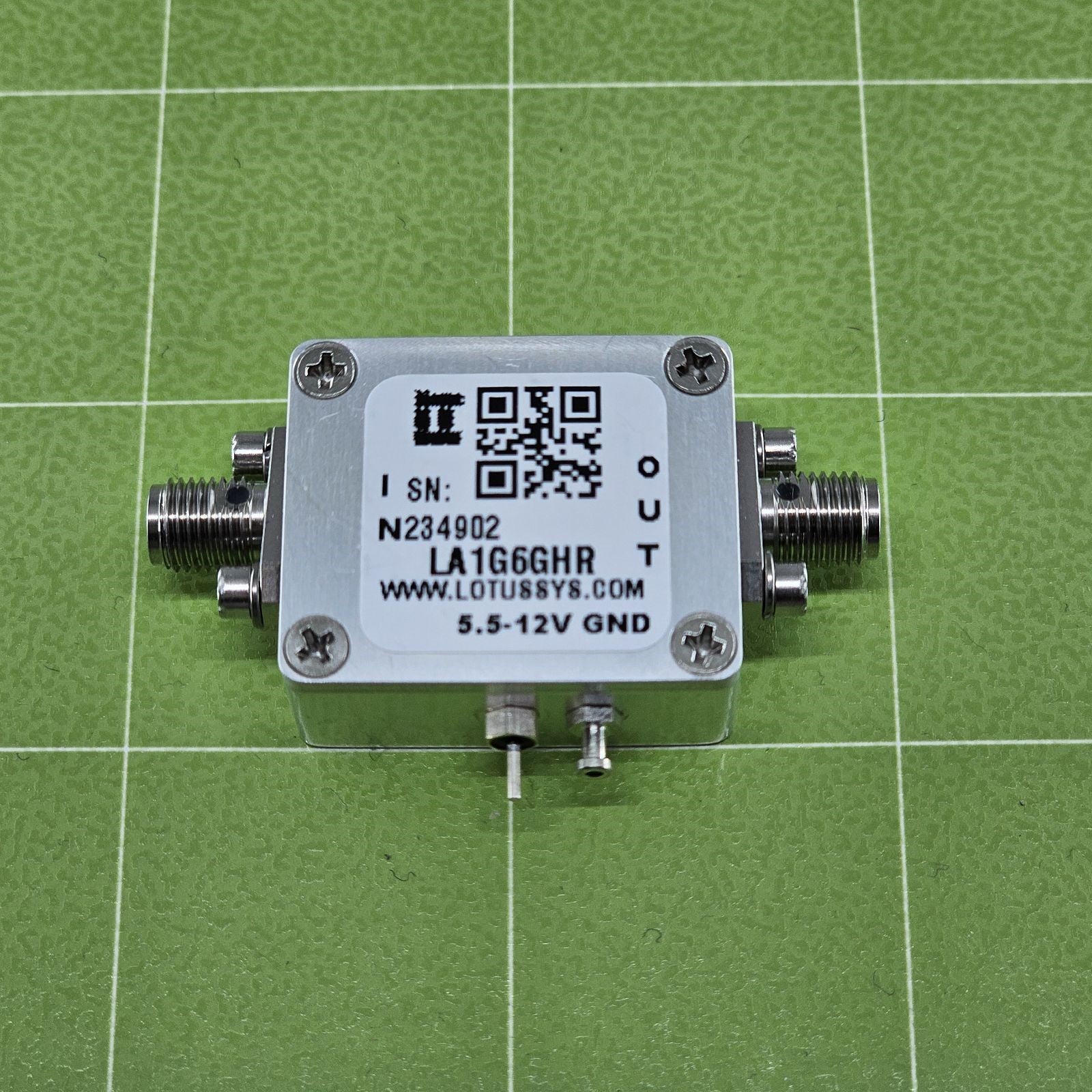

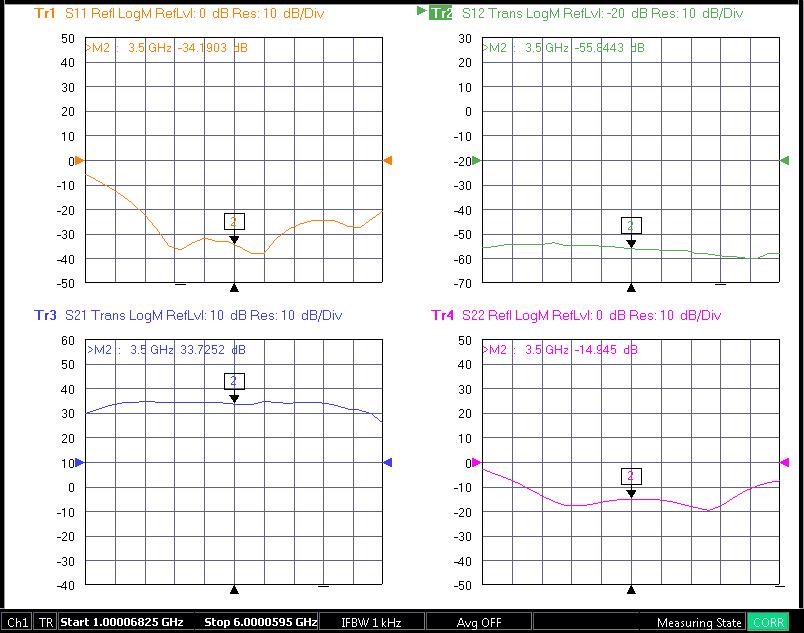

    Listed pictures include Product Picture and S Parameter from 1G to 6GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-020O.

    EMI Shielding (includes Weatherproofing)
    30 items left


    • Frequency Range: 1 to 6 GHz
    • Gain: 34dB flat gain from 1.5~5GHz
    • Noise Figure: typical 1.0 dB @ 4.75 GHz
    • Input P1dB: -17dBm
    • Input IP3: -5dBm
    • 5V~+12 VDC wide operating voltage
    • ROHS Compliant

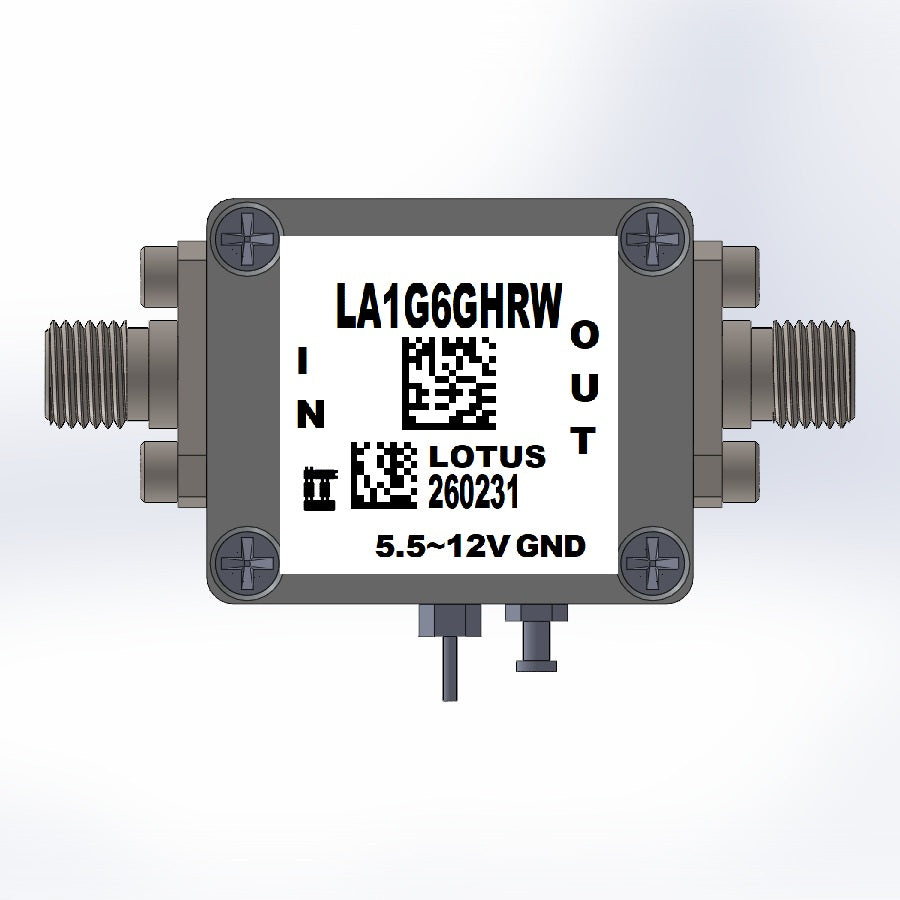

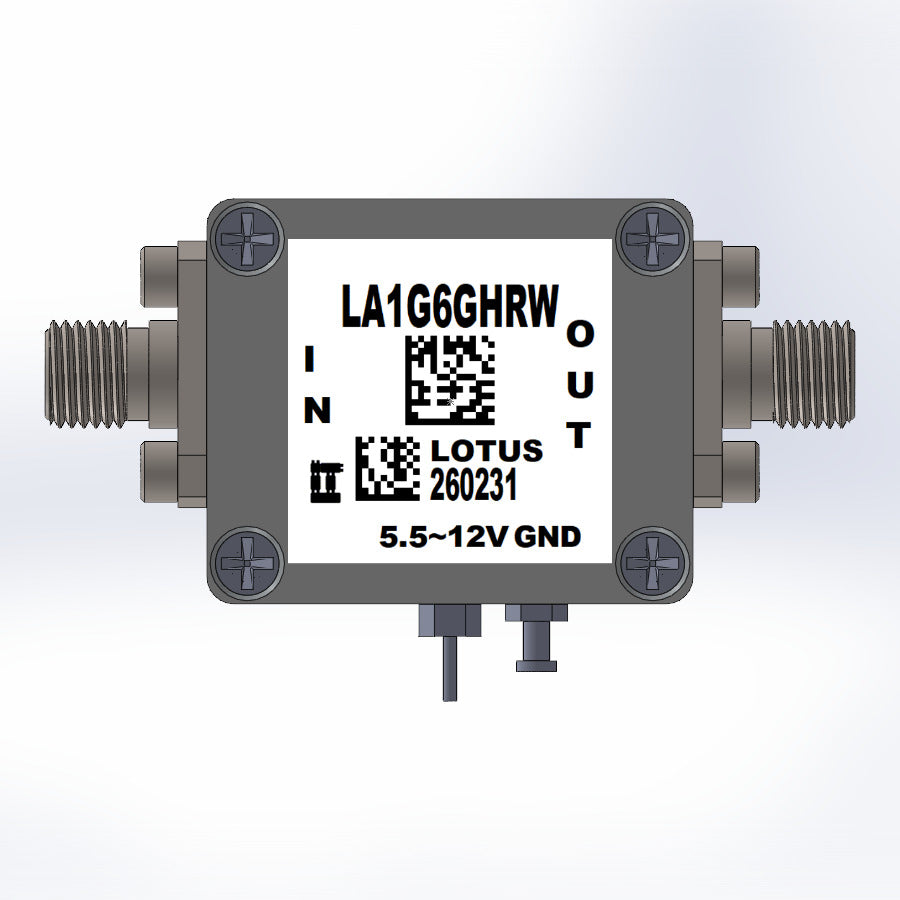

    • EMI Shield (& Weatherproof IP67 option available) Part Number: LA1G6GHRW
    • Female SMA Connectors for RF Input and Output


    • General Purpose Wireless
    • 4.5G, 5G Massive MIMO
    • Repeaters/DAS/Mobile Infrastructure
    • General Purpose Wireless
    • SDR & Ham Radio/Test Instrumentation

    Datasheet & S-Parameters
