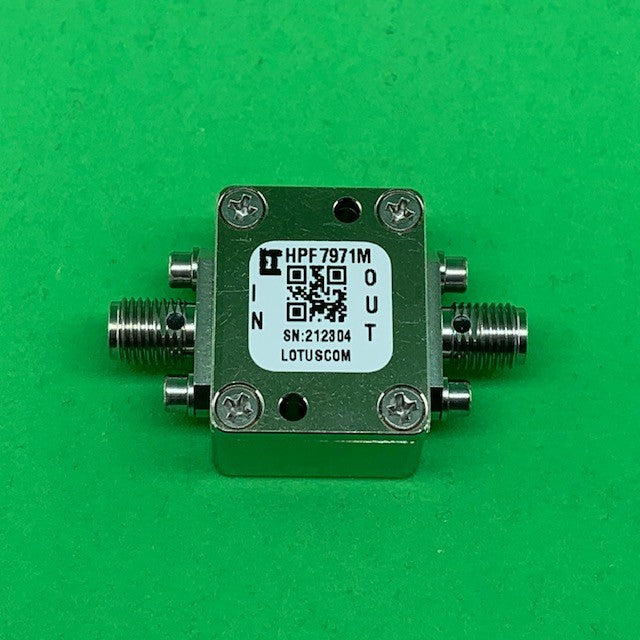

Part Number: HPF7971M -- High Pass Filter (LTCC Construction) Pass Band 7.9G-11 GHz. SKU#: AK28-014B.

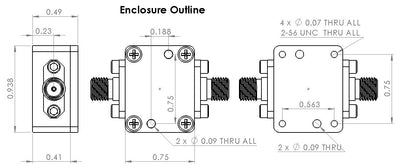

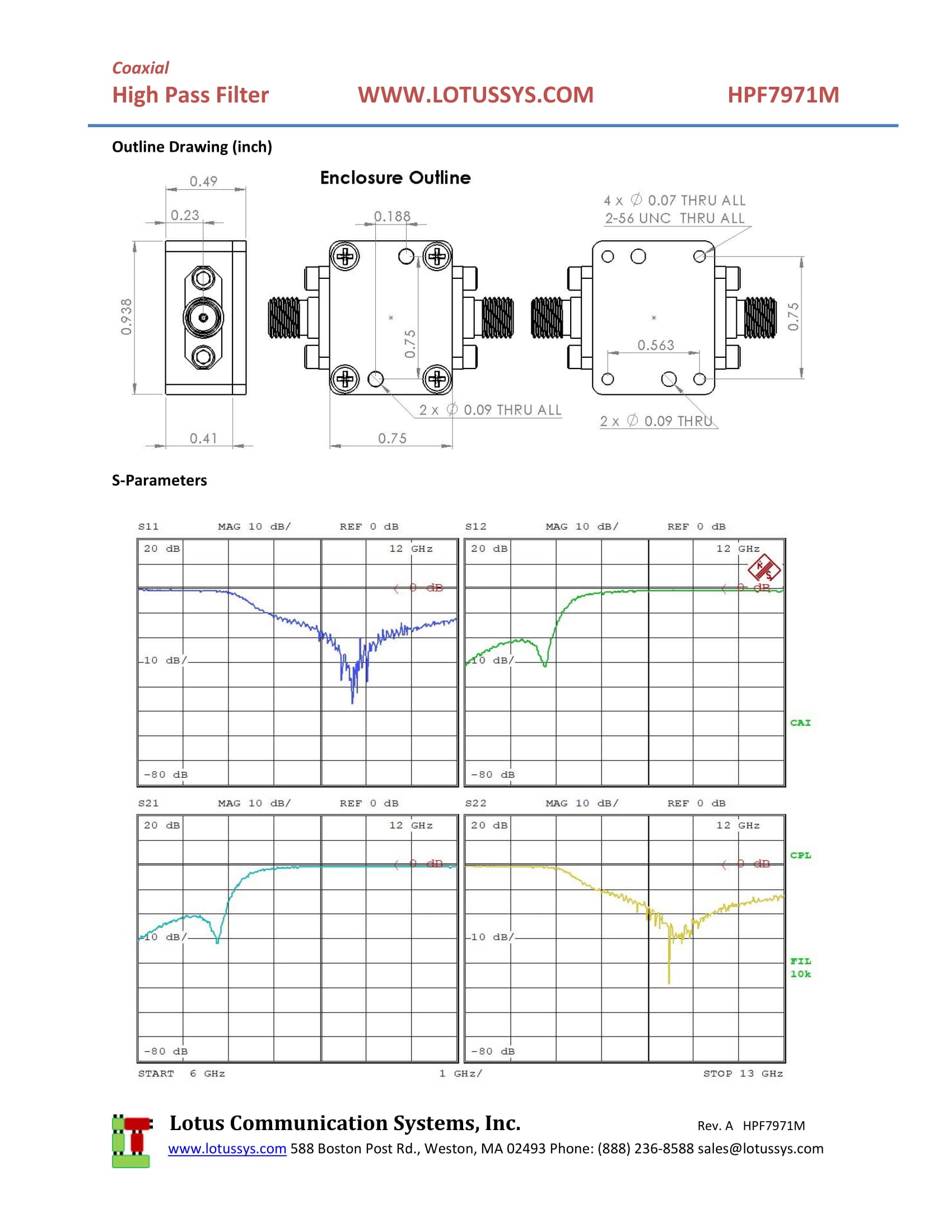

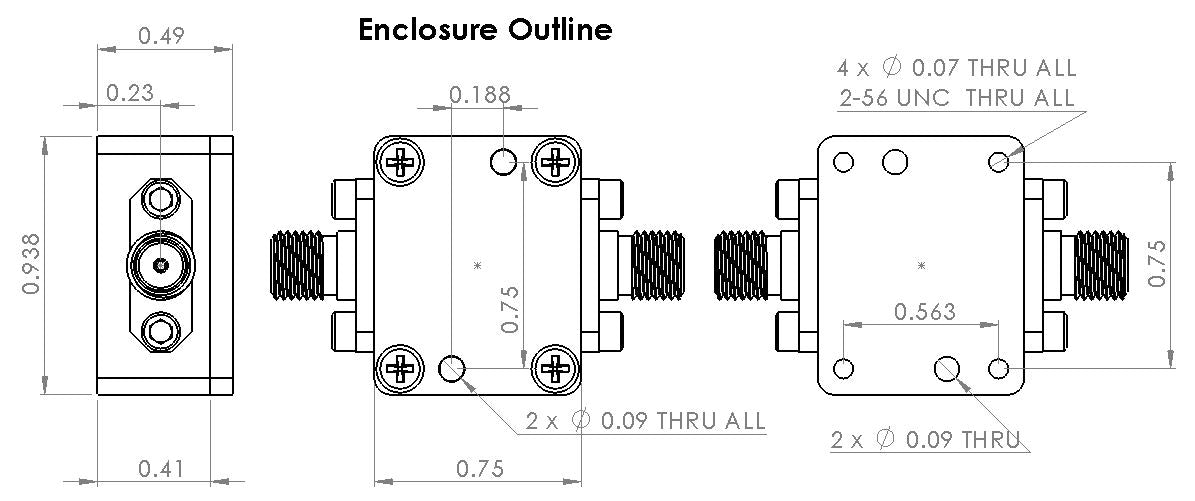

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (6 GHz to 13 GHz) is shown in third picture.

Made in USA.

Collections: High Pass Filter

Features

Operational Temperature: -55 ~ 100℃
Temperature Stable
3dB Cut Off Frequency: 8000 MHz
RF Power Input: 7W max. at 25℃
Insertion Loss in Pass Band: (1.5dB Max)
High Quality SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

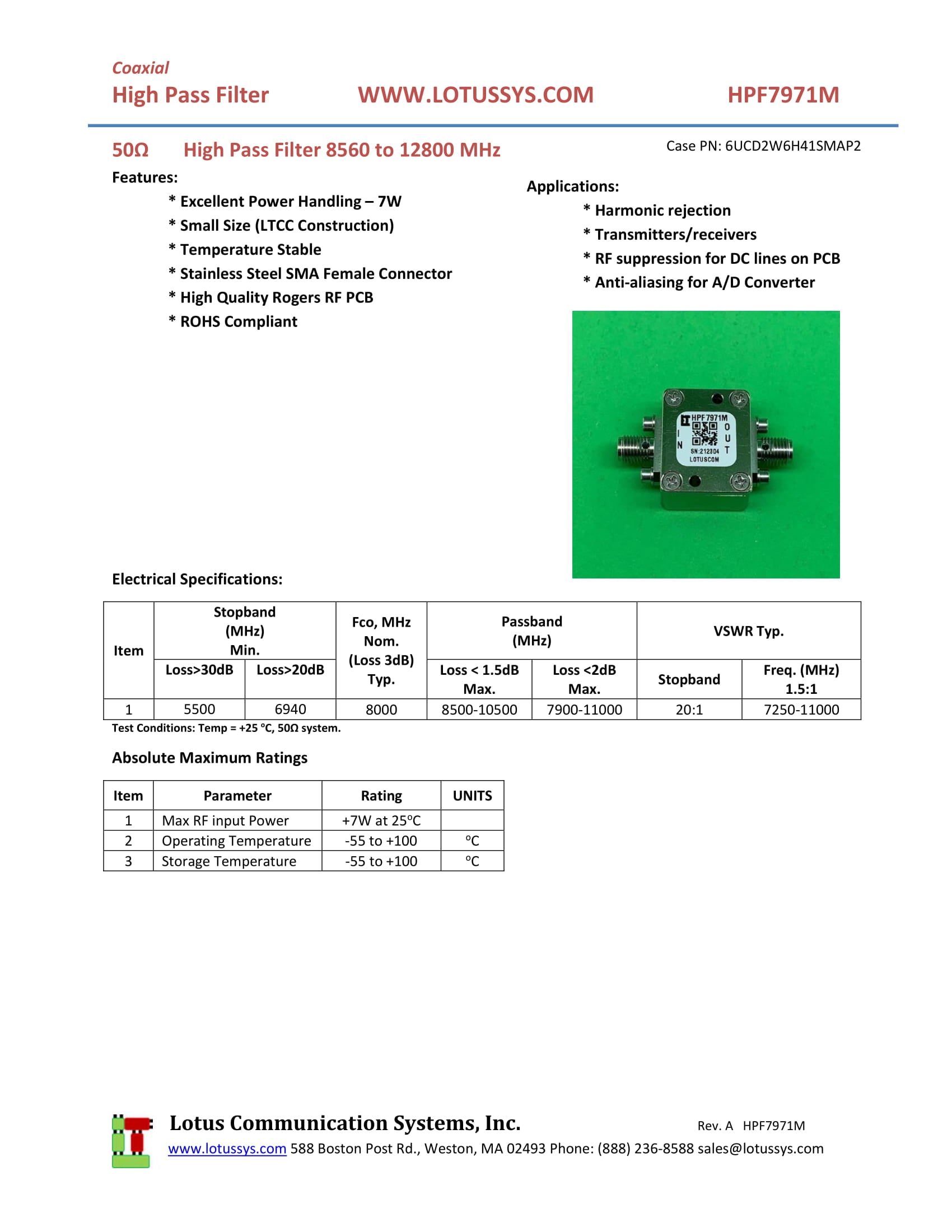

HPF7971M Datasheet
