High Pass Filter (LTCC Construction) HPF7150M Pass Band 7.9G - 11GHz

5 items left

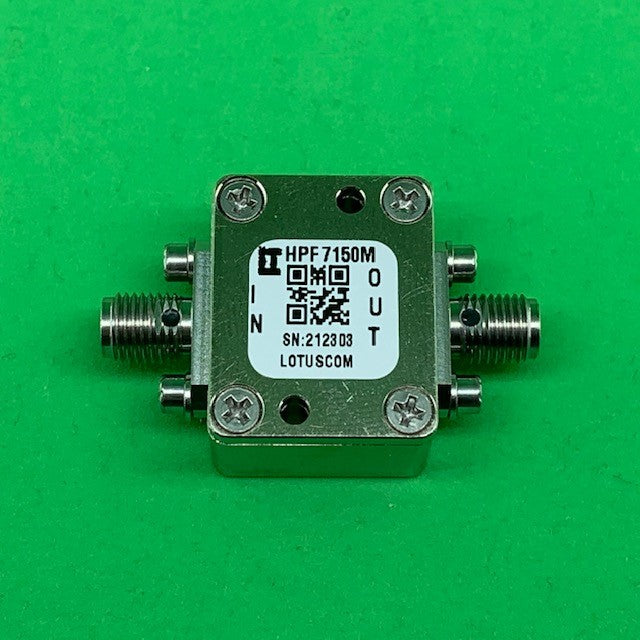

Part Number: HPF7150M -- High Pass Filter (LTCC Construction) Pass Band 7.9G-11 GHz. SKU#: AK28-014B.

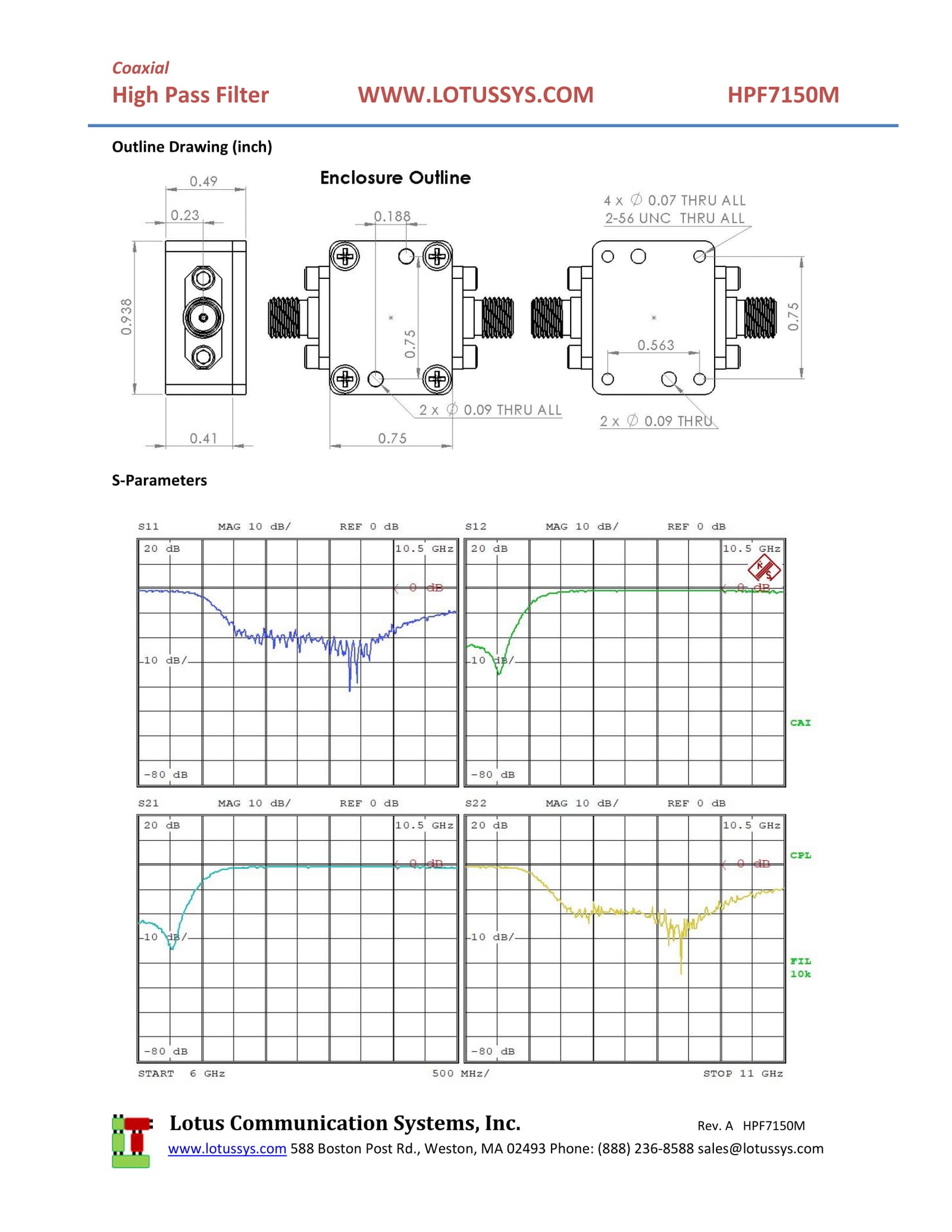

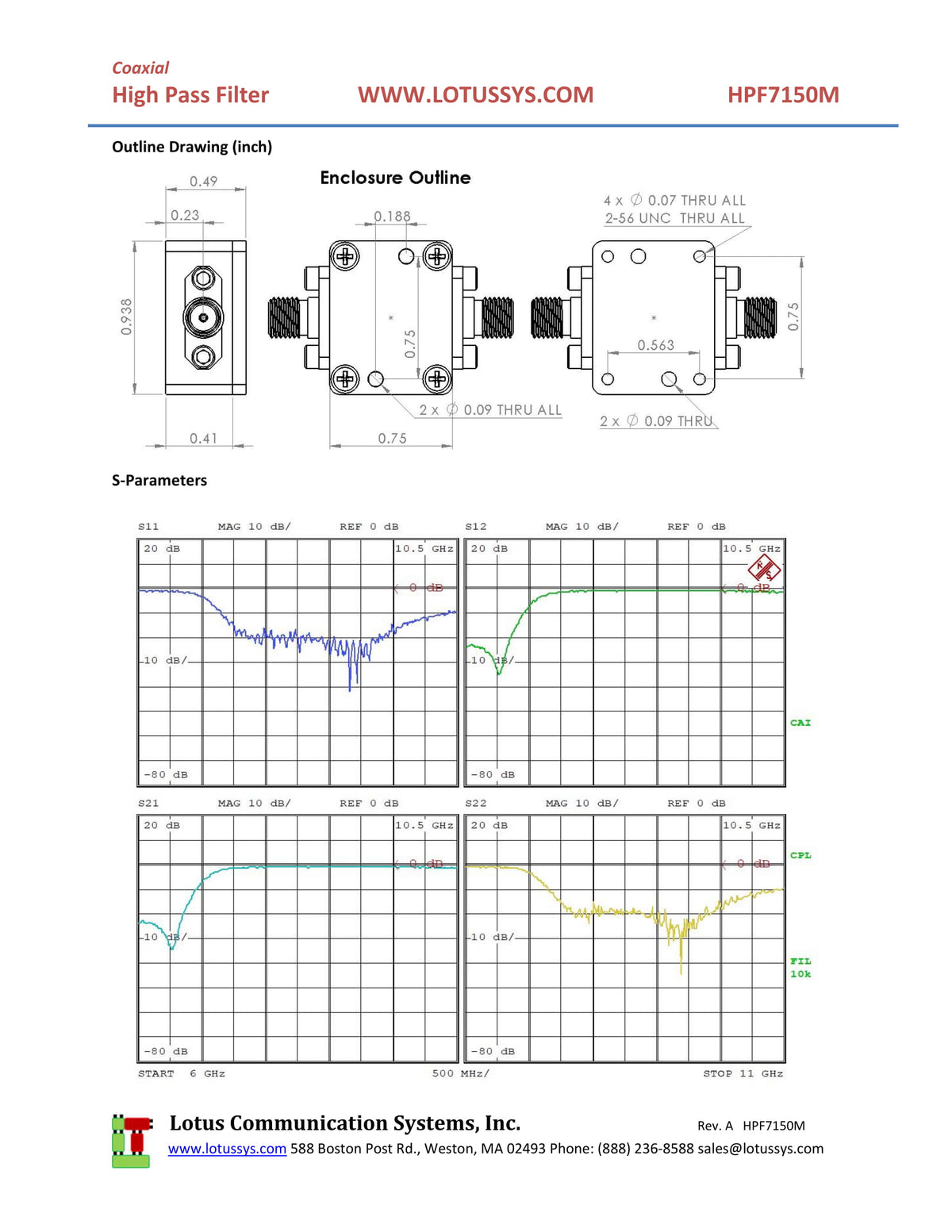

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (6 GHz to 11 GHz) is shown in third picture.

Made in USA.


  • Operational Temperature: -55 ~ 100℃
  • Temperature Stable
  • 3dB Cut Off Frequency: 7150 MHz
  • RF Power Input: 7W max. at 25℃
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant


  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation
