High Pass Filter (LTCC Construction) HPF650M Pass Band 710M - 2490MHz

2 items left

High Pass Filter (LTCC Construction) Pass Band 710M-2490MHz

Part Numbers:  HPF650M

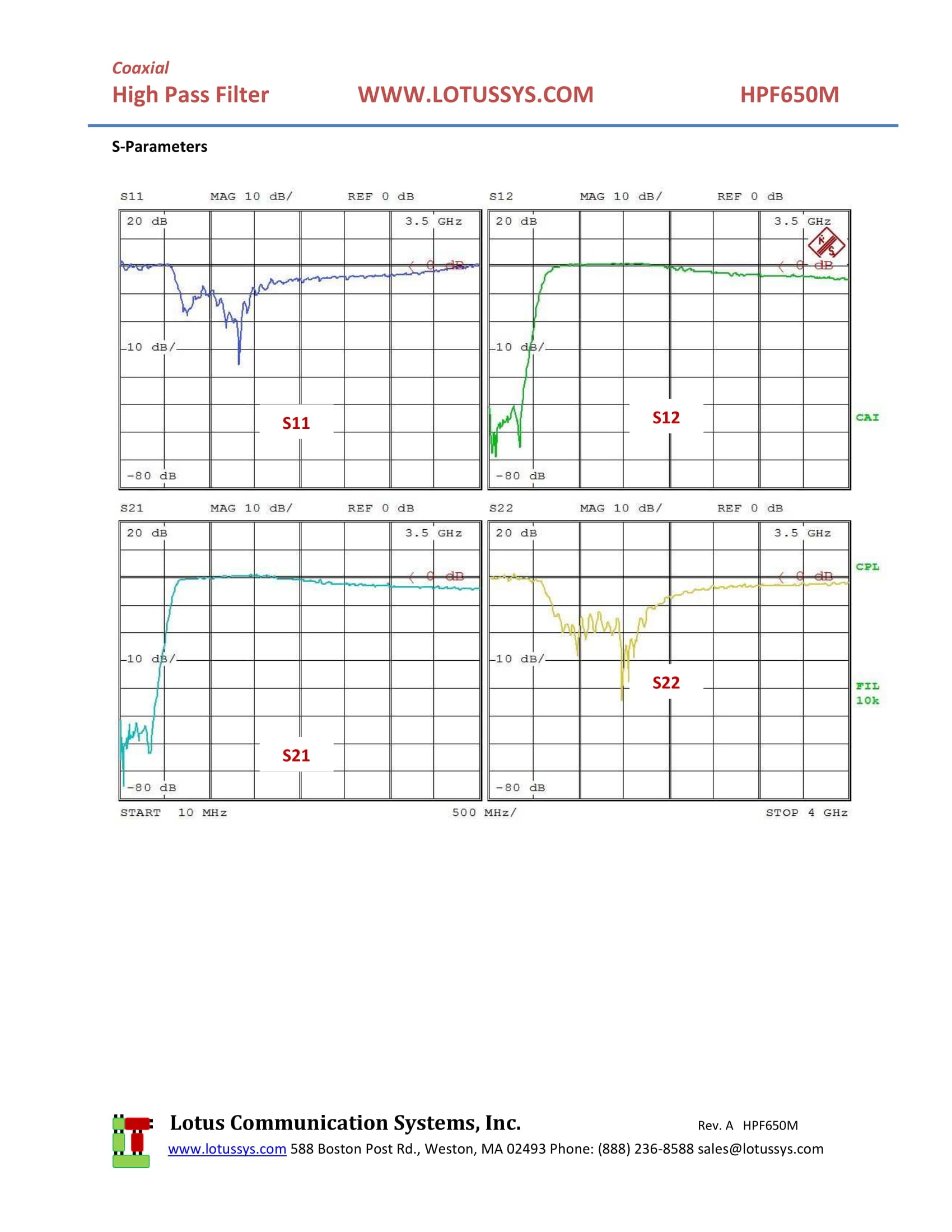

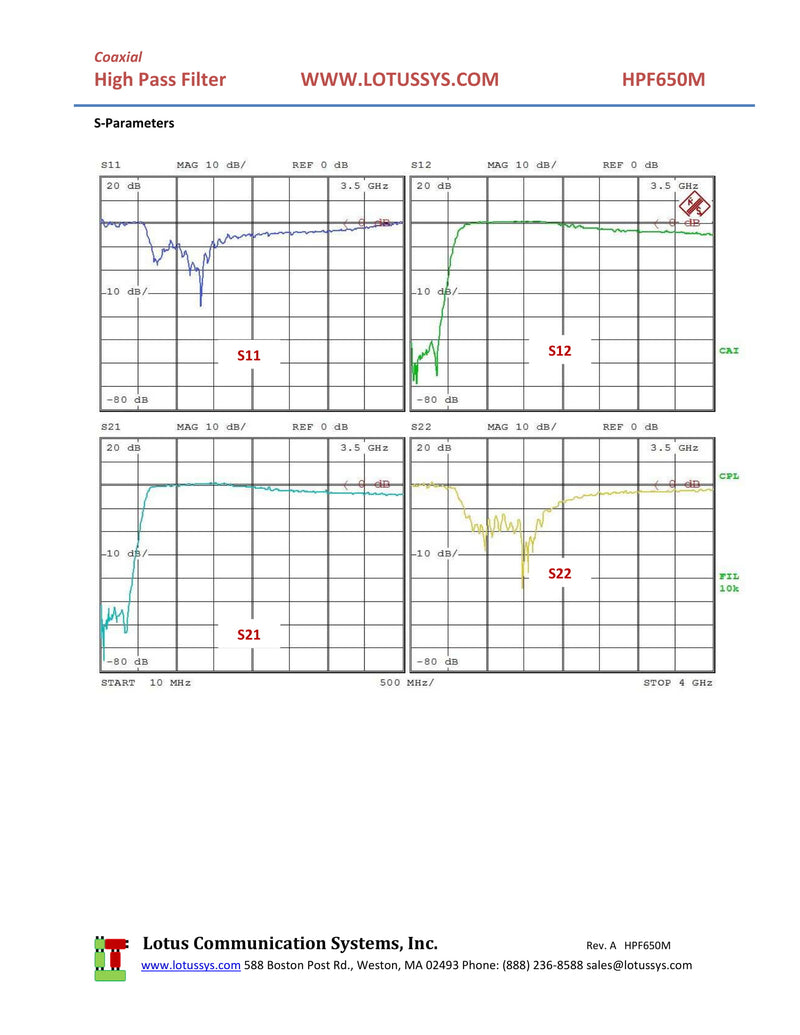

Enclosure uses RF Design Kitwith dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (100 MHz to 4 GHz) is shown in third picture.

  • Operational Temperature: -55 ~ 100C
  • Temperature Stable
  • 3dB Cut Off Frequency: 650 MHz
  • RF Power Input: 7W max. at 25C
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector (Amphenol)
  • High Quality Rogers RF PCB -- Low loss and High Thermal Performance


  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

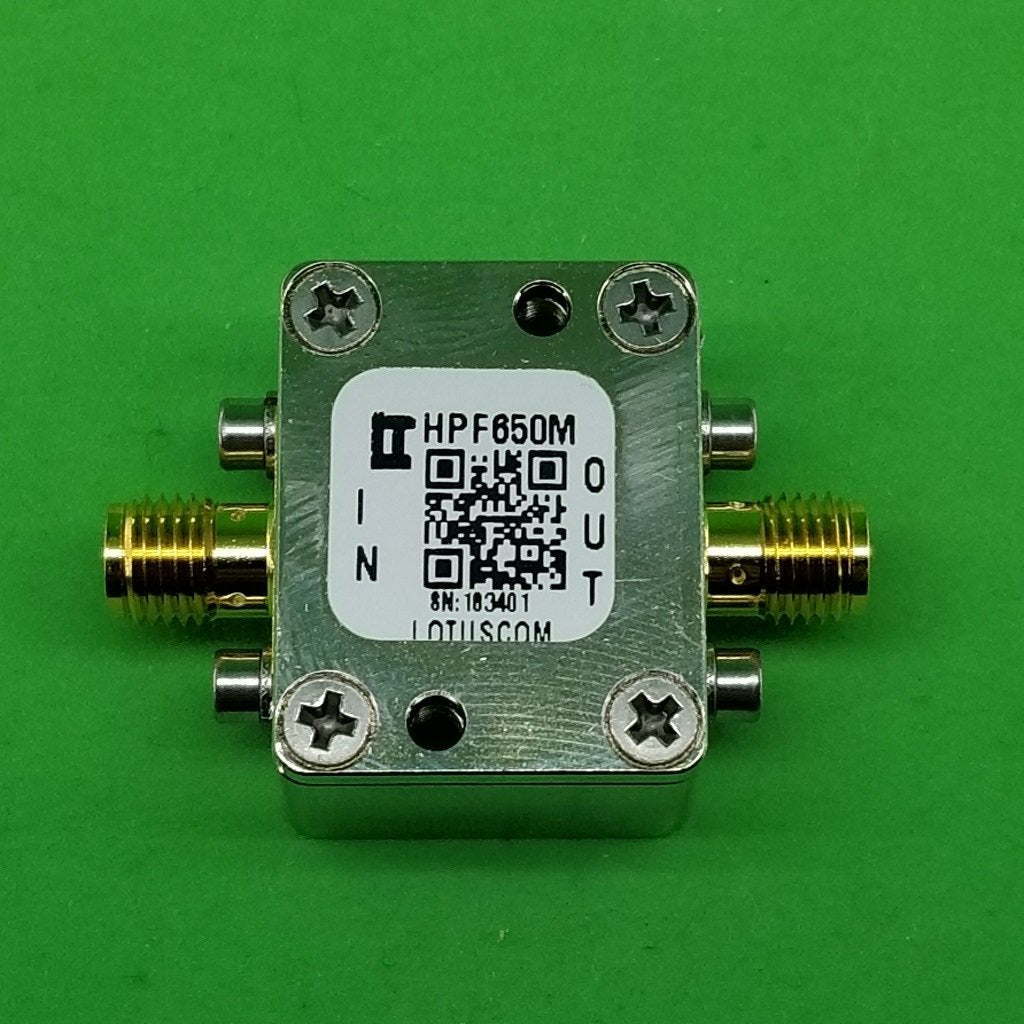

This HPF Module includes the RF Enclosure as shown in picture.

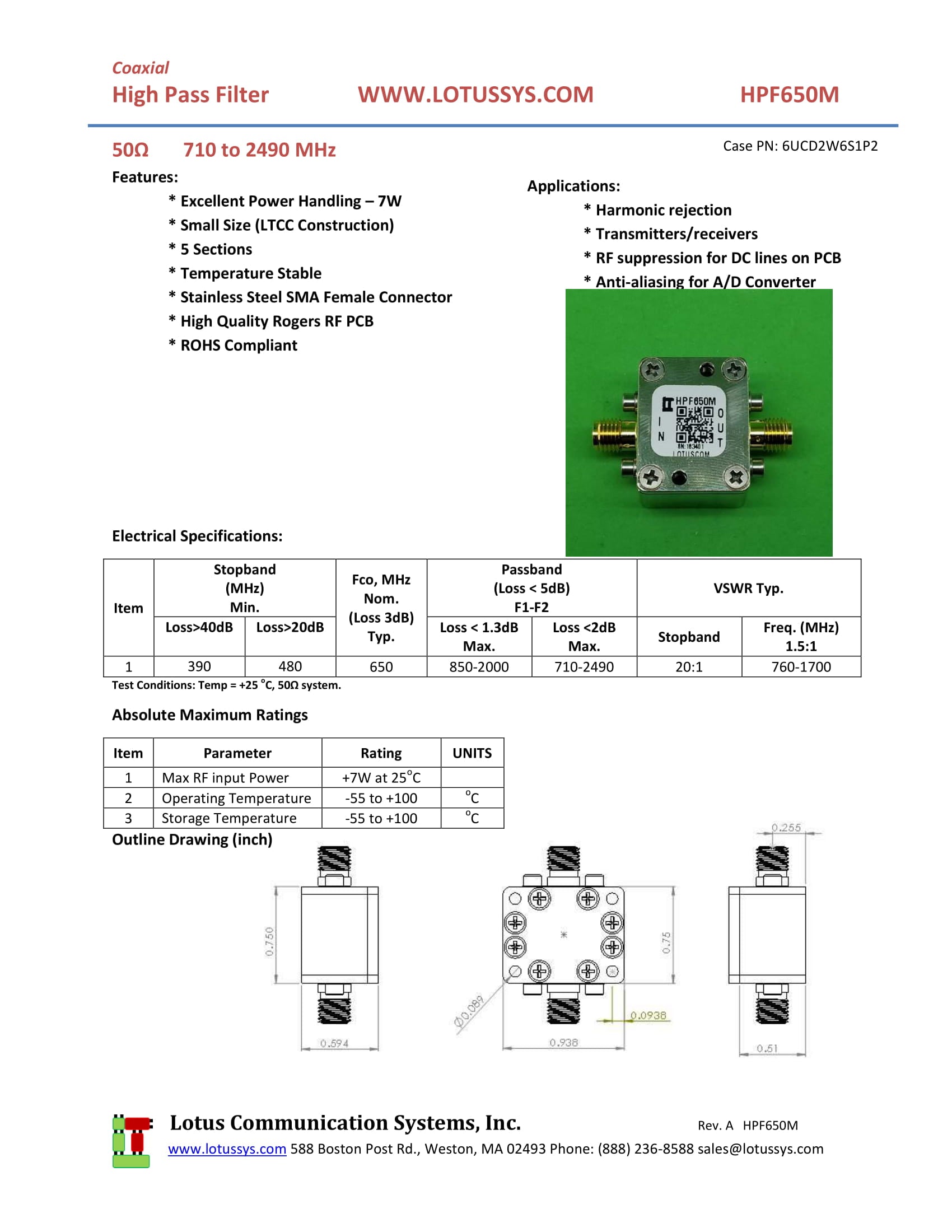

Click https://cdn.shopify.com/s/files/1/1592/7469/files/HPF650M.pdf to see detailed specification.

Proudly MADE IN USA.
