High Pass Filter (LTCC Construction) HPF6010M Pass Band 6.3G - 15GHz
$ 97.85 USD

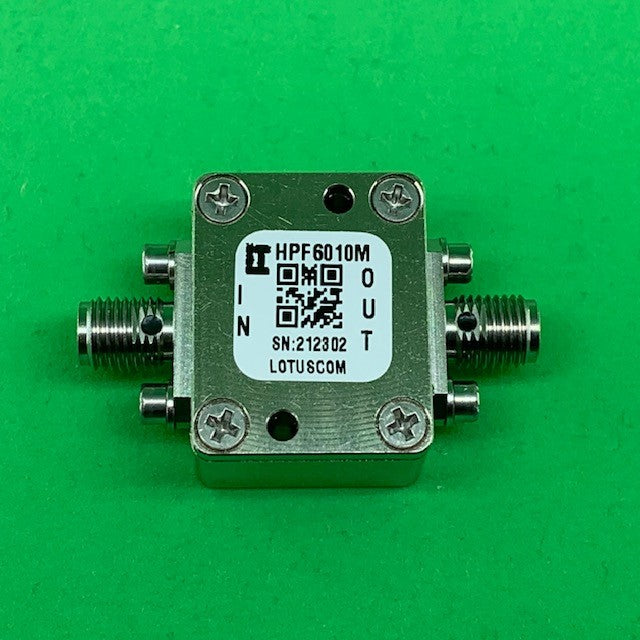

Part Number: HPF6010M -- High Pass Filter (LTCC Construction) Pass Band 5.5G-10 GHz. SKU#: AK20-014A.

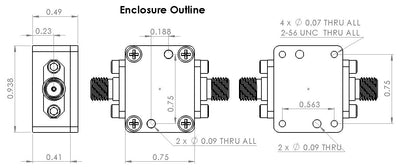

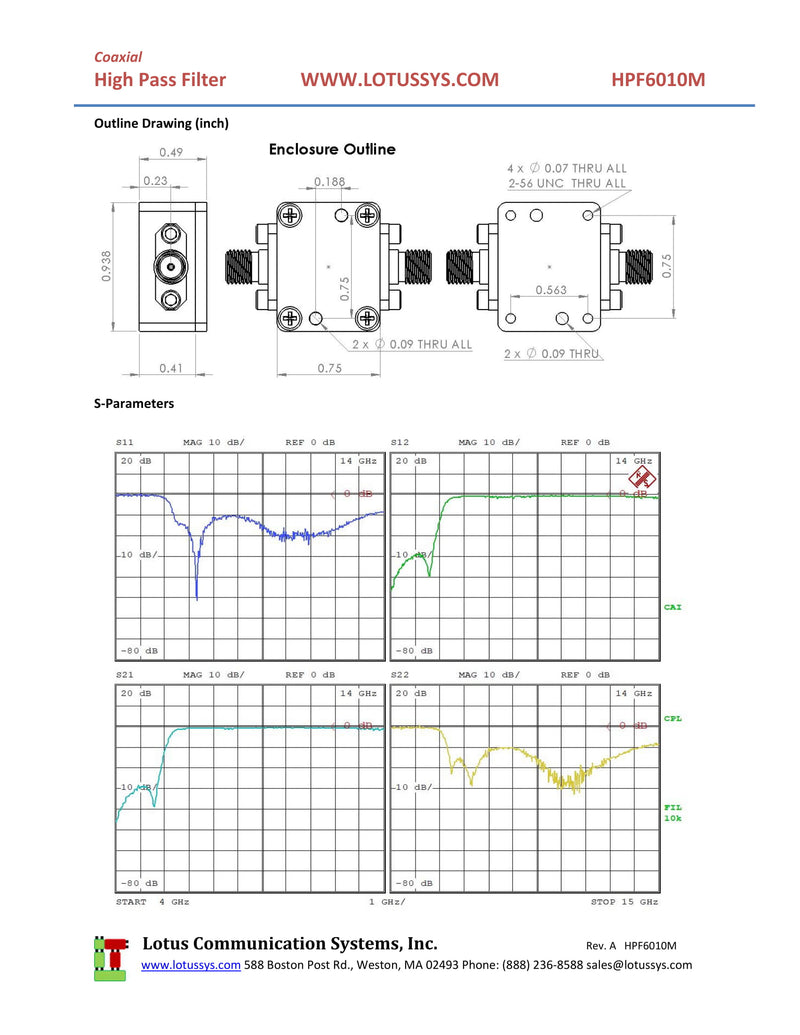

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (4 GHz to 15 GHz) is shown in third picture.
Made in USA.
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- 3dB Cut Off Frequency: 6010 MHz
- RF Power Input: 7W max. at 25℃
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources

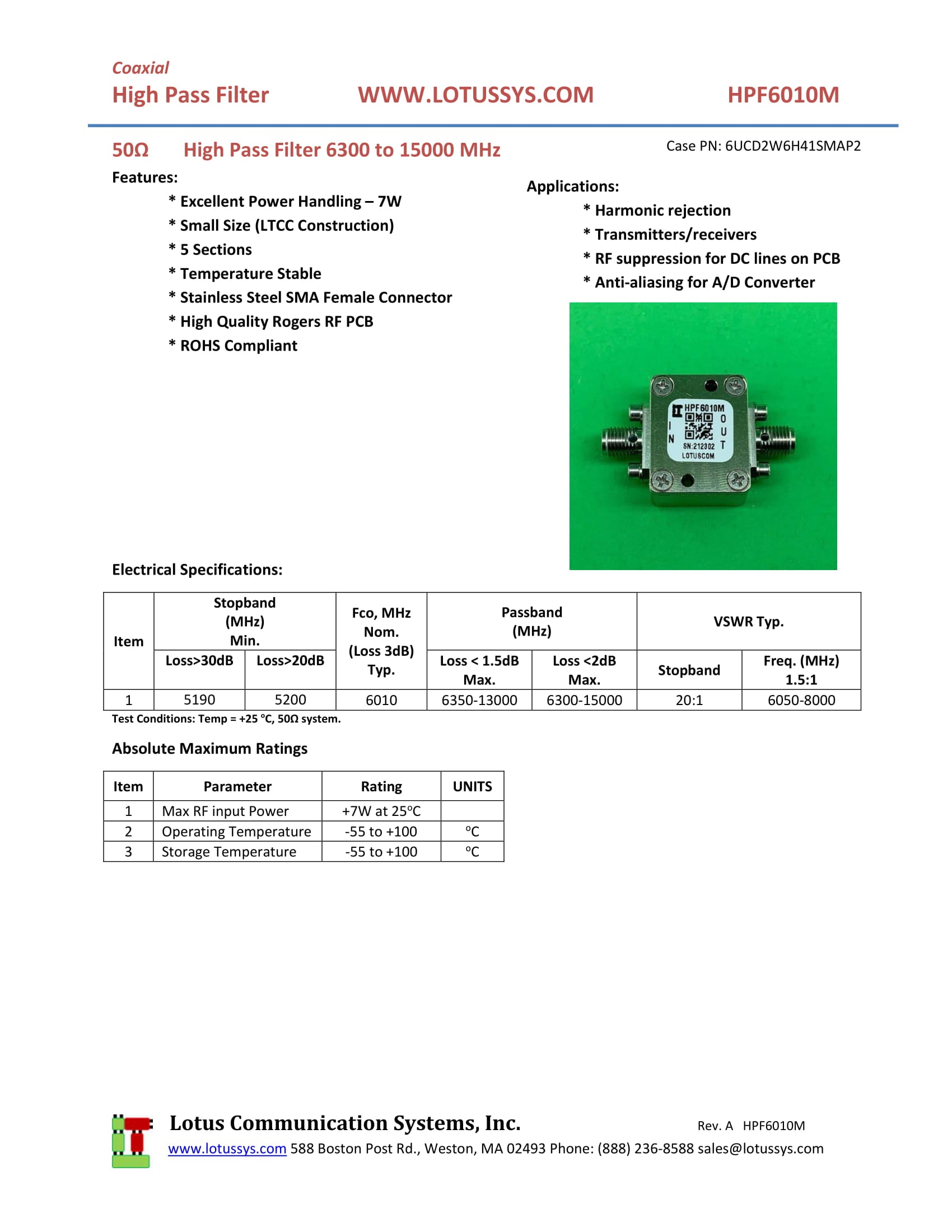

HPF6010M Datasheet
