  • High Pass Filter (LTCC Construction) HPF5500M Pass Band 6G - 11.5GHz

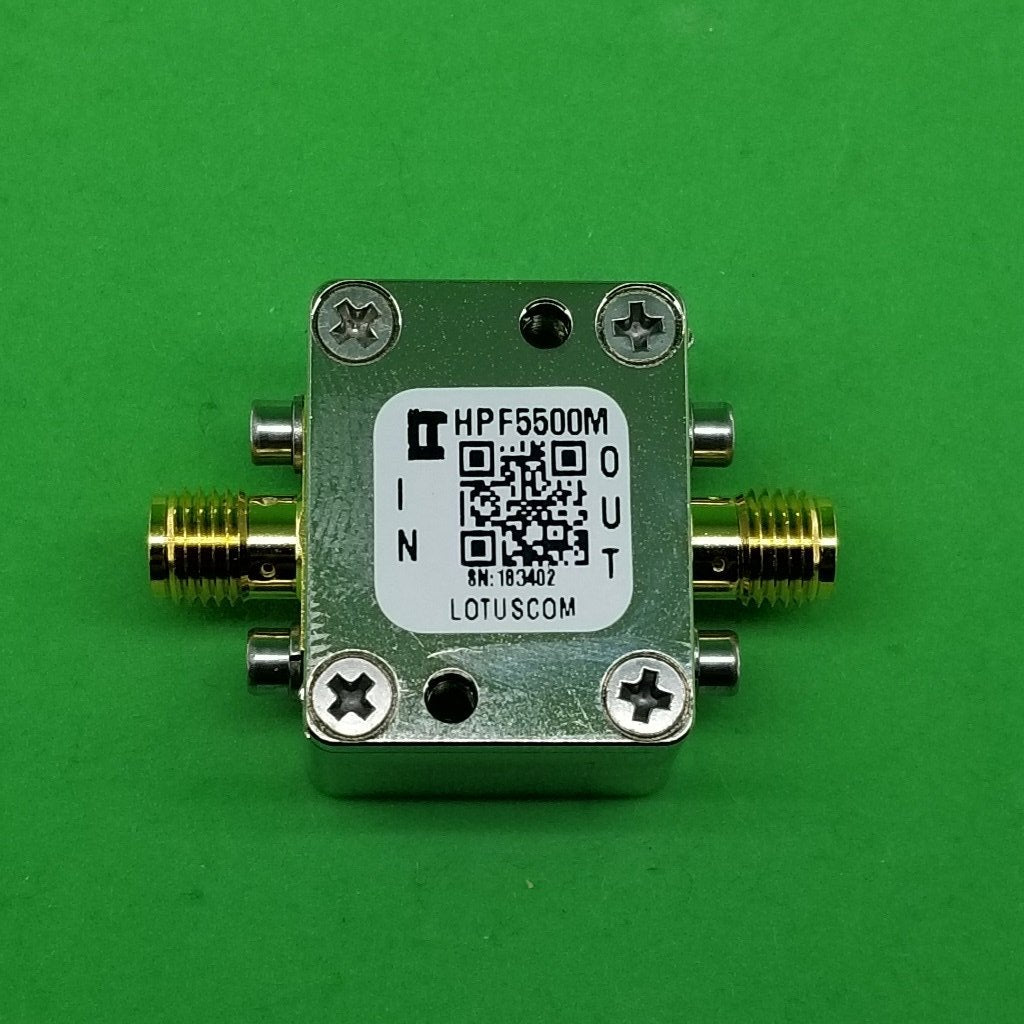

    Part Number: HPF5500M -- High Pass Filter (LTCC Construction) Pass Band 6G-11.5 GHz. SKU#: AK28_001N.

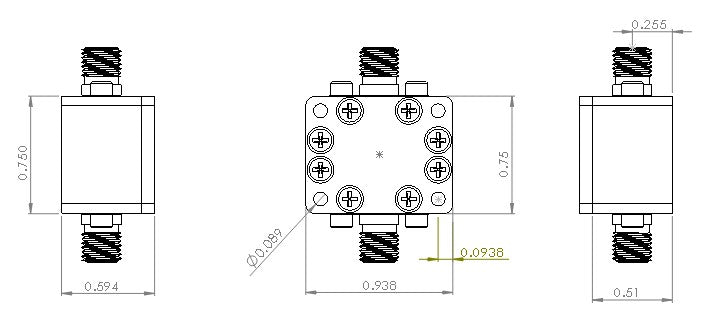

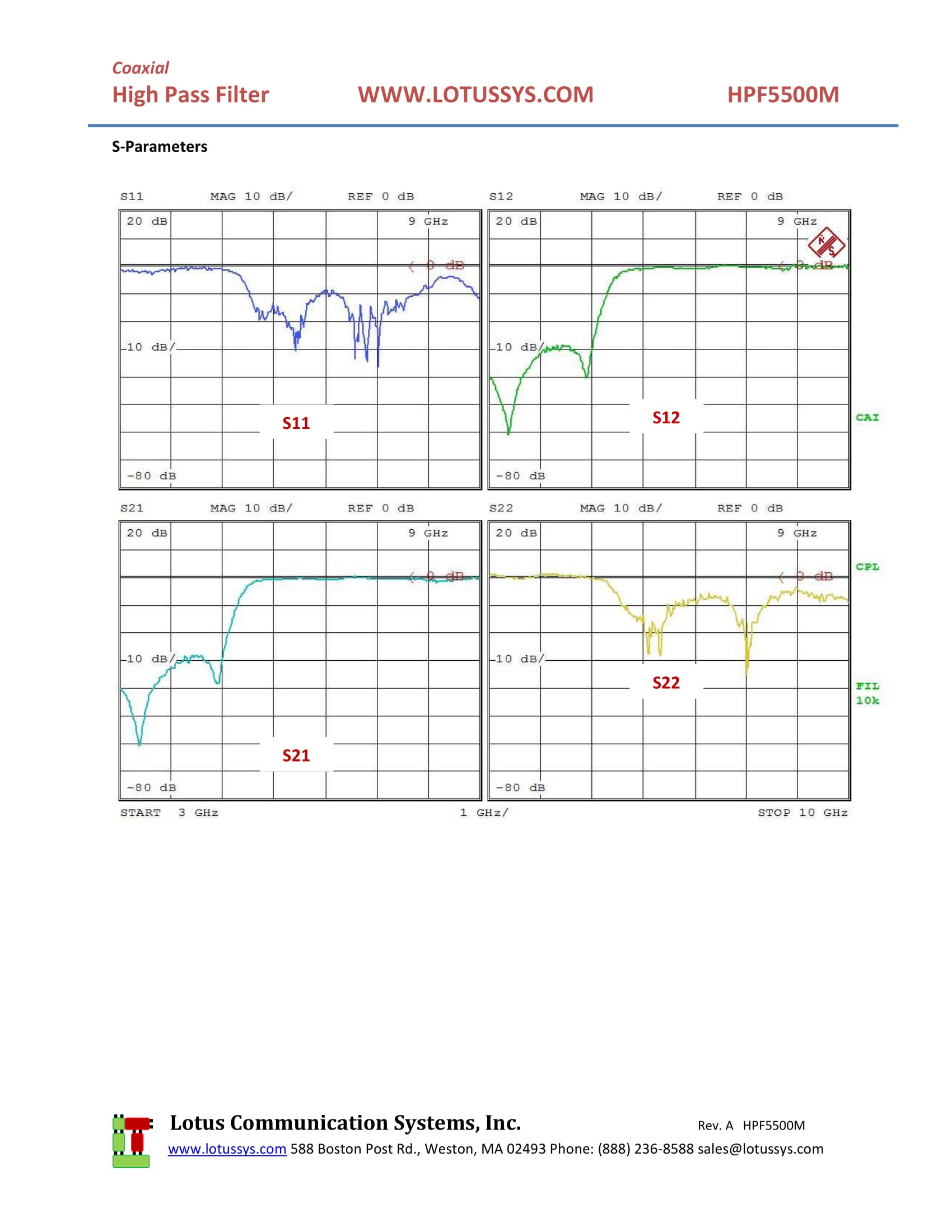

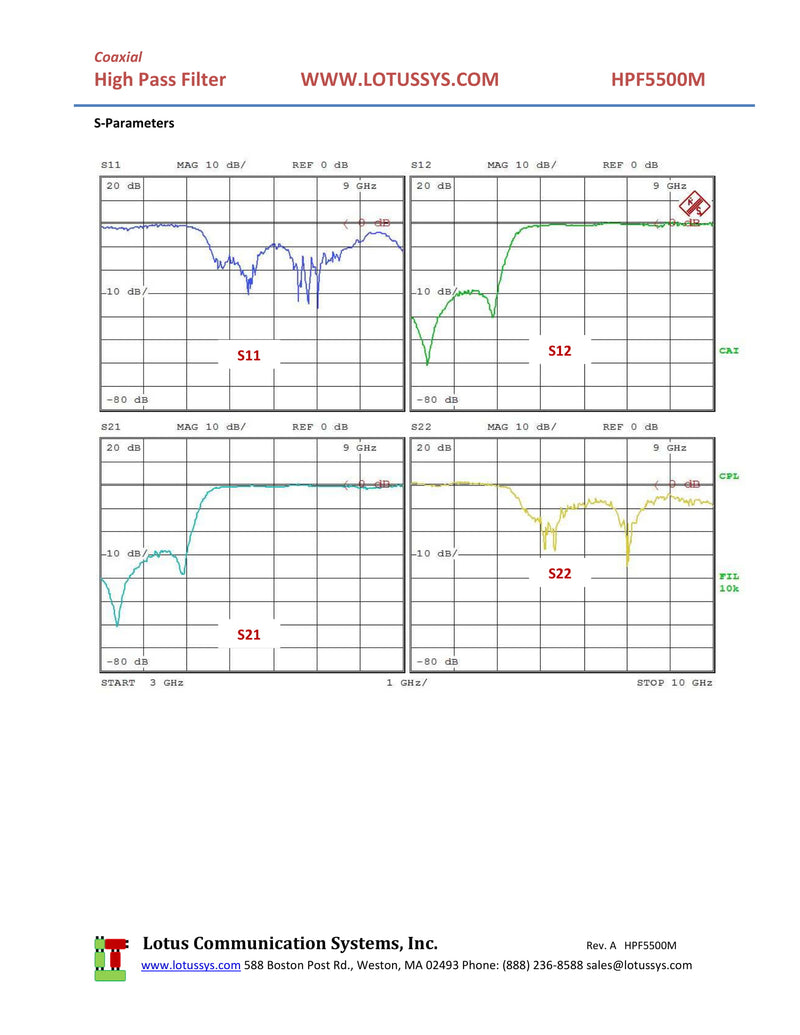

    Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (3 GHz to 10 GHz) is shown in third picture.

    Made in USA.

    4 items left

    Features

    • Operational Temperature: -55 ~ 100℃
    • Temperature Stable
    • 3dB Cut Off Frequency: 5500 MHz
    • RF Power Input: 7W max. at 25℃
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

    Resources

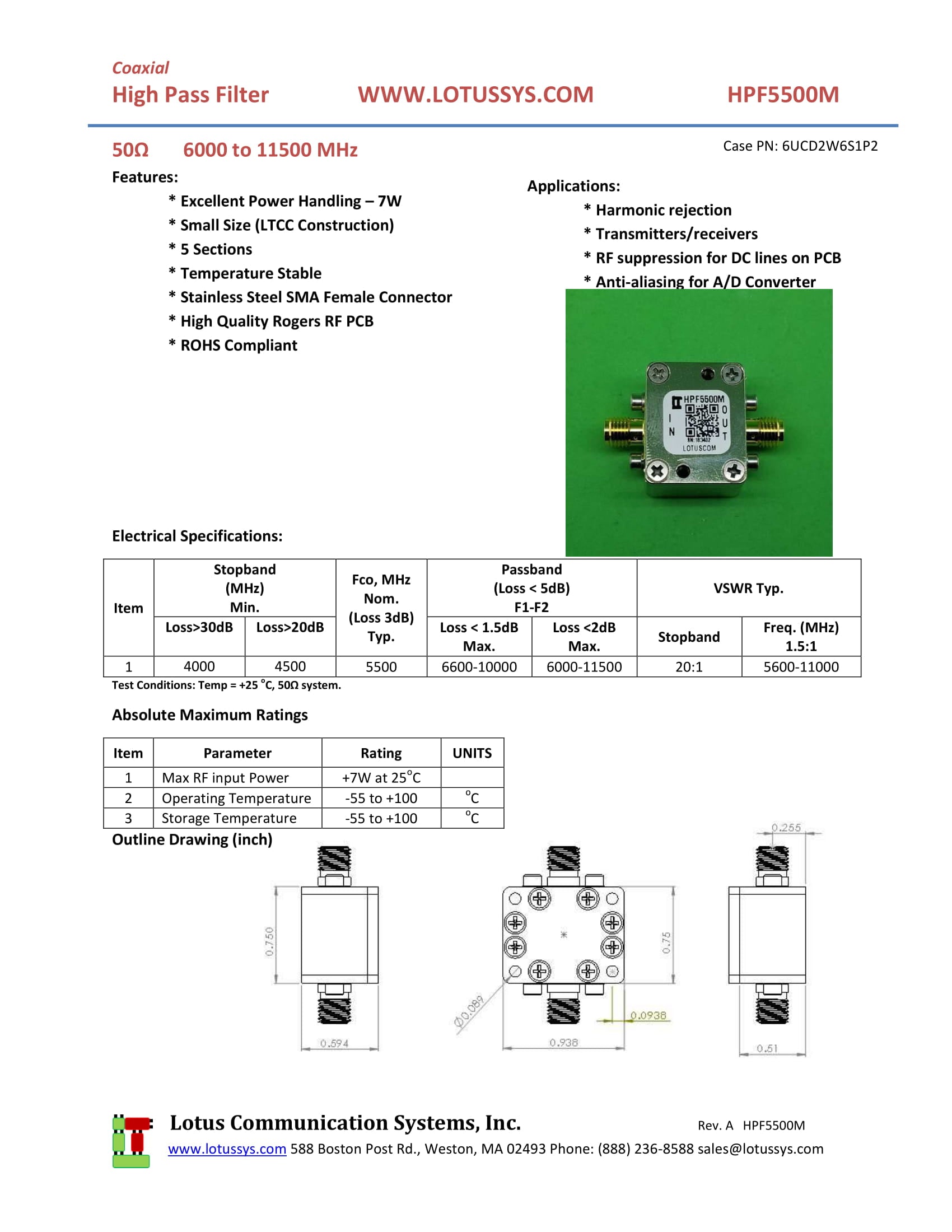

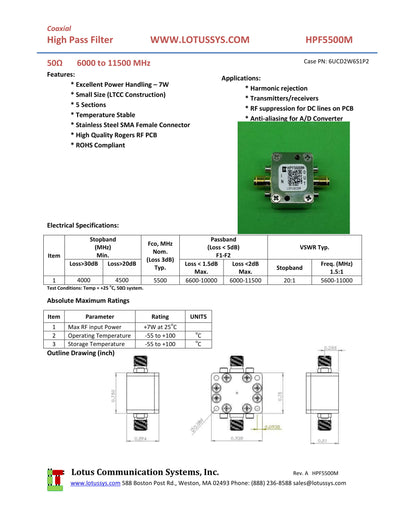

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HPF5500M Datasheet
