High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz
High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz

High Pass Filter (LTCC Construction) HPF440M Pass Band 500M - 2500MHz

$ 88.95 USD

1 item left

Part Number:  HPF440M -- High Pass Filter (LTCC Construction) Pass Band 500M-2500MHz. SKU#: AK28_001O.

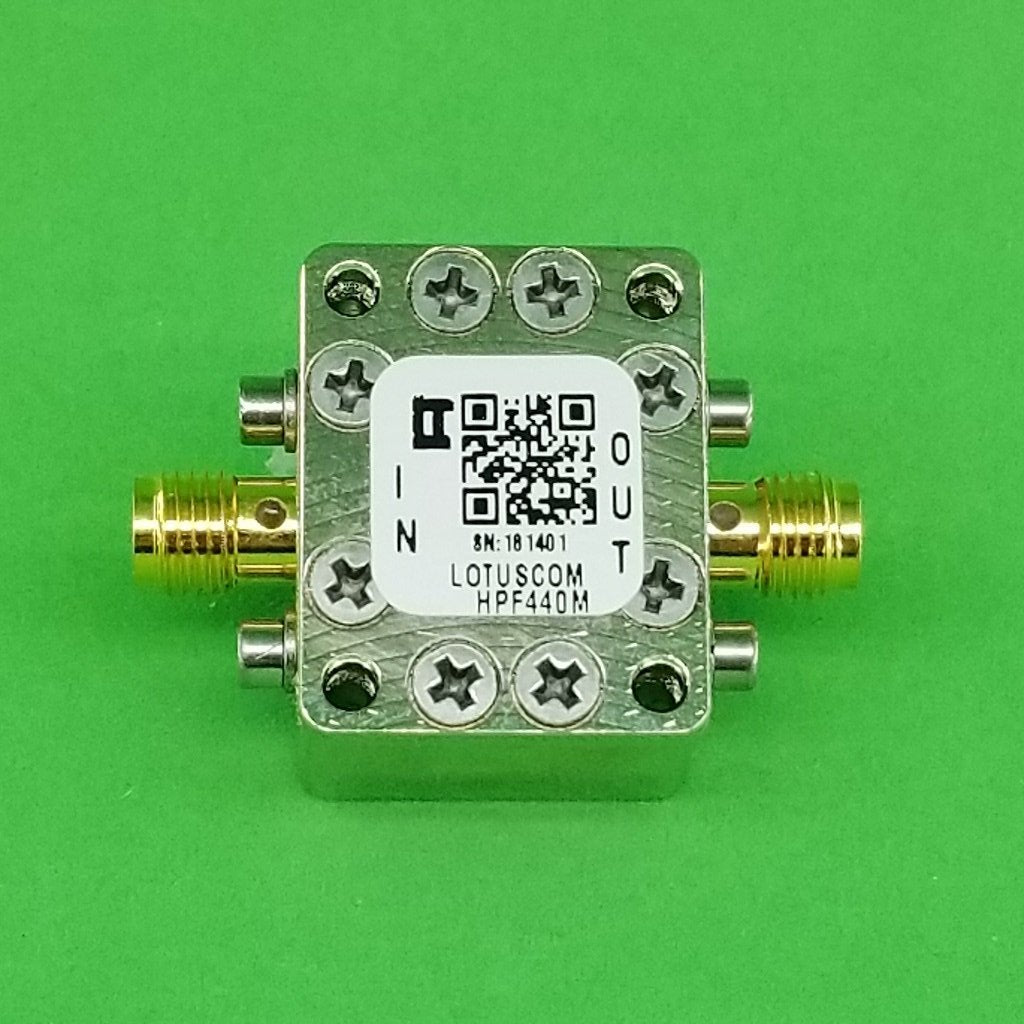

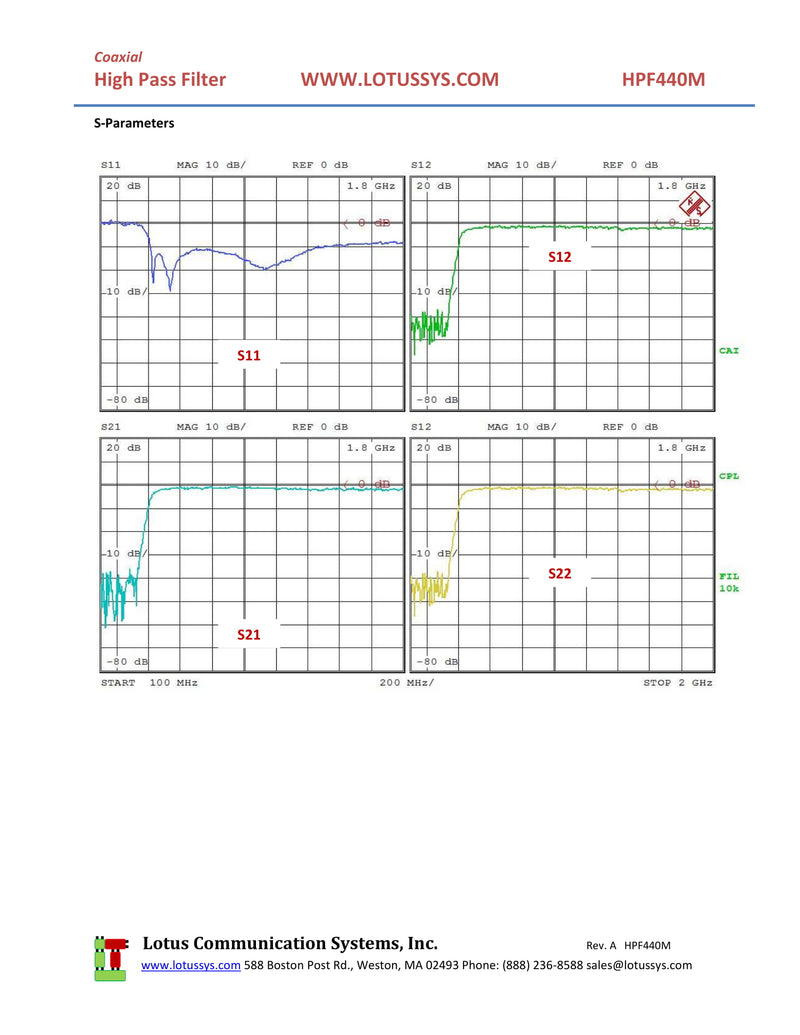

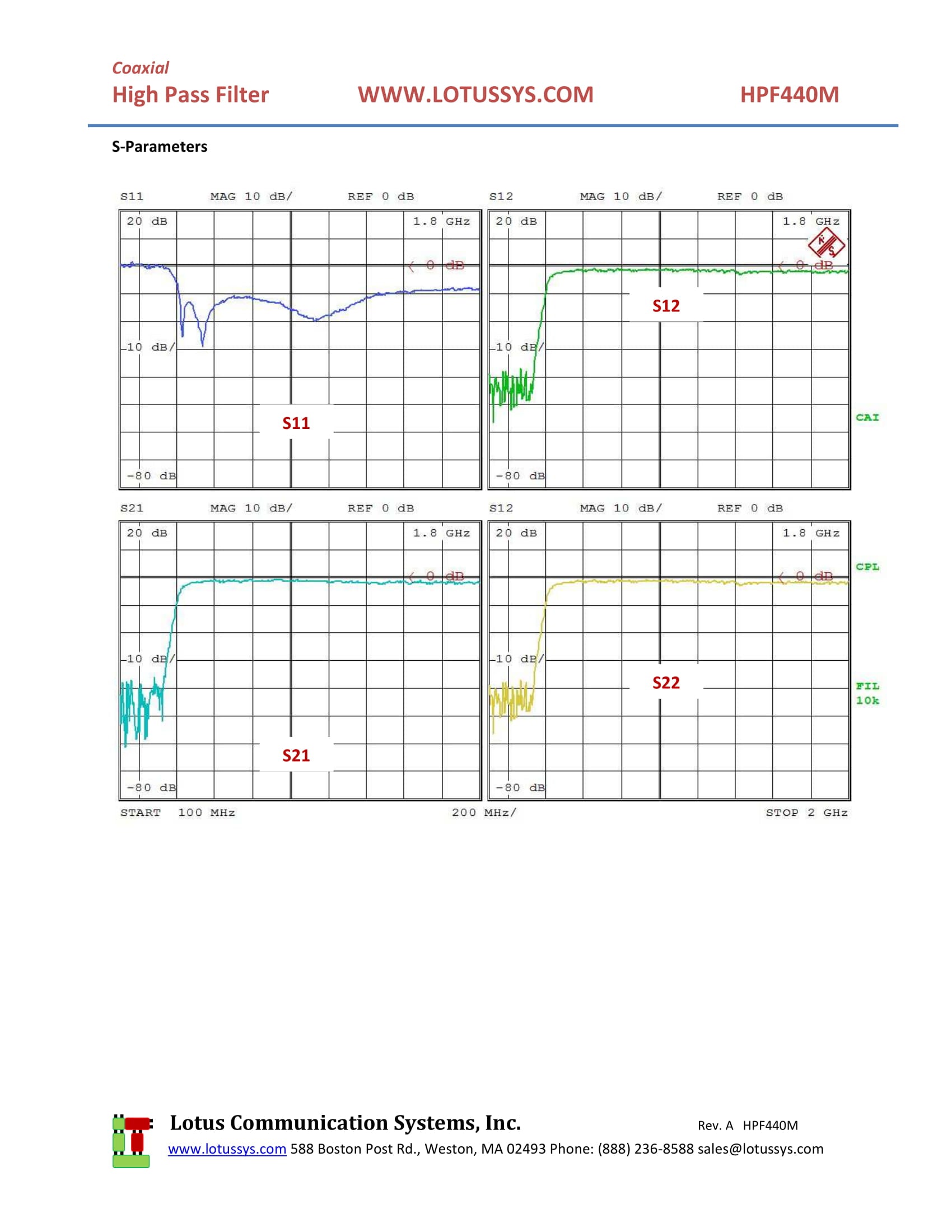

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (100 MHz to 2 GHz) is shown in third picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: High Pass Filter


Features

  • Operational Temperature: -55 ~ 100℃
  • Temperature Stable
  • 3dB Cut Off Frequency: 440 MHz
  • RF Power Input: 7W max. at 25℃
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

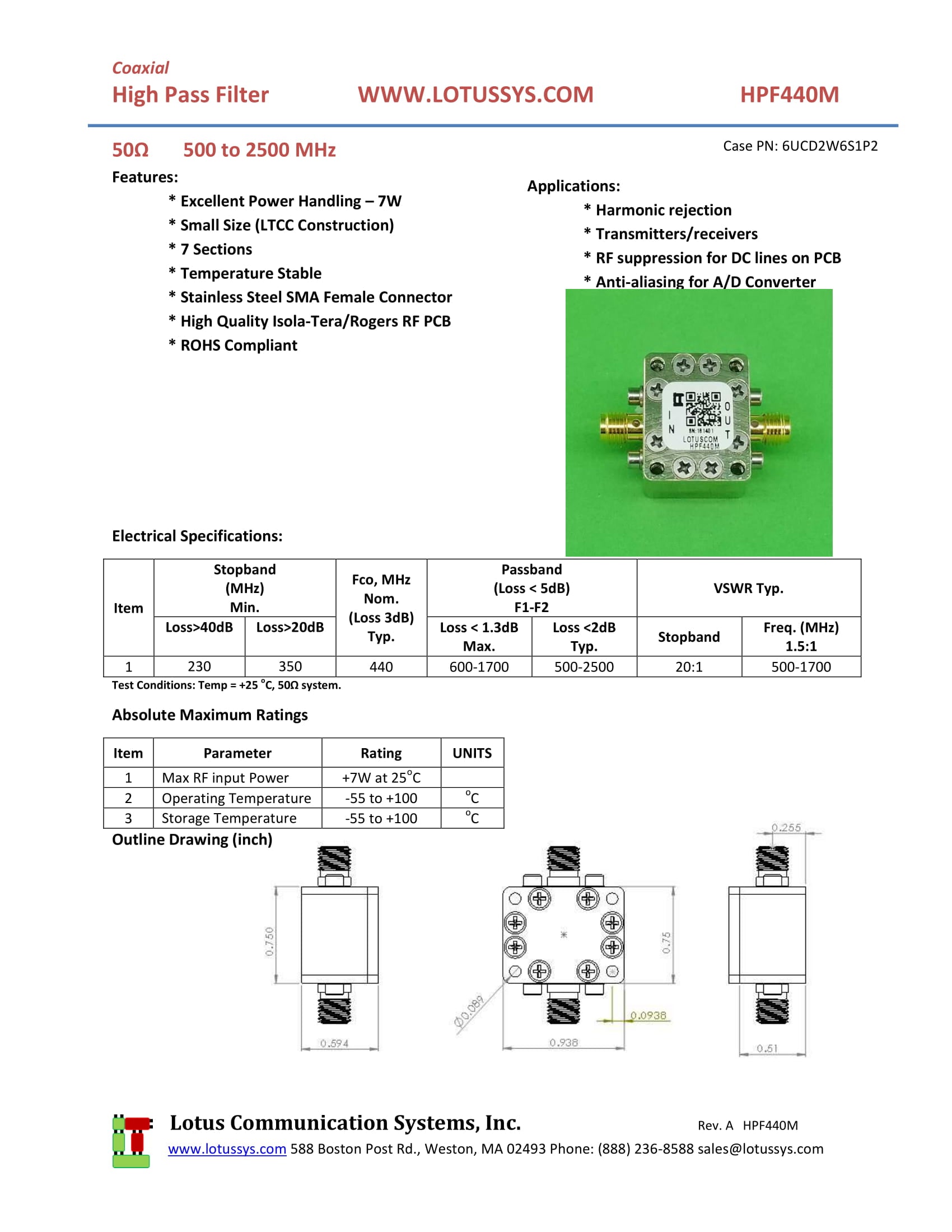

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HPF440M Datasheet
