HPF3800M

High Pass Filter (LTCC Construction) HPF3800M Pass Band 4.25G - 10GHz

Notify me when this product is available:

Part Number: HPF3800M -- High Pass Filter (LTCC Construction) Pass Band 4.25G-10 GHz. SKU#: AK28_001M.

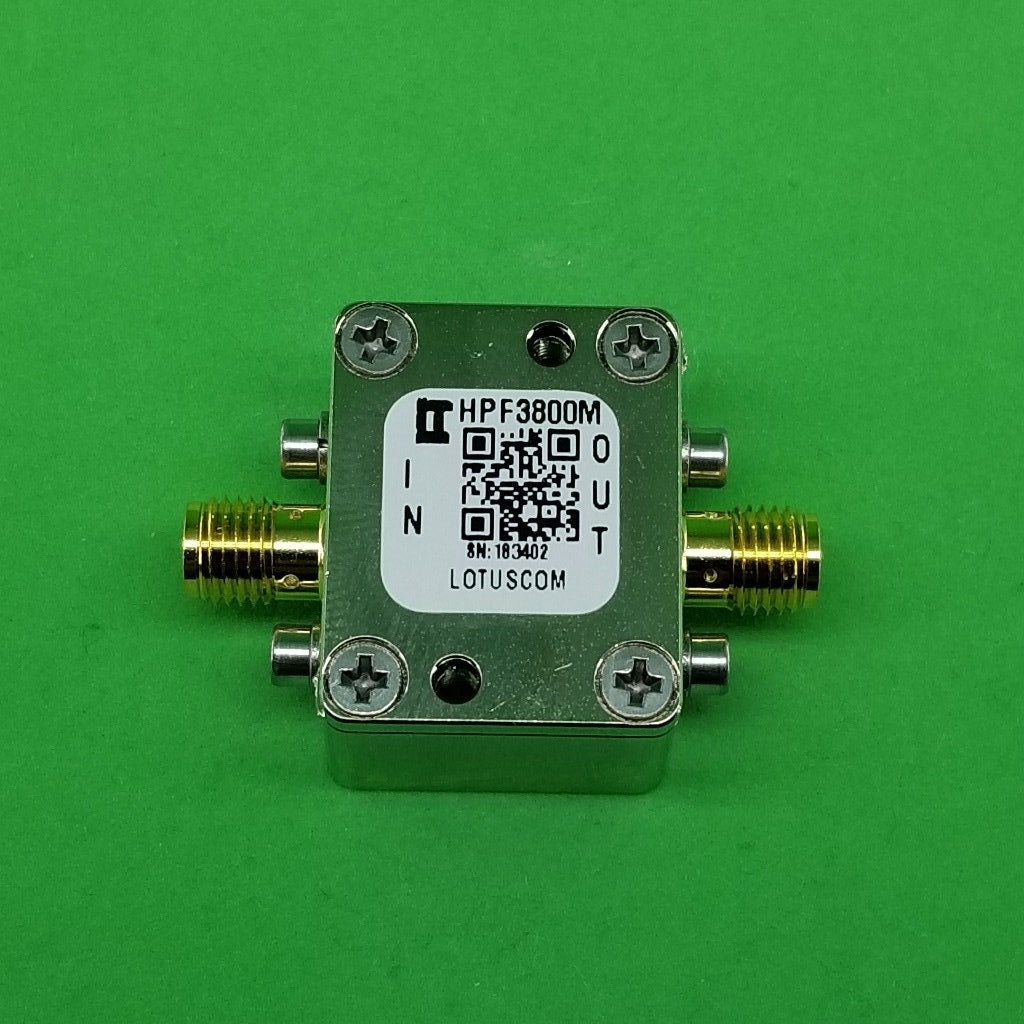

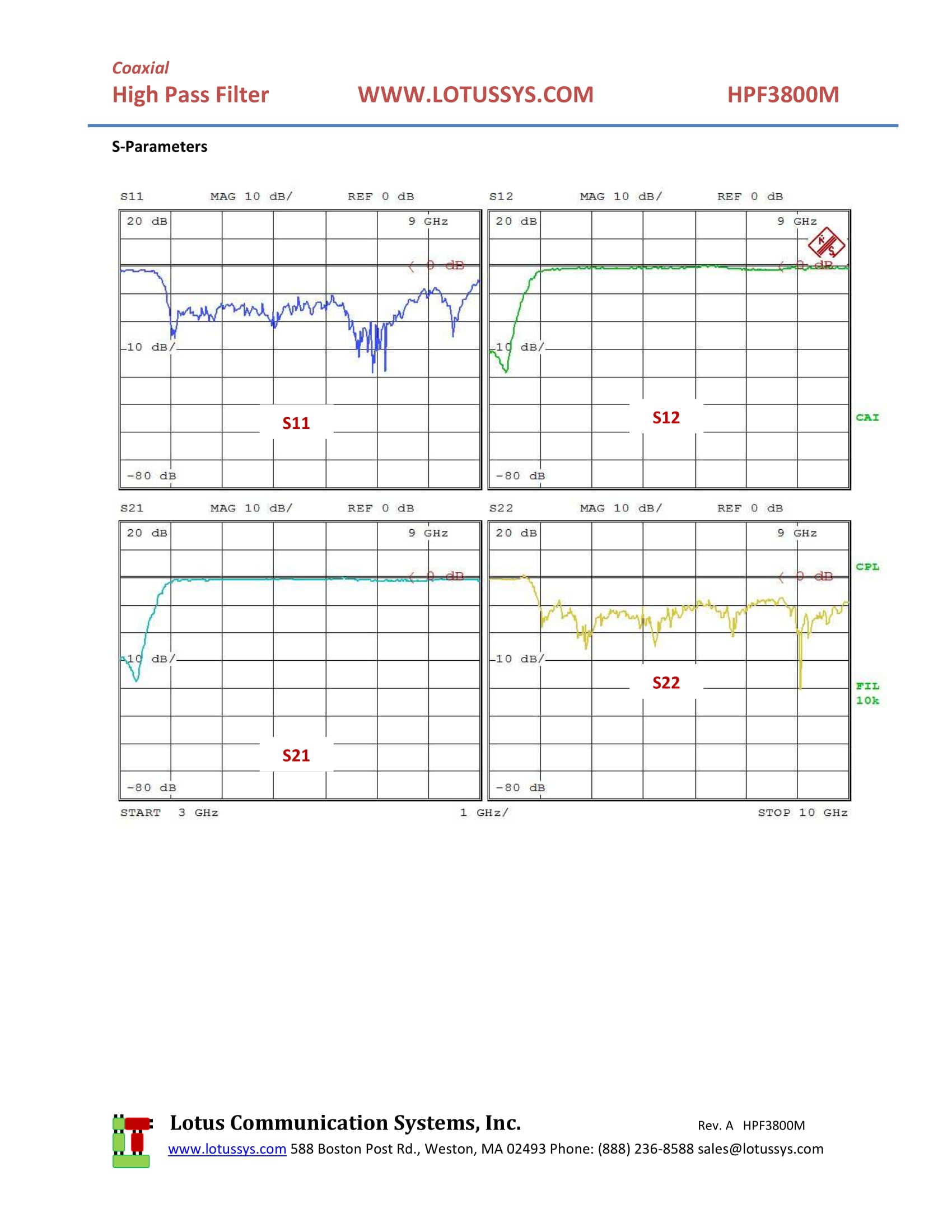

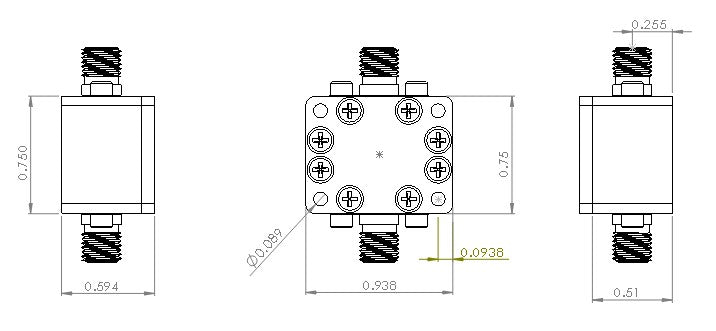

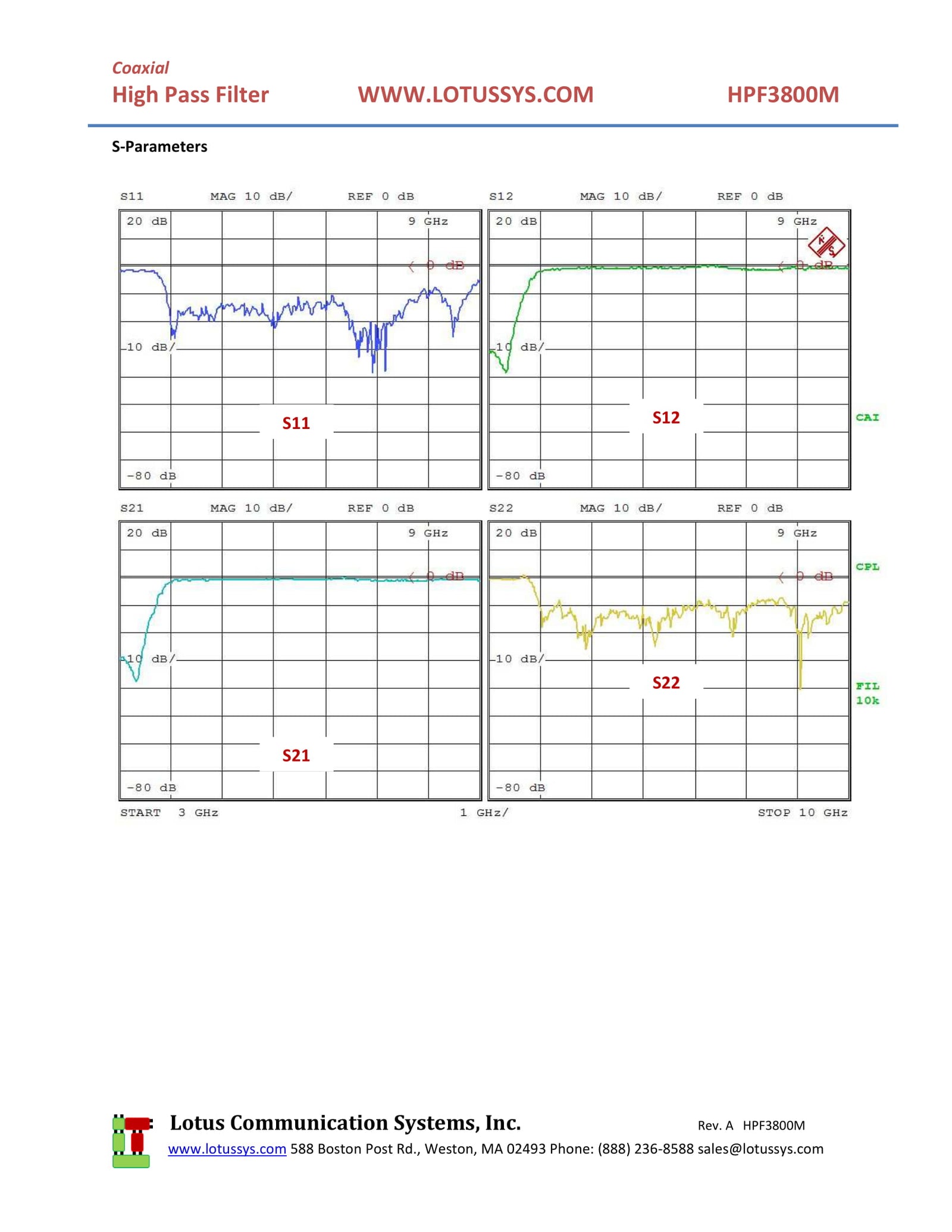

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (3 GHz to 10 GHz) is shown in third picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Operational Temperature: -55 ~ 100℃
  • Temperature Stable
  • 3dB Cut Off Frequency: 3800 MHz
  • RF Power Input: 7W max. at 25℃
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

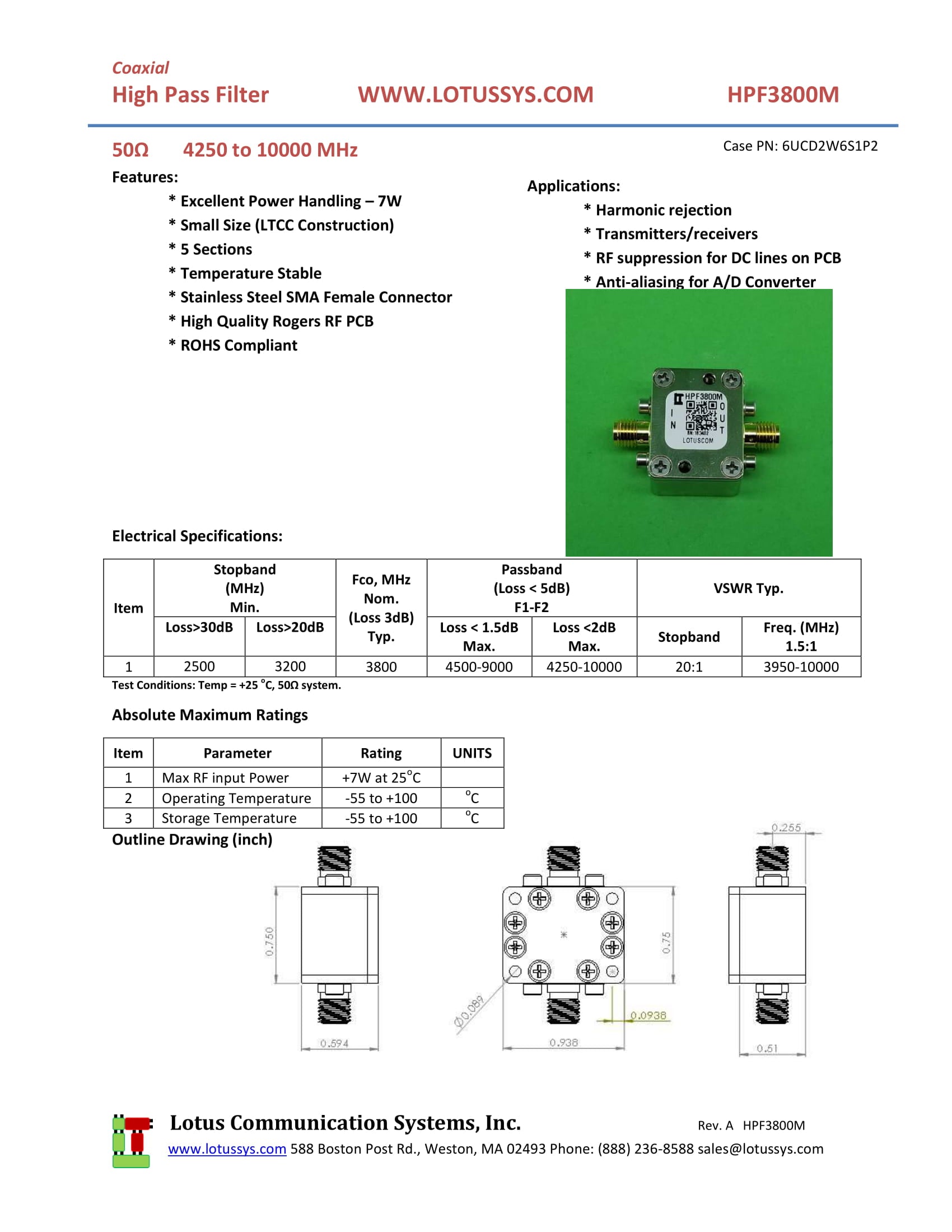

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HPF3800M Datasheet
