High Pass Filter (LTCC Construction) Pass Band 3.4G-9.9 GHz
Part Numbers: HPF3100M

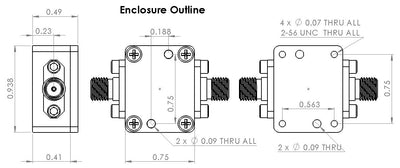

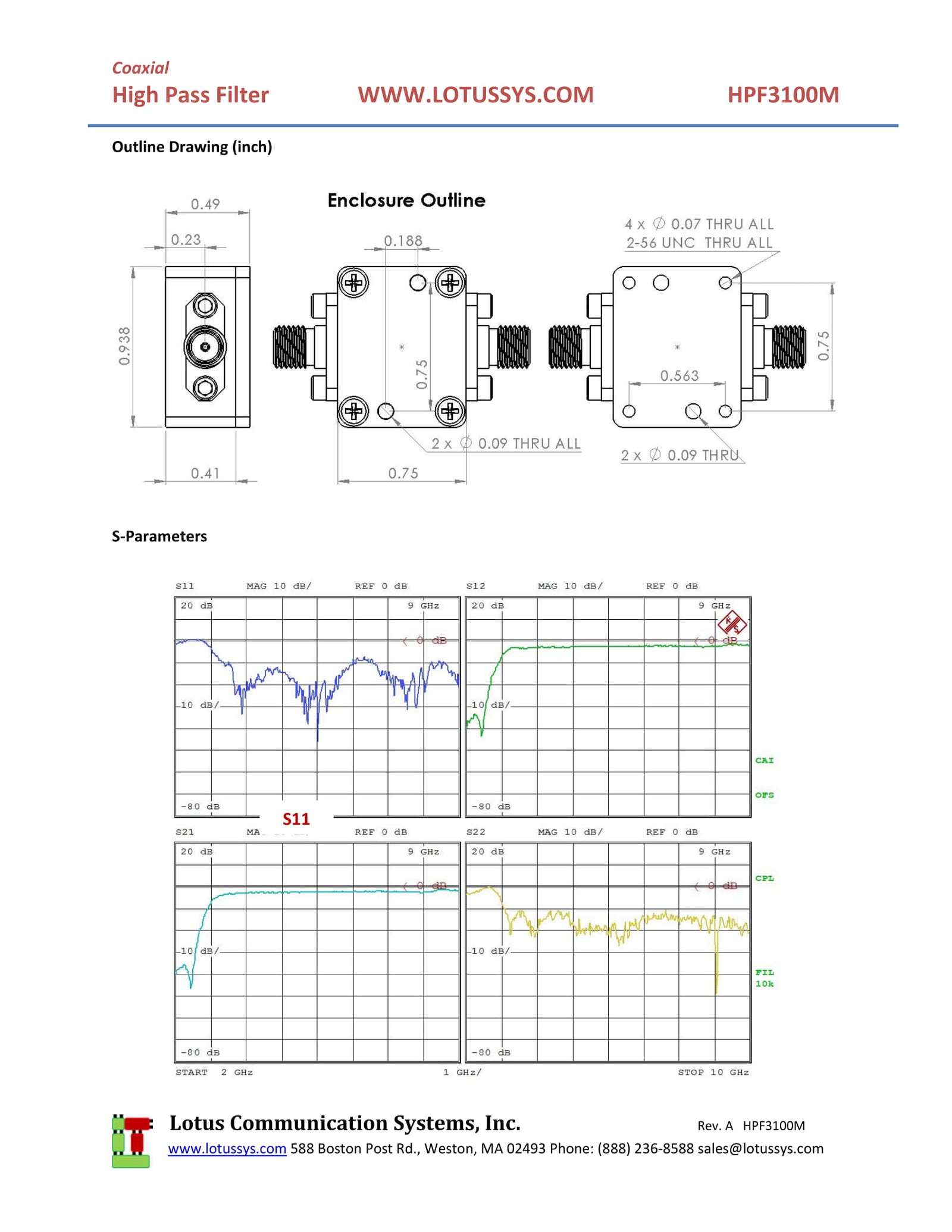

Enclosure uses RF Design Kitwith dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (2 GHz to 10 GHz) is shown in third picture.
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- 3dB Cut Off Frequency: 3100 MHz
- RF Power Input: 7W max. at 25C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector (Amphenol)
- High Quality Rogers RF PCB -- Low loss and High Thermal Performance
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

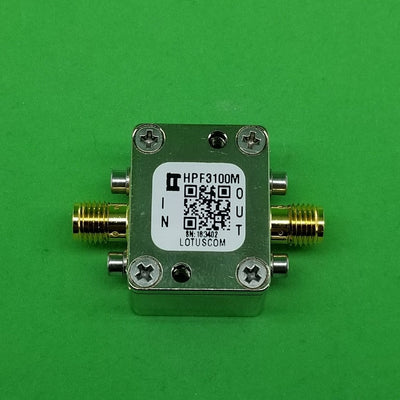

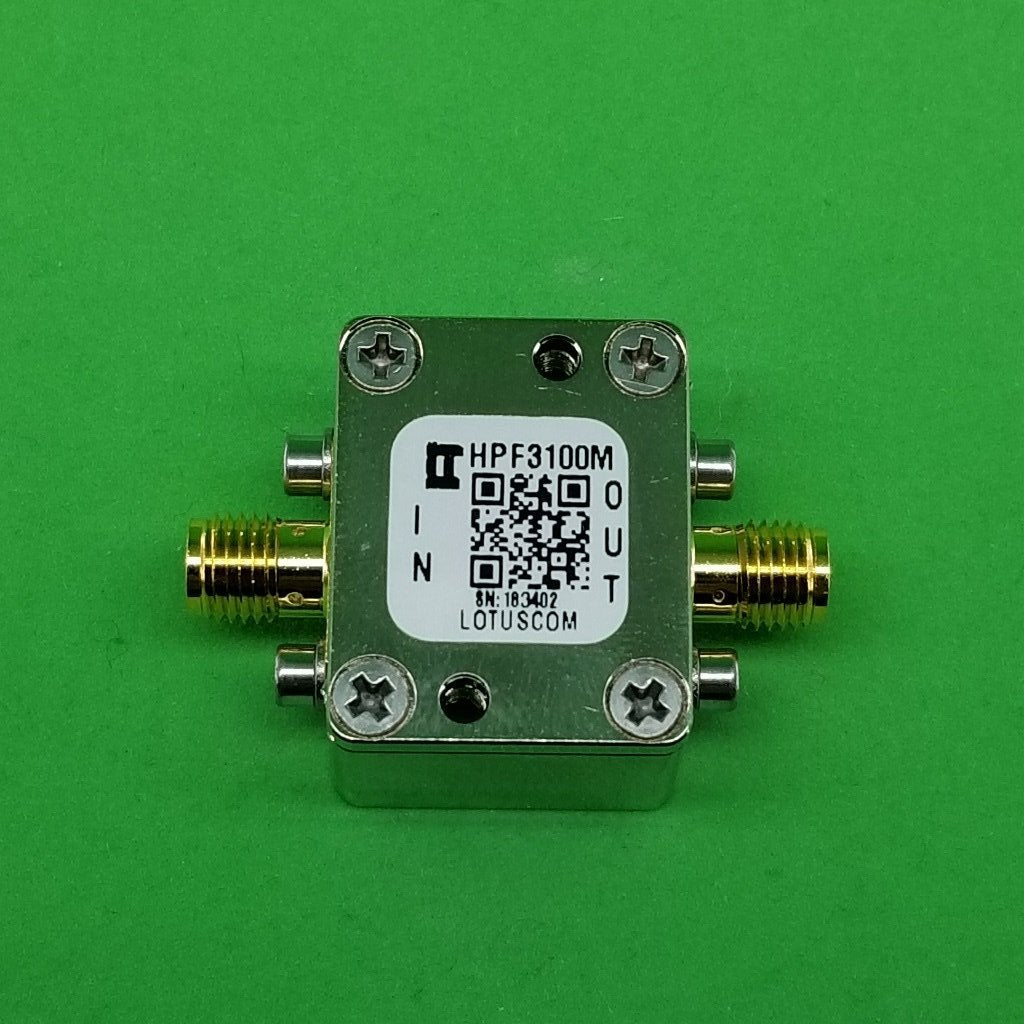

This HPF Module includes the RF Enclosure as shown in picture.

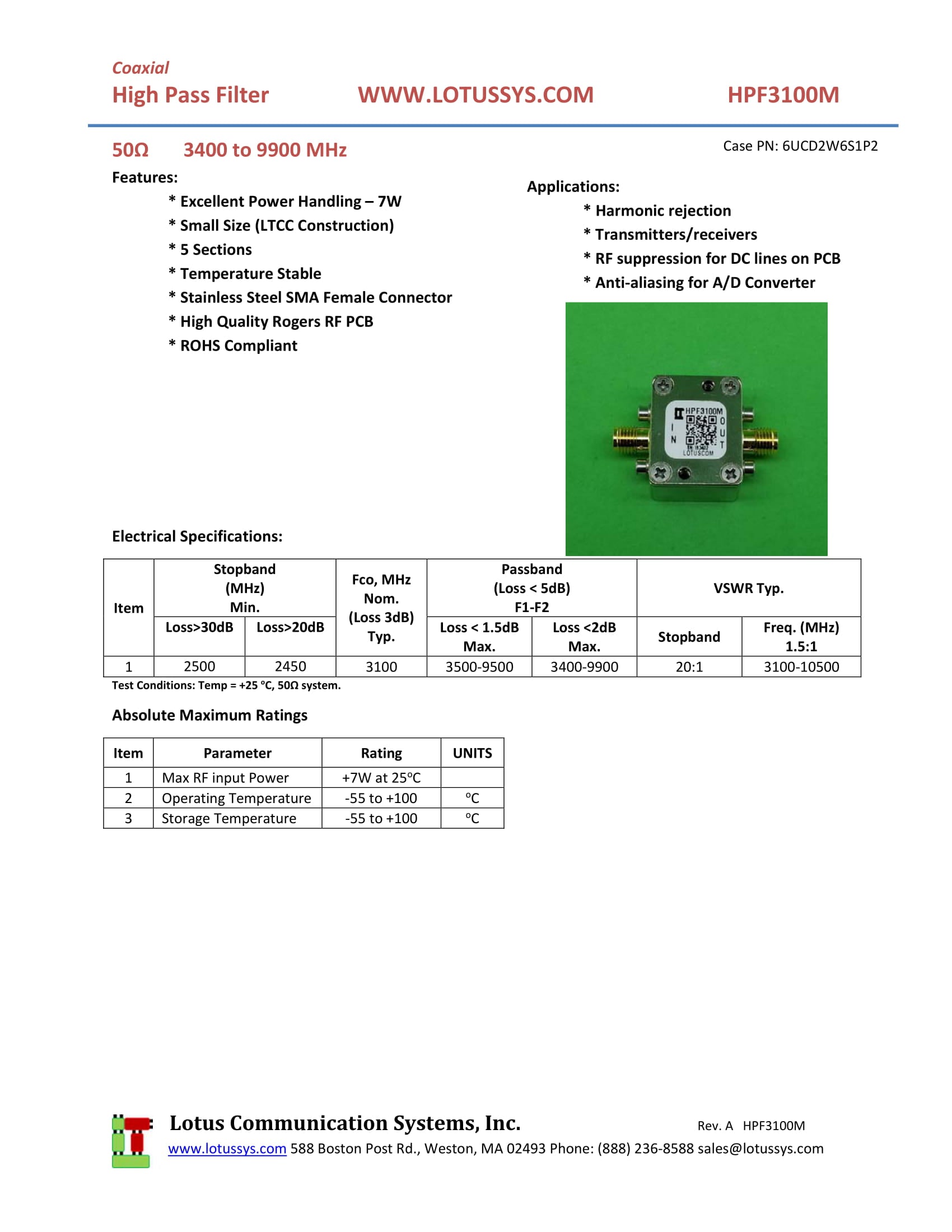

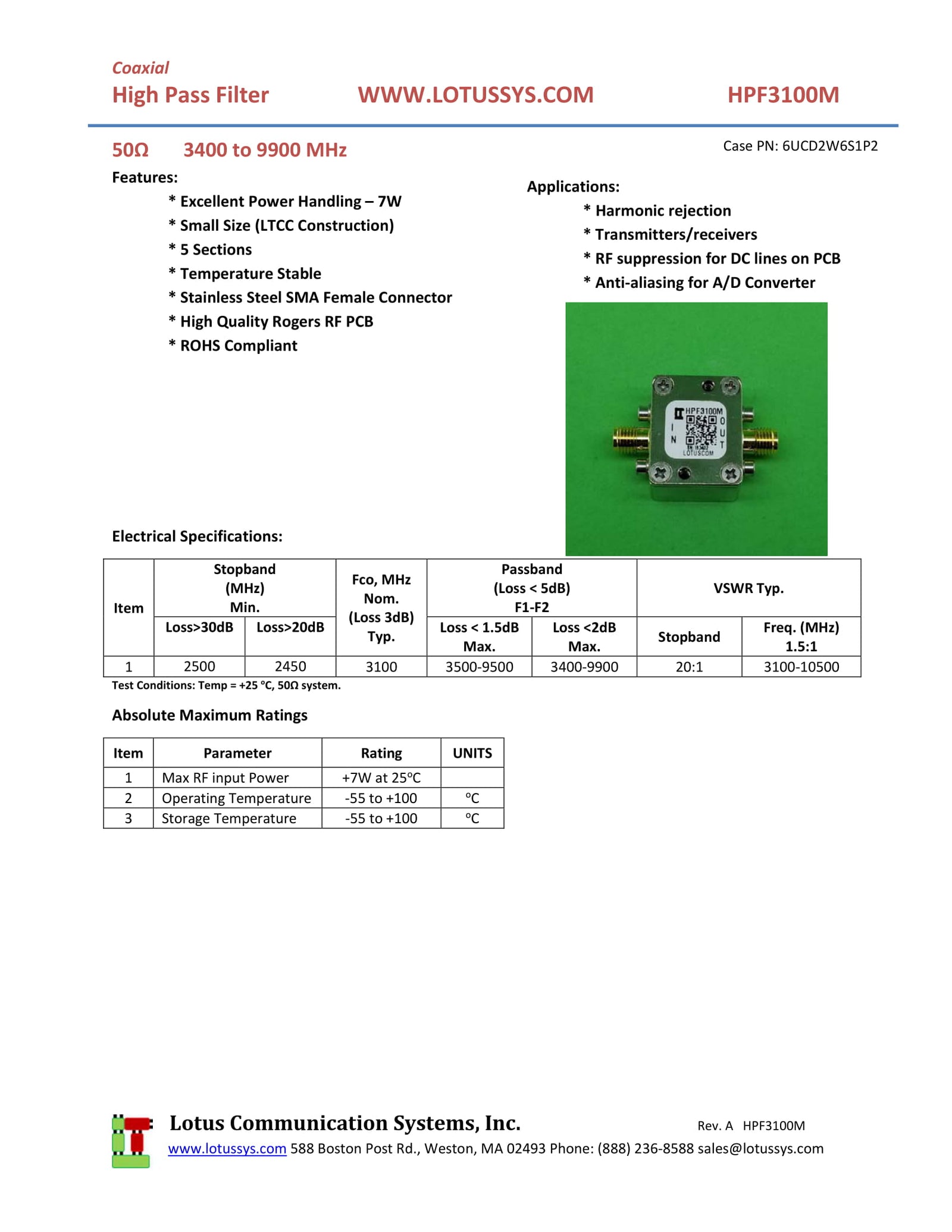

Click https://cdn.shopify.com/s/files/1/1592/7469/files/HPF3100M.pdf to see detailed specification.
Proudly MADE IN USA.
