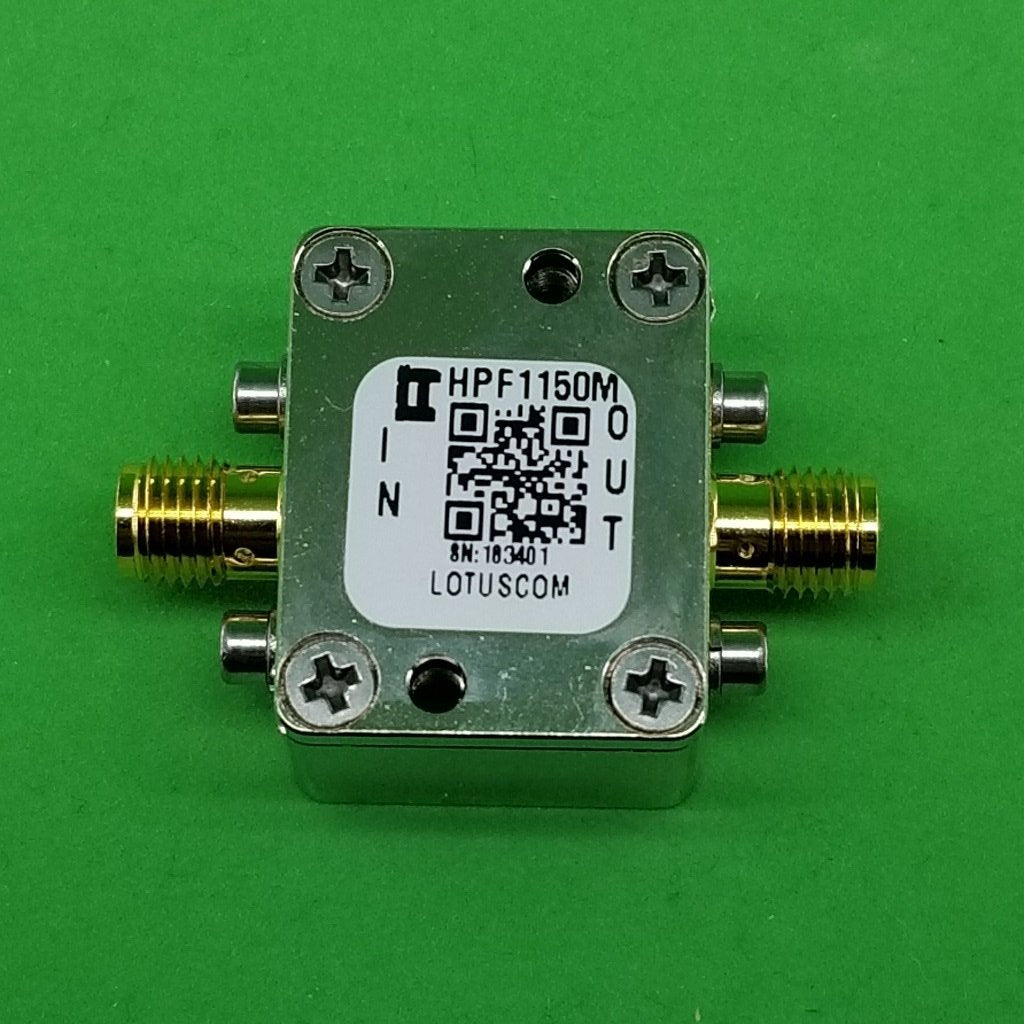

  • High Pass Filter (LTCC Construction) HPF1150M Pass Band 1220M - 4500MHz

    Part Number: HPF1150M -- High Pass Filter (LTCC Construction) Pass Band 1220M-4500MHz. SKU#: AK28_001Q.

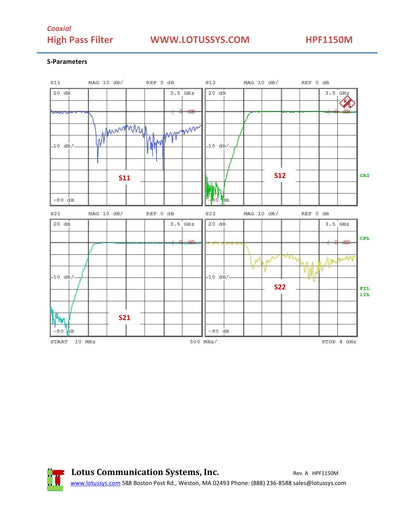

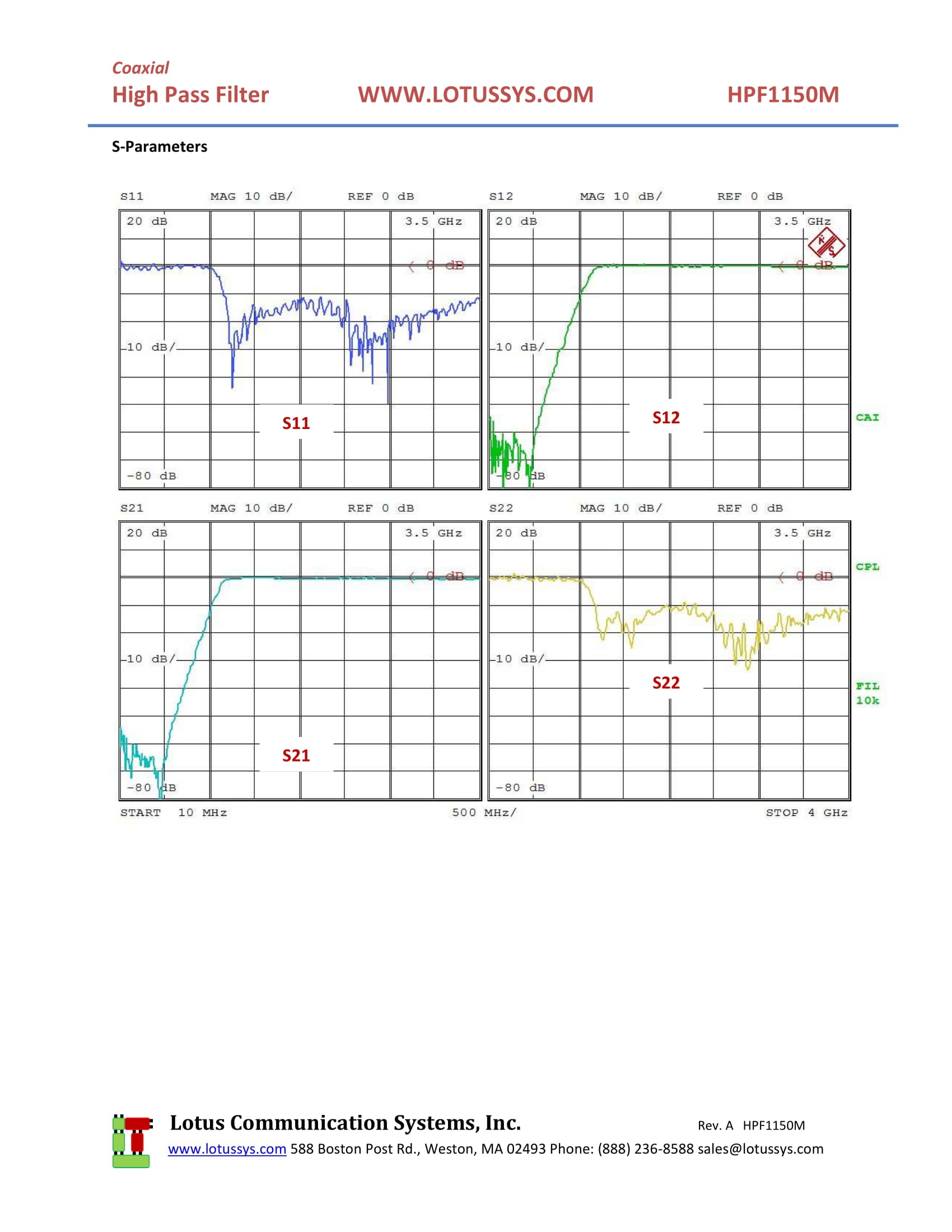

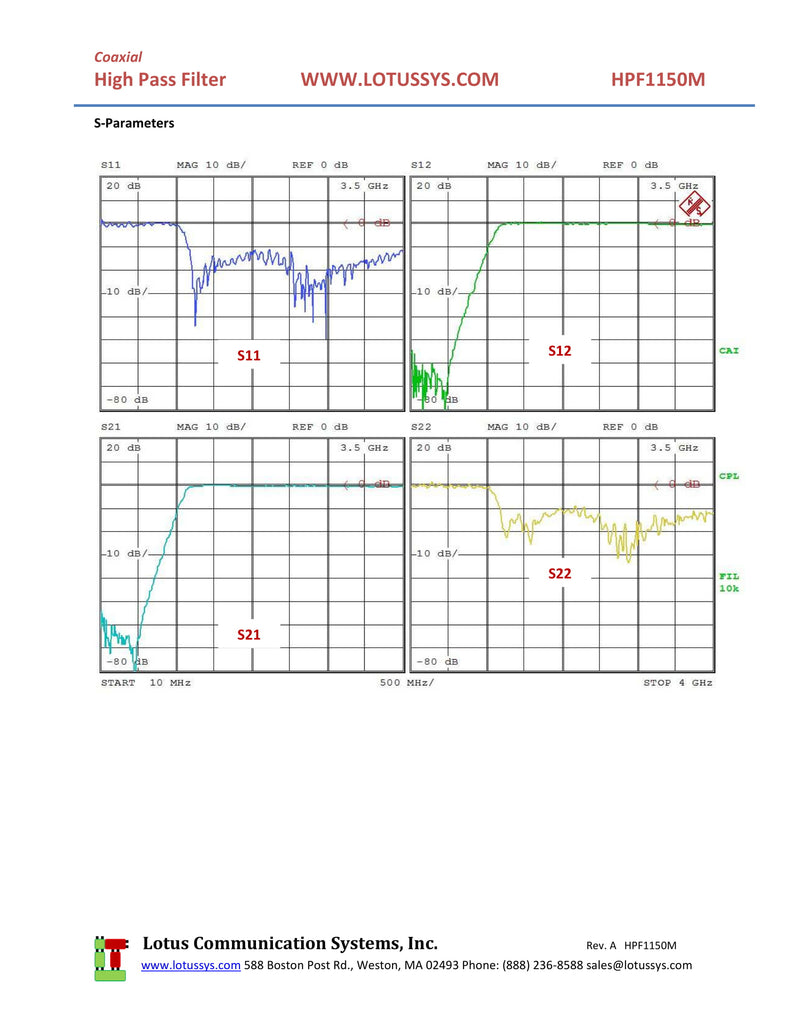

    Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (10 MHz to 4 GHz) is shown in third picture.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    2 items left

    Features

    • Operational Temperature: -55 ~ 100℃
    • Temperature Stable
    • 3dB Cut Off Frequency: 1150 MHz
    • RF Power Input: 7W max. at 25℃
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

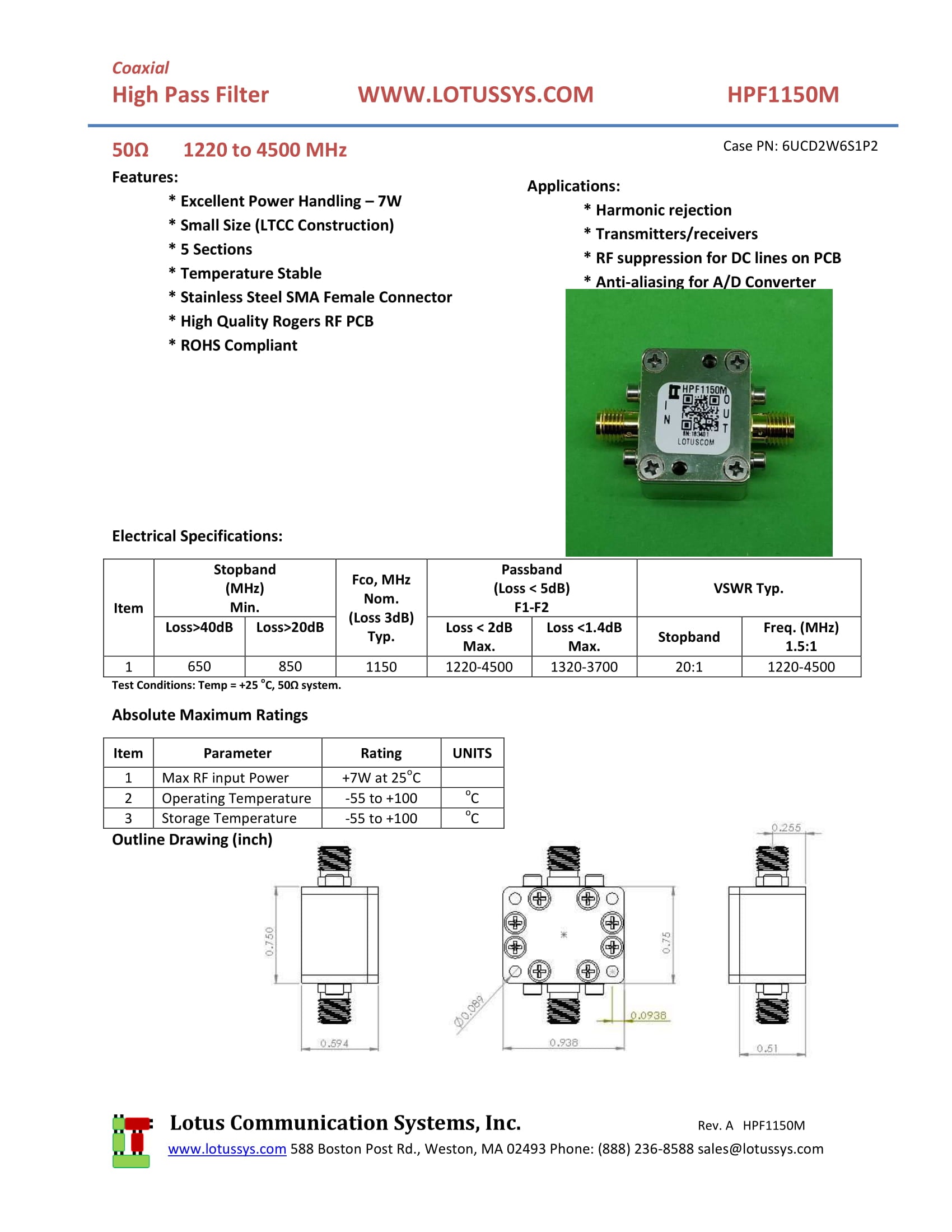

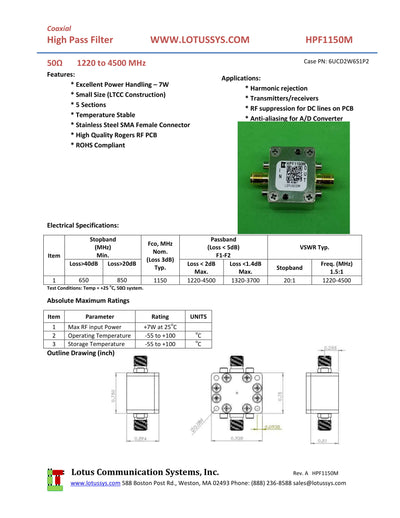

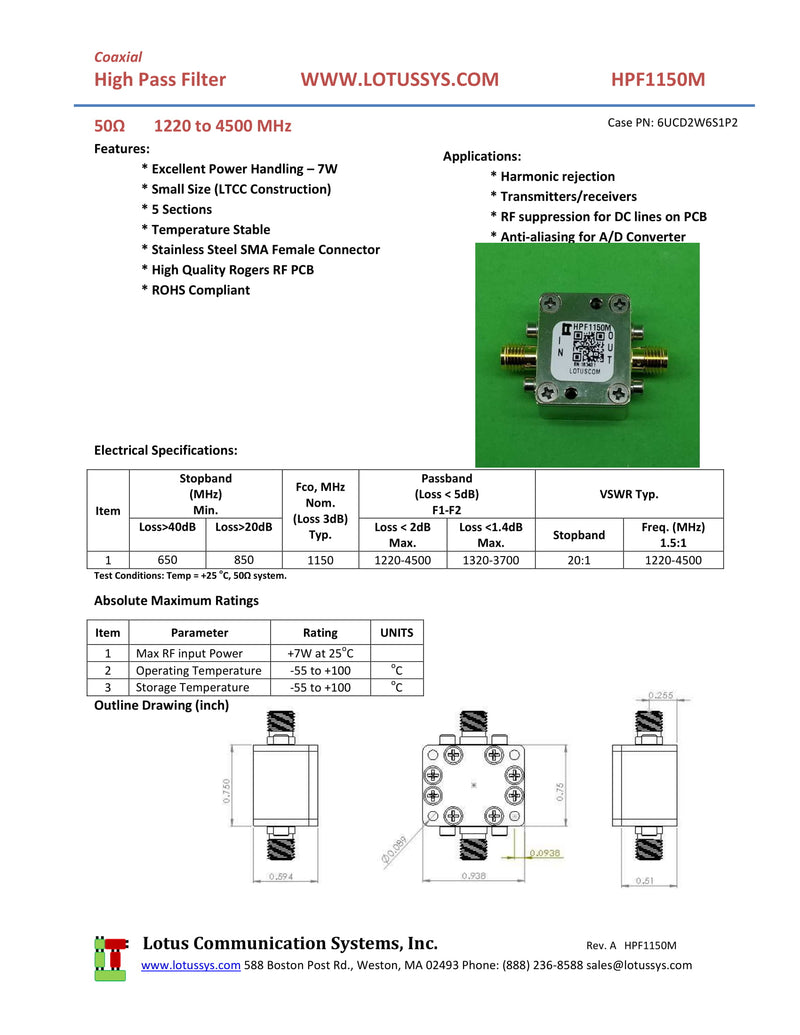

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HPF1150M Datasheet
