HPF1100M

High Pass Filter (LTCC Construction) HPF1100M Pass Band 1500M - 3900MHz

2 items left

Part Number: HPF1100M -- High Pass Filter (LTCC Construction) Pass Band 1500M-3900MHz. SKU#: AK28_001Q.

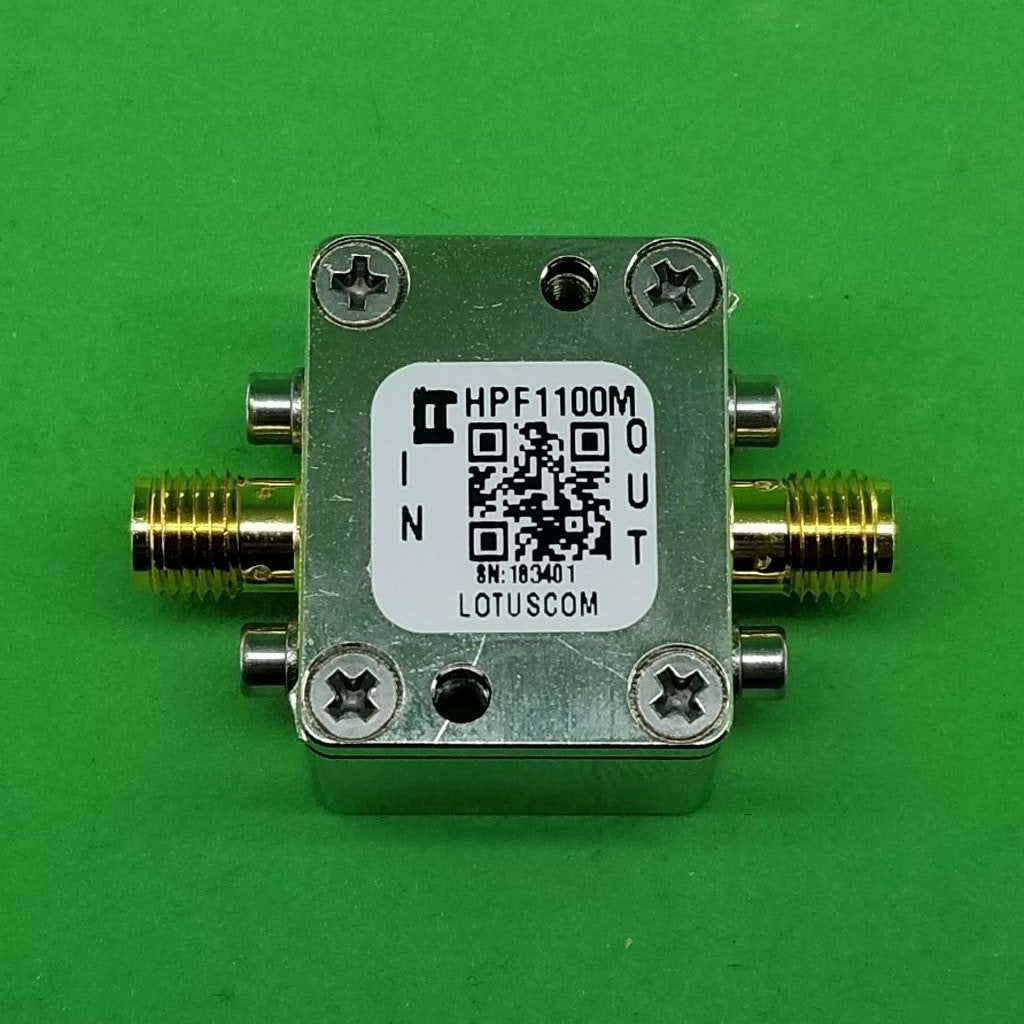

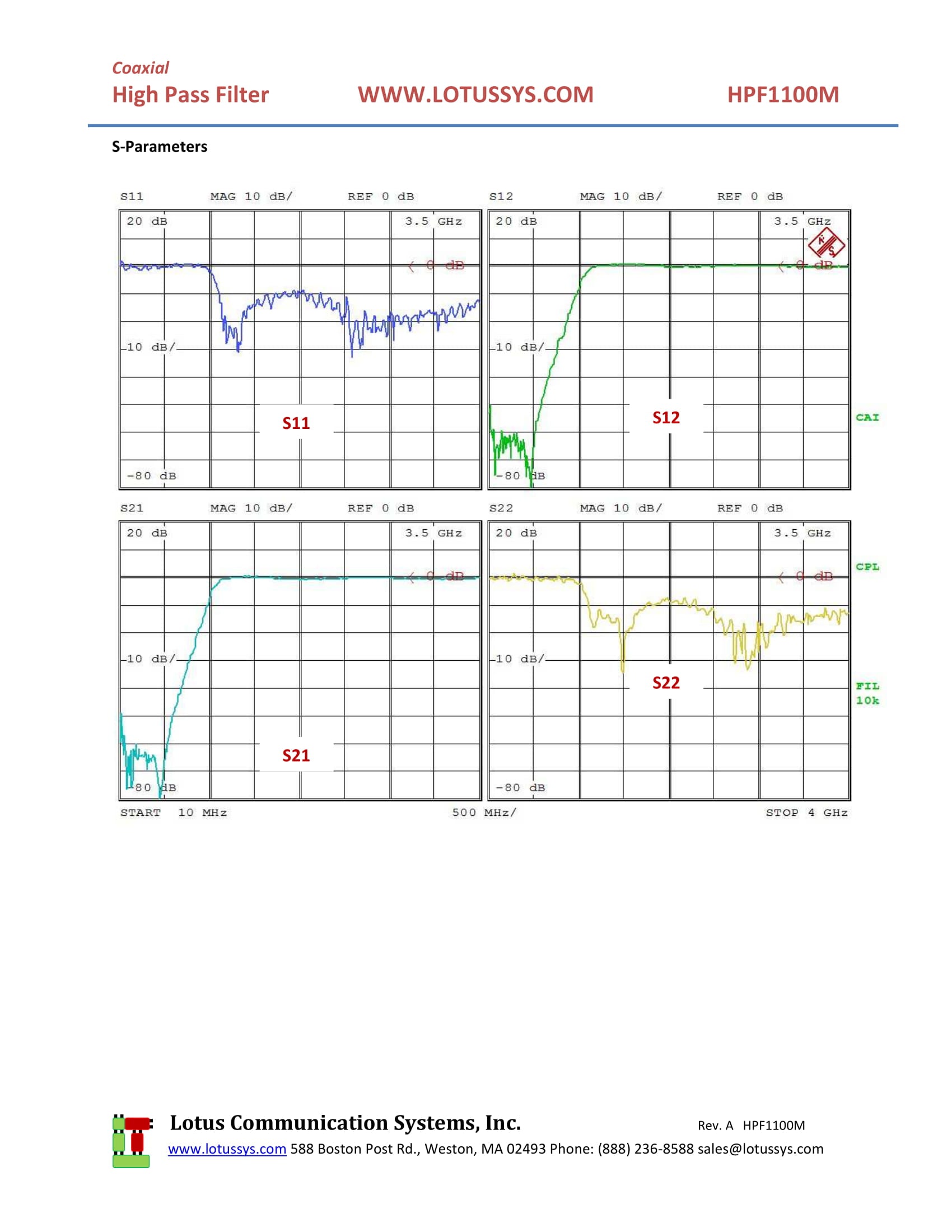

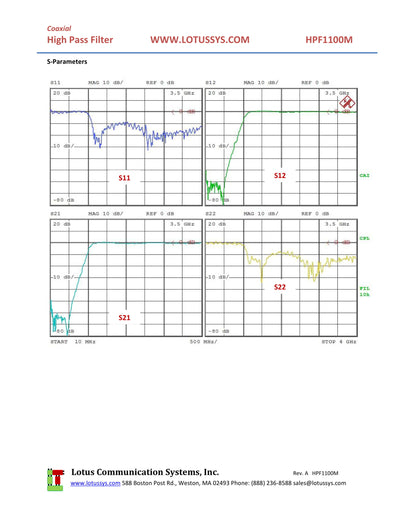

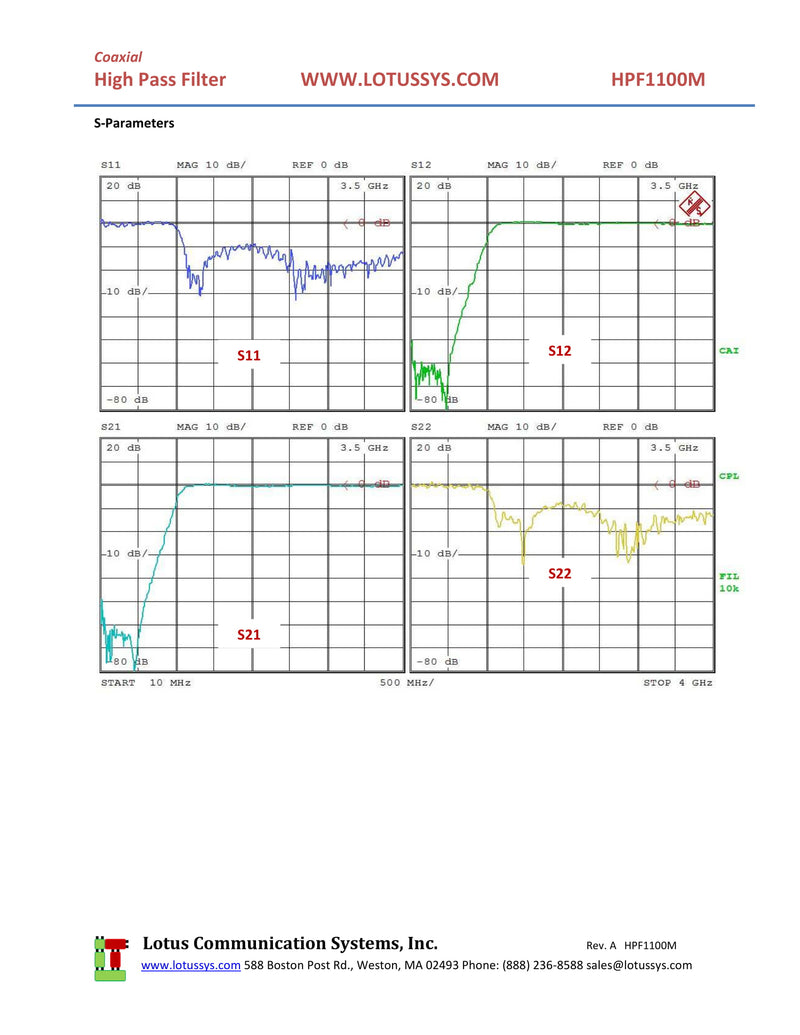

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (10 MHz to 4 GHz) is shown in third picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Operational Temperature: -55 ~ 100℃
  • Temperature Stable
  • 3dB Cut Off Frequency: 1100 MHz
  • RF Power Input: 7W max. at 25℃
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

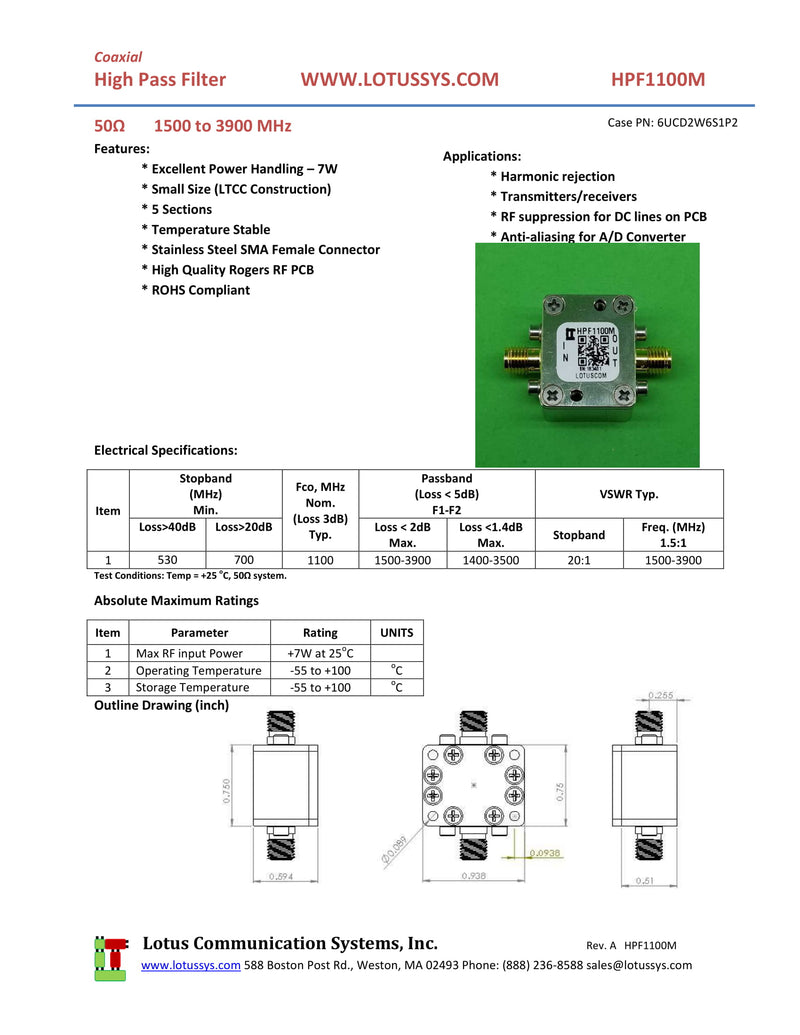

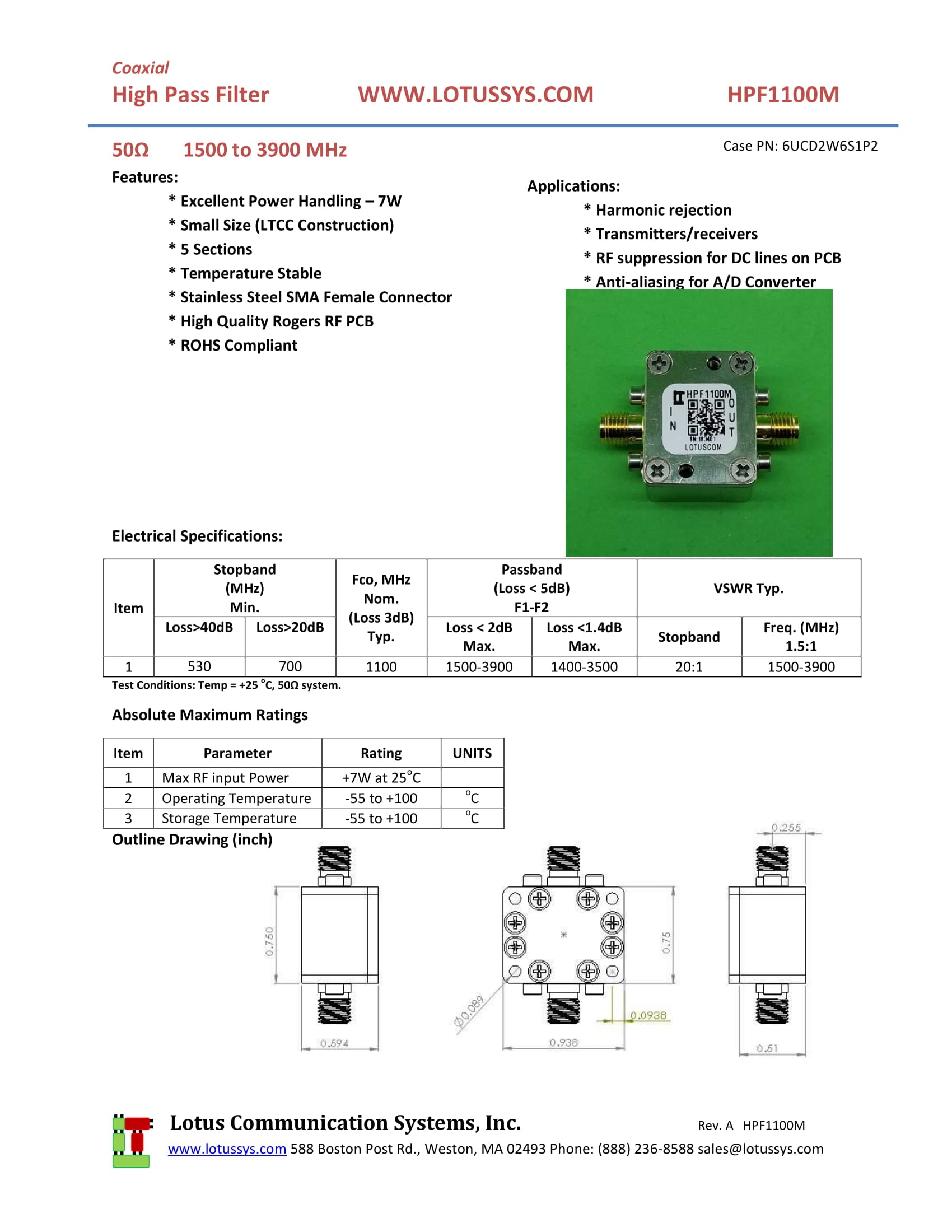

Resources (PDF Datasheet)
