High Pass Filter (LTCC Construction) HPF10G Pass Band 9.7G - 15 GHz

High Pass Filter (LTCC Construction) HPF10G Pass Band 9.7G - 15 GHz

High Pass Filter (LTCC Construction) HPF10G Pass Band 9.7G - 15 GHz

High Pass Filter (LTCC Construction) HPF10G Pass Band 9.7G - 15 GHz

High Pass Filter (LTCC Construction) HPF10G Pass Band 9.7G - 15 GHz

$ 88.95 USD

Part Number: HPF10G -- High Pass Filter (LTCC Construction) Pass Band 9,7G-16.98 GHz. SKU#: AK28-014B.

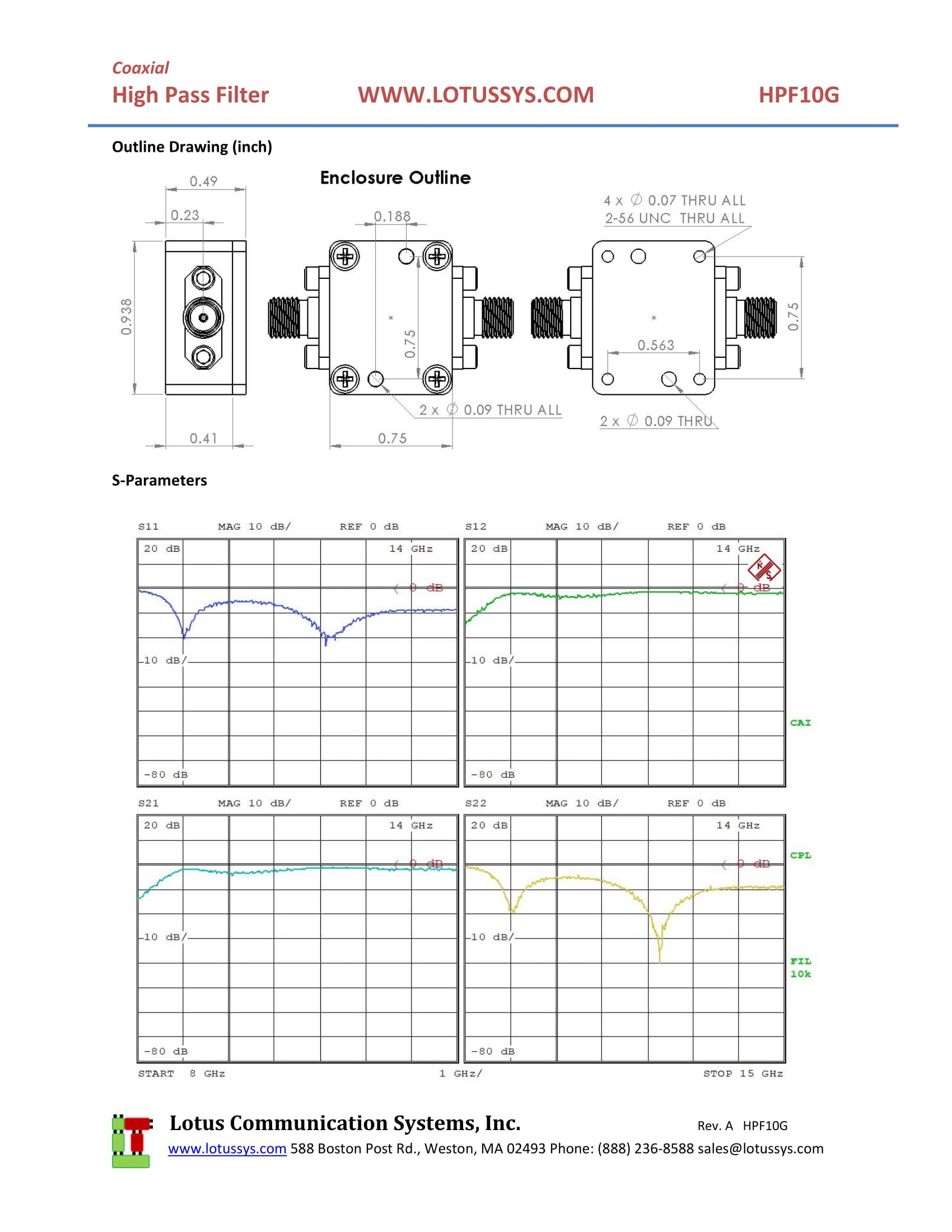

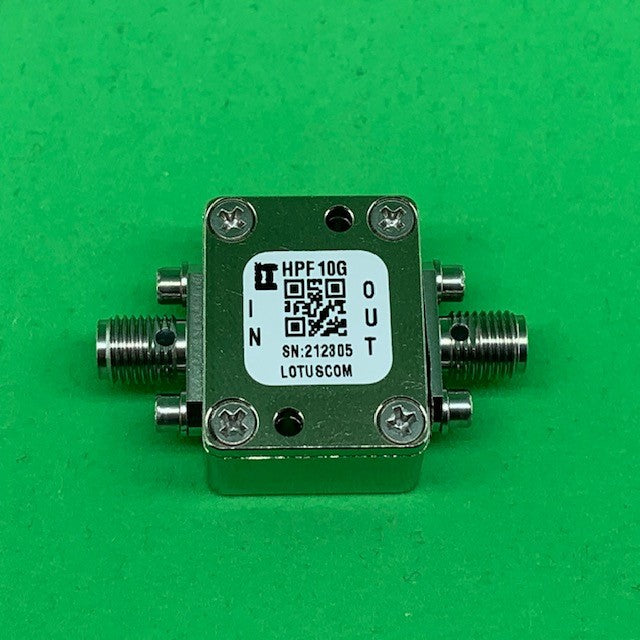

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (8 GHz to 15 GHz) is shown in third picture.

Made in USA.

Collections: High Pass Filter

Features

Operational Temperature: -55 ~ 100℃
Temperature Stable
3dB Cut Off Frequency: 8400 MHz
RF Power Input: 7W max. at 25℃
Insertion Loss in Pass Band: (1.5dB Max)
High Quality SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

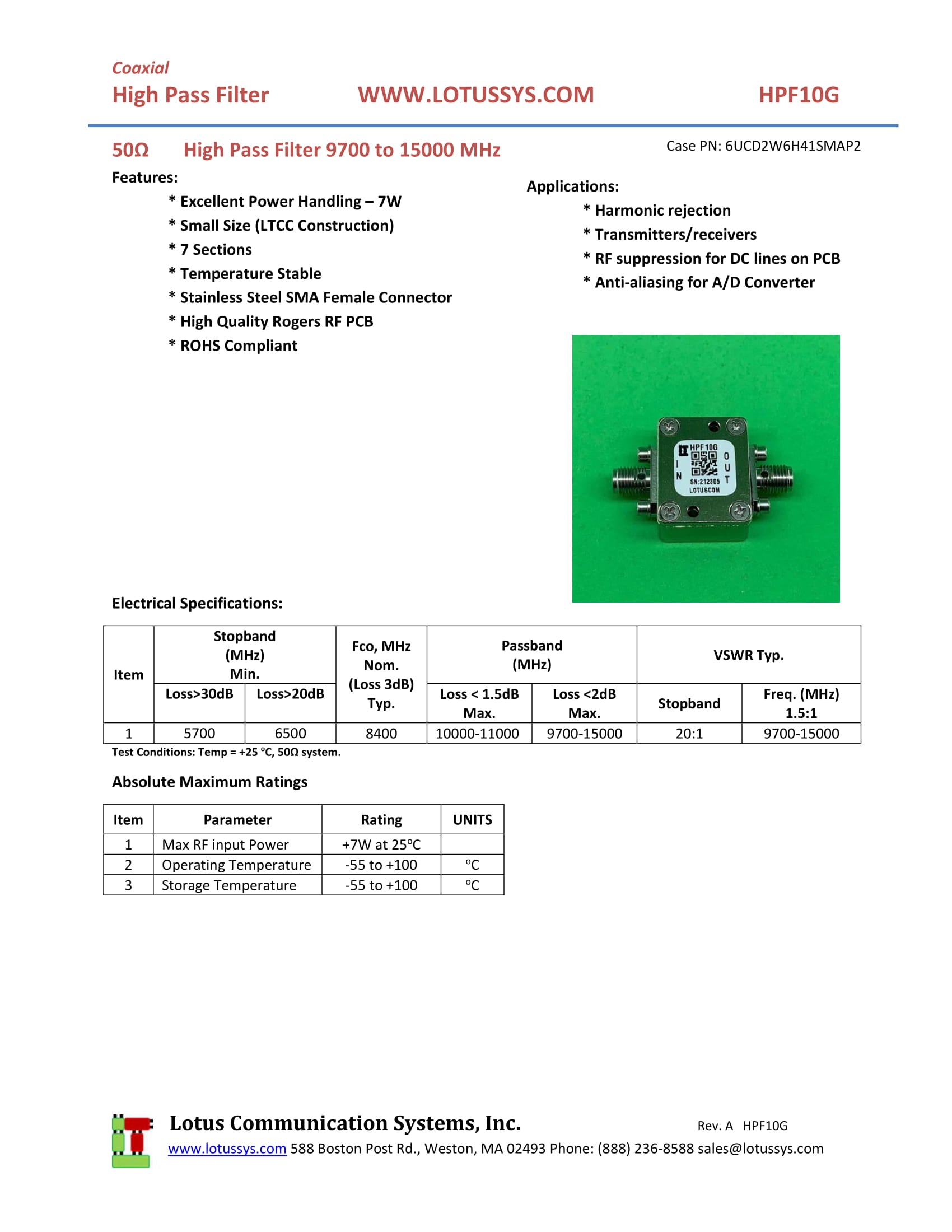

HPF10G Datasheet
