High Pass Filter (LTCC Construction) Pass Band 1080M-4000MHz
Part Numbers: HPF1000M

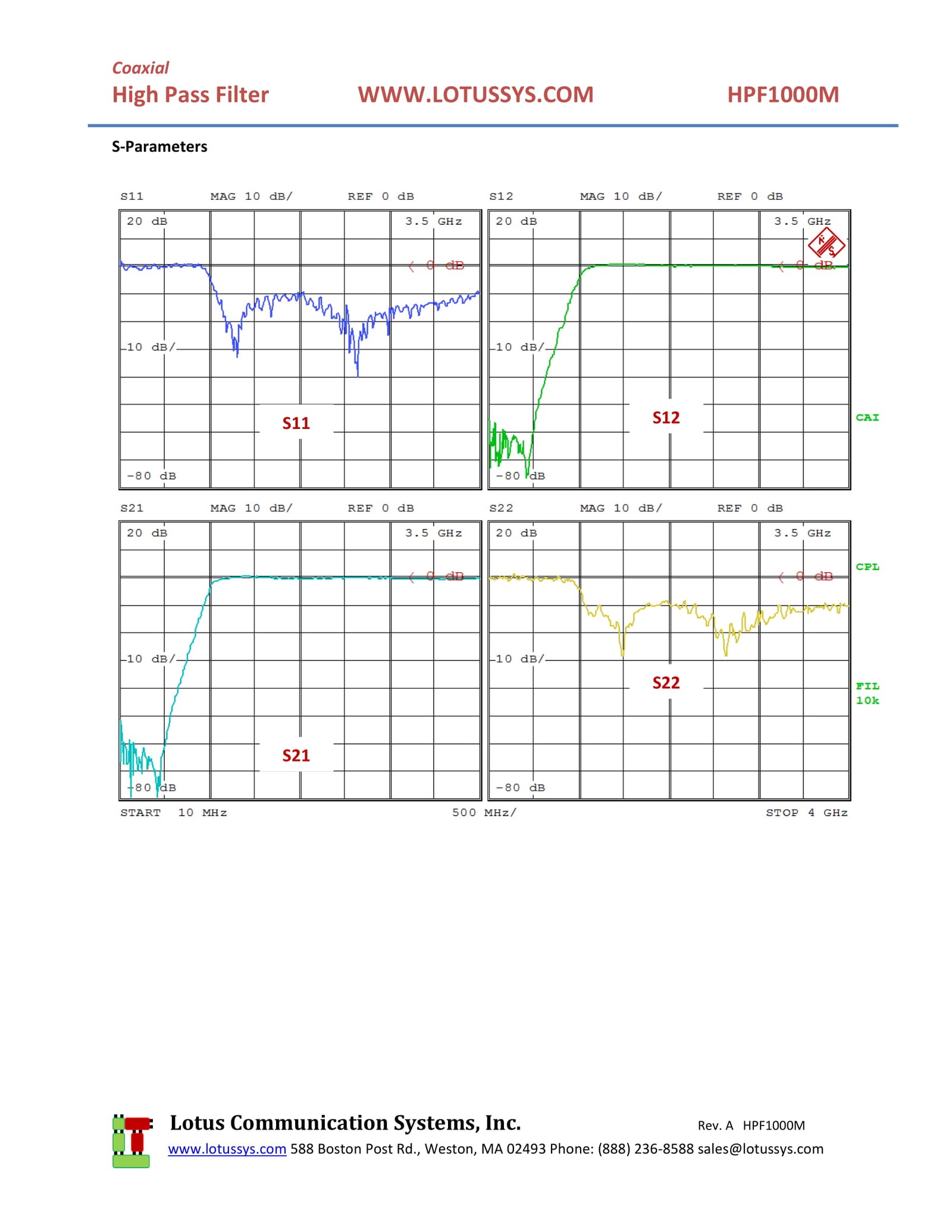

Enclosure uses RF Design Kitwith dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (10 MHz to 4 GHz) is shown in third picture.
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- 3dB Cut Off Frequency: 1000 MHz
- RF Power Input: 7W max. at 25C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector (Amphenol)
- High Quality Rogers RF PCB -- Low loss and High Thermal Performance
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

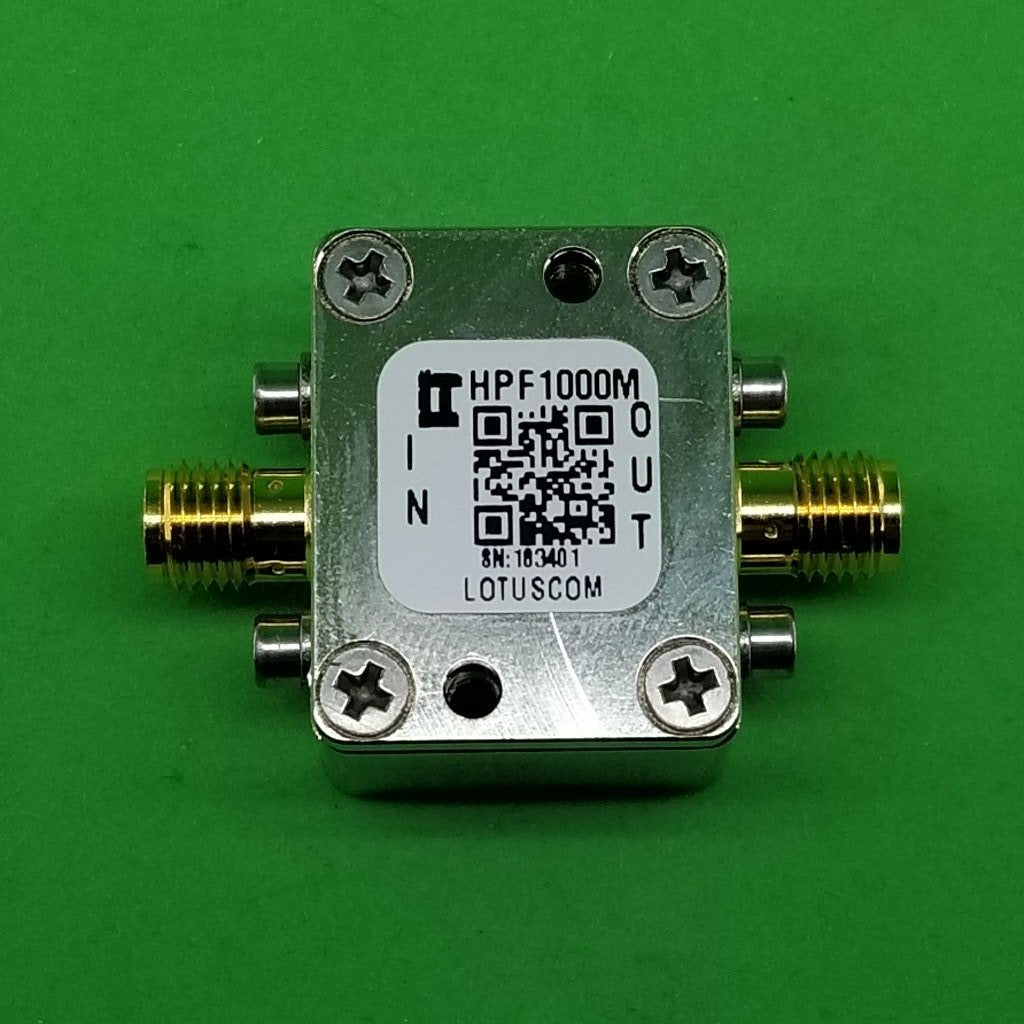

This HPF Module includes the RF Enclosure as shown in picture.

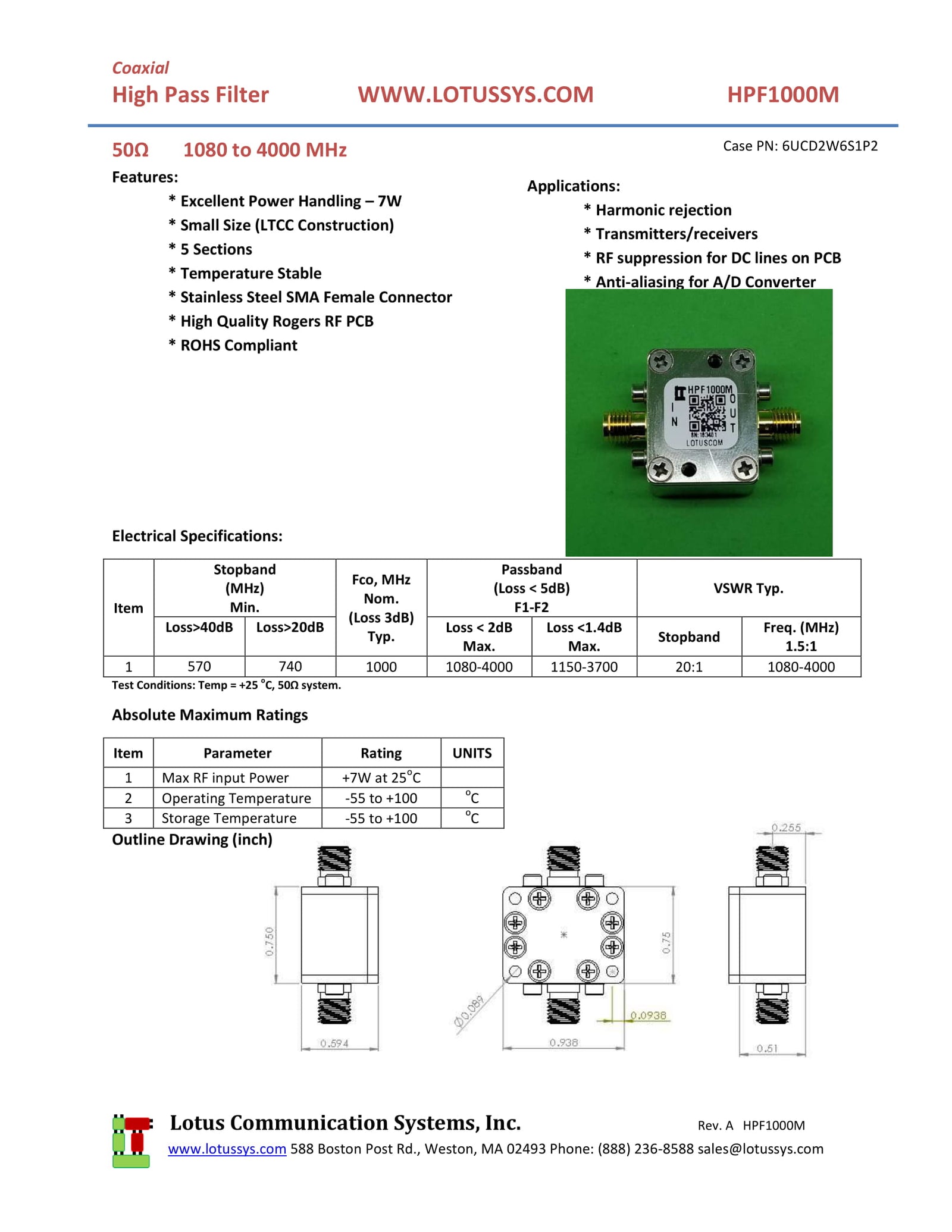

Click https://cdn.shopify.com/s/files/1/1592/7469/files/HPF1000M.pdf to see detailed specification.
Proudly MADE IN USA.
