  • Hybrid 90 Degree 3dB Coupler 800M to 1GHz 25W

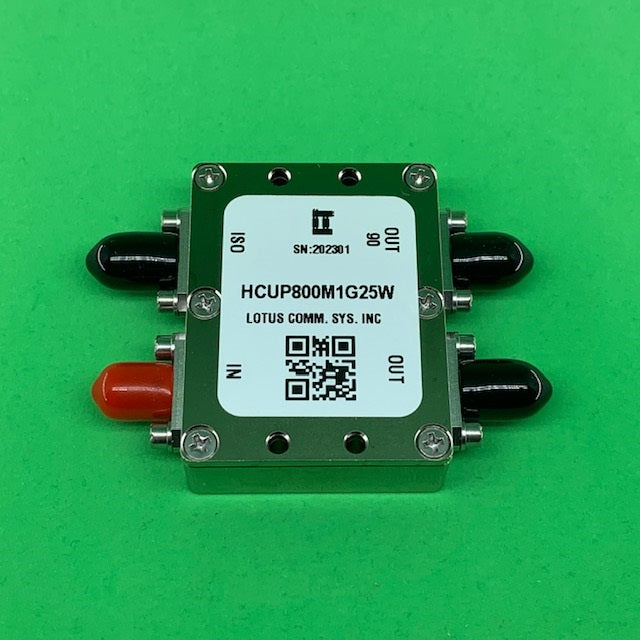

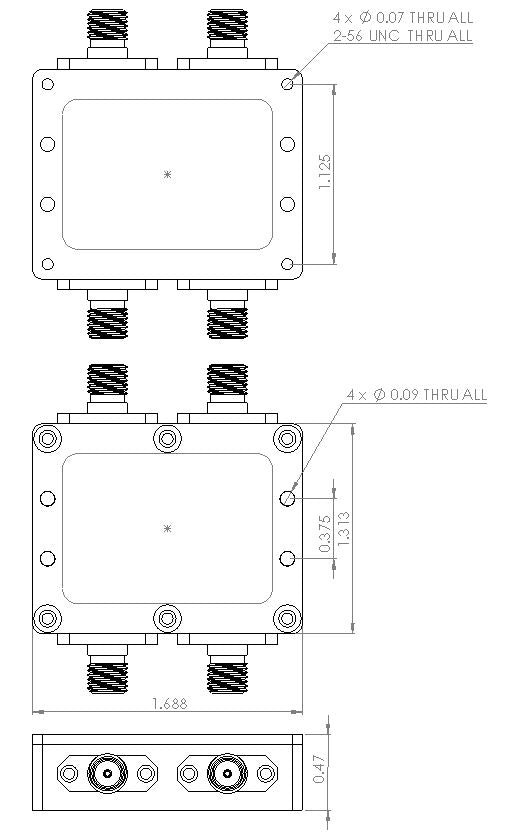

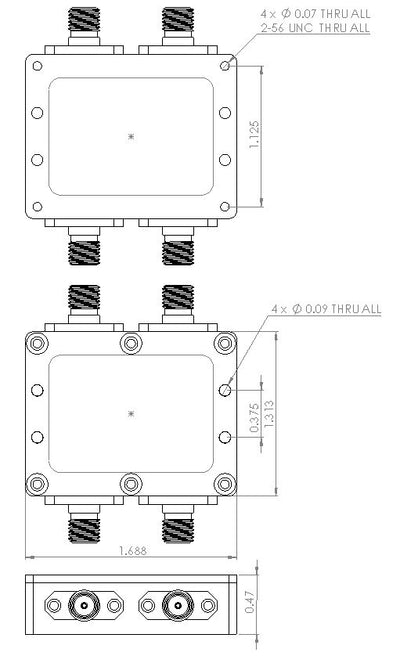

    HCUP800M1G25W is a high performance 3dB Hybrid Coupler in an easy to use, 4 port SMA rugged Enclosure.

    The Hybrid Coupler is designed for broadband transmit and receiver systems with low insertion loss and high isolation.  It can handle maximum input CW power 25 Watts.

    There are standard four ports for the Hybrid Coupler: Input, Isolation, Output (3dB 0 degree) and Output (3dB 90 degree).

    This hybrid Coupler can be used as either Splitter or Combiner mode.  The Laser Marked configuration is for Splitter Mode.  Please refer to Configuration Table for Combiner usage. SKU#: AK20-005B.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.

    2 items left

    Features

    • Frequency Range: 800 MHz to 1000 MHz
    • Low Insertion Loss 0.2 dB
    • Tight Amplitude Balance: +/- 0.3 dB
    • High Isolation: 23 dB Min
    • Maximum Input Power: 25 W (Avg. CW)
    • Stainless Steel SMA Female Connector
    • Operation Temperature: -40 to 85°C
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Wideband A/D System
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HCUP800M1G25W Datasheet
