Hybrid 90 Degree 3dB Coupler 690M to 2.7 GHz 50W

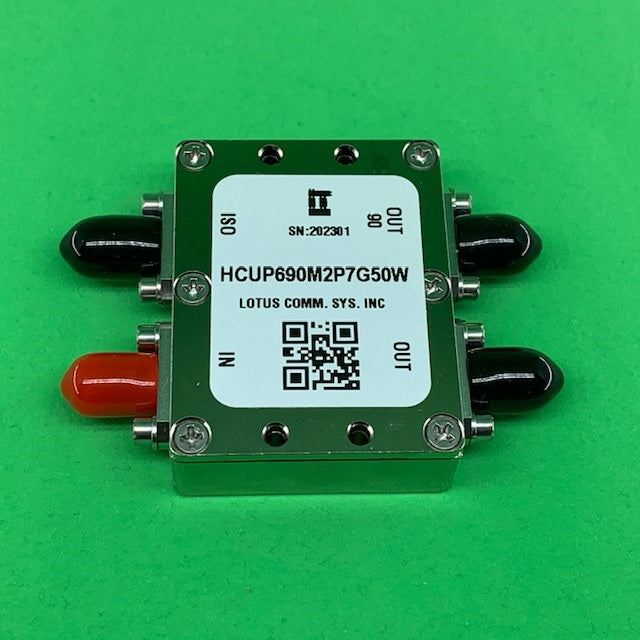

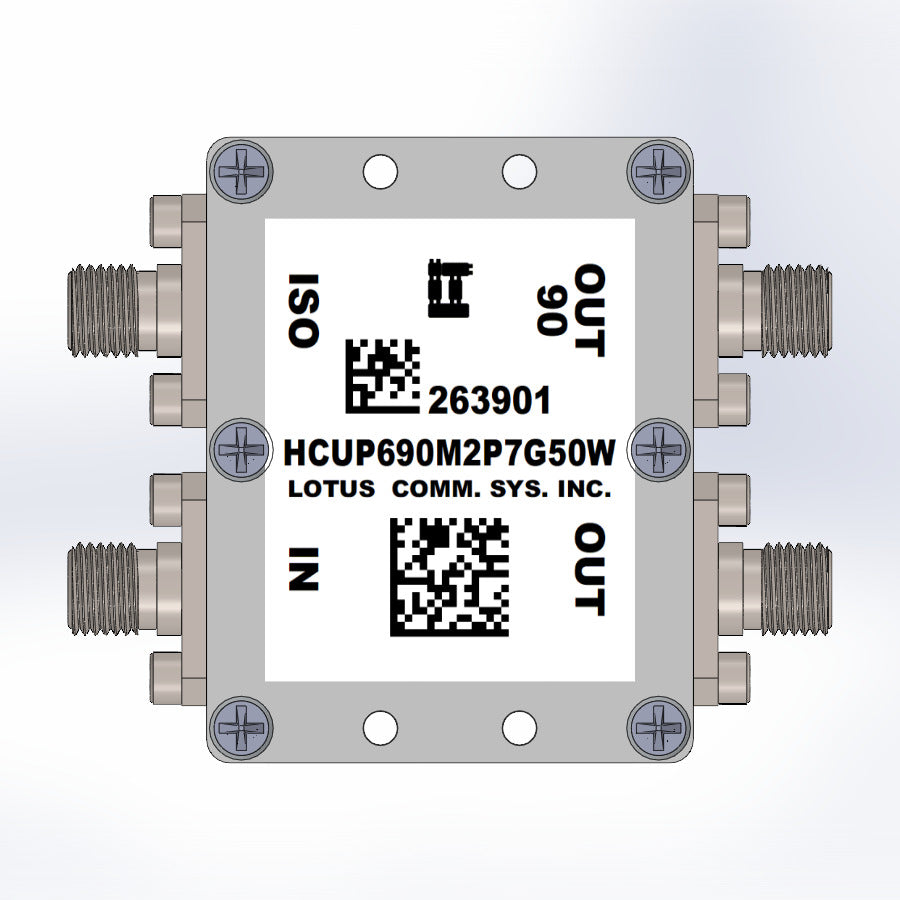

HCUP690M2P7G50W is a high performance 3dB Hybrid Coupler in an easy to use, 4 port SMA rugged Enclosure.

The Hybrid Coupler is designed for broadband transmit and receiver systems with low insertion loss and high isolation.  It can handle maximum input CW power 50 Watts.

There are standard four ports for the Hybrid Coupler: Input, Isolation, Output (3dB 0 degree) and Output (3dB 90 degree).

This hybrid Coupler can be used as either Splitter or Combiner mode.  The Laser Marked configuration is for Splitter Mode.  Please refer to Configuration Table for Combiner usage. SKU#: AK20-005C.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
