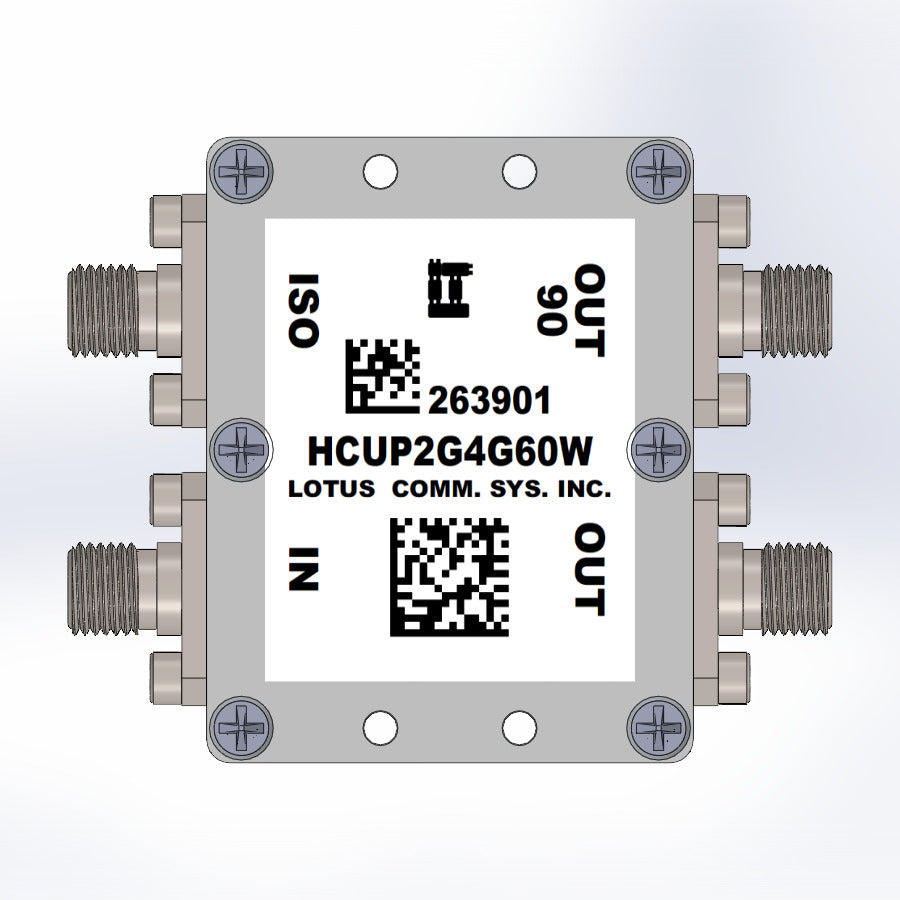

  • Hybrid 90 Degree 3dB Coupler 2G to 4 GHz 60W

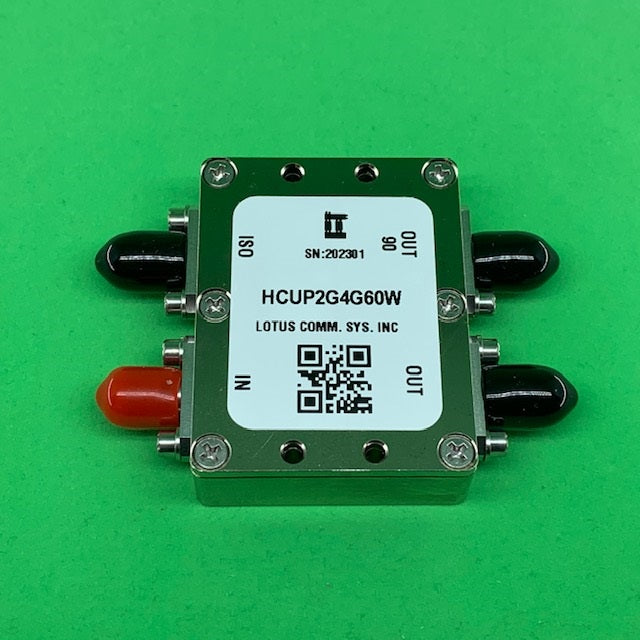

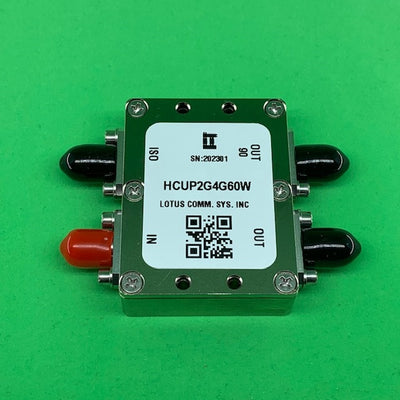

    HCUP2G4G60W is a high performance 3dB Hybrid Coupler in an easy to use, 4 port SMA rugged Enclosure.

    The Hybrid Coupler is designed for broadband transmit and receiver systems with low insertion loss and high isolation.  It can handle maximum input CW power 60 Watts.

    There are standard four ports for the Hybrid Coupler: Input, Isolation, Output (3dB 0 degree) and Output (3dB 90 degree).

    This hybrid Coupler can be used as either Splitter or Combiner mode.  The Laser Marked configuration is for Splitter Mode.  Please refer to Configuration Table for Combiner usage. SKU#: AK20-005C.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.

    7 items left

    Features

    • Frequency Range: 2000 MHz to 4000 MHz
    • Low Insertion Loss 0.45 dB
    • Tight Amplitude Balance: +/- 0.5 dB
    • High Isolation: 20 dB Min
    • Maximum Input Power: 60 W (Avg. CW)
    • Stainless Steel SMA Female Connector
    • Operation Temperature: -40 to 85°C
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Wideband A/D System
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png HCUP2G4G60W Datasheet
