GNSS L1, L2, and L5 Band Pass Filter DC Pass Through
$ 158.00 USD - $ 248.00 USD

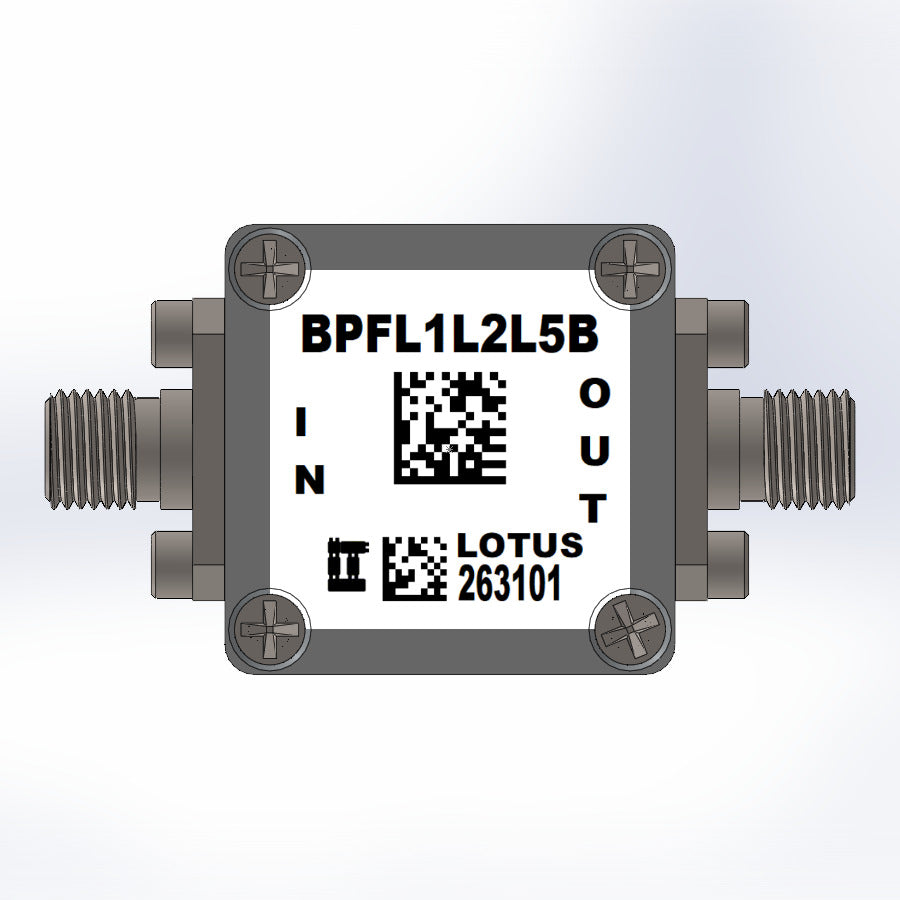

Part Number: BPFL1L2L5B is an L1, L2, and L5 GNSS Band Pass Filter in a compact size for use in GNSS applications. Designed for removal of unwanted GNSS signals, this filter also has excellent power handling capability for low power transmitters. The filter is housed in a 0.938 x 0.938 x 0.49 inches chrome-plated enclosure. The BPF pass the DC current through the RF input to output port.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- GNSS L1, L2, L5 comb filtering
- Stainless Steel SMA Female Connector
- DC Pass through from RF Input to RF Output Port
- ROHS Compliant
Applications
- Low-loss, pre-LNA comb filter for GNSS
- Rejection out band of signals – including Cellular, LTE, UHF and other ISM band
