Gain Block Amplifier 4.3dB NF DC to 12GHz 16dB Gain 15dBm P1dB SMA
$ 208.00 USD

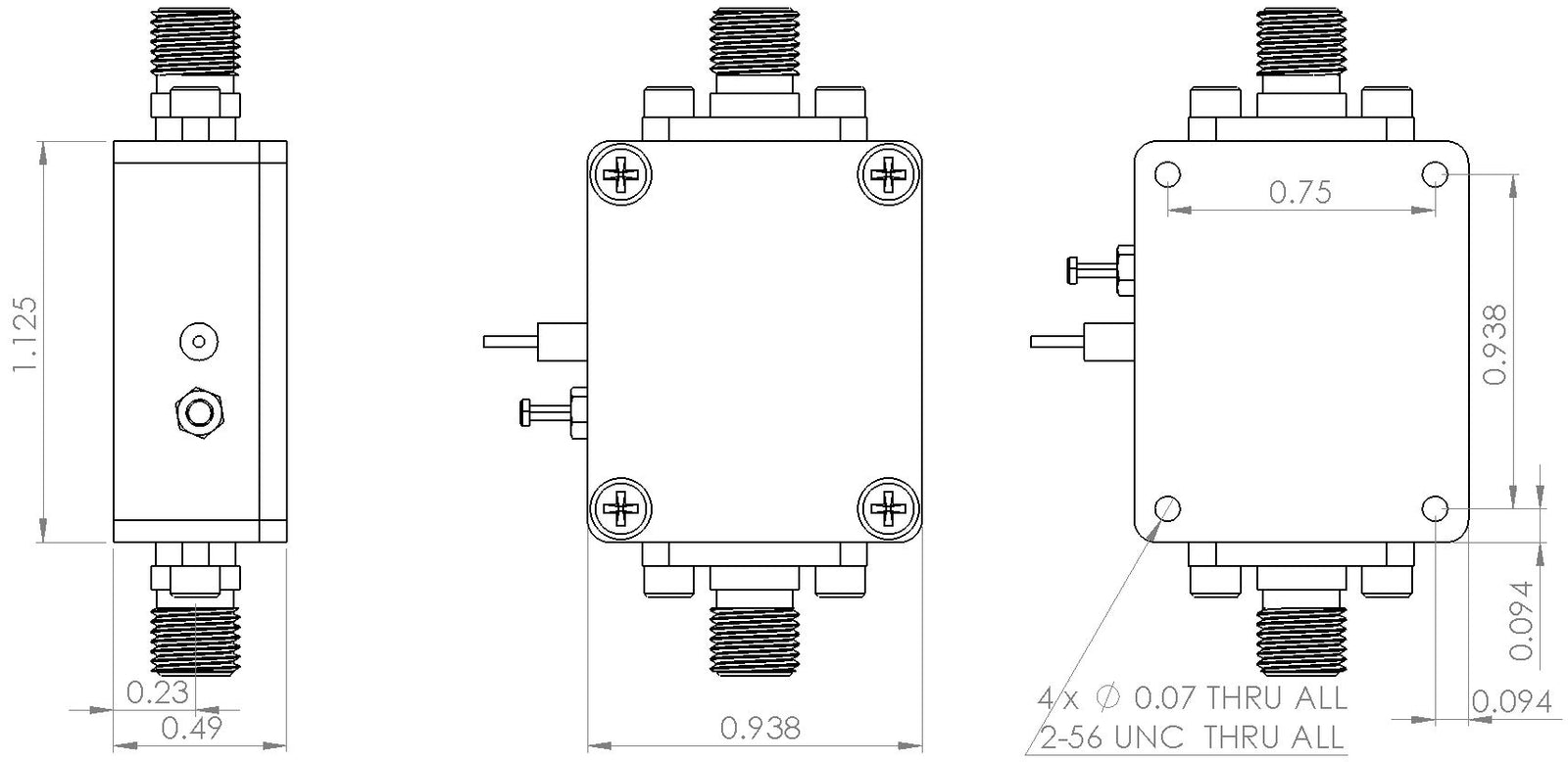

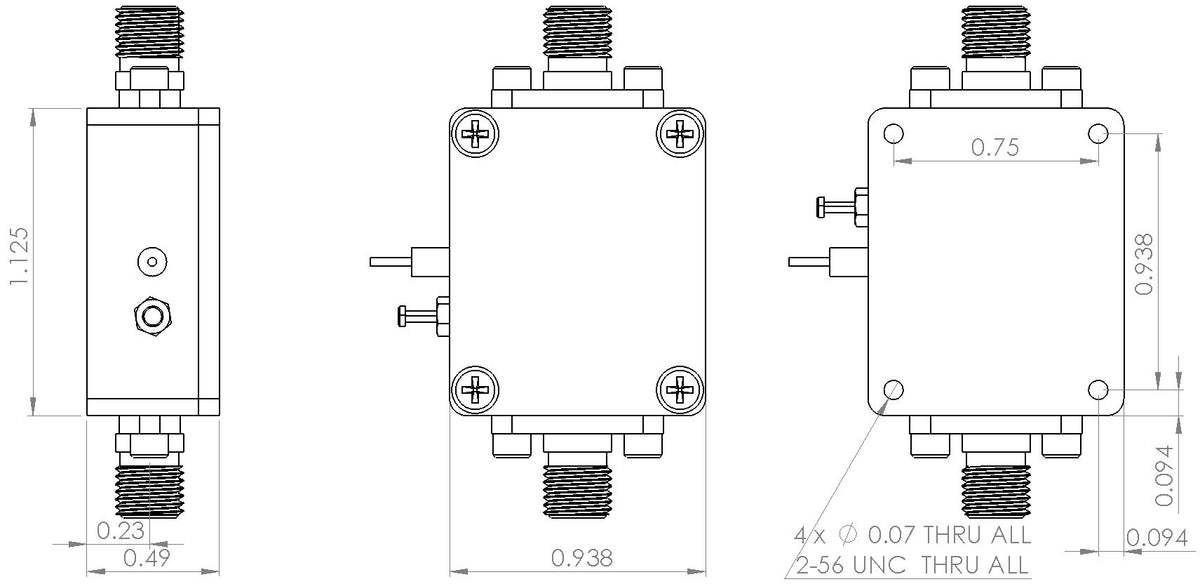

Part Number: GBADC12G is a 16dB linear amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 2 GHz, the amplifier typically provides 16 dB gain, +28 dBm OIP3 at a 60 mA bias setting, and 4.3 dB noise figure. The Gain Block can be biased from a single supply +5V.

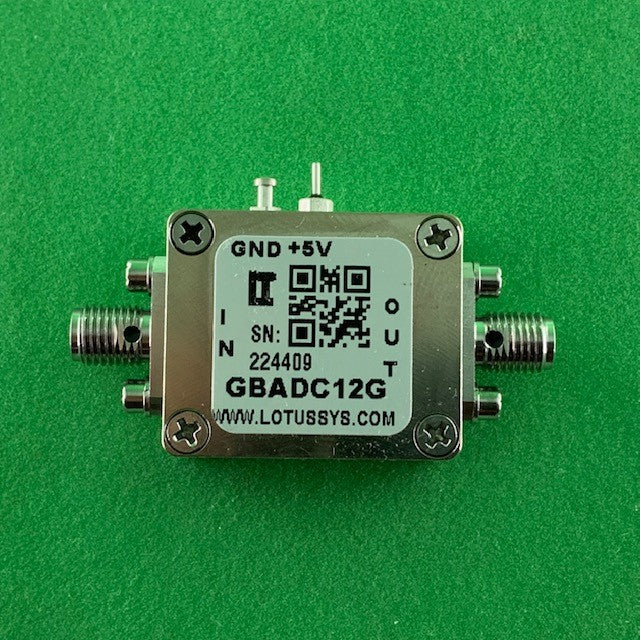

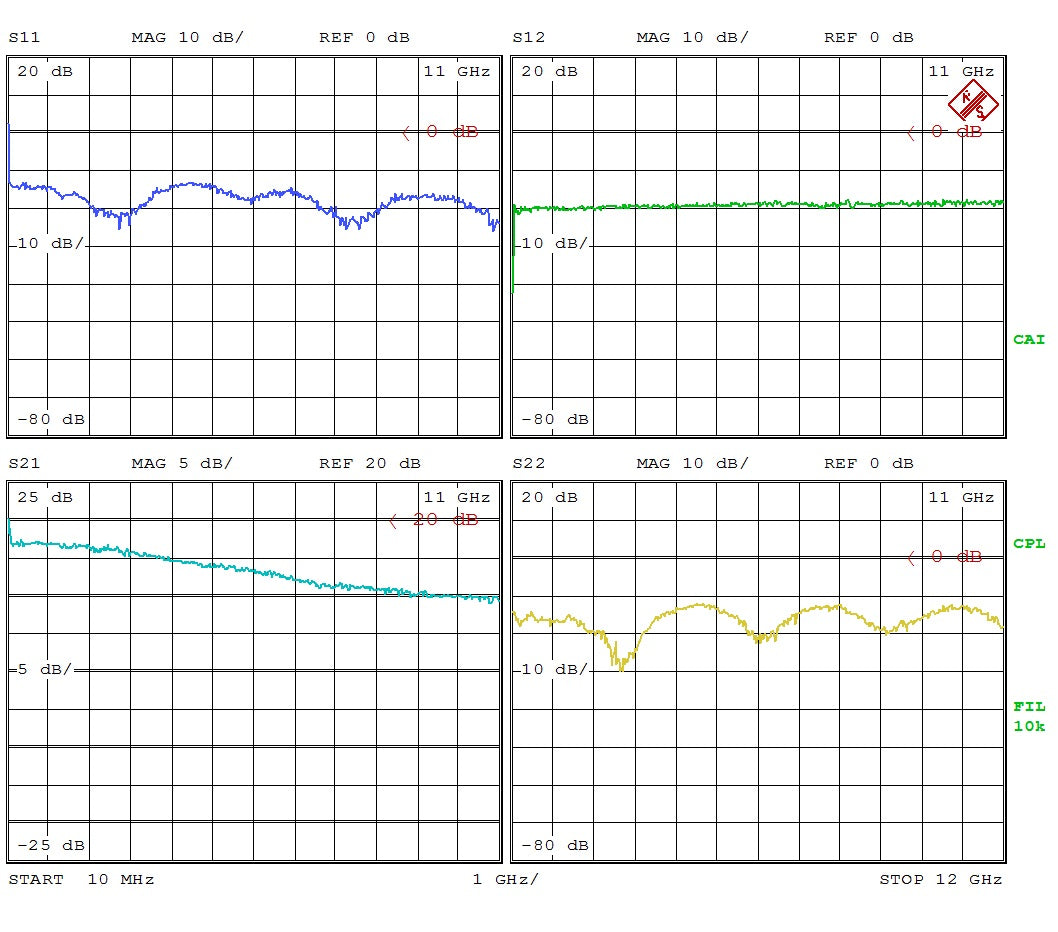

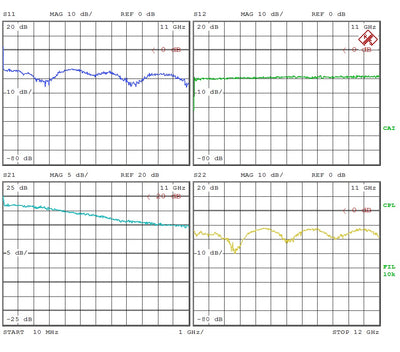

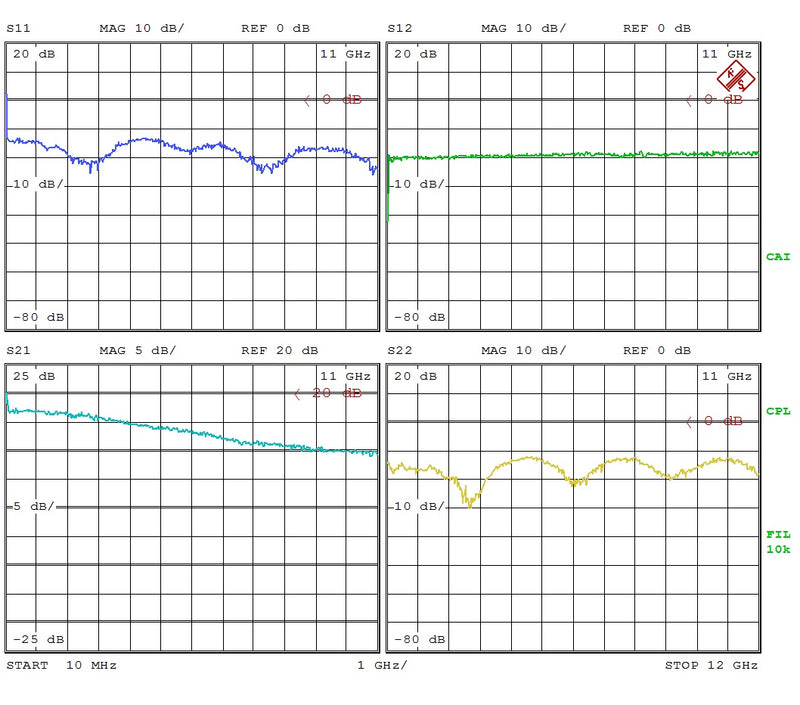

Listed pictures include Product Picture and S Parameter from 10M to 12GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: DC to 12 GHz
- Noise Figure: typical 4.3 dB @ 2 GHz
- Output P1dB: +15 dBm CW at 2 GHz
- Output IP3: +28 dBm at 2 GHz
- DC Voltage: +5V
- Operating Current: 60 mA
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
GBDC12G Datasheet
