Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA +5.5~12V
$ 316.80 USD - $ 415.80 USD
Part Number: GBA7G15GR is a HBT Gain Block MMIC Amplifier covering 7 GHz to 15 GHz in a small 15/16”x15/16”x0.48” shielded RF enclosure. This amplifier can be used as a cascadable IF or RF gain stage in 50 Ohm applications. It delivers 15 dB gain, and +15dBm output P1dB with only 4 dB noise figure. The Gain Block can be biased from a single supply +5.5~12V. SKU#: AK20-016F.

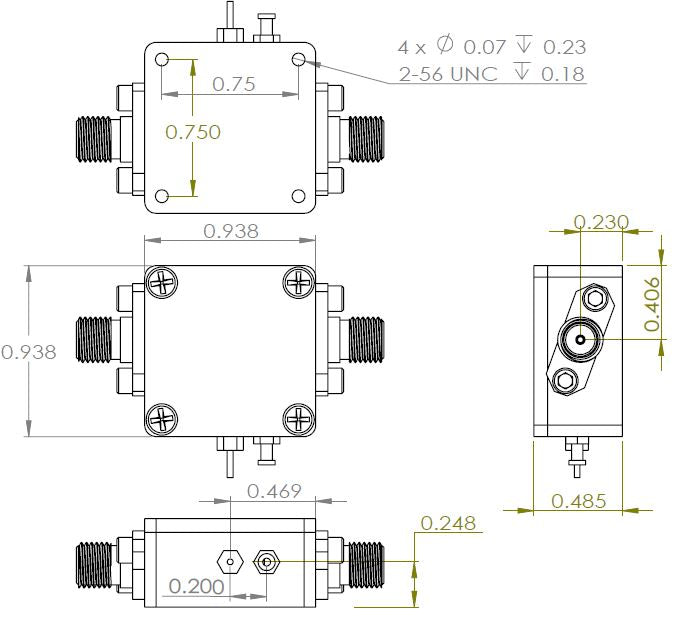

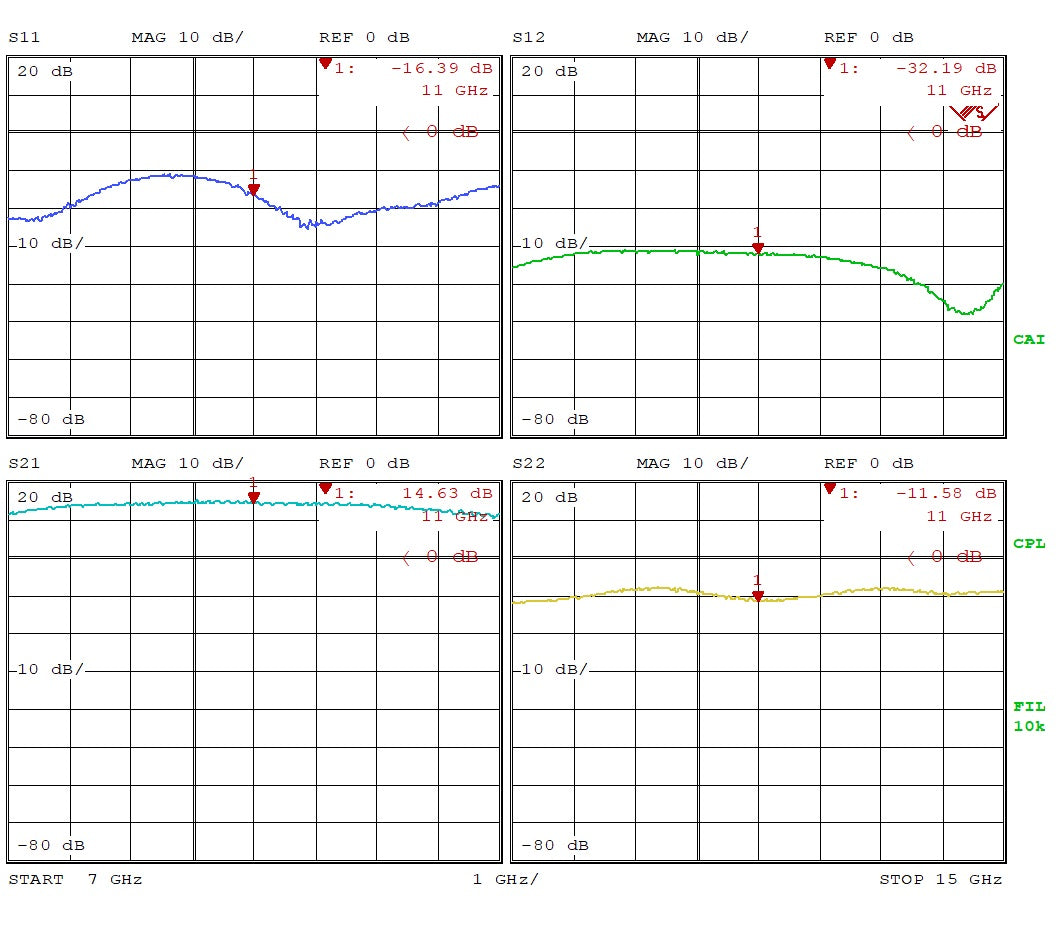

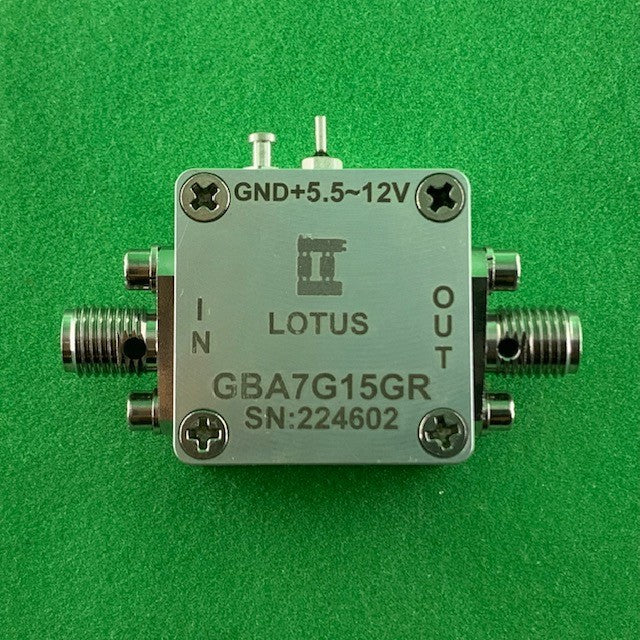

Listed pictures include Product Picture and S Parameter from 7 to 15 GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 7G to 15 GHz
- High Output IP3: +28 dBm
- Low Noise Figure: typical 4.0 dB
- 15dB Gain, +15dBm P1dB
- Single DC Voltage: +5.5~12V
- Operating Current: 45 mA
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Datasheet & S-Parameter
GBA7G15GR Datasheet
S-Parameter (.S2P)
