Gain Block Amplifier 3.3dB NF 20MHz to 1GHz 15dB Gain 19dBm P1dB SMA

7 items left

GBA20M1G is a 15dB linear amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 900 MHz, the amplifier typically provides 15 dB gain, +45 dBm OIP3 at a 97 mA bias setting, and 3.2 dB noise figure. The Gain Block can be biased from a single supply +5V.

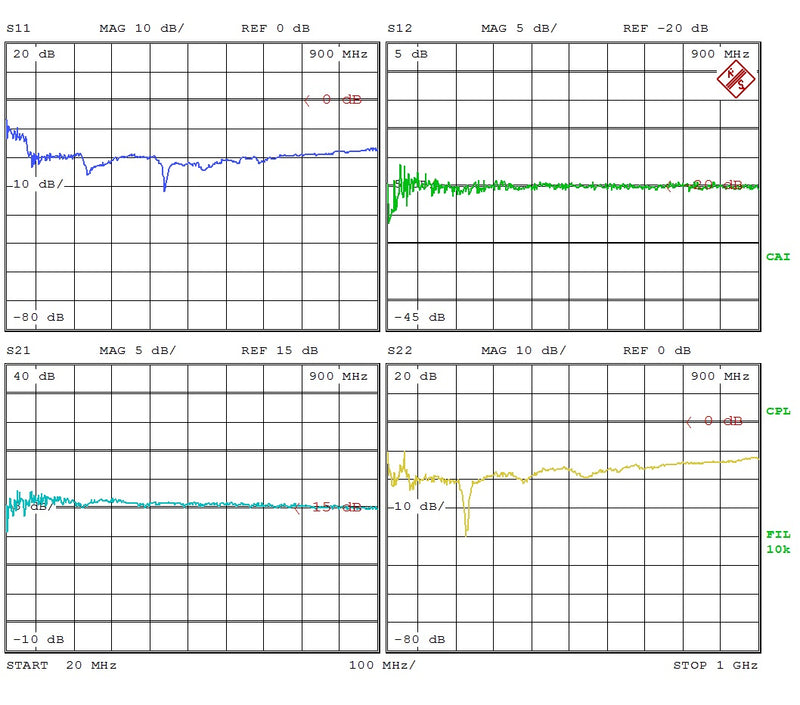

Listed pictures include Product Picture and S Parameter from 20M to 1GHz.

Features:
    * Fixed Gain of 15 dB
    * Frequency Range: 20 MHz to 1 GHz;
    * Noise Figure: typical 3.2 dB @ 380MHz
    * Output P1dB: +18.9 dBm CW at 190MHz
    * Output IP3: +45.5 dBm at 380MHz
    * DC Voltage: +5V
    * Operating Current: 97 mA
    * Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Repeaters/DAS
    * Mobile Infrastructure
    * LTE/WCDMA/CDMA/GSM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

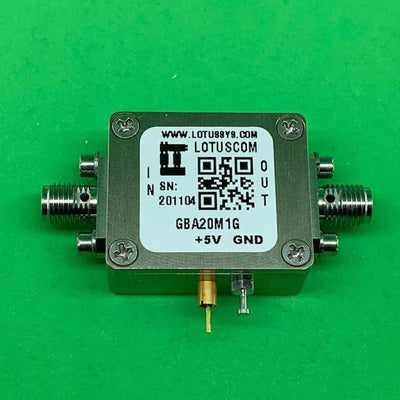

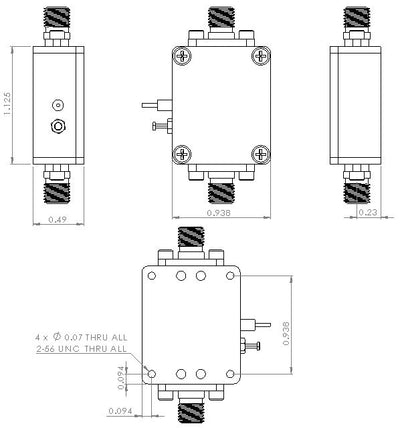

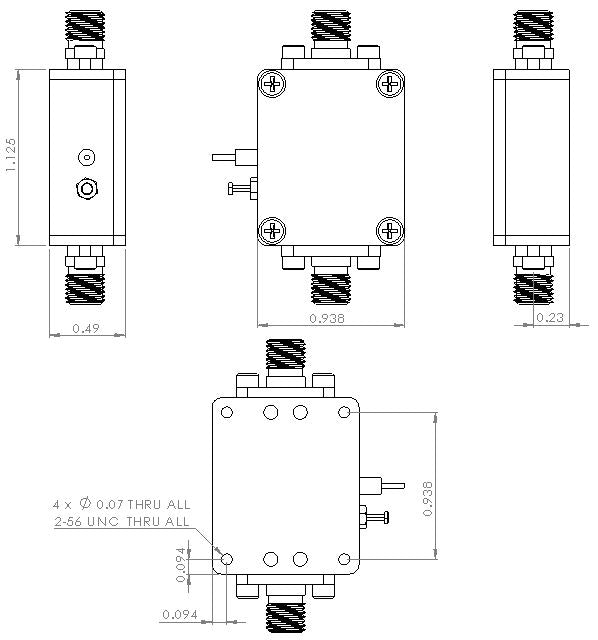

This GBA includes the RF Enclosure as shown in picture.

Proudly MADE IN USA.
