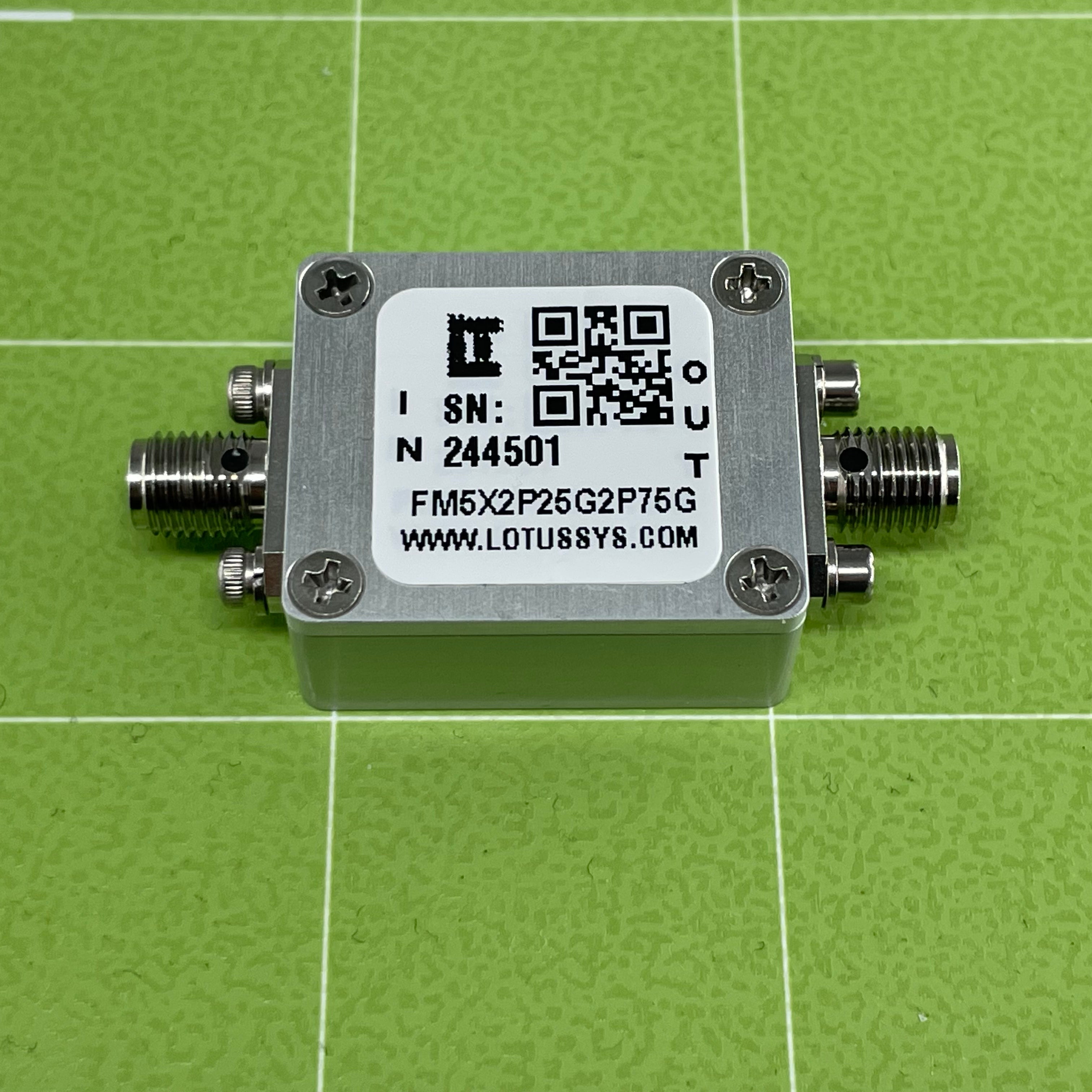

Passive Freq. Multiplier x5 (OUTPUT 2.25-2.75GHz) FM5X2P25G2P75G
$ 198.00 USD
Part Number#: FM5X2P25G2P75G Frequency Multiplier x5 with input frequency range from 450-550 MHz and output frequency range from 2250-2750 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48". SKU#: AK20-024B.
Features
- Multiply by M: (M=5)
- Input Power: 17 dBm
- Input Frequency Range: 450-550 MHz
- Output Frequency Range: 2.25-2.75 GHz
- Low Conversion Loss: 22 dB Typ.
- Operating Temperature -40 to +85°C
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM5X2P25G2P75G Datasheet
