Passive Freq. Multiplier X3 (OUTPUT 900M-1.2G Hz)

Passive Freq. Multiplier X3 (OUTPUT 900M-1.2G Hz)

Passive Freq. Multiplier X3 (OUTPUT 900M-1.2G Hz)

$ 169.00 USD

Part Number#: FM3X900M1P2G Frequency Multiplier X3 with input frequency range from 300-400 MHz and output frequency range from 900-1200 MHz.

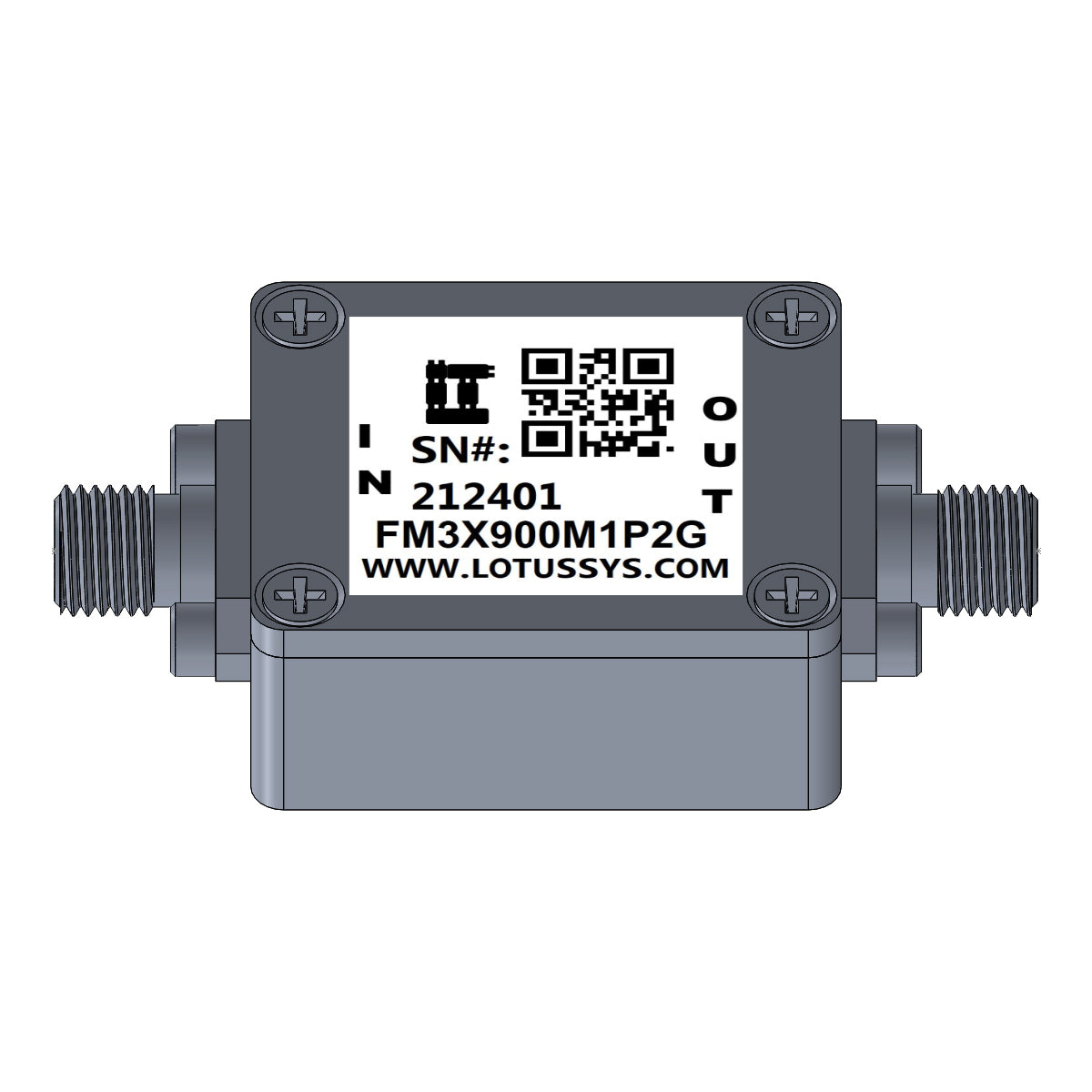

Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".

Collections: Frequency Multipliers

Features

Multiply by M: (M=3)
Input Power: 0 to +6 dBm
Input Frequency Range: 300-400 MHz
Output Frequency Range: 900M-1.2G Hz
Conversion Loss: 14.5dB Typ.
Operating Temperature -40 to +85°C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

FM3X900M1P2G Datasheet
