Passive Freq. Multiplier X3 (OUTPUT 7.8-15 GHz)

Passive Freq. Multiplier X3 (OUTPUT 7.8-15 GHz)

Passive Freq. Multiplier X3 (OUTPUT 7.8-15 GHz)

$ 198.00 USD

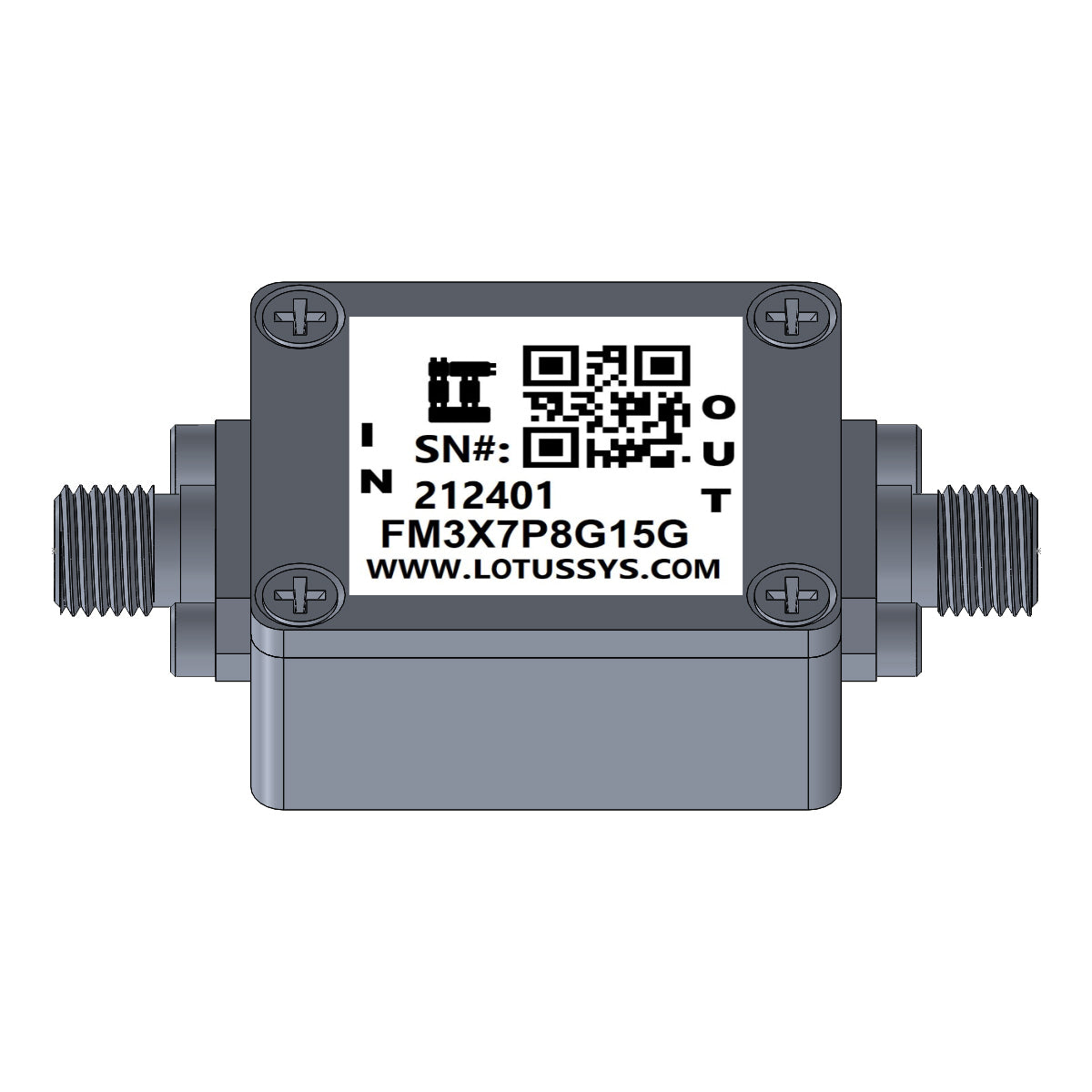

Part Number#: FM3X7P8G15G Frequency Multiplier X3 with input frequency range from 2.6 GHz to 7.8 GHz and output frequency range from 7.8 GHz to 15 GHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48". SKU#: AK20-005P.

Collections: Frequency Multipliers

Features

Multiply by M: (M=3)
Input Power: +7 to +11 dBm
Input Frequency Range: 2.6 GHz to 5 GHz
Output Frequency Range: 7.8 GHz to 15 GHz
Conversion Loss: 17dB Typ.
Operating Temperature -40 to +85°C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

FM3X7P8G15G Datasheet
