Passive Freq. Multiplier X3 (OUTPUT 6.6-10GHz)

EMI Shielding (includes Weatherproofing)
9 items left

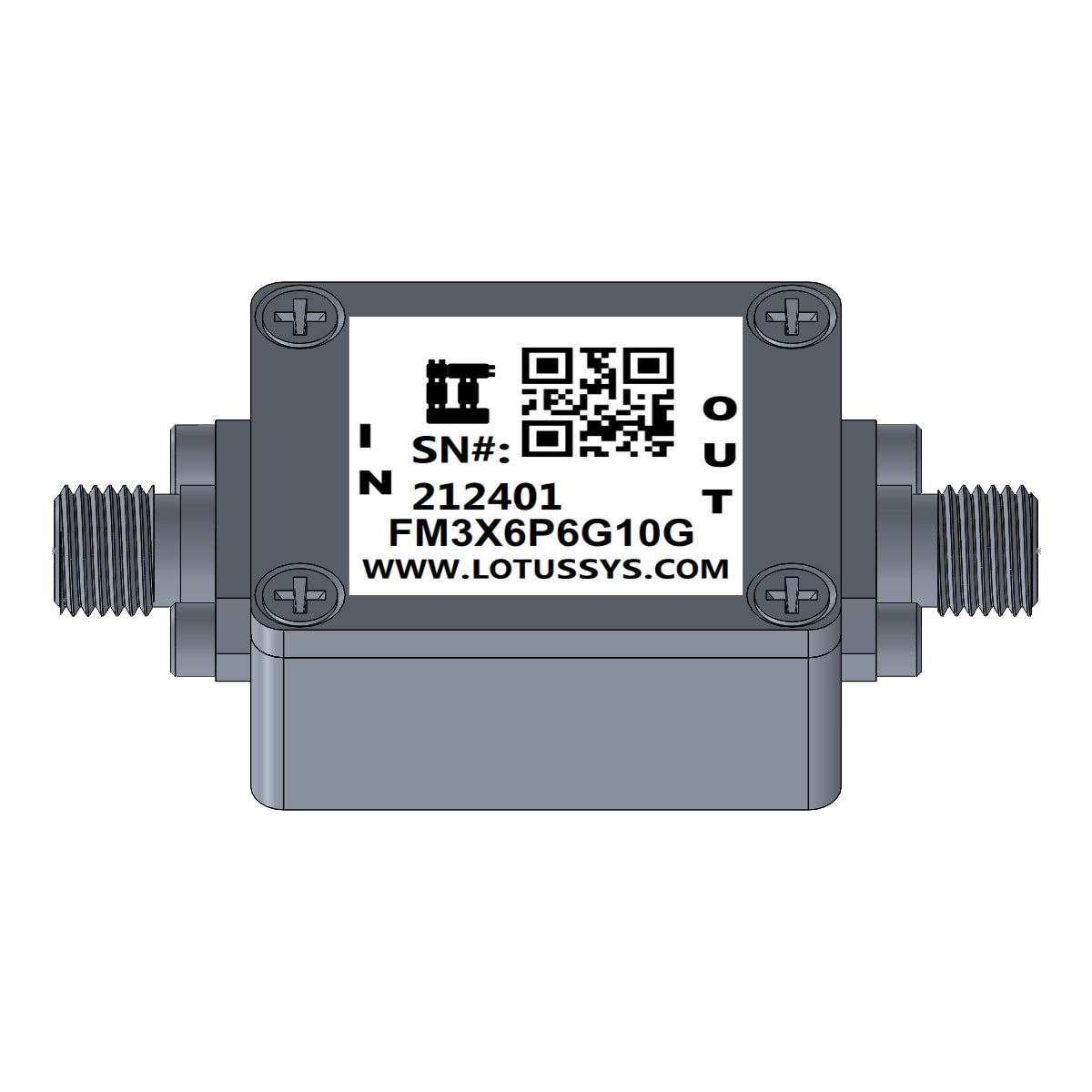

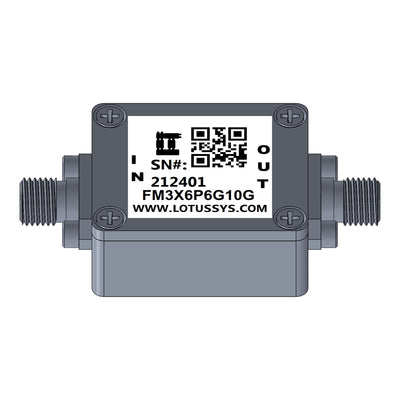

Part Number#: FM3X6P6G10G Frequency Multiplier X3 with input frequency range from 2200-3335MHz and output frequency range from 6600-10005 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48". SKU#: QT16-001O.


  • Multiply by M: (M=3)
  • Input Power: +13 to +17 dBm
  • Input Frequency Range: 2200-3335 MHz
  • Output Frequency Range: 6.6-10GHz
  • Conversion Loss: 14.5dB Typ.
  • Operating Temperature -40 to +85°C
  • EMI Shield (& Waterproof) Option Available: PN#: FM3X6P6G10GW


  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources FM3X6P6G10G Datasheet
