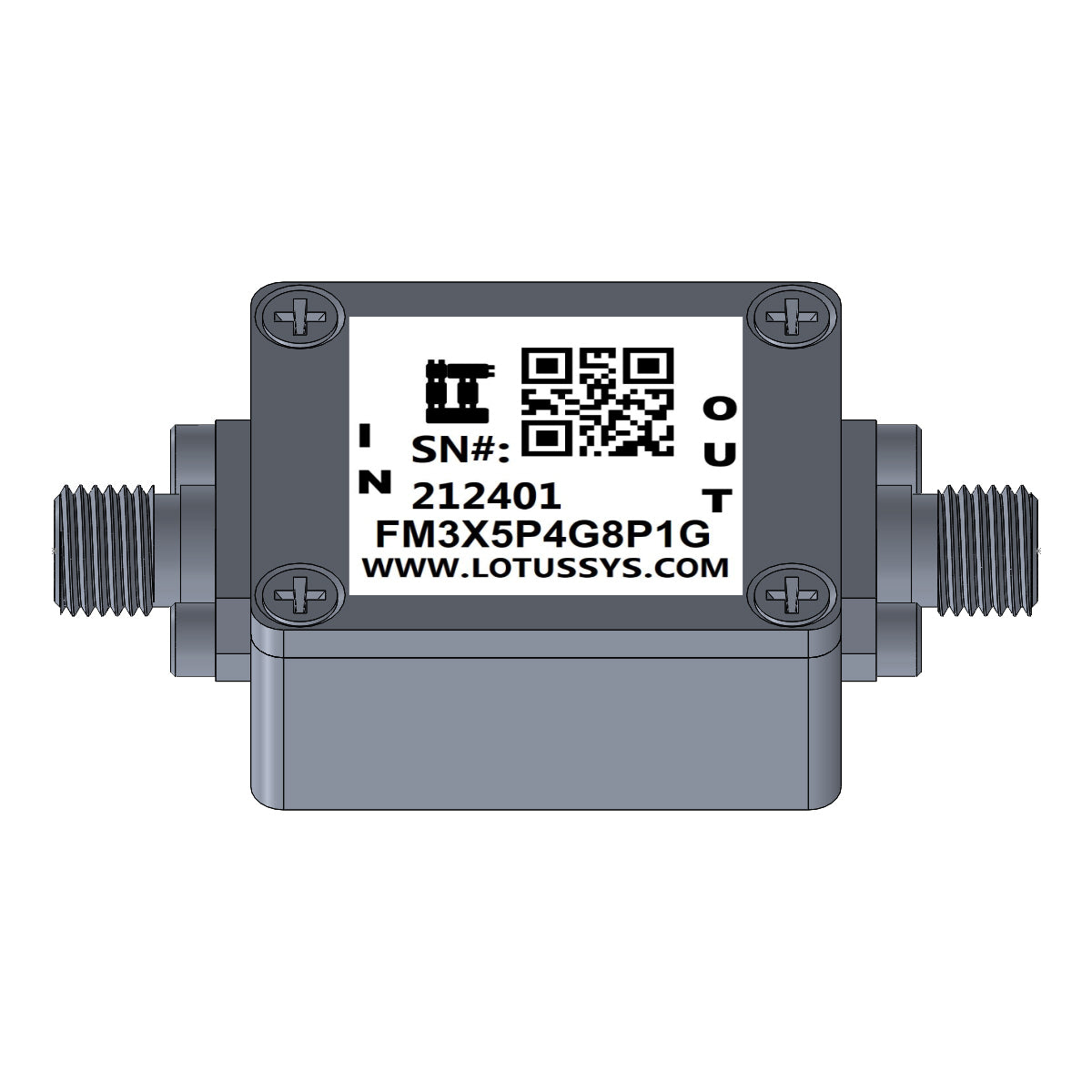

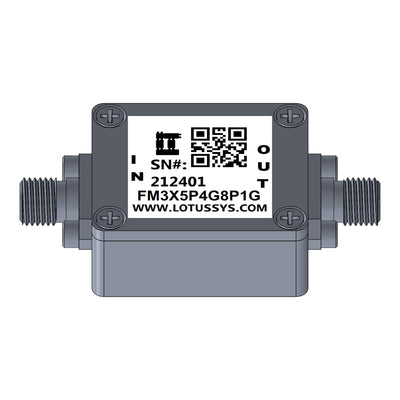

Passive Freq. Multiplier X3 (OUTPUT 5.4-8.1GHz)

Part Number#: FM3X5P4G8P1G Frequency Multiplier X3 with input frequency range from 1800-2700MHz and output frequency range from 5400-8100 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".


  • Multiply by M: (M=3)
  • Input Power: +0 to +6 dBm
  • Input Frequency Range: 1800-2700 MHz
  • Output Frequency Range: 5.4-8.1GHz
  • Conversion Loss: 16dB Typ.
  • Operating Temperature -40 to +85°C


  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources FM3X5P4G8P1G Datasheet
