Passive Freq. Multiplier X3 (OUTPUT 4.8-6.6GHz)

Passive Freq. Multiplier X3 (OUTPUT 4.8-6.6GHz)

Passive Freq. Multiplier X3 (OUTPUT 4.8-6.6GHz)

$ 169.00 USD

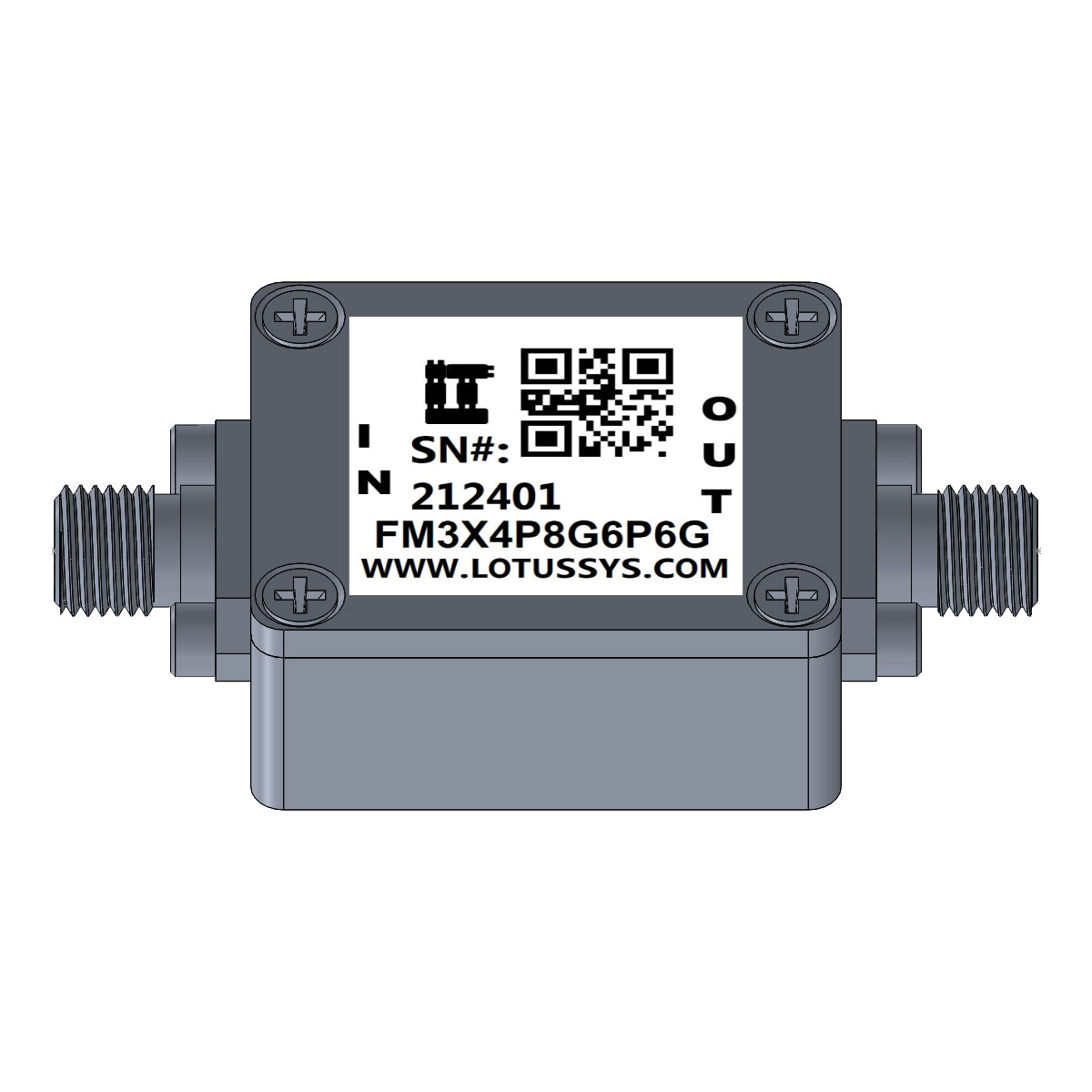

Part Number#: FM3X4P8G6P6G Frequency Multiplier X3 with input frequency range from 1600-2200MHz and output frequency range from 4800-6600 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".

Collections: Frequency Multipliers

Features

Multiply by M: (M=3)
Input Power: +9 to +13 dBm
Input Frequency Range: 1600-2200 MHz
Output Frequency Range: 4.8-6.6GHz
Conversion Loss: 15dB Typ.
Operating Temperature -40 to +85°C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

FM3X4P8G6P6G Datasheet
