Passive Freq. Multiplier X3 (OUTPUT 4.6-7.2GHz)
$ 226.00 USD

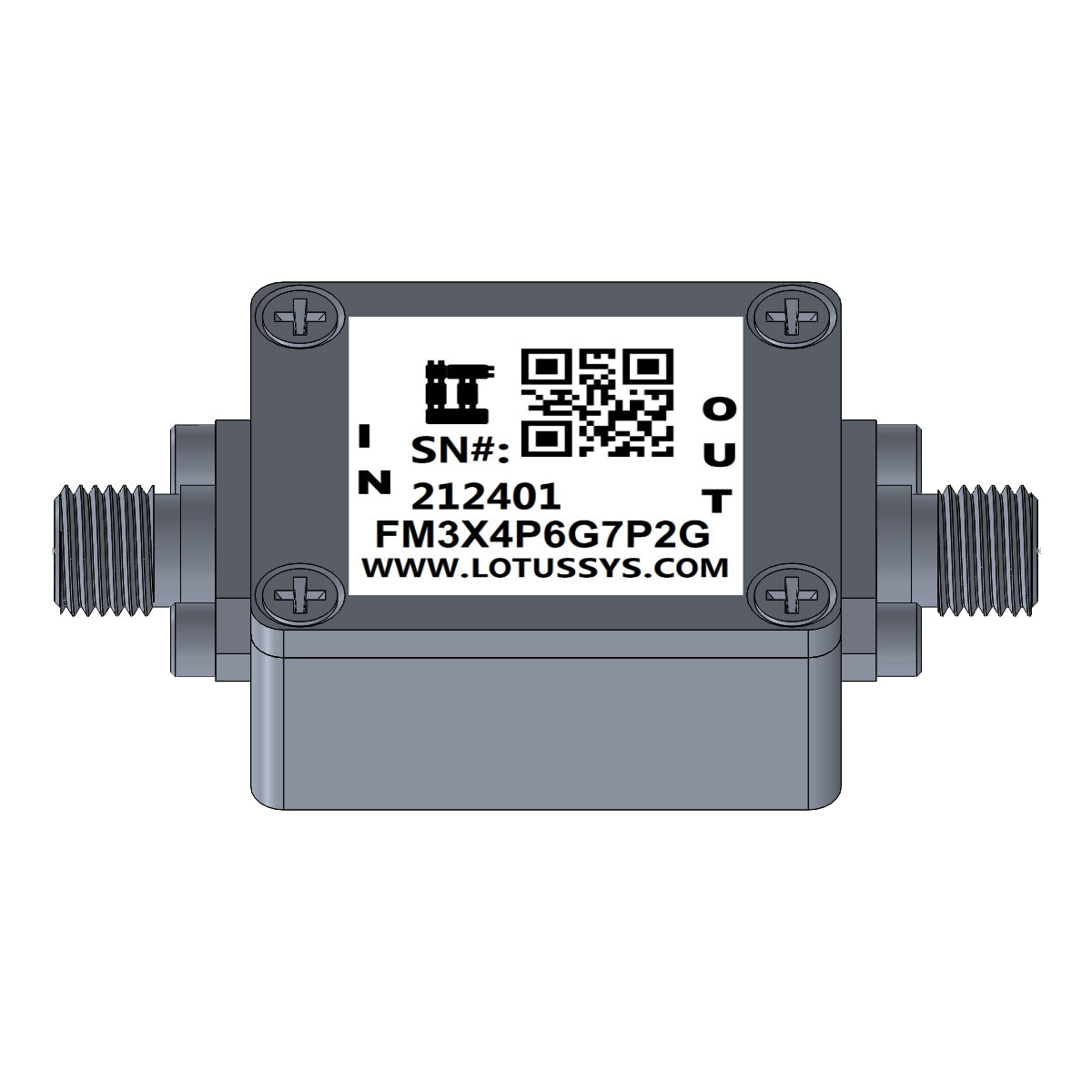

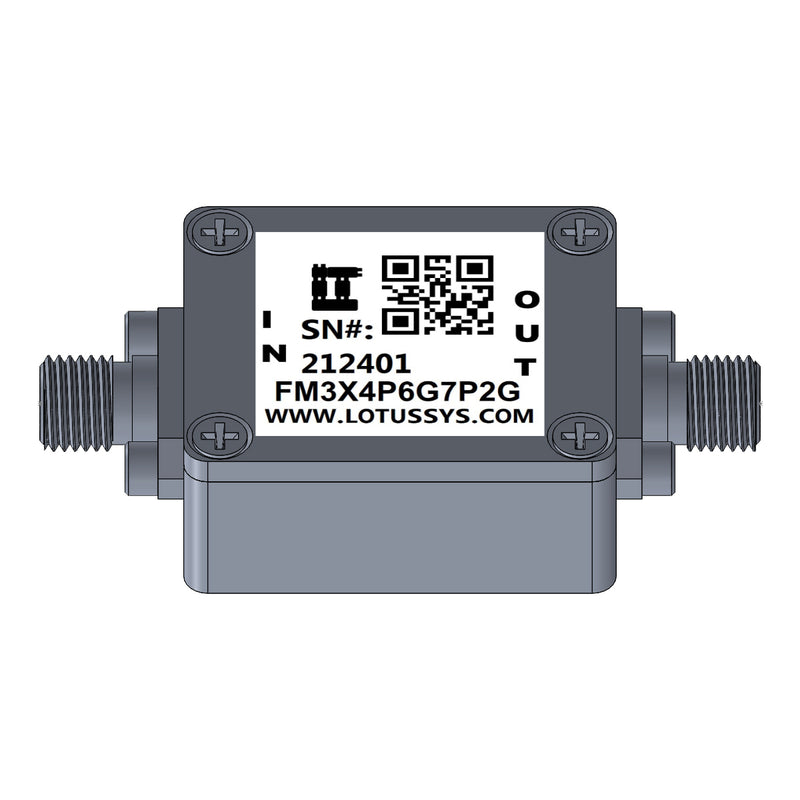

Part Number#: FM3X4P6G7P2G Frequency Multiplier X3 with input frequency range from 1525-2400MHz and output frequency range from 4575-7200 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".
Features
- Multiply by M: (M=3)
- Input Power: +7 to +11 dBm
- Input Frequency Range: 1525-2400 MHz
- Output Frequency Range: 4.575-7.2GHz
- Conversion Loss: 14dB Typ.
- Operating Temperature -40 to +85°C
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM3X4P6G7P2G Datasheet
