Passive Freq. Multiplier X3 (OUTPUT 450-900 MHz)

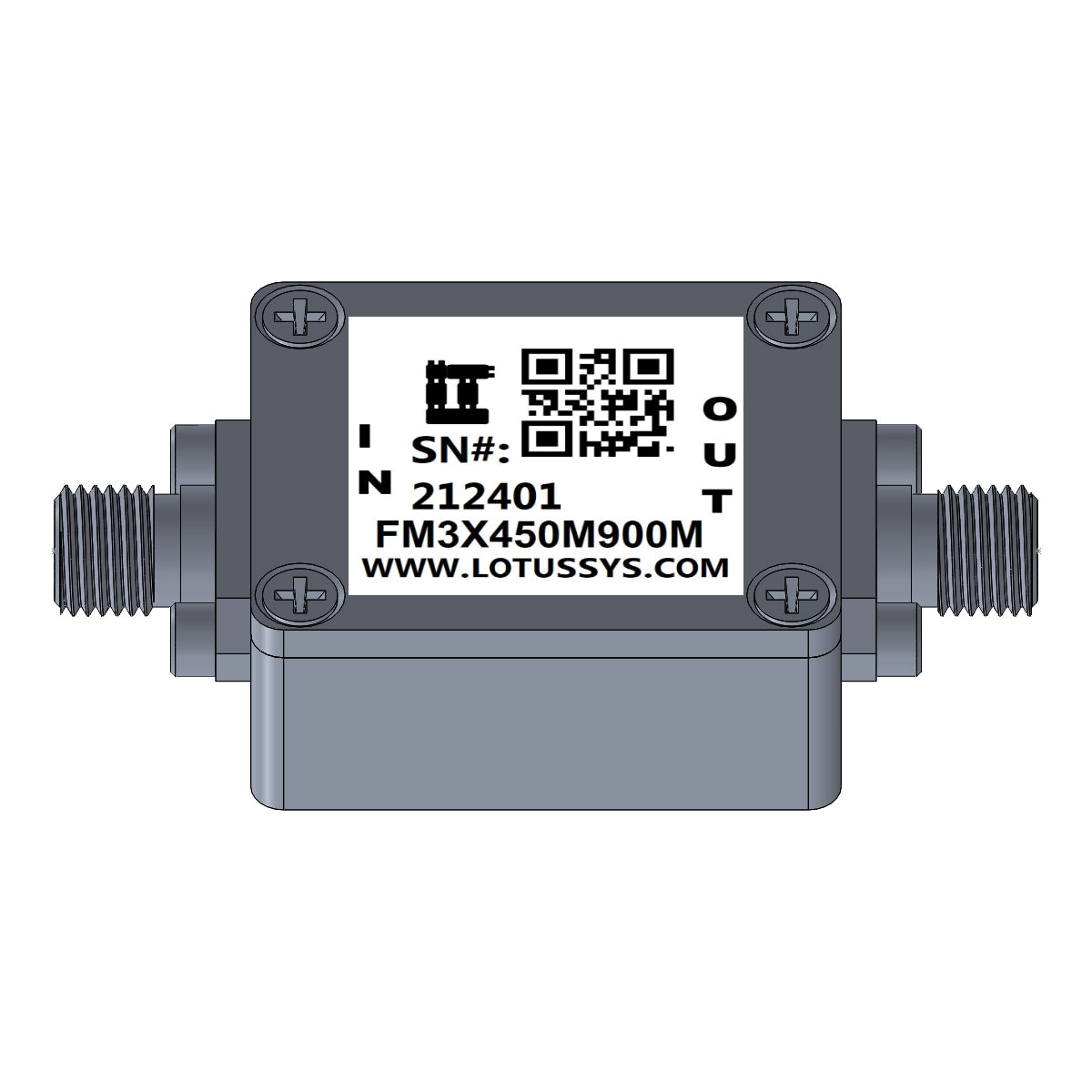

Part Number#: FM3X450M900M Frequency Multiplier X3 with input frequency range from 150-300 MHz and output frequency range from 450-900 MHz.

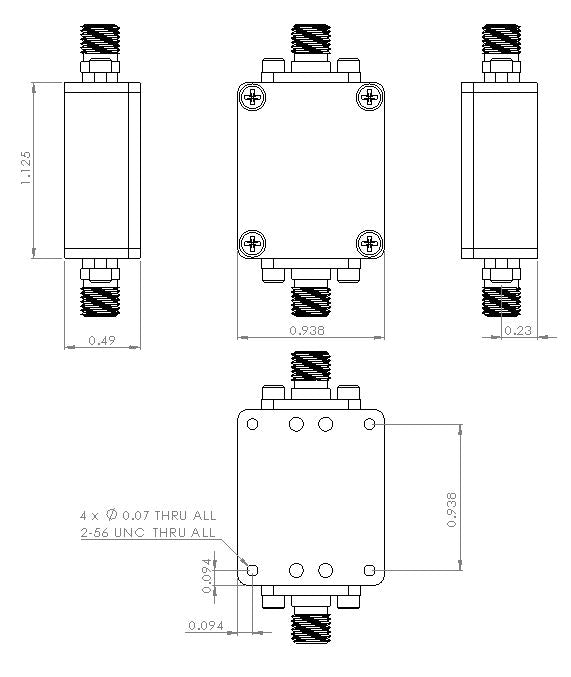

Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".


Features

  • Multiply by M: (M=3)
  • Input Power: +12 to +17 dBm
  • Input Frequency Range: 150-300 MHz
  • Output Frequency Range: 450-900 MHz
  • Conversion Loss: 14dB Typ.
  • Operating Temperature -40 to +85°C

Applications

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM3X450M900M Datasheet
